D27902 VACUUM EXTRACTOR Type 1
[D27902 Type 1]
D27902 VACUUM EXTRACTOR Type 1
Click pentru a mari
Imagini suplimentare
D27902 VACUUM EXTRACTOR Type 1
Click pentru a mari
D27902 VACUUM EXTRACTOR Type 1
Click pentru a mari

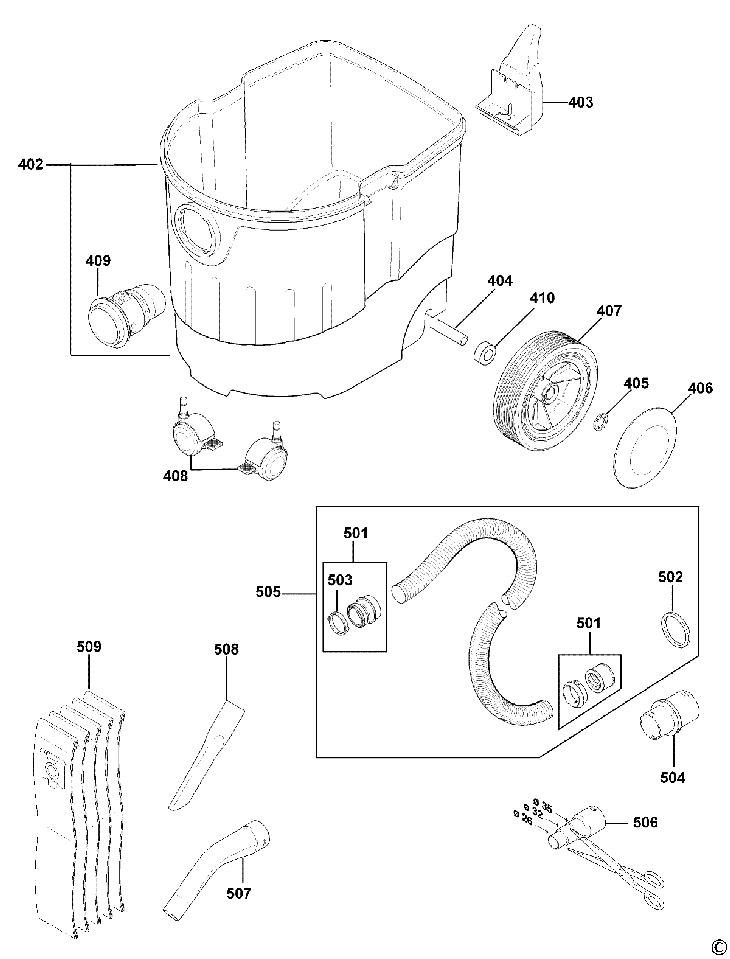

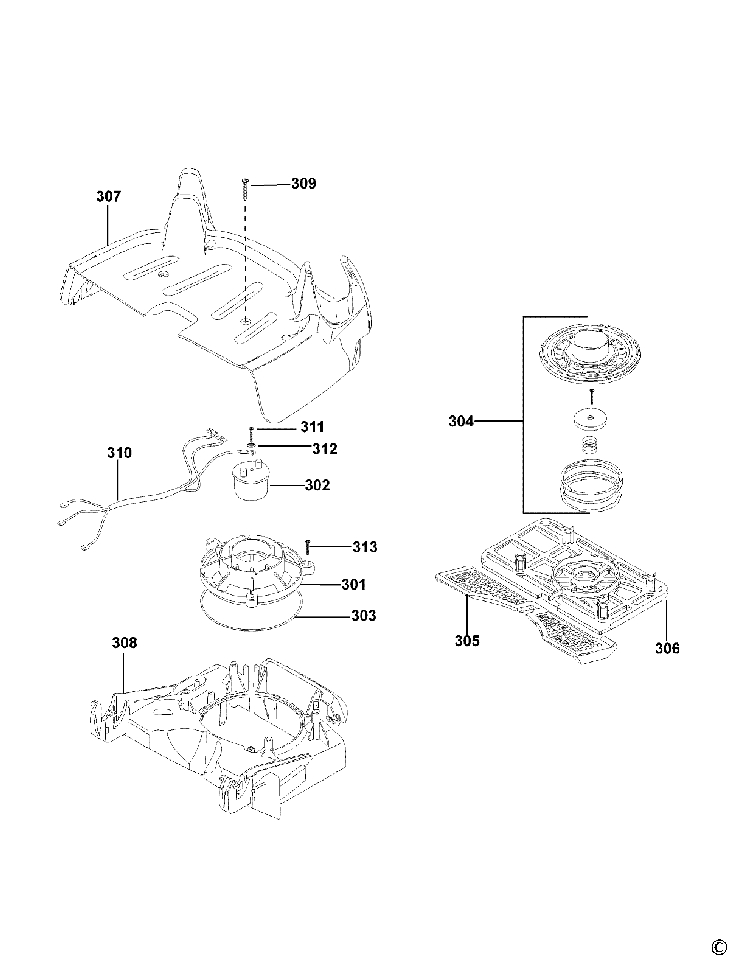

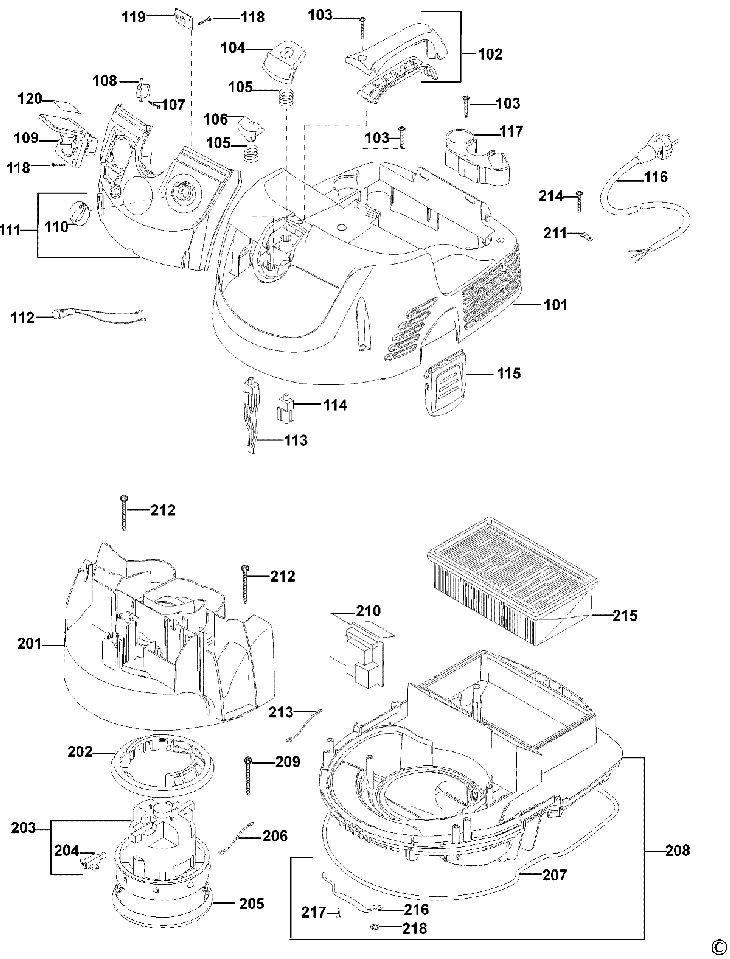

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
101 1 1 COVER SA (1003241-00) 80865 RON
102 1 1 HANDLE SA (1003242-00) 9282 RON
103 1 5 SCREW (1003286-00) 1117 RON
104 1 1 BUTTON (1003259-00) 3018 RON
105 1 1 SPRING (1003262-00) 3018 RON
106 1 1 BUTTON (1003260-00) 4137 RON
107 1 1 SCREW (597071-00) 1117 RON
108 1 1 MICRO SWITCH (597078-00) 7940 RON
109 1 1 SOCKET (597077-00) 43731 RON
110 1 1 KNOB (1003258-00) 190 RON
111 1 1 PANEL SA (1003249-00) 26730 RON
111 1 1 PANEL SA (1003248-00) 26730 RON
112 1 1 LAMPHOLDER SA (597075-00) 5591 RON
113 1 1 SWITCH (1003273-00) 12861 RON
114 1 1 SWITCH (597064-00) 4472 RON
115 1 2 RETAINER (1003250-00) 3466 RON
116 1 1 CORDSET (M/PLUG) GB (1003280-00) 62298 RON
116 1 1 CORDSET (M/PLUG) (1003275-00) 65989 RON
117 1 1 BRACKET (597070-00) 4137 RON
118 1 4 SCREW (597081-00) 893 RON
119 1 1 ELECTRONIC (1003246-00) 34336 RON
119 1 1 ELECTRONIC (1003246-00) 34336 RON
120 1 1 IDENTITY LABEL (597080-00) 4137 RON
201 1 1 HOUSING (1003243-00) 70239 RON
202 1 1 SEAL (1003264-00) 5031 RON
203 1 1 MOTOR SA 230V (1003270-00) 112630 RON
203 1 1 MOTOR SA 120V (1003271-00) 178732 RON
204 1 1 BRUSH PAIR 230V (1003272-00) 9282 RON
204 1 1 BRUSH PAIR 115V SA (1003360-00) 10512 RON
205 1 1 SEAL (1003265-00) 4472 RON
206 1 1 LEADWIRE (1003277-00) 1117 RON
206 1 1 LEADWIRE (1003281-00) 4472 RON
207 1 1 RUBBER SEAL (1003266-00) 6821 RON
208 1 1 HOUSING SA (1003240-00) 59725 RON
209 1 2 INSERT (1003256-00) 3466 RON
210 1 1 ELECTRONIC 230V (1003244-00) 165534 RON
210 1 1 ELECTRONIC 120V (1003247-00) 165534 RON
211 1 1 CABLE CLAMP (560203-00) 3018 RON
212 1 2 SCREW (1003287-00) 1117 RON
213 1 1 LEADWIRE (1003278-00) 1117 RON
214 1 2 SCREW (1003289-00) 1117 RON
215 1 1 FILTER (1003284-00) 32770 RON
216 1 1 SPRING (1003261-00) 6821 RON
217 1 1 SCREW (597105-00) 781 RON
218 1 1 NUT (1003268-00) 893 RON
301 1 1 HOLDER (1003252-00) 5591 RON
302 1 1 MAGNET (1003282-00) 37579 RON
302 1 1 MAGNET (1003283-00) 39145 RON
303 1 1 O RING (1003269-00) 2795 RON
304 1 1 VALVE (1003239-00) 40599 RON
305 1 1 SEAL (1003263-00) 9282 RON
306 1 1 SPRING GUIDE (1003251-00) 7940 RON
307 1 1 COVER-TOP (1003253-00) 1891 RON
308 1 1 COVER (1003254-00) 14315 RON
309 1 4 SCREW (1003290-00) 1788 RON
310 1 1 SET OF LEAD WIRES (1003276-00) 10512 RON
311 1 1 SCREW (1003285-00) 781 RON
312 1 1 WASHER (1003291-00) 781 RON
313 1 3 SCREW (1003288-00) 1229 RON
402 1 1 TANK (597111-00) 91714 RON
403 1 1 BRACKET (597112-00) 4137 RON
404 1 1 AXLE (1003255-00) 5591 RON
405 1 2 RETAINER (1003267-00) 1117 RON
406 1 2 END CAP (597115-00) 4472 RON
407 1 2 WHEEL (597116-00) 12861 RON
408 1 2 CASTOR (597117-00) 32770 RON
409 1 1 CONNECTOR (597118-00) 26730 RON
410 1 2 SPACER (1003257-00) 2795 RON
501 1 1 SERVICE KIT (597119-00) 26730 RON
502 1 1 SEAL (597122-00) 2795 RON
503 1 1 RING (597120-00) 1117 RON
504 1 1 CONNECTOR (597127-00) 14315 RON
505 1 1 HOSE SA (597121-00) 39145 RON
506 1 1 ADAPTOR (597124-00) 12861 RON
507 1 1 TOOL GEN PURPOSE (597128-00) 10512 RON
508 1 1 TOOL CREVICE (597125-00) 4472 RON
509 1 1 BAG FILTER (1003245-00) 28296 RON
