Top » Piese de schimb » PIESE DEWALT » D27400 Type 2

D27400 SITE SAW Type 2
[D27400 Type 2]
D27400 SITE SAW Type 2
Click pentru a mari
Imagini suplimentare
D27400 SITE SAW Type 2
Click pentru a mari
D27400 SITE SAW Type 2
Click pentru a mari

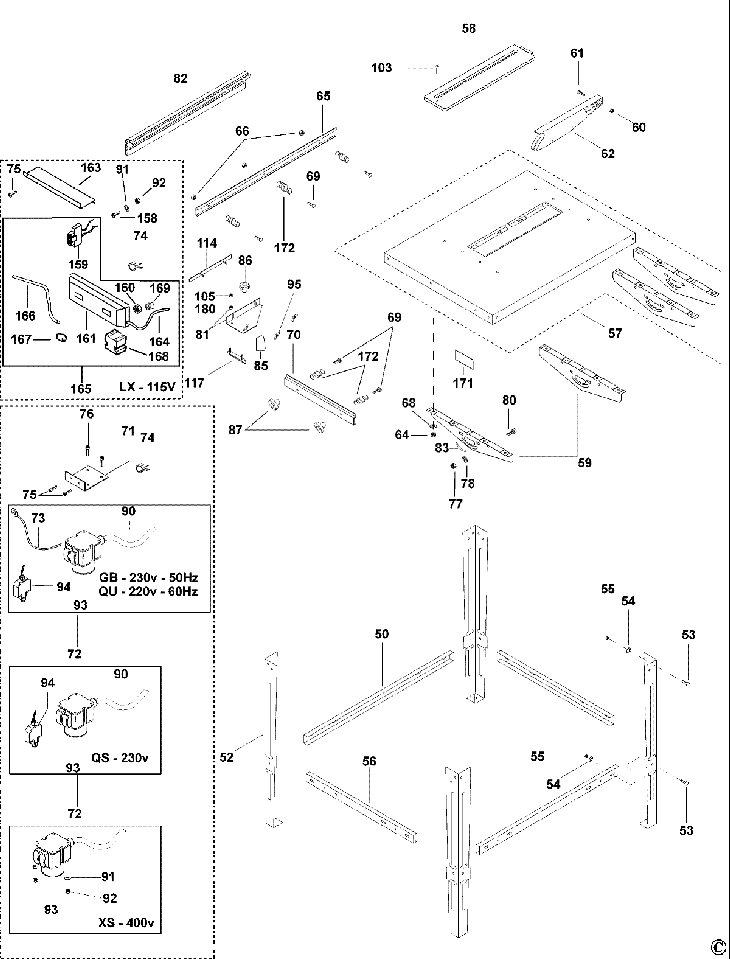

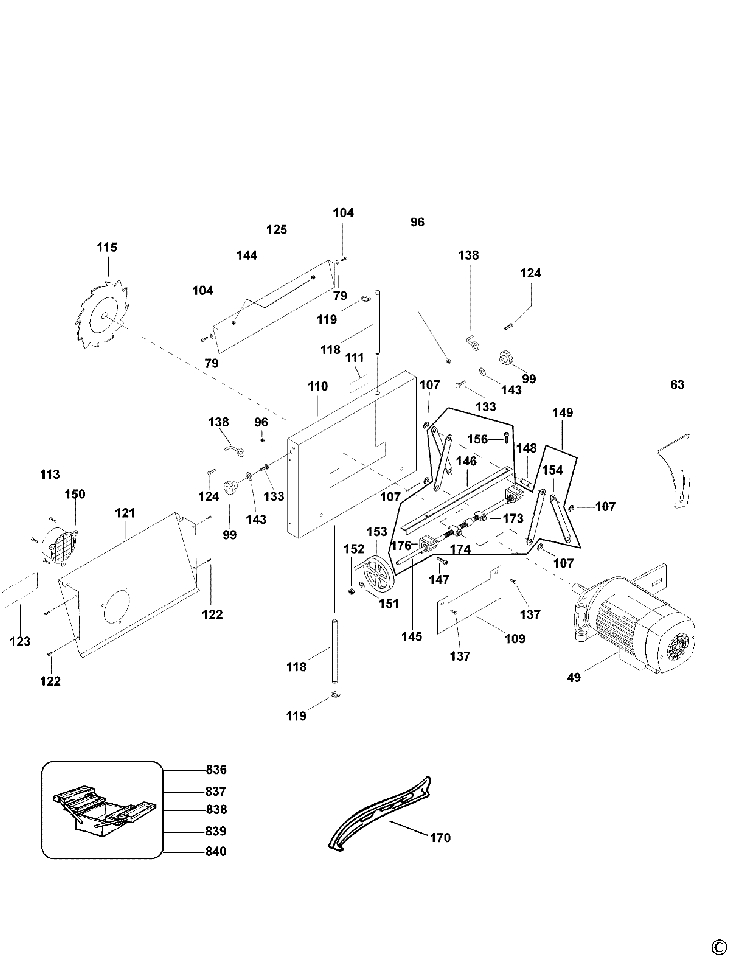

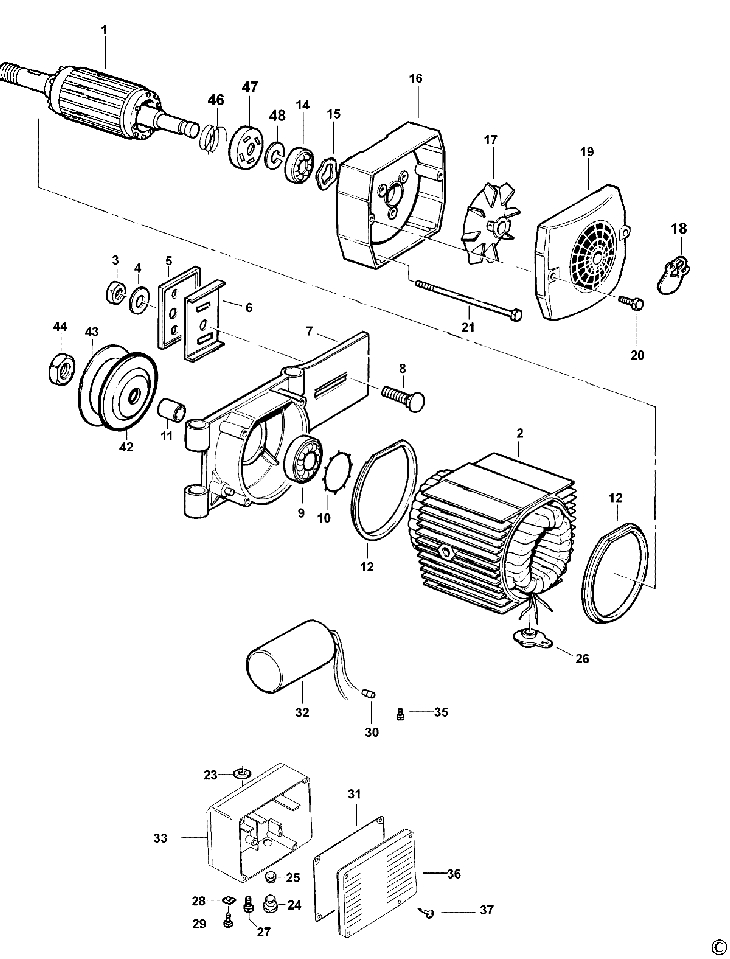

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ROTOR D.62 SITE SAW (868496-00) 59725 RON
1 1 1 ROTOR SITE SAW (868496-02) 39145 RON
1 1 1 ROTOR SITE SAW (868496-01) 4825 RON
2 1 1 STATOR+HOUSING 3153CE 94521908 (868426-01) 257473 RON
2 1 1 STATOR+HOUSING 230/50 D27400 (868393-02) 190812 RON
2 1 1 STATOR+HOUSING DW3151 D65 115- (868393-00) 129966 RON
3 1 1 NUT HEX THICK M.10 UNI 5587 (860083-05) 558 RON
4 1 1 WASHER SPRING CON.10.2X22X1.2 (860074-04) 558 RON
5 1 1 KNIFE PLATE (944360-00) 2347 RON
6 1 1 PLATE (944359-00) 3018 RON
7 1 1 SUPPORT HOUSING SSLC D27400 (868661-00) 59725 RON
8 1 1 SQUARE HEAD BUTTON SCREW M (860301-15) 781 RON
9 1 1 BEARING BALL ISO 6204-2RSL (868768-10) 6821 RON
10 1 1 SEEGER RING D.50 (860806-01) 1452 RON
11 1 1 SPACER BUSH (868973-00) 2795 RON
12 1 2 GASKET FOR MOTOR BELL DW1150 (860718-00) 3018 RON
14 1 1 BEARING 6202 (868768-07) 4137 RON
15 1 1 RING AXIAL LOAD 34.5X28X0.5 (860080-02) 781 RON
16 1 1 REAR CALOTTE (861863-00) 17335 RON
17 1 1 FAN (945841-00) 2347 RON
18 1 1 CAP FOR FAN COVER GUARD DW320 (863112-00) 558 RON
19 1 1 MOTOR GUARD 315 CE (860687-04) 3466 RON
20 1 2 SCREW M4X20 (860094-10) 558 RON
21 1 4 ROD THREADED HEX M.5X145 (860446-00) 558 RON
23 1 1 GOMMINO VITE TERRA D.22 X 12 H4. D27400 (868963-00) 1117 RON
24 1 1 CABLE INLET (868964-00) 781 RON
25 1 1 GOMMINO CONICO 4F x GHIERA SERR. D27400 (868965-00) 558 RON
26 1 1 GASKET FOR CABLE DW 1150 (944652-00) 5591 RON
27 1 1 SCREW PAN PH/TT M.5X16UNI8112 (860094-00) 558 RON
28 1 1 WASHER D4 (933652-00) 558 RON
29 1 1 SCREW PAN PH/TT M.4X8 UNI8112 (860094-02) 558 RON
30 1 1 CONNECTION PLATE FOR POWER-SHO (946085-00) 4137 RON
30 1 1 CLAMP E25 (861257-00) 781 RON
30 1 1 CLAMP E25 (861257-00) 781 RON
31 1 1 GASKET MOTOR BOX D27400 (868962-00) 1788 RON
32 1 1 CAPACITOR 30MF 450 (949772-50) 9282 RON
32 1 1 CAPACITOR 30MF 450 (949772-50) 9282 RON
33 1 1 SCATOLA MOTORE D27400 (868960-00) 2347 RON
36 1 1 COPERCHIO SCATOLA MOTORE D27400 (868961-00) 2347 RON
37 1 4 SCREW PAN.PHAB 3.5X13 UNI6954 (860084-04) 558 RON
37 1 4 VITE TCB 4 2X16 B 6954 (930076-01) 558 RON
42 1 1 INNER FLANGE (868974-00) 5591 RON
43 1 1 OUTER FLANGE (945843-00) 2347 RON
44 1 1 ARBOR NUT 1370-DW12-MC20 (944460-00) 10512 RON
46 1 1 SPRING (861338-05) 781 RON
47 1 1 CAP D.60 5+BUSH (861336-05) 5031 RON
48 1 1 RETAINING RING D.20 (949727-06) 558 RON
49 1 1 MOTOR & SWITCHBOX SA (868760-02) 364960 RON
49 1 1 MOTOR & SWITCHBOX SA (868760-01) 364960 RON
49 1 1 MOTOR & SWITCHBOX SA (868760-00) 318654 RON
50 1 2 LONG CROSS LEG SITE SAW (869015-00) 5031 RON
52 1 4 SITE SAW SAVING LEG (869013-00) 7940 RON
53 1 24 SQUARE HEAD BUTTN SCREW (869010-00) 781 RON
54 1 32 WASHER D.6 2X18X0 8 (860074-07) 558 RON
55 1 24 NUT M6 (860083-12) 558 RON
56 1 2 SHORT SUPPORT FOR SITE SAW SA LEG (869014-00) 4472 RON
57 1 1 PIANO LAVORO+TRAVERSE NT.D27400 Ricambio (868954-00) 49771 RON
58 1 1 TABLE INSERT SSLC (868657-00) 4472 RON
59 1 2 TRAVERSA ATTACCO OSCILL.D27400 (868923-00) 7940 RON
60 1 1 NUT ELAST.STOP M.6 UNI 7474 (860092-00) 558 RON
61 1 1 SCREW SOCKET M.6X25 UNI 5931 (860093-06) 558 RON
62 1 1 GUARD (868681-00) 6821 RON
63 1 1 RIVING KNIFE SSLC (868664-00) 12861 RON
64 1 8 NUT ELAST.STOP M.8 UNI 7473 (860092-01) 558 RON
65 1 1 SUPPORT GONIOMETER D27400 (868700-00) 5031 RON
66 1 3 NUT ELAST.STOP M.6 UNI 7474 (860092-00) 558 RON
68 1 8 WASHER FLAT 8.4X17 UNI6592 ZN (860073-03) 558 RON
69 1 5 SCREW CUP SQUARE M6X20UNI5732 (860301-00) 558 RON
70 1 1 BLOCKING SUPPORT GONIOMETER D27400 (868927-00) 3466 RON
71 1 1 SW.PLATE (944341-00) 2795 RON
72 1 1 TRIPUS PLUG 400/5+FE CE (861283-01) 14265 RON
72 1 1 TRIPUS PLUG 230/5CEE7 (868730-05) 62298 RON
73 1 1 CABLE (949863-23) 1891 RON
74 1 3 STRAP CABLE N5 5/16 NYLON (860843-01) 558 RON
75 1 2 SELF TAPPING SCREW 4 (860084-21) 558 RON
76 1 4 SELF TAPPING SCREW 4 2X16 (930076-00) 558 RON
77 1 4 SOCKET HEAD SCREW (949886-11) 558 RON
78 1 2 TOOTHED WASHER DW320 (933055-00) 558 RON
79 1 2 WASHER FLAT SPEC. 6.4X16X1.5 (860075-00) 558 RON
80 1 4 SOCKET HEAD SCREW (949886-11) 558 RON
81 1 1 SA FENCE+NUT D27400 (868969-00) 22144 RON
82 1 1 FENCE D27400 (868972-00) 14315 RON
83 1 1 BEVEL LABEL D27400 (868763-00) 1452 RON
85 1 1 LABEL FOR MITRE FENCE D27400 (868762-00) 190 RON
86 1 1 KNOB (868704-00) 893 RON
87 1 2 KNOB (860862-02) 3466 RON
90 1 1 CAVO MOTORE H07 3x1 5 D27400 GB Ric. (868877-03) 22144 RON
91 1 2 WASHER FLAT 5.3X10 UNI 6592 (860073-01) 558 RON
92 1 1 NUT HEX THICK M.5 UNI 5587 (860083-02) 558 RON
93 1 1 TRIPUS PLUG 230/5CEE7 (868730-03) 46863 RON
94 1 1 OVERLOAD PROTECTOR 9A (868878-02) 1891 RON
95 1 2 KNOB M6 UNI5448 ZN (720929-00) 558 RON
96 1 2 NUT SELF LOCKING M.8 (860092-05) 558 RON
99 1 2 POMO 4LOBI 731-50 M6 (860862-01) 2124 RON
103 1 1 SCREW (860428-06) 558 RON
104 1 2 SOCKET HEAD SCREW (949886-11) 558 RON
105 1 1 NUT ELAST.STOP M.6 UNI 7474 (860092-00) 558 RON
107 1 6 RING RADIAL SPRING D8 UNI7434 (860322-01) 558 RON
109 1 1 SWINGING PROTECT BLADE 315 (944322-02) 5031 RON
110 1 1 S/A FLOATING + BUSHES D27400 (868656-00) 42277 RON
111 1 1 TARGHETTA DIREZ.LAMA D27400 (868761-00) 3018 RON
113 1 3 SCREW TCBPH3 5X9 5 (860084-23) 558 RON
114 1 1 CLAMP BRACKET D27400 (868706-00) 2124 RON
115 1 1 315 24 30.0 S40 NEG TATRY (5120477-49) 39145 RON
117 1 1 S/A MITRE FENCE BRACKET D27400 (868709-00) 5591 RON
118 1 2 GUIDE COLUMN (944353-00) 6821 RON
119 1 2 CIRCLIP (860322-05) 558 RON
121 1 1 FIXED COVER FLOATING D27400 (868655-00) 3466 RON
122 1 4 SCREW TCBPH3 5X9 5 (860084-23) 558 RON
123 1 1 BRAND LABEL (868863-00) 2124 RON
124 1 2 SCREW HEX M.8X16 UNI 5739 (860085-04) 558 RON
125 1 1 FIXED COVER FLOATING (868663-00) 9282 RON
133 1 2 SCREW CUP SQUARE M6X20UNI5732 (860301-00) 558 RON
137 1 2 SCREW PAN PH/TT M.4X8 UNI8112 (860094-02) 558 RON
138 1 2 RETAINER (868658-00) 2124 RON
143 1 2 WASHER D.8 4X24X2 (941602-00) 558 RON
144 1 2 NUT HEX THICK M.6 UNI 5587 (860083-03) 558 RON
145 1 1 ELEVATING SCREW (944367-02) 12861 RON
146 1 1 PROT.LABEL (944437-00) 2347 RON
147 1 2 SCREW HEX M.8X30 UNI 5739 (860085-20) 558 RON
148 1 1 PIN (945844-00) 1788 RON
149 1 1 ELEVATING SCREW (868725-00) 34336 RON
150 1 1 DUST SPOUT (861428-01) 2795 RON
151 1 1 WASHER FLAT SPEC. 6.4X16X1.5 (860075-00) 558 RON
152 1 1 NUT ELAST.STOP M.6 UNI 7474 (860092-00) 558 RON
153 1 1 HANDLE SA (946474-00) 4472 RON
154 1 4 LINK ARM (944368-00) 105 RON
156 1 2 SCREW PAN PH/TT M.4X8 UNI8112 (860094-02) 558 RON
158 1 1 SCREW FIL.HD M.4X16 UNI6107 Z (760996-00) 558 RON
159 1 1 TERM. LOVATO 11RF25-23 115V.D27400LX Ric (868878-03) 74937 RON
160 1 2 CONTRODADO 116/16 (868955-00) 781 RON
161 1 1 TELESWITCH 115 V. (868956-00) 178732 RON
163 1 1 TELESWITCH SQUARE (946023-00) 7940 RON
164 1 1 MOTOR CABLE D27400 (949788-07) 11519 RON
165 1 1 S/A IMPIANTO D27400 LX (868958-00) 271790 RON
166 1 1 CABLE MT.3 18 UK (949788-65) 20467 RON
167 1 1 CABLE INLET (869025-00) 5591 RON
168 1 1 CONTATTORE LOVATO 11BF20(110) (868957-00) 86681 RON
169 1 2 CABLE INLET (946111-00) 190 RON
170 1 1 PUSH STICK (860610-01) 3466 RON
171 1 1 NAMEPLATE D27400 230V/50 HZ (868733-00) 1117 RON
172 1 5 SPRING (123255-01) 781 RON
173 1 1 REAR PIVOT (944366-00) 3466 RON
174 1 1 BUSH (944366-01) 3466 RON
176 1 2 BRACKET DW315 N.T (945847-01) 2347 RON
180 1 1 NUT D27400 (868978-00) 190 RON
836 1 1 WRENCH HEX 8 UNI 6753 (860098-05) 190 RON
837 1 1 WRENCH HEX 5 UNI 6753 (930574-00) 781 RON
838 1 1 WRENCH TUBULAR HEX.13 - 10 (service) (869235-00) 4137 RON
839 1 1 SPANNER (944463-00) 5591 RON
840 1 1 TUBE WRENCH 10 (760601-00) 2347 RON
