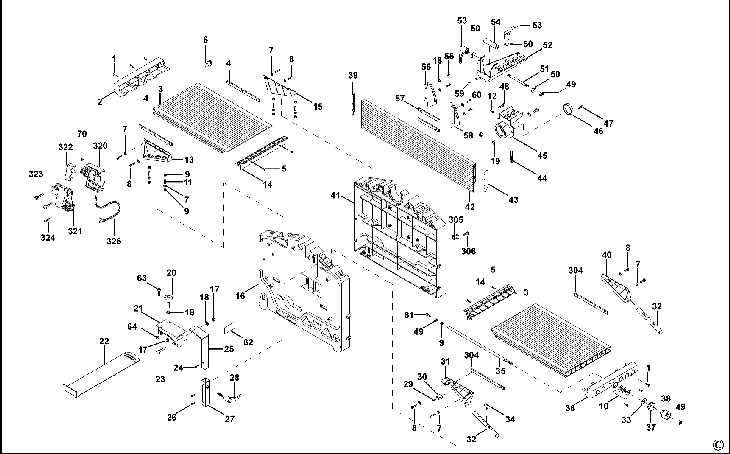

D27300 PLANER THICKNESSER Type 2
[D27300 Type 2]
D27300 PLANER THICKNESSER Type 2
Click pentru a mari
Imagini suplimentare

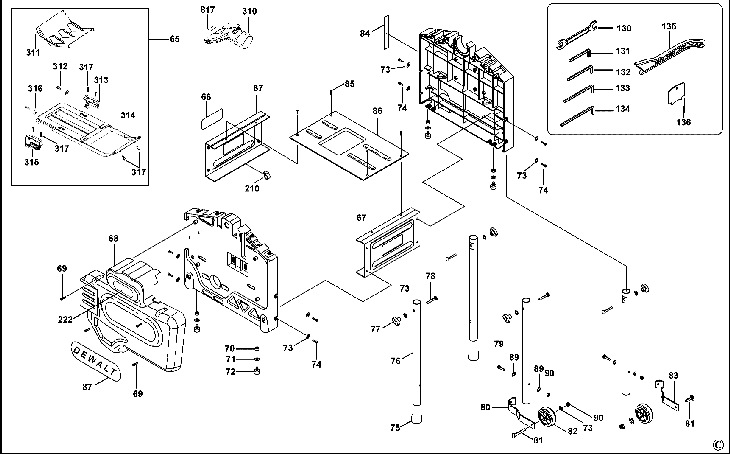

D27300 PLANER THICKNESSER Type 2
Click pentru a mari

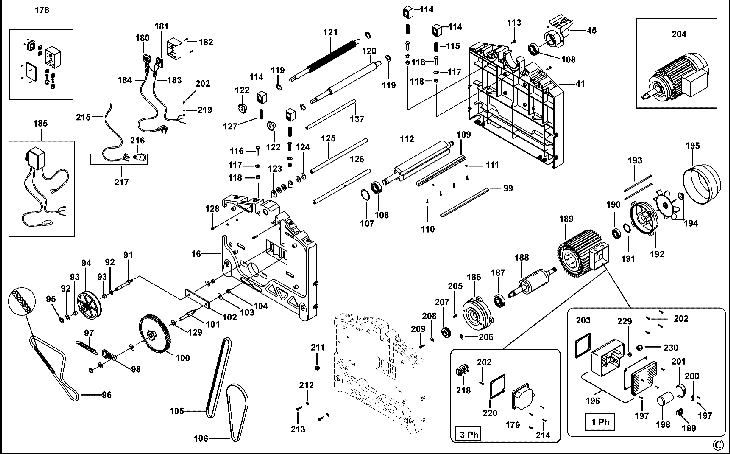

D27300 PLANER THICKNESSER Type 2
Click pentru a mari

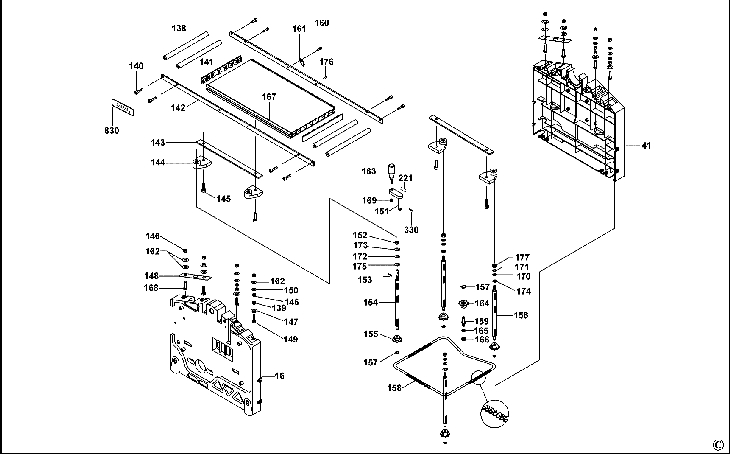

D27300 PLANER THICKNESSER Type 2
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 6 SCREW PAN.PHAB 4.2X32 UNI6954 (860084-07) 558 RON
2 1 1 COVER (868852-01) 3466 RON
3 1 2 PIANO FILO ESTRUSO (868850-00) 80865 RON
4 1 2 PLATE (N078778) 7940 RON
5 1 4 SCREW (860428-07) 558 RON
6 1 1 SCREW DUST EXTRACTOR LOCKING (N079513) 3466 RON
7 1 12 WASHER SPRING CON.D8.2X18X1 (860074-03) 558 RON
8 1 8 SCREW (868883-00) 558 RON
9 1 10 NUT HEX THICK M.8 UNI 5587 (860083-04) 558 RON
10 1 2 BEARING (861475-00) 2347 RON
11 1 4 SCREW (760242-00) 781 RON
12 1 2 WASHER SPRING CON.D6.2X14X0.9 (860074-02) 558 RON
13 1 1 SUPPORTO PIANO FISSO DX (868859-00) 7940 RON
14 1 1 COVER (868851-02) 3018 RON
15 1 1 SUPPORTO PIANO FISSO SX (868860-00) 9282 RON
16 1 1 SIDE RH (868816-00) 74937 RON
17 1 2 NUT ELAST.STOP M.6 UNI 7474 (860092-00) 558 RON
18 1 6 WASHER FLAT 6.4X12.5 UNI 6592 (720959-00) 558 RON
19 1 2 NUT HEX THICK M.6 UNI 5587 (860083-03) 558 RON
20 1 1 KNOB (942895-06) 781 RON
21 1 1 PROTECT.SUPP.DW1160 (865910-00) 4137 RON
22 1 1 PROTECTION DW1160 (865909-00) 5591 RON
23 1 1 SQ.HD.SCREW M.6X50 (860301-13) 558 RON
24 1 1 SCREW M4X8 UNI8113 (860205-04) 558 RON
25 1 1 TUBE (868843-01) 6821 RON
26 1 2 VITE TSPPH 6X14 UNI 8113 (860205-07) 558 RON
27 1 1 TUBO SUPPORTO PROTEZIONE (868842-00) 6821 RON
28 1 1 LEVER (861841-03) 3018 RON
29 1 1 SCREW PAN PH/TT M.4X8 UNI8112 (860094-02) 558 RON
30 1 1 INDEX (868874-00) 2347 RON
31 1 1 LEFT SIDE FLANGE (868854-00) 14315 RON
32 1 2 TRAFILATO GUIDA D16 (868856-00) 7940 RON
33 1 1 WASHER SPRING CURV.A8 UNI8840 (860658-01) 558 RON
34 1 1 SCALA FILO (868873-00) 190 RON
35 1 1 ASTA TIRANTE SOLLEVAMENTO (868857-00) 9282 RON
36 1 1 COVER (868852-00) 3466 RON
37 1 1 NUT (868885-00) 3466 RON
38 1 1 KNOB PLANING ADJ.LOCK (868858-00) 5591 RON
39 1 1 TAPPO PER BATTUTA (868876-01) 893 RON
40 1 1 SUPPORTO PIANO MOB. DX D27300 FN (868853-00) 15993 RON
41 1 1 SIDE RH (868811-01) 74937 RON
42 1 1 BATTUTA ESTRUSA (868849-00) 40599 RON
43 1 1 TAPPO PER BATTUTA (868876-00) 893 RON
44 1 1 SCREW CUP SQUARE M8X25UNI5732 (860301-01) 781 RON
45 1 1 LEFT SIDE FLANGE (868841-00) 20467 RON
46 1 1 FRONT CAP-DA410 (868887-00) 893 RON
47 1 1 SCREW PAN PH/TT M.4X10UNI8112 (860094-03) 558 RON
48 1 2 SCREW SOCKET M.6X30 UNI 5931 (860093-11) 558 RON
49 1 3 NUT ELAST.STOP M.8 UNI 7473 (860092-01) 558 RON
50 1 3 WASHER D.8 4X24X2 (941602-00) 558 RON
51 1 1 PERNO SNODO BATTUTA (868846-00) 4472 RON
52 1 1 SLITTA BATTUTA (868844-00) 6821 RON
53 1 2 LEVER (861840-03) 2795 RON
54 1 1 DISTANZIALE PERNO BATTUTA (868847-00) 4137 RON
55 1 4 SOCKET HEAD SCREW (760219-00) 558 RON
56 1 1 LEFT BRACKET (868845-01) 3018 RON
57 1 2 LARDONE SERRAGGIO BATTUTA (868848-00) 4472 RON
58 1 1 RIGHT BRACKET (868845-00) 3018 RON
59 1 1 SCREW HEX M.6X20 UNI5739 BLCK (860085-09) 558 RON
60 1 2 NUT M6 (860083-12) 558 RON
61 1 1 SCREW (868910-00) 781 RON
62 1 1 BRAND LABEL (868882-00) 893 RON
63 1 1 SCREW SOCKET M.5X25 UNI 5931 (860093-08) 558 RON
64 1 1 NUT M5 (860092-03) 558 RON
65 1 1 SA DUST EXTRACTOR D27300 (N078792) 25164 RON
66 1 1 NAMEPLATE D27300-GB T.2 (N050441) 3018 RON
67 1 2 TRAVERSA LAMIERA D27300 Vr. (868822-00) 12861 RON
68 1 1 CARTER (868862-01) 7940 RON
69 1 4 SCREW PAN PH/TT M.5X10UNI8112 (860094-06) 558 RON
70 1 5 NUT HEX MEAN M.8 UNI5588 ZINC (860083-14) 558 RON
71 1 4 WASHER LOCK A 8.2 DIN 6798 (860078-02) 558 RON
72 1 4 RUBBER M.8 (941614-00) 1452 RON
73 1 14 WASHER FLAT 8.4X17 UNI6592 ZN (860073-03) 558 RON
74 1 8 SOCKET HD.SCREW M8X16 (949886-16) 558 RON
75 1 4 BASE FOOT D.32 TGS273 (861073-00) 5591 RON
76 1 4 ZAMPA D27300 (868864-00) 7940 RON
77 1 4 WING NUT M8 (941756-00) 1229 RON
78 1 4 SCREW QST 8x45 UNI5731 ZN (860301-18) 781 RON
79 1 2 SCREW M8X45 5739 (860085-29) 781 RON
80 1 1 WHEEL SUPPORT (868875-00) 4137 RON
81 1 2 PERNO PER RUOTA (868866-00) 3466 RON
82 1 2 RUOTA D80 (868865-00) 2795 RON
83 1 1 WHEEL SUPPORT (868875-01) 4137 RON
84 1 1 SCALE (868871-00) 2795 RON
85 1 4 SCREW TCBPH 3 9X9 5 (760271-01) 558 RON
86 1 1 CARTER COPRICATENA SOLLEV (868823-00) 3466 RON
87 1 1 BRAND LABEL (868863-00) 2124 RON
89 1 4 WASHER SPRING CON.D8.2X18X1 (860074-03) 558 RON
90 1 4 NUT HEX THICK M.8 UNI 5587 (860083-04) 558 RON
91 1 1 STUD (868835-00) 5591 RON
92 1 4 WASHER (932302-00) 558 RON
93 1 2 BUSHING SPROCKET DW 1150 (123219-00) 2795 RON
94 1 1 PULLEY FLAT+GEAR D27300 (123316-01) 7940 RON
95 1 2 RING SPRING SHAFT D10 UNI7435 (860079-02) 558 RON
96 1 1 CHAIN (868830-01) 3466 RON
97 1 1 MOLLA A TRAZIONE D.9 D27300 (868755-00) 1117 RON
98 1 1 CHAIN STRETCHER SPRUNG EPT-DW (860753-00) 2795 RON
99 1 2 KNIFE 260X21X3 HSS ELU (862958-01) 1891 RON
100 1 1 WHEEL D27300 (868870-00) 5591 RON
101 1 1 STUD (868834-00) 4472 RON
102 1 1 PIASTRA PERNI TRASMISSIONE (868833-00) 4472 RON
103 1 2 WASHER D.8 4X24X2 (941602-00) 558 RON
104 1 2 NUT HEX THICK M.8 UNI 5587 (860083-04) 558 RON
105 1 1 CINGHIA TRAPEZ.Z/10 LI825 DENT (868838-00) 10512 RON
106 1 1 BELT (868837-00) 14315 RON
107 1 1 RING (932293-00) 781 RON
108 1 2 BEARING BALL ISO 6204-2Z (860155-08) 6821 RON
109 1 2 WEDGE CLAMP L.260 DW 1150 (123266-01) 40599 RON
110 1 8 SCREW (949703-10) 1117 RON
111 1 4 KNIFE ADJ. SCREW DW50-55 (863644-00) 2347 RON
112 1 1 CUTTER BLOCK DW1150 VIC. (868840-00) 398067 RON
113 1 2 SCREW SOCKET M.6X14 UNI 5931 (860093-15) 558 RON
114 1 4 BLOCKS FOR DRAGGING ROLLER DW (863658-00) 1452 RON
115 1 2 SPRING 1 DRAGGING ROLL.DW1150 (123232-00) 1117 RON
116 1 4 SCREW (942043-00) 781 RON
117 1 4 WASHER SPRING CON.D8.2X18X1 (860074-03) 558 RON
118 1 4 CAP NUT M8DIN917 (941563-00) 893 RON
119 1 4 WASHER-SHIM 16X23.5X1 (860226-02) 558 RON
120 1 1 ROLLER (868868-00) 25164 RON
121 1 1 ROLLER (868869-00) 23598 RON
122 1 2 SPROCKET (860282-03) 3018 RON
123 1 32 ANTI KICK BACK D27300 (868884-00) 781 RON
124 1 51 WASHER FLAT 13X24 UNI 6592 (860073-05) 558 RON
125 1 1 BAR (868819-00) 9282 RON
126 1 1 BAR (868818-00) 10512 RON
127 1 2 SPRING 2 DRAGGING ROLL.DW1150 (123233-00) 1117 RON
128 1 2 SOCKET HD.SCREW M8X16 (949886-16) 558 RON
129 1 1 WASHER (932285-00) 2347 RON
130 1 1 SPANNER 10/13 DW50-55 (949751-07) 190 RON
131 1 1 WRENCH HEX 2.5 UNI 6753 (943271-00) 558 RON
132 1 1 WRENCH (949882-01) 781 RON
133 1 1 WRENCH HEX 5 UNI 6753 (930574-00) 781 RON
134 1 1 WRENCH HEX 6 UNI 6753 (860098-04) 781 RON
135 1 1 PUSH STICK (860610-01) 3466 RON
136 1 1 KNIFE SETTING GAUGE DW50-55 (863648-00) 1788 RON
137 1 1 BAR FENCE (868820-00) 3466 RON
138 1 4 RULLO ESTENS.PIANO SPESSORE (868828-00) 7940 RON
139 1 4 NUT HEX MEAN M.8 UNI5588 ZINC (860083-14) 558 RON
140 1 8 SCREW HEX M.6X12 UNI5739 BLCK (860085-13) 558 RON
141 1 2 FRONT CAP-DA410 (868886-00) 1229 RON
142 1 2 TRAVERSA PROL.PIANO SPESSORE (868827-00) 11519 RON
143 1 2 PIASTRINA SERRAGGIO PIANO SPES (868829-00) 4137 RON
144 1 4 SUPPORTO PIANO SPESSORE (868814-00) 5591 RON
145 1 4 SCREW SOCKET M.8X12 UNI 5931 (860093-14) 558 RON
146 1 12 NUT HEX THICK M.8 UNI 5587 (860083-04) 558 RON
147 1 4 WASHER D.8 4X24X2 (941602-00) 558 RON
148 1 2 PIASTRA BATTUTA GRANI (868861-00) 1229 RON
149 1 4 SCREW M8X45 5739 (860085-29) 781 RON
150 1 4 WASHER (949876-19) 558 RON
151 1 1 LEVER (N078791) 12861 RON
152 1 1 NUT (860092-06) 558 RON
153 1 1 PIN (860096-07) 558 RON
154 1 1 ELEVATING SCREW (N078776) 9282 RON
155 1 4 WHEEL SPROCKET 1/2X3.2-9-D9.5 (860282-02) 2347 RON
156 1 3 VITE SOLLEVAMENTO CONDOTTA (868812-00) 6821 RON
157 1 5 CIRCLIP (911392-00) 558 RON
158 1 1 CHAIN (868830-00) 6821 RON
159 1 1 STUD (868813-00) 2347 RON
160 1 1 SCREW (943023-00) 558 RON
161 1 1 POINTER (868872-00) 2347 RON
162 1 12 WASHER SPRING CON.D8.2X18X1 (860074-03) 558 RON
163 1 1 HANDLE (868881-00) 5031 RON
164 1 1 SPROCKET EPT1900 (865774-00) 3466 RON
165 1 1 WASHER FLAT SPEC. 6.4X16X1.5 (860075-00) 558 RON
166 1 1 NUT M6 (860083-12) 558 RON
167 1 1 PIANO SPESSORE ESTRUSO (868825-00) 112630 RON
168 1 4 SCREW HEX HD M8X35 (860085-27) 781 RON
169 1 1 NUT ELAST.STOP M.6 UNI 7474 (860092-00) 558 RON
170 1 3 BEARING (861475-00) 2347 RON
171 1 3 WASHER DRIVE 8X17X2 WIDE 7 (860286-00) 1117 RON
172 1 1 BEARING (932227-00) 4472 RON
173 1 1 WASHER (868815-00) 1117 RON
174 1 3 WASHER D 8 1 (931892-00) 558 RON
175 1 1 WASHER (932302-00) 558 RON
176 1 4 SCREW (949743-02) 781 RON
177 1 3 NUT ELAST.STOP M.8 UNI 7473 (860092-01) 558 RON
178 1 1 BOX D27300 (868880-00) 57488 RON
180 1 1 CONTACT 1PH D27300 (868242-05) 65989 RON
181 1 1 OVERLOAD PROTECTOR D27300 (868878-00) 5484 RON
182 1 2 SELF TAPPING SCREW 4 (860084-21) 558 RON
183 1 1 MOTOR CABLE (868877-07) 62298 RON
184 1 1 CABLE 1 PH (868879-01) 20467 RON
185 1 1 S/A SWITCH KLINGER D27300 GB SC (N380197) 165534 RON
185 1 1 S/A SWITCH KLINGER D27300 GB SC (N380197) 165534 RON
186 1 1 CALOTTA ANTERIORE MEC80 GR (868802-00) 15993 RON
187 1 1 BEARING BALL ISO 6204-2Z (860155-08) 6821 RON
188 1 1 ROTOR SITE SAW (868425-07) 51337 RON
189 1 1 STATOR SA 230V (868541-06) 14265 RON
190 1 1 BEARING 6203 2Z ISB (861721-00) 2347 RON
191 1 1 RING AXIAL LOAD 39X33X0.5 (860080-00) 558 RON
192 1 1 COVER (868801-00) 7940 RON
193 1 4 MOTOR TIE ROD M5X150 (860446-02) 781 RON
194 1 1 FAN D.140 (861718-00) 1788 RON
195 1 1 END CAP (868805-00) 2795 RON
196 1 1 BOX (868807-00) 4137 RON
197 1 7 SCREW PAN.PHAB 3.5X13 UNI6954 (860084-04) 558 RON
198 1 1 CAPACITOR 30MF 450 (949772-50) 9282 RON
199 1 1 CONNECTOR BOX 4 POLES 4 SQMM (860468-02) 2347 RON
200 1 1 BLOCCACAVO (868809-00) 558 RON
201 1 1 CLAMP (868808-00) 781 RON
202 1 5 SCREW PAN PH/TT M.4X8 UNI8112 (860094-02) 558 RON
203 1 1 GASKET (868806-00) 1117 RON
204 1 1 MOTOR SA (868387-15) 257473 RON
205 1 1 KEY FEATHER A-5X5X16 UNI 6604 (860539-01) 781 RON
206 1 2 WASHER D.23 5X10 5X3 (861068-00) 893 RON
207 1 1 PULEGGIA MOTORE D27300 (868832-00) 9282 RON
208 1 1 WASHER DEB 6X18X1 7 (861983-01) 781 RON
209 1 1 SCREW SOCKET M.6X14 UNI 5931 (860093-15) 558 RON
210 1 1 CLIP (945848-00) 781 RON
211 1 1 BOCCOLA PASSACAVO HEYCO (868831-00) 893 RON
212 1 2 WASHER (949876-19) 558 RON
213 1 2 SCREW SOCKET M.8X20 UNI 5931 (860093-07) 558 RON
214 1 5 SCREW PAN PH/TT M.4X10UNI8112 (860094-03) 558 RON
218 1 1 CONNECTION PLATE FOR POWER-SHO (946085-00) 4137 RON
219 1 1 WASHER D4 (933652-00) 558 RON
220 1 1 GASKET FOR CONNECT.BOX-INDUSTR (868806-02) 1229 RON
221 1 1 LABEL D27300 (868922-00) 893 RON
222 1 1 LABEL D27300 (868921-01) 1788 RON
229 1 1 BUSHING (868965-01) 558 RON
230 1 1 CABLE INLET (868964-00) 781 RON
304 1 1 PLATE (N078777) 5591 RON
305 1 1 HOLDER (391358-01) 1117 RON
306 1 1 SCREW (080914604) (720688-02) 558 RON
310 1 1 SA SUCTION SPOUT D27300 (N078798) 10512 RON
311 1 1 COVER DUST EXTR. (N078793) 10512 RON
312 1 2 SCREW MICROSWITCH DRIVE (N078803) 4137 RON
313 1 1 LH SUPPORT (N080521) 1788 RON
314 1 1 BASE DUST EXTRACTION (N078797) 11519 RON
315 1 1 RH SUPPORT (N080520) 1788 RON
316 1 2 CIRCLIP (911392-00) 558 RON
317 1 6 SCREW (949896-12) 558 RON
320 1 1 PLASTIC BOX MICROSWITCH D27300 (N078801) 4137 RON
321 1 1 COVER BOX MICROSWITCH D27300 (N078802) 3018 RON
322 1 1 MICROSWITCH MS (N073708) 15993 RON
323 1 2 SOCKET HEAD SCREW (860093-20) 558 RON
324 1 1 SELF TAPPING SCREW (949896-13) 558 RON
325 1 1 CABLE MICROSWITCH (N075049) 62298 RON
330 1 1 SCREW (330022-16) 558 RON
817 1 1 LABEL DEWALT (641845-00) 1788 RON
830 1 1 WARNING LABEL (625450-00) 893 RON

Conditii Generale
