Top » Piese de schimb » PIESE DEWALT » D27113 Type 1

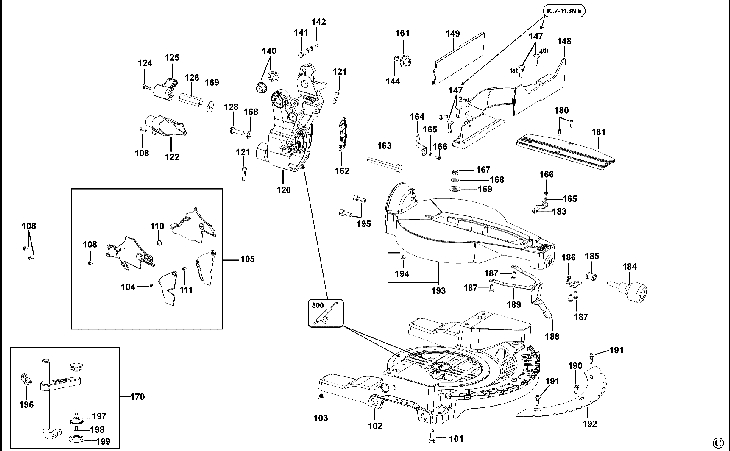

D27113 TABLE TOP MITRE SAW Type 1
[D27113 Type 1]
D27113 TABLE TOP MITRE SAW Type 1
Click pentru a mari
Imagini suplimentare
D27113 TABLE TOP MITRE SAW Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
101 1 1 SCREW HEX M.8X25 UNI 5739 (860085-19) 558 RON
102 1 1 BASE D27113 SERVICE (N140117) 80865 RON
103 1 4 RUBBER FEET (153612-00) 781 RON
104 1 1 SCREW (98093-76) 558 RON
105 1 1 SA BACK GURAD D27113 SERVICE (N140118) 34336 RON
108 1 4 SCREW (330045-23) 781 RON
110 1 1 TORSION SPRING (N053752) 1117 RON
111 1 1 SHOULDER SCREW (153639-00) 781 RON
120 1 1 TRUNNION D27113 SERVICE (N140119) 43731 RON
121 1 2 SCREW (391346-00) 781 RON
122 1 1 DUST PORT (N056425) 2347 RON
124 1 1 SCREW M5X16 (395382-01) 558 RON
125 1 1 LOCK LEVER (397080-00) 1452 RON
126 1 1 BEVEL NUT (397089-00) 2124 RON
128 1 1 SCREW (612008-00) 781 RON
140 1 2 BUSHING NYLINER (N083191) 781 RON
141 1 1 PIN LOCKING (N170479) 3466 RON
142 1 1 GASKET DW250-DW252 (949746-02) 558 RON
144 1 1 NUT ELAST.STOP M.6 UNI 7474 (860092-00) 558 RON
147 1 4 SCREW (98105-03) 558 RON
148 1 1 FIXED FENCE D27113 SERVICE (N140120) 32770 RON
149 1 1 SA SLIDING FENCE D27113 SERVICE (N140121) 20467 RON
161 1 1 KNOB M6 D27112 (653947-00) 105 RON
162 1 1 BEVEL SCALE (N065550) 2347 RON
163 1 1 SCREW HEX 10x80 DIN 933 LH (638875-00) 1117 RON
164 1 1 BEVEL POINTER (N065549) 2347 RON
165 1 2 WASHER (249233-00) 558 RON
166 1 2 SCREW (98093-76) 558 RON
167 1 1 NUT SELF LOCKING M.8 (860092-05) 558 RON
168 1 2 WASHER (613270-00) 781 RON
169 1 2 LAP WASHER (153781-00) 781 RON
170 1 1 SA CLAMP D27113 SERVICE (N140122) 1891 RON
180 1 2 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
181 1 1 KERF PLATE (N045946) 4137 RON
183 1 1 POINTER (398693-00) 105 RON
184 1 1 KNOB (145439-10) 2124 RON
185 1 1 BUSHING CLAMP (146733-00) 1229 RON
186 1 1 CLAMP (391357-00) 781 RON
187 1 4 SCREW (330045-55) 558 RON
188 1 1 COVER (148611-00) 558 RON
189 1 1 SPRING DETENT (146745-00) 3018 RON
190 1 1 SCREW (330045-23) 781 RON
191 1 2 SHOULDER SCREW (604987-00) 781 RON
192 1 1 DETENT (391292-01) 9282 RON
193 1 1 ROTARY TABLE D27113 SERVICE (N140123) 59725 RON
194 1 2 SLIDE ROLLER (640146-00) 893 RON
195 1 2 SCREW SOCKET M.8X20 UNI 5931 (860093-07) 558 RON
196 1 1 KNOB LOWER (147107-02) 1117 RON
197 1 1 PAD CLAMP DW777 (630068-00) 781 RON
198 1 1 SCREW (330045-55) 558 RON
199 1 1 CLAMP CAP DW777 (630085-00) 781 RON
210 1 1 SA TABLE SAW GUARD TTMS (N095523) 12861 RON
211 1 1 VITE COLLETO 10X18 M8X12 (612282-00) 1452 RON
212 1 3 SCREW (330045-23) 781 RON
213 1 1 NUT HEX THIN M.8 UNI5589 ZINC (860083-15) 558 RON
214 1 1 RIVING KNIFE D27113 (N095520) 9282 RON
220 1 4 SCREW TCBPH5 5X38 6954ZP (860084-24) 558 RON
221 1 4 WASHER SPRING CON.D6.2X14X0.9 (860074-02) 558 RON
222 1 2 SCREW (330045-32) 781 RON
223 1 1 TOP TABLE TTMS SERVICE (N114229) 53015 RON
224 1 1 SCALE D27111 (637807-00) 190 RON
225 1 1 SA XPS LED D27113 SERVICE (N142445) 26730 RON
226 1 2 SCREW (330045-55) 558 RON
227 1 1 FIX GUARD (N052767) 4472 RON
228 1 1 TT BTM GUARD SA D27113 SERVICE (N142446) 10512 RON
229 1 5 SCREW (98093-76) 558 RON
230 1 2 SCREW PLASTITE (330013-02) 558 RON
231 1 2 SCREW (330045-55) 558 RON
235 1 1 HOLDER (391358-01) 1117 RON
236 1 3 SCREW PAN PH/TT M.4X8 UNI8112 (860094-02) 558 RON
237 1 1 PUSH STICK (860610-01) 3466 RON
238 1 1 COLUMN EXTRUDED D27113 (N054742) 9282 RON
239 1 1 LAP WASHER (153781-00) 781 RON
240 1 1 SPACER BEVEL D27111 (606362-01) 893 RON
241 1 1 WEDGE FOR COLUMN PLAJ ADJ. (N082707) 1452 RON
242 1 2 SCREW (N124653) 781 RON
245 1 1 NUT SELF LOCKING M.8 (860092-05) 558 RON
246 1 2 WING NUT M8 (941756-00) 1229 RON
248 1 1 SPACER (639383-00) 1229 RON
249 1 1 SPRING (633290-04) 10512 RON
250 1 1 SPACER SPRING D27111 (642980-00) 1452 RON
251 1 1 BUSH (N144184) 190 RON
255 1 1 WAVY WASHER (153655-00) 558 RON
256 1 1 JOINT AXLE (397128-00) 2795 RON
257 1 1 SHOULDER SCREW (153639-00) 781 RON
258 1 1 UNLOCKING HEAD BAR D27111 (637193-00) 2795 RON
259 1 1 TORSIONAL SPRING (637289-00) 781 RON
260 1 2 SCREW (949894-02) 558 RON
265 1 1 CLAMP LEVER PUSH (637338-00) 1452 RON
266 1 1 LEVA BLOCC.BATTUTA REFIL.FN (605794-00) 3018 RON
268 1 1 SPINA CILINDR.D6X50 (605795-00) 893 RON
269 1 1 INDICE BATTUTA REFIL.D27105 (605798-00) 781 RON
270 1 1 SQUADRETTA BLOCCAGGIO BATT.REF (605796-00) 781 RON
275 1 1 WASHER CLAMP (392948-00) 558 RON
276 1 1 SCREW (612008-00) 781 RON
277 1 1 KNOB D.40X16-M8X23-BLACK (862427-00) 781 RON
278 1 1 Nut Fence Guide D27111 (637805-00) 4137 RON
279 1 1 BRACKET FENCE D27111 (634738-00) 3466 RON
280 1 1 SLIDING RIPPING FENCE D27111 (637806-00) 17335 RON
285 1 1 S/A FENCE D27111 (869231-04) 3124 RON
286 1 1 WRENCH TORX T30 (385567-03) 1452 RON
287 1 1 WRENCH TORX T40 (385567-04) 1452 RON
288 1 1 SCREW TRIL (330045-33) 781 RON
289 1 1 BUSH (385756-01) 1229 RON
290 1 1 BRACKET (624195-01) 1117 RON
291 1 1 ARM D27113 SERVICE (N142447) 74937 RON
292 1 1 STUD D27113 (N144183) 3018 RON
293 1 2 SCREW (150075-00) 781 RON
295 1 1 SCREW (330045-13) 558 RON
296 1 1 CLAMP D23700 (625857-00) 1117 RON
297 1 3 Screw Metal (330045-15) 781 RON
298 1 1 ARM COVER (N052443) 6821 RON
310 1 1 LABEL DEWALT (641845-00) 1788 RON
312 1 1 BLADE BOLT (647776-00) 781 RON
313 1 1 CLAMP OUTER (604765-00) 3466 RON
314 1 1 FLANGIA INTERNA D27201 (616319-00) 5031 RON
314 1 1 CLAMP INNER (N186624) 10512 RON
315 1 1 CLAMP INNER (N186624) 10512 RON
315 1 1 CLAMP INNER (N186624) 10512 RON
316 1 3 SCREW M5X16 (395382-01) 558 RON
317 1 1 COVER GEARCASE D27113 MCHD (N052765) 3124 RON
318 1 1 O RING 72 76X1 78 (616979-01) 781 RON
319 1 1 BEARING BALL 17x40x12-6203T1XDDW1C3E D (330003-69) 4472 RON
320 1 2 WASHER (939625-00) 558 RON
325 1 2 SCREW (330045-49) 558 RON
326 1 1 HEXAGONAL HEAD SCREW (949702-19) 893 RON
328 1 1 GEAR AND SPINDLE SA D27113 SERVICE (N142448) 34336 RON
329 1 1 BEARING DW704 TYPE 3 (386780-00) 190 RON
330 1 1 RING SPRING SHAFT D15 UNI7435 (930098-00) 558 RON
335 1 1 O-RING FOR FA AND BEARING (696519-00) 558 RON
336 1 1 BAFFLE (391375-00) 1788 RON
337 1 1 BEARING BALL (330003-13) 4137 RON
338 1 1 HANDLE BOTTOM D27113 (N089113) 5591 RON
339 1 1 SCREW M4X20 (860094-10) 558 RON
340 1 1 TERMINAL BLOCK [RATED 25A 600V] (326057-00) 893 RON
340 1 1 TERMINAL BLOCK (656549-00) 1229 RON
341 1 1 CABLE INLET RING (650889-00) 781 RON
342 1 1 POWER SUPPLY D27113 SERVICE (N142449) 3124 RON
343 1 1 HANDLE XPS COVER D27113 (N089115) 2795 RON
345 1 1 HANDLE COVER D27113 (N089114) 5591 RON
346 1 10 SCREW M4 55X19 (330013-13) 558 RON
347 1 1 S/A CORDSET (330060-85) 15993 RON
347 1 1 S/A CORDSET (330061-22) 22144 RON
348 1 1 INSULATED BUSHING [POLYONE LM-318-G001] (615851-00) 2795 RON
349 1 1 SCREW METAL THD FRM M4X25 T20 (330045-08) 558 RON
350 1 1 FELTRO (653767-00) 558 RON
350 1 1 SWITCH COVER (868320-00) 2347 RON
351 1 1 SWITCH (N060327) 11519 RON
351 1 1 SWITCH (640985-01) 14315 RON
352 1 1 SPONGE (650855-00) 781 RON
353 1 1 PLATE (393071-00) 558 RON
355 1 4 SCREW (98094-56) 781 RON
356 1 1 WASHER FLAT 6.4X11 UNI6592 ZN (860073-07) 558 RON
357 1 1 Plate Spinble Lock Pin Drive (N052769) 2124 RON
358 1 1 SPRING (868082-00) 558 RON
359 1 1 PIN LOCK D27112 (650846-00) 190 RON
360 1 1 FELTRO (653767-00) 558 RON
361 1 1 RING SPRING RADIAL D5 UNI7434 (860322-00) 558 RON
367 1 1 LEAD SA (N102137) 4472 RON
367 1 1 LEAD SA (N103672) 5031 RON
368 1 1 S/A CAPACITOR 230V. D27113 (N141826) 6821 RON
368 1 1 S/A CAPACITOR 115V. D27113 (N142190) 7940 RON
370 1 1 END CAP [BASF_TERLURAN_GP-22] (391933-00) 2124 RON
371 1 1 DW712 LABEL (610722-00) 781 RON
372 1 1 BRACKET (650828-00) 3018 RON
373 1 1 FIELDCASE (391317-00) 7940 RON
374 1 1 BRUSH PAIR SA (659512-00) 6821 RON
375 1 1 SA BRUSH HOLDER D27113 SERVICE (N142440) 17335 RON
376 1 2 SCREW PLASTITE (330019-19) 781 RON
377 1 1 FIELD 230V. D27113 SERVICE (N142441) 3592 RON
377 1 1 FIELD 115V. D27113 SERVICE (N142442) 40599 RON
378 1 2 RUBBER PLUG (145312-00) 558 RON
379 1 1 BEARING DW818 (390821-01 cod inlocuit cu N110359) BALL BEARING (N110359) 5591 RON
379 1 1 BEARING DW818 (390821-01 cod inlocuit cu N110359) BALL BEARING (N110359) 5591 RON
380 1 1 ARMATURE 230V. D27113 SERVICE (N142443) 62298 RON
380 1 1 ARMATURE 115V. D27113 SERVICE (N142444) 74937 RON
381 1 1 XPS LABEL D27113 (N136387) 4137 RON
385 1 2 WASHER (N154416) 781 RON
386 1 1 LINK (N052766) 6821 RON
387 1 1 Auxiliary Lower Guard (N045949) 4472 RON
388 1 1 GUARD LOWER Main D27113 (N045948) 1891 RON
389 1 2 ROLLER (146774-00) 1117 RON
390 1 2 SEAL RING (604728-00) 558 RON
391 1 1 RETAINING RING (629745-00) 893 RON
392 1 1 EXTENSION SPRING (N110617) 1229 RON
394 1 1 SCREW SOCKET M.5X16 UNI 5931 (860093-10) 558 RON
396 1 1 SYNT. BUSHING (146740-02) 558 RON
397 1 1 WASHER FLAT 5.3X10 UNI 6592 (860073-01) 558 RON
398 1 1 BEARING 625-2Z (949719-04) 190 RON
801 1 1 GREASE (790206-00) 34336 RON
821 1 1 NAMEPLATE D27113-GB (N102178) 3466 RON
821 1 1 NAMEPLATE D27113-LX (N102179) 3466 RON
