Top » Piese de schimb » PIESE DEWALT » D27112 Type 2

D27112 TABLE TOP MITRE SAW Type 2
[D27112 Type 2]
D27112 TABLE TOP MITRE SAW Type 2
Click pentru a mari
Imagini suplimentare

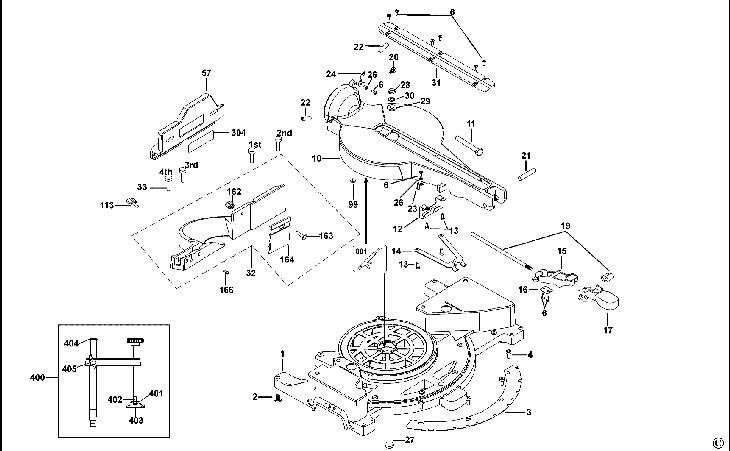

D27112 TABLE TOP MITRE SAW Type 2
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 BASE DW712N/TTMS SERVICE (869349-00) 49771 RON
2 1 4 RUBBER FEET (153612-00) 781 RON
3 1 1 SCALE DW712 (397041-00) 12861 RON
4 1 4 SHOULDER SCREW (604987-00) 781 RON
5 1 1 TOP TABLE TTMS SERVICE (N114229) 53015 RON
6 1 10 SCREW (98093-76) 558 RON
7 1 1 HOLDER (391358-01) 1117 RON
8 1 1 SCREW PAN PH/TT M.4X8 UNI8112 (860094-02) 558 RON
9 1 1 PUSH STICK (860610-01) 3466 RON
10 1 1 SA TABLE DW712N/TTMS EURO SERVICE (869350-00) 74937 RON
11 1 1 SCREW HEX 10x80 DIN 933 LH (638875-00) 1117 RON
12 1 1 LOCK PLATE (397062-00) 1452 RON
13 1 4 SCREW (330045-55) 558 RON
14 1 1 BLOCK SPRING (397070-00) 2795 RON
15 1 1 LEVER (397073-00) 781 RON
16 1 1 LEVER LOCK PLATE (397075-00) 558 RON
17 1 1 LOCK LEVER (397065-00) 190 RON
18 1 1 TABLE PROTECTION D27111 (635045-00) 4472 RON
19 1 1 KIT MITER LOCK DW712 (629395-00) 5591 RON
20 1 1 Buttom Push D27111 (638835-00) 558 RON
21 1 1 DRIVE PIN (397063-00) 1117 RON
22 1 2 SCREW M8X30 (153576-03) 105 RON
23 1 1 MITER POINTER (397048-00) 105 RON
24 1 1 BEVEL INDEX (397090-00) 105 RON
25 1 4 SCREW (98093-76) 558 RON
26 1 2 WASHER (249233-00) 558 RON
27 1 1 SCREW HEX M.8X25 UNI 5739 (860085-19) 558 RON
28 1 1 NUT SELF LOCKING M.8 (860092-05) 558 RON
29 1 2 LAP WASHER (153781-00) 781 RON
30 1 1 WASHER (613270-00) 781 RON
31 1 2 INSERT (397046-00) 2347 RON
32 1 1 FIXED FENCE D27111 (641363-00) 43731 RON
33 1 4 SCREW TRIL (330045-33) 781 RON
34 1 1 SA KIT GUARD+KNIFE TTMS SERVICE (N102812) 26730 RON
35 1 2 SCREW (330045-32) 781 RON
37 1 2 NUT HEX THICK M.8 UNI 5587 (860083-04) 558 RON
38 1 1 SLIDING RIPPING FENCE D27111 (637806-00) 17335 RON
39 1 1 Nut Fence Guide D27111 (637805-00) 4137 RON
40 1 1 BRACKET FENCE D27111 (634738-00) 3466 RON
42 1 1 SCREW (612008-00) 781 RON
43 1 1 WASHER CLAMP (392948-00) 558 RON
44 1 1 LEVA BLOCC.BATTUTA REFIL.FN (605794-00) 3018 RON
45 1 1 SCREW PAN PH/TT M.4X8 UNI8112 (860094-02) 558 RON
47 1 1 SPINA CILINDR.D6X50 (605795-00) 893 RON
48 1 1 SQUADRETTA BLOCCAGGIO BATT.REF (605796-00) 781 RON
49 1 1 TABLE SUPPORT D27111 (636091-00) 6821 RON
50 1 1 LAP WASHER (153781-00) 781 RON
52 1 1 NUT SELF LOCKING M.8 (860092-05) 558 RON
53 1 1 SPACER BEVEL D27111 (606362-01) 893 RON
54 1 1 WING NUT M8 (941756-00) 1229 RON
55 1 1 WRENCH TORX T30 (385567-03) 1452 RON
56 1 4 WASHER SPRING CON.D6.2X14X0.9 (860074-02) 558 RON
57 1 1 SLIDING FENCE D27111 (640349-00) 14315 RON
58 1 1 CLAMP LEVER PUSH (637338-00) 1452 RON
59 1 4 SCREW TCBPH5 5X38 6954ZP (860084-24) 558 RON
60 1 1 SCREW (150075-00) 781 RON
61 1 1 SCREW TRIL (330045-34) 105 RON
62 1 2 SCREW (949894-02) 558 RON
63 1 1 TORSIONAL SPRING (637289-00) 781 RON
64 1 1 UNLOCKING HEAD BAR D27111 (637193-00) 2795 RON
65 1 1 SHOULDER SCREW (153639-00) 781 RON
66 1 1 HEXAGONAL HEAD SCREW (949702-19) 893 RON
67 1 1 ARM D27112 (647382-00) 5484 RON
68 1 1 PIN LOCKING (649653-00) 3018 RON
69 1 1 DW712 LABEL (610722-00) 781 RON
70 1 1 SA KIT GUARD+KNIFE TTMS SERVICE (N102812) 26730 RON
71 1 1 BUSH (385756-01) 1229 RON
72 1 1 SCREW TRIL (330045-33) 781 RON
73 1 1 CLAMP INNER (N186624) 10512 RON
74 1 1 O-RING FOR FA AND BEARING (696519-00) 558 RON
75 1 1 BAFFLE (391375-00) 1788 RON
76 1 1 BEARING BALL (330003-13) 4137 RON
77 1 1 RING SPRING SHAFT D15 UNI7435 (930098-00) 558 RON
78 1 1 SA ARMATURE 230V. D27112 (SERVICE) (869290-00) 53015 RON
78 1 1 SA ARMATURE 115V. D27112 (SERVICE) (869290-01) 59725 RON
79 1 1 BEARING DW818 (390821-01 cod inlocuit cu N110359) BALL BEARING (N110359) 5591 RON
79 1 1 BEARING DW818 (390821-01 cod inlocuit cu N110359) BALL BEARING (N110359) 5591 RON
80 1 1 RUBBER PLUG (145312-00) 558 RON
81 1 2 SCREW PLASTITE (330019-19) 781 RON
82 1 1 STATORE 230/240V G95 MM. (869045-00) 37579 RON
82 1 1 STATORE 115 V G95 MM. (869045-01) 39145 RON
83 1 1 BRUSH PLATE (654838-00) 9282 RON
84 1 2 BRUSH-LEAD (381028-08) 4137 RON
85 1 1 FIELDCASE (391317-00) 7940 RON
86 1 4 SCREW (98094-56) 781 RON
87 1 4 SCREW M4 55X19 (330013-13) 558 RON
88 1 1 END CAP [BASF_TERLURAN_GP-22] (391933-00) 2124 RON
89 1 1 SA HANDLES D27112 (SERVICE) (N121000) 11519 RON
90 1 6 SCREW M4 55X19 (330013-13) 558 RON
91 1 1 SWITCH (640985-00) 11519 RON
91 1 1 SWITCH (640985-01) 14315 RON
92 1 1 SWITCH COVER (868320-00) 2347 RON
93 1 1 CABLE CLIP D.9-11 5 (863259-00) 2124 RON
94 1 1 TERMINAL BLOCK [RATED 25A 600V] (326057-00) 893 RON
95 1 1 S/A CORDSET (330060-85) 15993 RON
95 1 1 S/A CORDSET (330061-22) 22144 RON
96 1 1 CAPACITOR D27112 (654791-00) 10512 RON
96 1 1 CAPACITOR D27112 (654791-01) 14315 RON
97 1 1 INSULATED BUSHING [POLYONE LM-318-G001] (615851-00) 2795 RON
99 1 3 SLIDE ROLLER (640146-00) 893 RON
100 1 1 SA BEVEL SLIDE MECHANISM D27112 SERVICE (N176002) 271790 RON
104 1 1 SCREW M8 x 1 25 x 8 (330022-08) 558 RON
108 1 1 SPACER (639383-00) 1229 RON
109 1 1 SPRING (633290-04) 10512 RON
110 1 1 SPACER SPRING D27111 (642980-00) 1452 RON
111 1 1 JOINT AXLE (397128-00) 2795 RON
112 1 2 GASKET DW250-DW252 (949746-02) 558 RON
113 1 1 KNOB (147107-06) 2124 RON
114 1 1 COMPRESSION SPRING (606014-00) 558 RON
115 1 1 SCREW M5X16 (395382-01) 558 RON
116 1 1 BEVEL NUT (397089-00) 2124 RON
117 1 1 SCREW (612008-00) 781 RON
118 1 1 LAP WASHER (153781-00) 781 RON
119 1 1 SCALE D27111 (637807-00) 190 RON
120 1 1 INDICE BATTUTA REFIL.D27105 (605798-00) 781 RON
121 1 1 WASHER (613270-00) 781 RON
123 1 1 WEAR GUIDE (628591-00) 2124 RON
126 1 1 LOCK LEVER (397080-00) 1452 RON
128 1 1 BEVEL SCALE (637334-00) 1788 RON
130 1 2 RUBBER WASHER (153586-00) 781 RON
131 1 2 VITE TRIL.TCB M5X12 D6 1 (616001-00) 558 RON
132 1 1 SCREW (153576-00) 781 RON
135 1 1 WING NUT M8 (941756-00) 1229 RON
137 1 3 Screw Metal (330045-15) 781 RON
138 1 1 LABEL DEWALT (641845-00) 1788 RON
139 1 1 BLADE PROTECTION (635047-00) 6821 RON
140 1 1 SPRING TORSION (SX) D27111 (637288-00) 781 RON
141 1 1 CLAMP D23700 (625857-00) 1117 RON
142 1 2 SCREW PAN PH/TT M.4X12UNI8112 (860094-05) 558 RON
143 1 1 SHOULDER SCREW (153639-00) 781 RON
144 1 2 SEAL RING (604728-00) 558 RON
145 1 2 ROLLER (146774-00) 1117 RON
146 1 1 S/A PROTECTION (637998-00) 23598 RON
147 1 1 BLADE BOLT (647776-00) 781 RON
148 1 1 CLAMP OUTER (604765-00) 3466 RON
149 1 1 FLANGIA INTERNA D27201 (616319-00) 5031 RON
150 1 1 NUT (861340-00) 558 RON
151 1 1 BEARING D10-M4 D27111 (605040-51) 2347 RON
152 1 1 SCREW M4 X 16 (330024-49) 558 RON
153 1 1 SCREW (330045-23) 781 RON
154 1 2 SYNT. BUSHING (146740-02) 558 RON
155 1 5 SHOULDER SCREW (153639-00) 781 RON
156 1 1 LINK BAR D27111 (637192-00) 2795 RON
157 1 1 RETAINING RING (629745-00) 893 RON
158 1 1 SCREW (98093-76) 558 RON
159 1 1 EXTENSION SPRING (640503-00) 893 RON
160 1 1 GUARD BOTTOM MAIN D27111 (634726-00) 17335 RON
161 1 1 GUARD BOTTOM AUXILIARY D27111 (635046-00) 5591 RON
162 1 1 KNOB M6 D27112 (653947-00) 105 RON
163 1 1 SCREW SPECIAL FENCE CLAMP D27111 (653948-00) 2347 RON
164 1 1 FENCE SLIDING RH D27111 (634736-00) 4472 RON
165 1 1 LABEL WARNING TABLE D27111 (645156-00) 190 RON
166 1 1 SCREW PAN PH/TT M.4X8 UNI8112 (860094-02) 558 RON
167 1 1 SPRING CONED-DISC 15X8.2X0.8 (860491-01) 558 RON
168 1 1 KNOB M6 UNI5448 ZN (720929-00) 558 RON
171 1 1 SCREW (931997-00) 558 RON
172 1 1 KNOB D.40X16-M8X23-BLACK (862427-00) 781 RON
173 1 1 BRACKET ARM PIN D27111 (634734-00) 2124 RON
174 1 1 SCREW PAN PH/TT M.4X8 UNI8112 (860094-02) 558 RON
175 1 1 WRENCH TORX T40 (385567-04) 1452 RON
176 1 2 BUSHING NYLINER (N083191) 781 RON
198 1 1 BLACK LEAD (652236-00) 1117 RON
200 1 1 S/A FENCE D27111 (869231-04) 3124 RON
210 1 1 RING SPRING RADIAL D5 UNI7434 (860322-00) 558 RON
211 1 1 FELTRO (653767-00) 558 RON
212 1 1 PLATE (393071-00) 558 RON
213 1 1 SCREW PAN PH/TT M.4X8 UNI8112 (860094-02) 558 RON
214 1 1 PLATE SPINDLE LOCK PIN DRIVE (650829-00) 2124 RON
215 1 1 WASHER FLAT 6.4X11 UNI6592 ZN (860073-07) 558 RON
216 1 1 SPRING (868082-00) 558 RON
217 1 1 PIN LOCK D27112 (650846-00) 190 RON
220 1 1 BRACKET (650828-00) 3018 RON
225 1 1 CORD HOLDER (651250-00) 781 RON
230 1 3 SCREW M5X16 (395382-01) 558 RON
231 1 1 COVER GEAR D27112 (647385-00) 34336 RON
232 1 1 O RING 72 76X1 78 (616979-01) 781 RON
233 1 1 BEARING BALL (330003-66) 5591 RON
234 1 2 SCREW PAN PH/TT M.5X10UNI8112 (860094-06) 558 RON
235 1 1 SHAFT & GEAR D27112 (869219-08) 42277 RON
236 1 1 BEARING DW704 TYPE 3 (386780-00) 190 RON
300 1 1 SA HANDLES D27112 (SERVICE) (N121000) 11519 RON
300 1 1 SA HANDLES D27112 (SERVICE) (N121000) 11519 RON
301 1 1 SCREW M4X20 (860094-10) 558 RON
302 1 1 CABLE INLET RING (650889-00) 781 RON
303 1 1 WEAR GUIDE (397118-00) 1452 RON
304 1 1 WARNING LABEL (621135-00) 1117 RON
350 1 1 S/A DUST MOUTH D27112 (654313-00) 7940 RON
351 1 1 RING (654787-00) 558 RON
352 1 4 SCREW (330045-23) 781 RON
356 1 1 NUT M6 (860083-12) 558 RON
357 1 1 FLAPPER D27112 (654312-00) 5591 RON
358 1 2 PUSH RIVET (607491-00) 558 RON
359 1 4 SCREW PLASTITE (330013-02) 558 RON
360 1 1 SPONGE (650855-00) 781 RON
400 1 1 CLAMP SA (N165958) 12861 RON
401 1 1 PAD CLAMP DW777 (630068-00) 781 RON
402 1 1 SCRE+KNOB CLAMP DW743N (630067-00) 3018 RON
403 1 1 CLAMP CAP DW777 (630085-00) 781 RON
404 1 1 RETAINER (389750-00) 558 RON
405 1 1 KNOB LOWER (147107-02) 1117 RON
800 1 1 GREASE (790206-00) 34336 RON
801 1 1 GREASE DW704 TYPE 3 (93488-00) 7940 RON
821 1 1 NAMEPLATE D27112-GB T.2 (N162137) 2124 RON
821 1 1 NAMEPLATE D27112-LX T.2 (N162138) 2124 RON
