D27107XPS COMBINATION SAW Type 4
[D27107XPS Type 4]

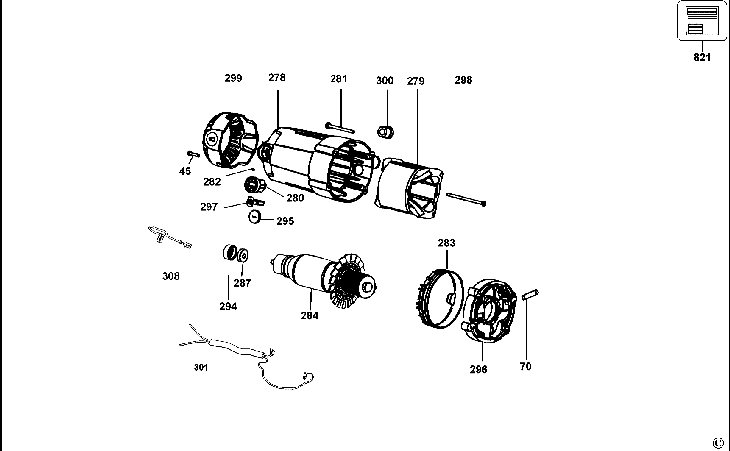

D27107XPS COMBINATION SAW Type 4
Click pentru a mari
Imagini suplimentare

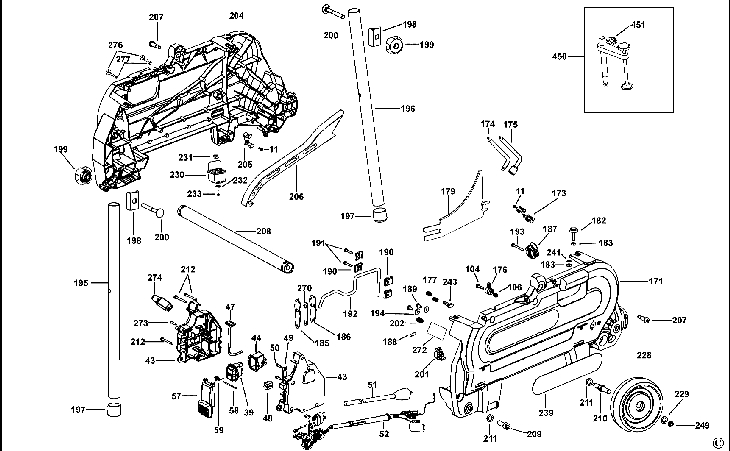

D27107XPS COMBINATION SAW Type 4
Click pentru a mari

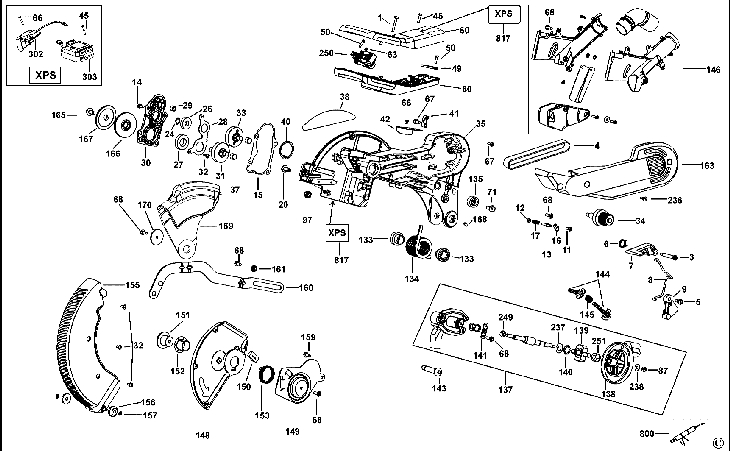

D27107XPS COMBINATION SAW Type 4
Click pentru a mari

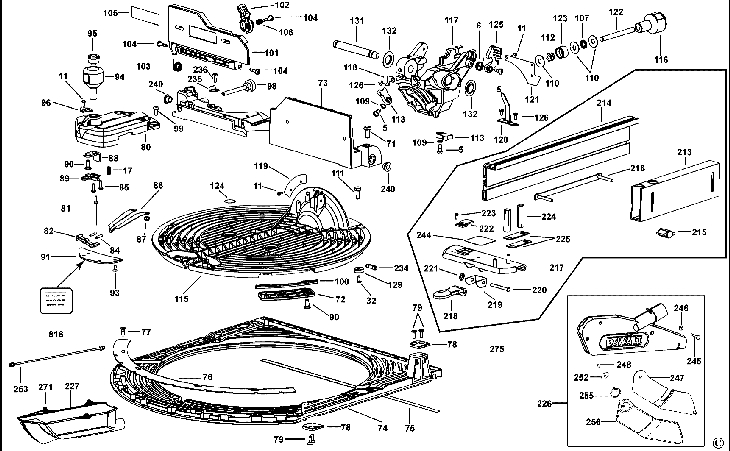

D27107XPS COMBINATION SAW Type 4
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 4 SCREW (98094-35) 558 RON
3 1 1 UNLOCKING LEVER SCREW (152852-00) 893 RON
4 1 1 BELT cod vechi 623804-00 (N453995) 10512 RON
5 1 4 SHOULDER SCREW (153639-00) 781 RON
6 1 2 TORSION SPRING (398472-00) 558 RON
7 1 1 LEVER (605603-00) 781 RON
8 1 1 LEVA AZION.SBLOCCO (606278-00) 893 RON
9 1 1 PIASTRA BLOCCAGGIO (606279-00) 781 RON
11 1 11 SCREW (98093-76) 558 RON
12 1 1 FELTRO (618480-00) 558 RON
13 1 1 LOCKING PIN (153561-00) 105 RON
14 1 4 SCREW (385915-01) 558 RON
15 1 1 GASKET (391315-00) 1788 RON
16 1 1 PLATE (393071-00) 558 RON
17 1 2 SPRING (868082-00) 558 RON
20 1 1 N389947 - Indisponibil
24 1 1 RING SPRING SHAFT D12 UNI7435 (860079-03) 558 RON
26 1 1 BEARING (605040-59) 2124 RON
27 1 1 BEARING BALL (330003-66) 5591 RON
28 1 1 BEARING PLATE (627904-00) 2124 RON
29 1 1 BEARING NEEDLE (391616-00) 190 RON
30 1 1 SA GC COVER - SERVICE (621759-00) 23598 RON
31 1 1 SHAFT & GEAR D27105 (869219-06) 22144 RON
32 1 7 SCREW (330045-49) 558 RON
33 1 1 SHAFT & GEAR D27105 (869219-07) 22144 RON
34 1 1 PINION SA (N027131) 22144 RON
35 1 1 ARM D27107XPS SERVICE (N139375) 129966 RON
37 1 2 BEARING DW704 TYPE 3 (386780-00) 190 RON
38 1 1 TARGH.PROTEZIONE SUPERIORE D27105 (621329-00) 2347 RON
39 1 1 TRIPUS 230V. SWITCH (637691-00) 29862 RON
40 1 1 CIRCLIPD.40 7437 (616726-00) 781 RON
41 1 1 FERMACAVO (612350-00) 781 RON
42 1 1 SQUADRETTA LASER D27105 & D27107 (613781-00) 1229 RON
43 1 1 HOUSING ASSY.D27107 (605786-01) 11519 RON
44 1 1 TRIPUS 230V. SWITCH (638634-00) 2124 RON
45 1 5 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
47 1 1 SA LEAD WIRE BLACK L.100 (652121-00) 1117 RON
48 1 1 TERMINAL BLOCK [RATED 25A 600V] (326057-00) 893 RON
49 1 2 FERMACAVO METALL.D27105 (607858-00) 893 RON
50 1 5 SCREW M4 55X16 (330013-22) 558 RON
51 1 1 S/A CORDSET (330060-85) 15993 RON
52 1 1 CABLE (639912-01) 17335 RON
57 1 1 SWITCH COVER (N377629) 190 RON
58 1 1 LOCATING PIN D.3X50 (607854-00) 781 RON
59 1 1 SPRING (613782-01) 781 RON
60 1 1 HANDLE ASSY. D27105 & D27107 (607855-00) 12861 RON
63 1 4 SCREW MACHINE PAN HD (384127-01) 558 RON
66 1 2 SCREW PAN PH/TT M.4X10UNI8112 (860094-03) 558 RON
67 1 7 Screw Metal (330045-15) 781 RON
68 1 7 SCREW (330045-23) 781 RON
70 1 1 SCREW (394034-00) 893 RON
71 1 5 SCREW (330045-32) 781 RON
72 1 3 PLATE RETAINER (621647-00) 1452 RON
73 1 1 BASE MITRE FENCE MCHD (N162216) 53015 RON
74 1 1 BASE D27105 SERVICE (869233-00) 14265 RON
75 1 1 SCALE D27107 (614822-00) 2347 RON
76 1 1 SCALA MITRE D27105 (398999-00) 20467 RON
77 1 4 VITE TCE M6X17 SPEC. (615876-00) 781 RON
78 1 2 PIASTRINA BLOCCO ROTAZIONE (607103-00) 2124 RON
79 1 4 SCREW AFTSPPH M6X16 8113 (98104-16) 558 RON
80 1 1 NOSE MITRE MCHD (N162168) 25164 RON
81 1 1 ROD DETENT D27107 (605799-00) 781 RON
82 1 1 ATTUATORE MITER (399162-00) 893 RON
84 1 1 SPINA CIL.RIF.TEMPR.D5X20 6364 (399009-00) 781 RON
85 1 2 SCREW PAN PH/TT M.5X16UNI8112 (860094-00) 558 RON
86 1 1 MOLLA STECCA D27105 (606898-00) 3018 RON
87 1 3 NUT ELAST.STOP M.6 UNI 7473 (860092-02) 558 RON
88 1 1 SQUADRETTA DI BLOCCAGGIO MITER (606900-00) 1117 RON
89 1 1 PLACCHETTA DI BLOCCAGGIO MITER (606896-00) 781 RON
90 1 7 VITE AFTSPPH M8X19 UNI8113 (617561-00) 781 RON
91 1 1 PIASTRINA COPERCHIO MITER (606897-00) 2347 RON
93 1 4 SCREW CTSK PH/TT M5X12UNI8113 (860205-01) 558 RON
94 1 1 KNOB MITRE D27107 (399004-00) 190 RON
95 1 1 BUTTON DETENT (605785-00) 558 RON
96 1 1 INDICE MITER D27105 (611991-00) 1117 RON
98 1 1 POMO M8 X 70 (606198-00) 1788 RON
99 1 1 N409486 - Indisponibil
100 1 3 TABLE SECTOR D27105 (607129-00) 2347 RON
101 1 1 SA ADJ FENCE D27107 SERVICE (N190890) 26730 RON
102 1 1 LEVA BLOCCAGGIO BATT.SCORREV. (610251-00) 781 RON
103 1 1 MOLLA TORSIONE BATT.SCORR. (610250-00) 3018 RON
104 1 5 N399933 - Indisponibil
105 1 1 WARNING LABEL (610710-00) 1117 RON
106 1 3 SPRING (941586-00) 558 RON
107 1 1 BEARING THRUST (153451-00) 781 RON
109 1 3 WAVY WASHER (153655-00) 558 RON
110 1 3 LAP WASHER (153781-00) 781 RON
111 1 2 VITE TE M8X20 TESTA13 FRENAF (153797-03) 781 RON
112 1 1 NUT M10 UNI 7474 (330021-10) 558 RON
113 1 3 PAWL (391347-00) 105 RON
115 1 1 TABLE D27107 SERVICE (869233-02) 165534 RON
116 1 1 KNOB BEVEL D27107 (399004-01) 190 RON
117 1 1 SUPPORTO TESTA D27105 FN (605653-00) 59725 RON
118 1 1 INDICE BEVEL D27105 (606152-00) 1452 RON
119 1 1 SCALA BEVEL D27105 (618660-00) 2347 RON
120 1 1 INDICE TAV.GIREV.D27105 (606192-00) 190 RON
121 1 1 SCALA BEVEL D27105 (606193-00) 2795 RON
122 1 1 BARRA FILETT.M10X100 (606359-00) 2795 RON
123 1 1 BOCCOLA 25 4X20H13 5 (606362-00) 105 RON
124 1 2 WARNING LABEL (610707-00) 781 RON
125 1 1 BLOCCAGGIO TESTA D27105 (613709-00) 781 RON
126 1 6 SCREW PAN PH/TT M.5X10UNI8112 (860094-06) 558 RON
129 1 1 REGOLATORE FRIZIONE TAV.GIR. (615589-00) 893 RON
131 1 1 PERNO SNODO D27105 (615777-00) 3466 RON
132 1 1 PLASTIC WASHER (148296-00) 781 RON
133 1 2 SPACER (146732-00) 781 RON
134 1 1 MOLLA TORSIONE D27105 (619571-00) 10512 RON
135 1 1 DAMPER (146753-00) 558 RON
137 1 1 S/A SOLLEVAMENTO D27105 (609837-00) 34336 RON
138 1 1 HANDWHEEL D27107 (606689-00) 4137 RON
139 1 1 AGGANCIO REGOLATORE TESTA (607754-00) 3018 RON
140 1 14 STEEL BALL (604107-00) 558 RON
141 1 1 PIASTRINA 13 5X38 (609840-00) 1229 RON
143 1 1 VITE COLLETTO D12X50 M10X16T50 (610254-00) 2795 RON
144 1 2 PERNO PER MOLLA (614072-00) 781 RON
145 1 1 MOLLA COMPRES.D13 5XD9 7L28 8 (606688-00) 781 RON
146 1 1 SA DUST DUCT D27107 (N166053) 10512 RON
148 1 1 PLATE GUARD D27107 (615459-00) 11519 RON
149 1 1 PLATE (N041976) 4472 RON
150 1 1 BUMPER (609514-00) 558 RON
151 1 1 RETAINING PLATE (146750-03) 1788 RON
152 1 1 SLEEVE (609314-00) 1117 RON
153 1 1 MOLLA TORSIONE D42D38S12 (609496-00) 781 RON
155 1 1 N298999 - Indisponibil
156 1 2 ROLLER (146774-00) 1117 RON
157 1 2 SEAL RING (604728-00) 558 RON
159 1 2 SCREW (394589-01) 781 RON
160 1 1 S/A TOGGLE LEVER D27107 (N225776) 11519 RON
161 1 3 SYNT. BUSHING (146740-02) 558 RON
163 1 1 COVER BELT D27105 - cod vechi 610556-00 COVER BELT D27107 (610556-01) 9282 RON
165 1 1 BLADE BOLT (647776-00) 781 RON
166 1 1 FLANGIA INTERNA D27201 (616319-00) 5031 RON
167 1 1 CLAMP OUTER (604765-00) 3466 RON
168 1 2 SCREW (150075-00) 781 RON
169 1 1 PROLUNGA PROTEZ.LAMA D27105 (605593-00) 7940 RON
170 1 1 ROSETTA D36D6 5S2 5 (607536-00) 1229 RON
171 1 1 FSO KIT (RH) (656421-00) 91714 RON
173 1 1 HOLDER (391358-01) 1117 RON
174 1 1 WRENCH TORX T30 (385567-01) 2347 RON
175 1 1 WRENCH (608563-01) 3018 RON
176 1 2 LEVA TENUTA COLTELLO (615993-00) 781 RON
177 1 2 SPRING (946866-00) 558 RON
179 1 1 S/A COLTELLO D27105 & D27107 (N097056) 22144 RON
182 1 4 GOMMINO BATTUTA TAVOLO (616634-00) 893 RON
183 1 4 NUT HEX THIN M.8 UNI5589 ZINC (860083-15) 558 RON
185 1 1 TOP PLATE LOCK D27105 (606233-00) 1452 RON
186 1 1 PLATE (606232-00) 1452 RON
187 1 1 RELIEF STRAIN HEYCO SR7P-2 (605601-00) 893 RON
188 1 1 SPINA CILIND. D6X20 UNI6364-A (607132-00) 781 RON
189 1 2 SCREW (330045-55) 558 RON
190 1 4 RAIL LOCK LEVER (153379-00) 781 RON
191 1 1 SCREW PAN PH A M5X25 (610574-00) 558 RON
192 1 1 LOCK RELEASE LEVE D8 (611094-00) 3466 RON
193 1 1 SCREW RD HD M5X40 (861090-00) 558 RON
194 1 3 WASHER FLAT 6.6X18X2 UNI6593 (860073-14) 558 RON
195 1 2 FRONT LEG D27105 (613233-00) 7940 RON
196 1 2 REAR LEG (655033-00) 6821 RON
197 1 4 BASE FOOT D.32 TGS273 (861073-00) 5591 RON
198 1 4 PIASTRA SERRAGGIO ZAMPA (613235-00) 190 RON
199 1 4 KNOB D52 M10 (618362-00) 2347 RON
200 1 4 CARRIAGE BOLT (98131-90) 893 RON
201 1 3 SPRING (861091-00) 781 RON
202 1 1 SPRING PUSHER D13XD1 2X39 (860112-11) 1788 RON
204 1 1 FRAME LEFT D27107 MACHINED (655032-00) 70239 RON
205 1 1 MOLLA SPINGIPEZZO (615994-00) 781 RON
206 1 1 PUSHROD (389276-00) 10512 RON
207 1 2 VITE COLLETTO D10X25 M8X16 T40 (616592-00) 1117 RON
208 1 2 TRAVERSA FIANCATE D27105 (604537-00) 9282 RON
209 1 2 SCREW DIN 912 (942447-00) 781 RON
210 1 2 PRIGIONIERO M12X100 (611623-00) 3466 RON
211 1 4 WASHER LOCK A 12.5 UNI1751 (98197-08) 558 RON
212 1 3 SCREW (330045-50) 558 RON
213 1 1 BATTUTA ESTRUSA NEW TGS (605789-00) 6821 RON
214 1 1 FENCE DW744 (386616-00) 17335 RON
215 1 2 KNOB (147107-08) 893 RON
216 1 1 PONTE SERRAGGIO SQUADRA L (611712-00) 190 RON
217 1 1 SUPPORTO BATTUTA REFIL.D27105 (611921-00) 10512 RON
218 1 1 LEVA BLOCC.BATTUTA REFIL.FN (605794-00) 3018 RON
219 1 1 SQUADRETTA BLOCCAGGIO BATT.REF (605796-00) 781 RON
220 1 1 SPINA CILINDR.D6X50 (605795-00) 893 RON
221 1 1 WASHER CLAMP (392948-00) 558 RON
222 1 1 INDICE BATTUTA REFIL.D27105 (605798-00) 781 RON
223 1 1 SCREW.TEMP (330045-05) 558 RON
224 1 2 NUT D27105 (612284-00) 1117 RON
225 1 2 PIASTRINA 20X63 (605790-00) 558 RON
226 1 1 SA KIT GUARD+KNIFE D27107 SERVICE (N181532) 49771 RON
226 1 1 SA TABLE SAW GUARD TTMS (N162338) 1891 RON
227 1 1 S/A UNDERGUARD D27107 SERVICE (N060425) 7940 RON
228 1 2 WHEEL (612441-00) 10512 RON
229 1 2 WASHER D.8 4X24X2 (941602-00) 558 RON
230 1 4 FOOT D27107 (N219072) 2124 RON
231 1 4 NUT HEX MEAN M.8 UNI5588 ZINC (860083-14) 558 RON
232 1 4 WASHER FLAT 8.4X17 UNI6592 ZN (860073-03) 558 RON
233 1 4 SCREW HEX M.8X30 UNI 5739 (860085-20) 558 RON
234 1 1 Camma Di Registrazione D27105 (621653-00) 558 RON
235 1 1 MORSETTO PIEGATO PER BATTUTA D27105 (610252-00) 1788 RON
236 1 4 SCREW M5X16 (395382-01) 558 RON
237 1 1 ROSETTA SPECIALE D27105 (623499-00) 893 RON
238 1 1 WASHER FLAT SPEC. 6.4X16X1.5 (860075-00) 558 RON
239 1 1 TARGHETTA DEWALT D27400 (617108-00) 3466 RON
240 1 2 BUSH (607182-00) 781 RON
241 1 4 WASHER LOCK A 8.2 DIN 6798 (860078-02) 558 RON
243 1 1 SPRING PLATE (620327-00) 558 RON
244 1 1 TARGHETTA DEWALT 50X50 (624373-00) 781 RON
245 1 1 SCREW HEX M.8X30 UNI 5739 (860085-20) 558 RON
246 1 3 NUT SELF LOCKING M.8 (860092-05) 558 RON
247 1 1 FLAP GUARD (N162668) 2795 RON
248 1 1 SCREW PAN.PHAB 3.9X13 UNI6954 (860084-11) 558 RON
249 1 3 NUT SELF LOCKING M.8 (860092-05) 558 RON
250 1 1 SWITCH 1269.3201-03 cod vechi 394375-02 (394375-02P) 10512 RON
251 1 1 NUT (330021-08) 781 RON
252 1 1 WASHER FLAT SPEC.5.5X20X1.5 (860075-01) 558 RON
253 1 1 STRING (N060144) 190 RON
255 1 1 SPRING TORSION DW711 (N056486) 781 RON
256 1 1 FLAP GUARD (N164679) 3018 RON
270 1 1 SPACER (626334-00) 781 RON
271 1 3 FASTENER (868303-00) 105 RON
272 1 1 LABEL WARNING D27105 (626191-00) 1229 RON
273 1 4 SCREW TORX HEAD (146679-00) 781 RON
275 1 1 S/A FENCE D27105 n.t. (611713-01) 34336 RON
276 1 4 FLAT FILLISTER HEAD SCREW (949701-05) 558 RON
277 1 4 NUT HEX THIN M.8 UNI5589 ZINC (860083-15) 558 RON
278 1 1 FIELD CASE D27107 (N025823) 9282 RON
279 1 1 SA FIELD 230V.D27107 SERVICE (N071929) 40599 RON
280 1 1 BRUSH HOLDER (622440-00) 2347 RON
281 1 4 SCREW (98094-55) 558 RON
282 1 2 SCREW (330022-16) 558 RON
283 1 1 BAFFLE (391375-00) 1788 RON
284 1 1 SA ARMATURE 230V.D27107 SERVICE (N158403) 91714 RON
287 1 1 BEARING DW818 (390821-01 cod inlocuit cu N110359) BALL BEARING (N110359) 5591 RON
294 1 1 SLEEVE BEARING (650234-00) 558 RON
295 1 2 BRUSH CAP (622441-00) 105 RON
296 1 1 MOUNTING BRACKET (391282-00) 9282 RON
297 1 2 BRUSH T301 6 6x16 35x16 (N013883) 1452 RON
298 1 2 SCREW PLSTC THD FRM M4.55X78 T20 (330019-34) 558 RON
299 1 1 CAP END TAPPER WITH HOLE D27107 (660498-00) 105 RON
300 1 1 RELIEF STRAIN HEYCO SR7P-2 (605155-00) 781 RON
301 1 1 CABLE JUMPER (N025819) 5031 RON
302 1 1 LED LIGHT D27107XPS SERVICE (N172058) 28296 RON
303 1 1 SA SUPPLY POWER WRKLITE D27107XPS SERVIC (N172059) 34336 RON
308 1 2 BRUSHES LEAD WIRE (N025820) 893 RON
450 1 1 CLAMP SA (630065-00) 7940 RON
451 1 1 KNOB LOWER (147107-02) 1117 RON
800 1 1 GREASE (790206-00) 34336 RON
816 1 1 LABEL WARNING (N045702) 1788 RON
817 1 1 WARNING LABEL (N174417) 781 RON
821 1 1 N380782 - Indisponibil
821 1 1 RATING PLATE D27107XPS-GB (N203384) 3466 RON

Conditii Generale
