Top » Piese de schimb » PIESE DEWALT » D26501 Type 1

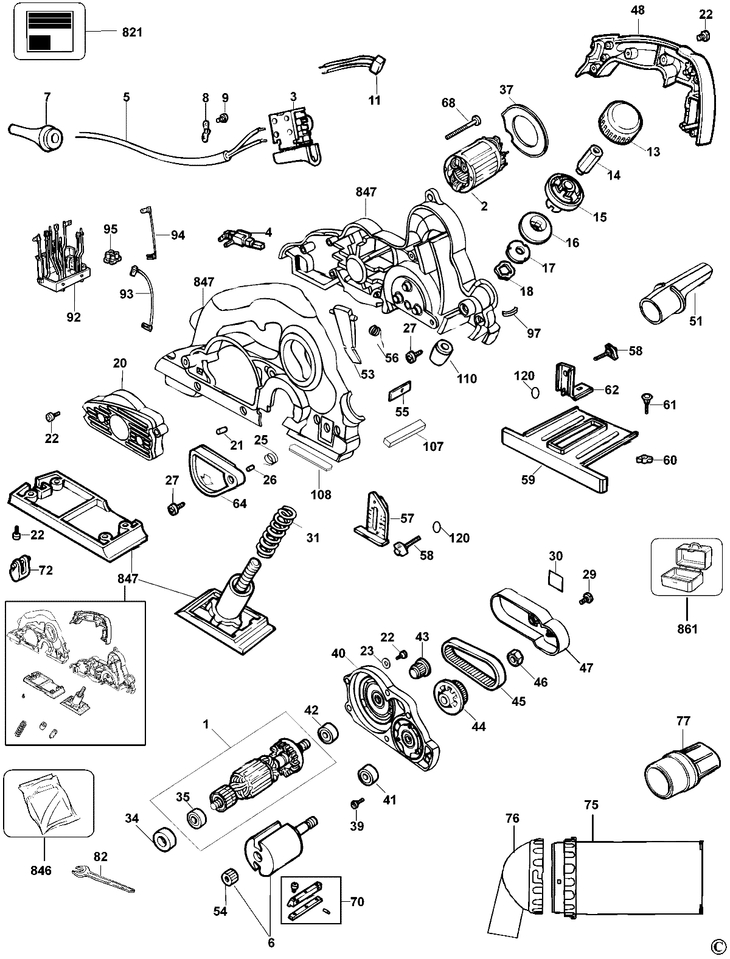

D26501 PLANER Type 1
[D26501 Type 1]
D26501 PLANER Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SA ARM AND BRG 230V SERVICE (589353-00) 37579 RON
2 1 1 SA FIELD SERVICE (589356-01) 22144 RON
3 1 1 CH BRAKE BLACK (328251-01) 7940 RON
4 1 1 BRUSH PAIR 230V SA (575963-03) 9282 RON
5 1 1 CORD POWER SUPPLY GB (330060-90) 17335 RON
6 1 1 BLADEDRUM SA DEWALT ( SERVICE ) (574232-01) 32770 RON
7 1 1 "CORD PROTECTOR EPDM 770010""" (584090-00) 1117 RON
8 1 1 CLAMP CORD CORNER (329301-00) 558 RON
9 1 2 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 558 RON
11 1 1 CAPACITOR (807285-15) 1117 RON
13 1 1 ADJ. KNOB. UP (326592-00) 3018 RON
14 1 1 NUT. ADJUSTMENT M10 X 4 (328772-00) 893 RON
15 1 1 ADJ. KNOB. DOWN (326590-01) 1452 RON
16 1 1 SCALE. DW678 BLACK (326589-02) 2124 RON
17 1 1 WASHER. CLUTCHING (326381-00) 893 RON
18 1 1 SPRING. WASHER (327341-00) 781 RON
20 1 1 BRUSH COVER (580980-00) 2347 RON
21 1 2 RUBBERSTOP (326636-00) 558 RON
22 1 22 SCREW (330065-08) 558 RON
23 1 4 WASHER PLAIN (330016-01) 558 RON
25 1 1 SPRING. TORSION 1 . 0 (323722-00) 558 RON
26 1 1 SLEEVE. GUIDE (326823-01) 781 RON
27 1 1 SCREW TAPTITE M4 * 18 (324006-11) 558 RON
29 1 1 SCREW PANHEAD M4x12 (324007-07) 558 RON
30 1 1 LABEL DEWALT (586529-00) 558 RON
31 1 1 SPRING COMPRESSION (572255-00) 781 RON
34 1 1 RING ISOLATION (323481-00) 781 RON
35 1 1 BEARING BALL CW (605040-63) 1788 RON
37 1 1 AIR BAFFLE (580993-00) 105 RON
39 1 3 SCREW METAL THD FORM M4X8 T20 (330045-44) 558 RON
40 1 1 BEARING HOUSING (KB73) (580997-00) 1891 RON
41 1 1 BEARING BALL 6201 C3 LHT23 (330003-11) 4137 RON
42 1 1 BEARING BALL 102608 (323872-03) 3466 RON
43 1 1 BELT. PINION (TOOTH) (324105-00) 3466 RON
44 1 1 BELT. WHEEL (TOOTH) (327065-00) 3466 RON
45 1 1 BELT (579600-00) 4137 RON
46 1 1 NUT HEX MEAN M.12 UNI 5588 ZIN (761225-02) 558 RON
47 1 1 BELT COVER (580979-00) 2795 RON
48 1 1 HANDLE COVER (580978-00) 2347 RON
51 1 1 EXIT CHUTE (580999-00) 2795 RON
53 1 1 FLAP (580981-00) 1229 RON
54 1 1 BEARING NEEDLE (330004-31) 2124 RON
55 1 1 NUT (918405) 558 RON
56 1 1 SPRING FLAP (580982-00) 781 RON
57 1 1 FENCE. DEPTH (327393-00) 1117 RON
58 1 2 SCREW WING M6*17 BLACK (326573-01) 781 RON
59 1 1 FENCE. PARALLEL (327391-00) 5031 RON
60 1 1 NUT. WING (328834-00) 558 RON
61 1 1 SCREW. CARRIAGE (911111) 558 RON
62 1 1 ELBOW. FENCE (328175-00) 1452 RON
64 1 1 COVER RABBET (326637-00) 105 RON
68 1 2 "SCREW PLASTIC 4X55""" (330065-10) 558 RON
70 1 2 BLADE CLAMPING SYSTEM COD VECHI 577706-00 (N542564) 6821 RON
72 1 1 N381124 - Indisponibil
75 1 1 SA BAG 5 Litre (584460-00) 7940 RON
76 1 1 DEFLECTOR 5Litre (584459-00) 6821 RON
77 1 1 DUST ADAPTER (581002-00) 2124 RON
82 1 1 KEY 8MM (868148-00) 2124 RON
92 1 1 ELECTRONICS SERVICE (589364-00) 59725 RON
93 1 1 LEADWIRE (586594-02) 893 RON
94 1 1 LEAD 115 WSH / AEH PVC (328579-01) 781 RON
95 1 1 TERMINAL BLOCK [RATED 25A 600V] (326057-00) 893 RON
97 1 1 SLIDE (329145-00) 558 RON
107 1 2 FOAM SEAL (580996-00) 558 RON
108 1 1 FOAM SEAL 2.5MM (586876-00) 558 RON
110 1 1 GUIDE BUSH (KB75) (583037-00) 5591 RON
120 1 1 RING 0 5 X 1.5 (323711-35) 558 RON
846 1 1 ACCESSORY BAG (582781-00) 3466 RON
847 1 1 SA SERVICE KIT for 4MM PLANER (SERVICE) (589358-00) 74937 RON
847 1 1 SA SERVICE KIT for 4MM PLANER (SERVICE) (589358-00) 74937 RON
847 1 1 SA SERVICE KIT for 4MM PLANER (SERVICE) (589358-00) 74937 RON
861 1 1 KITBOX PLANER WITH HANDLE (578772-54) 1891 RON
