Top » Piese de schimb » PIESE DEWALT » D26200K Type 1

D26200K ROUTER ATTACH Type 1
[D26200K Type 1]
D26200K ROUTER ATTACH Type 1
Click pentru a mari
Imagini suplimentare
D26200K ROUTER ATTACH Type 1
Click pentru a mari

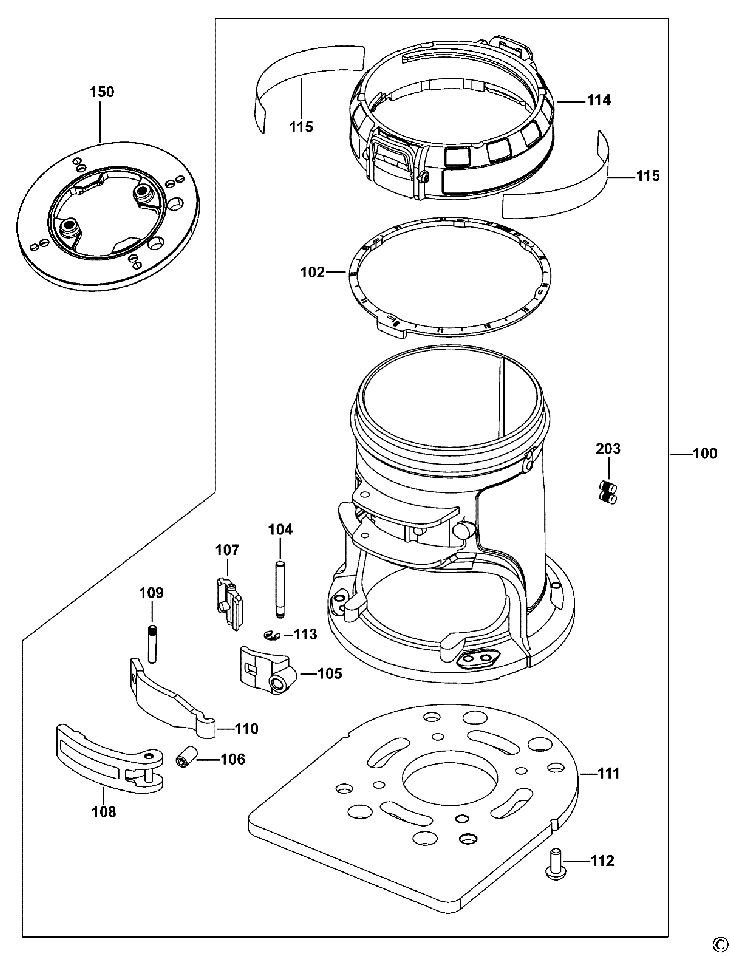

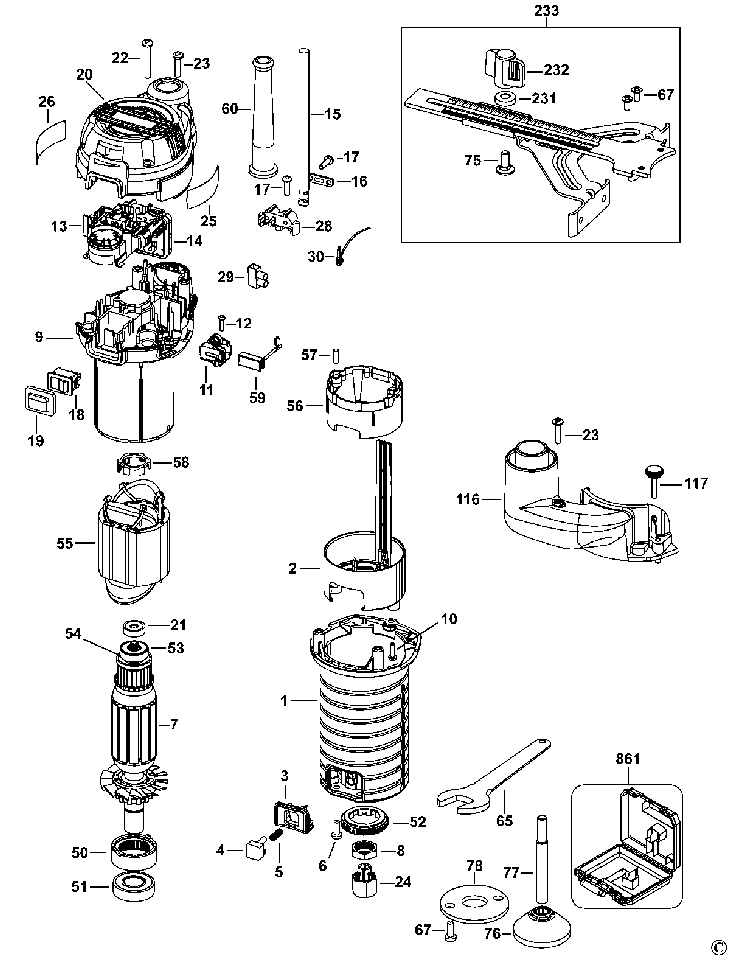

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 MOTOR HOUSING SA (A26126SV) 46863 RON
2 1 1 LED LIGHT (N074107) 20216 RON
3 1 1 INSERT (A26131) 781 RON
4 1 1 LOCK BUTTON (N038183) 781 RON
5 1 1 SPRING (A23489) 588 RON
6 1 2 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 588 RON
7 1 1 ARMATURE 230V (A28455SV) 67932 RON
7 1 1 ARMATURE 120V (A26132) 59725 RON
8 1 1 NUT (A25248) 190 RON
9 1 1 FIELDCASE (A28680) 6821 RON
10 1 1 SCREW (330065-07) 588 RON
11 1 2 BRUSH HOLDER SA (A28458) 4827 RON
11 1 2 BRUSH HOLDER 120V (A27345) 5370 RON
12 1 2 Screw M3.5 X9.5 (330019-01) 588 RON
13 1 1 CONTROL MODULE SA (N074135) 36994 RON
13 1 1 CONTROL MODULE SA (N074136) 48037 RON
14 1 1 CONTROL MODULE SA (N074109) 44688 RON
14 1 1 MODULE (N074104) 57833 RON
15 1 1 CORDSET (A28691) 16689 RON
15 1 1 CORDSET (A28692) 1891 RON
16 1 1 CLAMP CORD CORNER (329301-00) 588 RON
17 1 3 SCREW PLSTC THD FORM M3.5X13 T15 (330019-02) 588 RON
18 1 1 LOCK LEVER (OLD 886329) SWITCH (887453) Indisponibil Indisponibil
19 1 1 SWITCH COVER (A29360) 944 RON
20 1 1 END CAP (A28679) 11337 RON
21 1 1 MAGNET (A27330) 2347 RON
22 1 2 SCREW METAL THREAD FORM M4 * 30 T20 (330045-09) 588 RON
23 1 3 SCREW (330065-08) 588 RON
24 1 1 Collet & Nut SA (326286-01) 16689 RON
24 1 1 Collet & Nut SA (326286-01) 16689 RON
25 1 1 RATING PLATE (A29351) 2795 RON
25 1 1 RATING PLATE (A29356) 2795 RON
26 1 1 WARNING LABEL (A28464) 781 RON
28 1 1 MOUNT (A28476) 82 RON
29 1 1 TERMINAL BLOCK (398100-00) 944 RON
30 1 1 LEAD SA (A29361) 2182 RON
50 1 1 INSERT (A26125) 1117 RON
51 1 1 BEARING (A27537) 2556 RON
52 1 1 NUT LH (A25250) 893 RON
53 1 1 BEARING BALL (330003-60) 2182 RON
54 1 1 INSULATOR (A25585) 781 RON
55 1 1 FIELD 230V (N278879) 28836 RON
55 1 1 FIELD SA 115V (A21119) 28836 RON
56 1 1 BAFFLE (A23504) 190 RON
57 1 2 SMALL RUBBER (949638-02) 588 RON
58 1 1 WASHER (A27937) 588 RON
59 1 2 BRUSH (A28459) 3466 RON
59 1 2 BRUSH 120V (A27343) 6688 RON
60 1 1 PROTECTOR CORD (330005-01) 105 RON
65 1 1 WRENCH SPECIAL (A27895) 4355 RON
67 1 2 SCREW 4 * 10 (945121-00) 588 RON
75 1 1 SCREW (931405-00) 588 RON
76 1 1 CONE (A27315) 781 RON
77 1 1 PIN (A27316) 190 RON
78 1 1 BUSHING GUIDE 17X (249014-01) 9012 RON
100 1 1 BASE SA (N032769SV) 91363 RON
102 1 1 SCALE (A28391) 2347 RON
104 1 1 PIN (A24452) 82 RON
105 1 1 ADJUSTER (A24764) 2556 RON
106 1 1 330022-18 - Indisponibil
107 1 1 PAD (A24767) 1630 RON
108 1 1 CLAMPING BAR (A24771) 2347 RON
109 1 1 PIN (A24770) 781 RON
110 1 1 SPRING (A27362) 1933 RON
111 1 1 BASEPLATE (A27941) 2795 RON
112 1 4 SCREW (N029178) 588 RON
113 1 1 RETAINER (N028373) 588 RON
114 1 1 ADJUSTER DEPTH (A23984SV) 1891 RON
115 1 2 IDENTITY LABEL (A28466) 588 RON
116 1 1 ADAPTOR (A28678SV) 23244 RON
117 1 2 THUMBSCREW (A27335) 1117 RON
150 1 1 BASE SA (N092764) 3954 RON
203 1 2 PIN (N042079) 588 RON
231 1 1 WASHER (N028927) 588 RON
232 1 1 KNOB (147107-08) 893 RON
233 1 1 GUIDE SA (N026733) 6821 RON
861 1 1 KITBOX (A28470) 28836 RON
