Top » Piese de schimb » PIESE DEWALT » D25941K Type 1

D25941K DEMOLITION HAMMER Type 1
[D25941K Type 1]
D25941K DEMOLITION HAMMER Type 1
Click pentru a mari
Imagini suplimentare
D25941K DEMOLITION HAMMER Type 1
Click pentru a mari
D25941K DEMOLITION HAMMER Type 1
Click pentru a mari

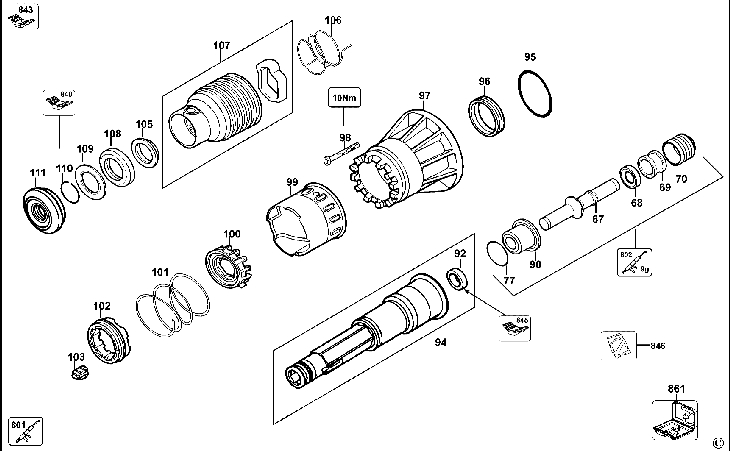

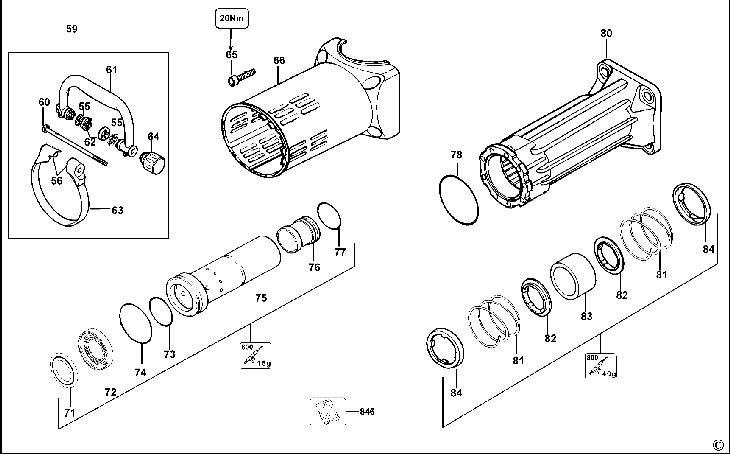

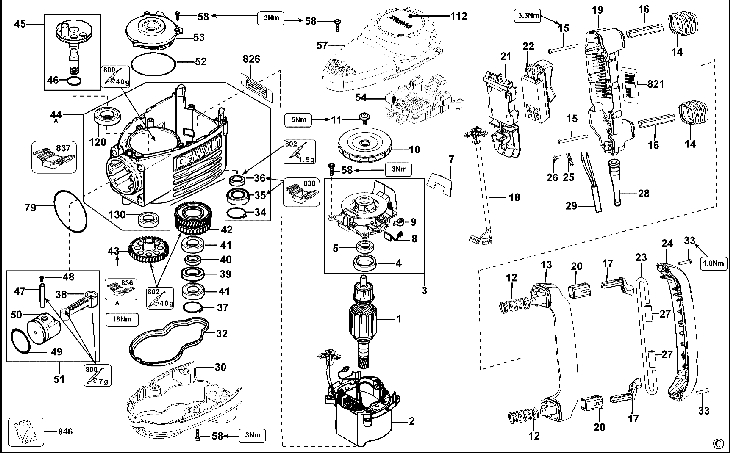

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SA ARMATURE DEMO HPP 230V (SERVICE) (579837-02) 86681 RON
1 1 1 SA ARMATURE DEMO HPP 120V (SERVICE) (579837-03) 86681 RON
2 1 1 SA MOTORPOT DEMO HPP 230V (SERVICE) (579827-04) 49771 RON
2 1 1 SA MOTORPOT DEMO HPP 120V (SERVICE) (579827-05) 62298 RON
3 1 1 SA BRUSHHOLDER 230V (SERVICE) (1007719-00) 25164 RON
3 1 1 1007719-01 - Indisponibil
4 1 1 RING INSULAT (590191-00) 893 RON
5 1 1 BEARING BALL cod vechi: 330003-36 BEARING 6000 T1XDDW (577745-00) 3018 RON
7 1 1 SEAL AIR (1007800-00) 105 RON
8 1 1 BRUSH PAIR 230V CUT OFF SA (1005550-02) 7940 RON
8 1 1 BRUSH PAIR 120V CUT OFF SA (1005550-03) 25164 RON
9 1 2 SPRING BRUSH (487377-00) 1452 RON
10 1 1 SA FAN 10-12 KG (1006393-00) 5591 RON
11 1 1 "SCREW M5 * 12""" (324119-02) 893 RON
12 1 2 SPRING (1005637-00) 558 RON
13 1 1 HANDLE HOUSING (1005640-00) 3466 RON
14 1 2 FOLD BELLOWS (1005643-00) 3466 RON
15 1 2 AP SCREW M5X60 (1005672-00) 105 RON
16 1 2 GUIDING TUBE (1005646-00) 3018 RON
17 1 2 LIMIT STOP (1005644-00) 3018 RON
18 1 1 SA LEAD AND CONNECTOR HPP (487326-03) 5591 RON
19 1 1 HANDLE PLATE (MOULD) (1005639-00) 5591 RON
20 1 2 BUSH SLIDING (1005496-01) 1229 RON
21 1 1 CARRIER SWITCH (496906-00) 190 RON
22 1 1 SWITCH 1257.2101-01 (N062128) 14315 RON
23 1 1 CONNECTION ROD (VDH) (1005645-00) 3018 RON
24 1 1 HANDLE COVER (1005641-00) 4472 RON
25 1 1 CLAMP CORD (821070) 558 RON
26 1 7 SCREW (330065-08) 558 RON
27 1 2 SLEEVE BEARING (CONSIGN) (1005942-00) 558 RON
28 1 1 CORD PROTECTOR (323091-01) 105 RON
29 1 1 CORDSET QS 4200 7-9KG (582319-22) 11519 RON
29 1 1 CORDSET LX 4200 7-9KG (582319-24) 23598 RON
30 1 1 GEAR CAP (1005642-00) 5031 RON
32 1 1 SEAL HOUSING (487224-00) 2795 RON
33 1 2 SCREW (330065-08) 558 RON
34 1 1 RING SAFETY 35 (324821-04) 781 RON
35 1 1 BEARING BALL 15X35X11 (N110363) 2795 RON
36 1 1 SEAL ARMATURE (487209-01) 2124 RON
37 1 1 RING SAFETY 32 (324821-03) 558 RON
38 1 1 ROD CONNECTING cod vechi 487314-00 (N533907) 6821 RON
39 1 1 "WASHER 21.8*5.2""" (578452-00) 190 RON
40 1 1 "WASHER 15.2*5.2""" (578451-00) 1452 RON
41 1 1 605040-26 - Indisponibil
42 1 1 DOUBLE GEAR ( SERVICE ) (582108-00) 37579 RON
43 1 1 GEAR 48 ( SERVICE ) (582109-00) 1891 RON
44 1 1 SA GEARBOX ( SERVICE ) (582110-00) 153454 RON
45 1 1 SA CRANKSHAFT ( SERVICE ) (582111-00) 39145 RON
46 1 1 RING CRANKSHAFT (576451-00) 105 RON
47 1 1 PIN PISTON VDH ( SERVICE ) (582387-00) 11519 RON
48 1 2 KNOB (581656-00) 558 RON
49 1 1 O RING (487287-00) 4472 RON
50 1 1 PISTON (SERVICE) (582112-00) 5591 RON
51 1 1 SA PISTON SERVICE KIT VDH (SERVICE) (582113-01) 20467 RON
52 1 1 O RING 75.87 2.62 (323711-47) 893 RON
53 1 1 SA COVER UPGRADE PACKED (SERVICE) (N147097) 5591 RON
54 1 1 SA MODULE D25941K 230V (SERVICE) (1007717-02) 45297 RON
54 1 1 SA MODULE D25941K 120V (SERVICE) (1007717-03) 43731 RON
55 1 2 RUBBER INSERT (479319-00) 781 RON
56 1 1 WASHER CLAMP (487284-00) 1229 RON
57 1 1 COVER MOTOR VDH (1005666-01) 4137 RON
58 1 23 SCREW PAN HEAD M5*18 (324007-11) 558 RON
59 1 1 HANDLE SIDE VDH SERVICE (584240-01) 29862 RON
60 1 1 SCREW M8X185 (487343-00) 2124 RON
61 1 1 HANDLE SIDE (487277-00) 11519 RON
62 1 2 WASHER LOCKING (479317-01) 781 RON
63 1 1 CLAMP VDH (487393-00) 4472 RON
64 1 1 SA KNOB (487291-00) 3466 RON
65 1 4 SCREW M8*30 (949886-32) 781 RON
66 1 1 HOUSING FRONT VDH (487283-00) 5591 RON
67 1 1 BEAT PIECE VDH ( SERVICE ) (582369-00) 23598 RON
68 1 1 BUSH BEATPIECE VDH ( SERVICE ) (582388-00) 14315 RON
69 1 1 RUBBER DAMPER (VDH) (496843-00) 7940 RON
70 1 1 BUSH BEATPIECE (SERVICE) (582114-00) 15993 RON
71 1 1 SPINDLE DUMPER (VDH) (496842-00) 6821 RON
72 1 1 BUSH CYLINDER VDH (496845-00) 190 RON
73 1 1 O RING 43*5.5 (487298-00) 190 RON
74 1 1 "O RING 55*2.5""" (323711-46) 781 RON
75 1 1 CYLINDER VDH STEEL (SERVICE) (N075953) 4825 RON
75 1 1 CYLINDER VDH STEEL (SERVICE) (N075953) 4825 RON
76 1 1 RAM (SERVICE) (582115-00) 28296 RON
77 1 2 O RING (487287-00) 4472 RON
78 1 1 RING-O 65X2.75 (323711-56) 105 RON
79 1 3 O-RING 70X2 (323711-55) 781 RON
80 1 1 FRONT HSG VDH ( SERVICE ) (582372-00) 46863 RON
81 1 2 SPRING ANTIVIBRATION (487317-00) 3466 RON
82 1 2 GUIDE MASS VDH (578784-00) 1117 RON
83 1 1 ANTIVIBRATION MASS( SERVICE ) (582373-00) 10512 RON
84 1 2 GUIDE SPRING VDH (487316-00) 1452 RON
90 1 1 BEARING BEATPIECE VDH ( SERVICE ) (582374-00) 17335 RON
92 1 1 SEAL BEATPIECE 20X30X7 (N014013) 5591 RON
94 1 1 SPINDLE SA ( SERVICE ) (582277-00) 91714 RON
95 1 1 "RING-O 38*2.5""" (323711-41) 781 RON
96 1 1 RUBBER DAMPER (487302-00) 1452 RON
97 1 1 FLANGE VDH ( SERVICE ) (582375-00) 165534 RON
98 1 9 SCREW CYL M6 40 / 12..9 (918825-02) 781 RON
99 1 1 SLEEVE TURNING (487372-00) 5031 RON
100 1 1 SA SLEEVE LOCK (487366-00) 5591 RON
101 1 1 SPRING PRESSURE (487370-00) 1229 RON
102 1 1 BUSH HEX (487365-00) 1788 RON
103 1 1 PIECE LOCKING (487369-00) 3124 RON
105 1 1 BUSH DAMPER VDH ( SERVICE ) (582383-00) 26730 RON
106 1 1 SPRING LOCK (487309-00) 3018 RON
107 1 1 SA SLIDING SLEEVE (582330-00) 34336 RON
108 1 1 RUBBER DAMPER (487373-00) 2124 RON
109 1 1 WASHER HEX (487301-00) 4472 RON
110 1 1 CLIP (579399-00) 1117 RON
111 1 1 SEAL LIP (487375-00) 9282 RON
112 1 1 LABEL TOP (487392-00) 1117 RON
120 1 1 BEARING BALL (330003-68) 7940 RON
130 1 1 BEARING BALL 17x40x12-6203T1XDDW1C3E D (330003-69) 4472 RON
800 1 1 GREASE GLK 249 NLGI 00 150G TUBE (578970-06) 28296 RON
801 1 1 GREASE THERMOPLEX 0.05KG TUBE (328771-07) 3466 RON
802 1 1 GREASE TUBE 100ML RENOLIT PARAGON EP (870889-02) 4472 RON
821 1 1 PLATE RATING D25941K-GB01 (N041984) 105 RON
821 1 1 PLATE RATING D25941K-LX01 (N041985) 105 RON
826 1 1 NOISE LABEL 105dB (487395-01) 781 RON
836 1 1 559617-99 - Indisponibil
837 1 1 559618-99 - Indisponibil
838 1 1 559621-99 - Indisponibil
840 1 1 559629-99 - Indisponibil
843 1 1 559630-99 - Indisponibil
845 1 1 559628-99 - Indisponibil
846 1 1 SERVICE KIT 12KG HPP 230V (SERVICE) (1008770-00) 86681 RON
846 1 1 1008771-00 - Indisponibil
861 1 1 SA KITBOX (487353-04) 65989 RON
