Top » Piese de schimb » PIESE DEWALT » D25900K Type 2

D25900K DEMOLITION HAMMER Type 2
[D25900K Type 2]
D25900K DEMOLITION HAMMER Type 2
Click pentru a mari
Imagini suplimentare
D25900K DEMOLITION HAMMER Type 2
Click pentru a mari
D25900K DEMOLITION HAMMER Type 2
Click pentru a mari

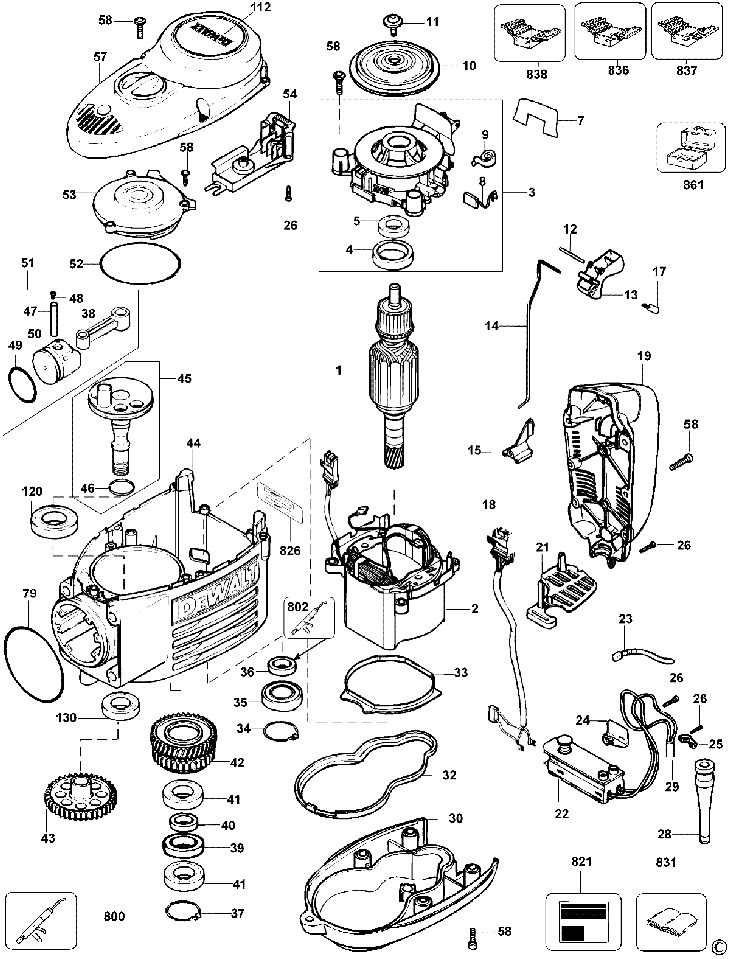

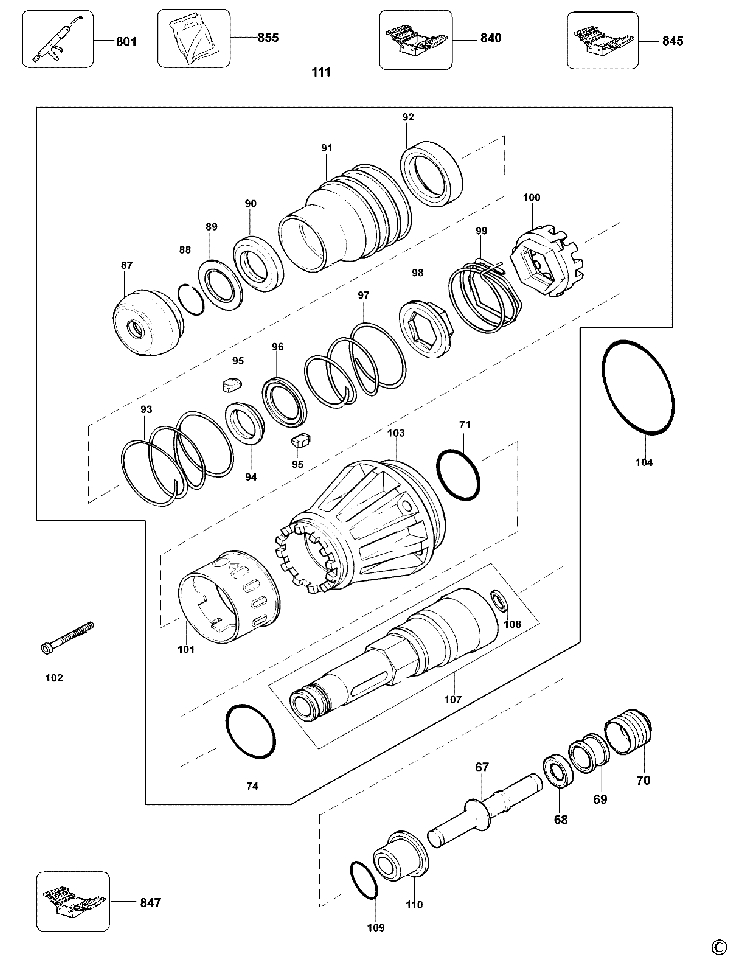

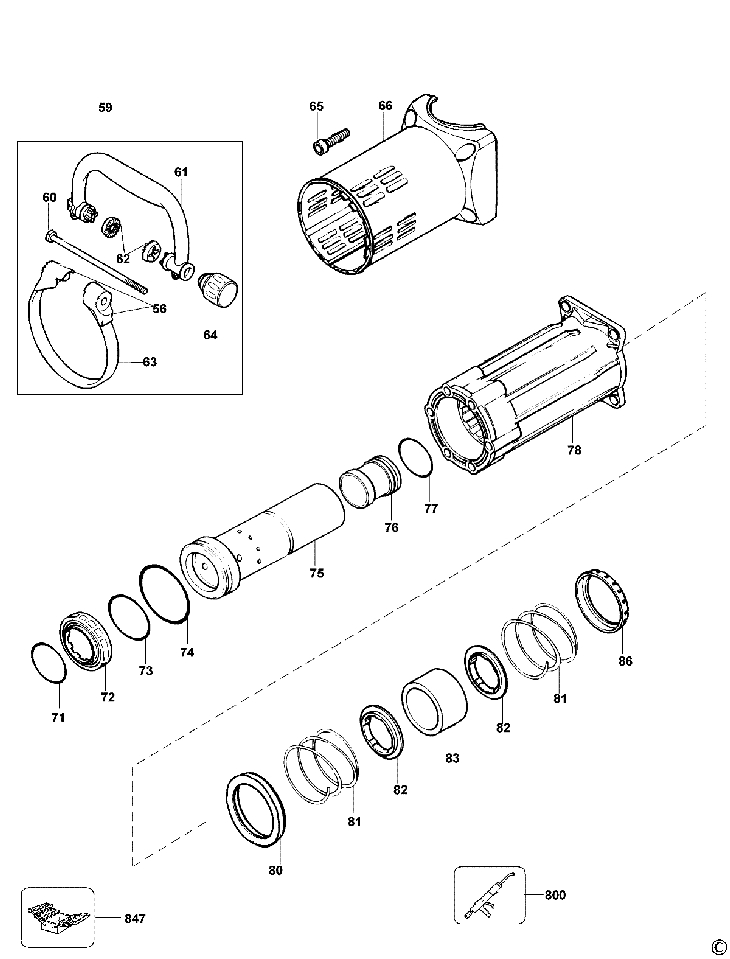

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SA ARMATURE DEMO HPP 230V (SERVICE) (579837-02) 86681 RON
1 1 1 SA ARMATURE DEMO HPP 120V (SERVICE) (579837-03) 86681 RON
2 1 1 SA MOTORPOT 230V ( SERVICE ) (579827-00) 70239 RON
2 1 1 SA MOTORPOT 120V ( SERVICE ) (579827-01) 74937 RON
3 1 1 SA BRUSH HOLDER 230V (487266-02) 25164 RON
3 1 1 SA BRUSH HOLDER 110V (487266-03) 25164 RON
4 1 1 RING INSULAT (590191-00) 893 RON
5 1 1 BEARING BALL cod vechi: 330003-36 BEARING 6000 T1XDDW (577745-00) 3018 RON
7 1 1 SEAL AIR (1007800-00) 105 RON
8 1 1 BRUSH PAIR 230V CUT OFF (SUBA) (588698-00) 12861 RON
8 1 1 BRUSH PAIR 115V (SUBA) (588698-01) 12861 RON
9 1 2 SPRING BRUSH (487377-00) 1452 RON
10 1 1 SA FAN (487252-00) 6821 RON
11 1 1 "SCREW M5 * 12""" (324119-02) 893 RON
12 1 1 NEEDLE ROLLER (377374) 781 RON
13 1 1 TRIGGER (487276-00) 1452 RON
14 1 1 ROD cod vechi 487285-00 (N893314) 190 RON
15 1 1 ROD ADAPTER (487286-00) 1229 RON
17 1 2 DETENT (326467-00) 558 RON
18 1 1 SA LEAD WITH CONNECTOR 230V (487326-00) 5591 RON
18 1 1 SA LEAD WITH CONNECTOR 120V (487326-01) 5031 RON
19 1 1 HANDLE (487275-00) 23598 RON
21 1 1 COVER WIRE (487388-00) 1452 RON
22 1 1 SWITCH 1267.7121-00 cod vechi 326087-01 (N485853) 7940 RON
23 1 1 CABLE TIE (579093-00) 558 RON
24 1 1 BRACKET SWITCH (487378-00) 105 RON
25 1 1 CLAMP CORD (821070) 558 RON
26 1 7 SCREW (330065-08) 558 RON
28 1 1 CORD PROTECTOR (323091-01) 105 RON
29 1 1 CORDSET GB 4200 (582319-02) 15993 RON
29 1 1 CORDSET LX 4200PCP (324438-72) 22144 RON
30 1 1 COVER GEARCASE (487271-00) 7940 RON
32 1 1 SEAL HOUSING (487224-00) 2795 RON
33 1 1 SEAL JAMPOT (576387-00) 2795 RON
34 1 1 RING SAFETY 35 (324821-04) 781 RON
35 1 1 BEARING BALL 15X35X11 (N110363) 2795 RON
36 1 1 SEAL ARMATURE (487209-01) 2124 RON
37 1 1 RING SAFETY 32 (324821-03) 558 RON
38 1 1 ROD CONNECTING cod vechi 487234-00 (N542565) 4472 RON
39 1 1 "WASHER 21.8*5.2""" (578452-00) 190 RON
40 1 1 "WASHER 15.2*5.2""" (578451-00) 1452 RON
41 1 2 605040-26 - Indisponibil
42 1 1 DOUBLE GEAR ( SERVICE ) (579782-00) 25164 RON
43 1 1 GEAR 44 ( SERVICE ) (579783-00) 28296 RON
44 1 1 SA GEARBOX ( SERVICE ) (579772-00) 117887 RON
45 1 1 SA CRANKSHAFT ( SERVICE ) (579839-00) 3124 RON
46 1 1 RING CRANKSHAFT (576451-00) 105 RON
47 1 1 PIN (487208-00) 1452 RON
48 1 2 KNOB (487228-00) 558 RON
49 1 1 "O RING 30*5"" D25901K" (487213-00) 2347 RON
50 1 1 PISTON ( SERVICE ) (579774-00) 4472 RON
51 1 1 SA PISTON SERVICE KIT HDH (SERVICE) (579779-01) 20467 RON
52 1 1 O RING 75.87 2.62 (323711-47) 893 RON
53 1 1 SA COVER UPGRADE PACKED (SERVICE) (N147098) 3466 RON
54 1 1 SA ELECTRONICS 230V VDH-SS (SERVICE) (584376-06) 51337 RON
54 1 1 SA ELECTRONICS 120V VDH-SS (SERVICE) (584376-07) 62298 RON
56 1 2 WASHER CLAMP (487284-00) 1229 RON
57 1 1 SA COVER MOTOR (487344-00) 10512 RON
58 1 23 SCREW PAN HEAD M5*18 (324007-11) 558 RON
59 1 1 SA HANDLE SIDE HDH ( SERVICE ) (584240-00) 26730 RON
60 1 1 SCREW M8X185 (487343-00) 2124 RON
61 1 1 HANDLE SIDE (487277-00) 11519 RON
62 1 2 WASHER LOCKING (487278-00) 1229 RON
63 1 1 CLAMP (487281-00) 4472 RON
64 1 1 SA KNOB (487291-00) 3466 RON
65 1 4 SCREW M8*30 (949886-32) 781 RON
66 1 1 HOUSING FRONT (487282-00) 5591 RON
67 1 1 BEAT PIECE ( SERVICE ) (579832-00) 15993 RON
68 1 1 BUSH DAMPER BEATPIECE (487270-00) 4137 RON
69 1 1 RUBBER DAMPER (487288-00) 6821 RON
70 1 1 BUSH BEATPIECE ( SERVICE ) (579786-00) 17335 RON
71 1 2 O RING 43*5.5 (487298-00) 190 RON
72 1 1 BUSH CYLINDER (487203-00) 2124 RON
73 1 1 O RING 38*5 (487297-00) 3466 RON
74 1 2 "RING-O 38*2.5""" (323711-41) 781 RON
75 1 1 CYLINDER HDH STEEL (SERVICE) (N075954) 34336 RON
76 1 1 RAM ( SERVICE ) (579780-00) 1891 RON
77 1 1 "O RING 33*3.5""" (487296-00) 2124 RON
78 1 1 HOUSING FRONT (SERVICE) (579769-00) 23598 RON
79 1 1 O-RING 70X2 (323711-55) 781 RON
80 1 1 SPRING GUIDE (487293-00) 1117 RON
81 1 2 SPRING ANTIVIBRATION (487247-00) 2795 RON
82 1 2 GUIDE MASS HDH (576488-00) 1452 RON
83 1 1 ANTIVIBRATION MASS (SERVICE) (579781-00) 28296 RON
86 1 1 GUIDE SPRING HDH (576489-00) 558 RON
87 1 1 SEAL LIP (487238-01) 4137 RON
88 1 1 "RING SNAP 28*2.5""" (487205-00) 893 RON
89 1 1 WASHER SDS (487241-00) 4137 RON
90 1 1 RING RUBBER (487244-00) 2347 RON
91 1 1 SLEEVE SLIDING (487236-00) 4137 RON
92 1 1 LOCKING BUSH ( SERVICE ) (579784-00) 9282 RON
93 1 1 SPRING SDS (487218-00) 781 RON
94 1 1 BUSH DAMPER SDS (487249-00) 4472 RON
95 1 2 PIECE LOCKING (489672-00) 3466 RON
96 1 1 BUSH SDS (487240-00) 1117 RON
97 1 1 SPRING CONICAL (487216-00) 781 RON
98 1 1 GUIDE SPRING SDS (487268-00) 1452 RON
99 1 1 7150NG LOCK (487289-00) 3018 RON
100 1 1 SLEEVE LOCKSPINDLE cod vechi 487267-00 (N542567) 5031 RON
101 1 1 SLEEVE TURNING (487237-00) 3018 RON
102 1 6 SCREW CYL M6 40 / 12..9 (918825-02) 781 RON
103 1 1 SDS FLANGE ( SERVICE ) (579778-00) 43731 RON
104 1 1 "O RING 43 * 2.5""" (323711-15) 781 RON
107 1 1 SA SPINDLE ( SERVICE ) (579773-00) 59725 RON
108 1 1 SEAL BEATPIECE 18X18X7 (N014007) 2347 RON
109 1 1 O RING (487287-00) 4472 RON
110 1 1 BEARING BEATPIECE (SERVICE) (1007543-00) 12861 RON
111 1 1 SA TOOLHOLDER ( SERVICE ) (579771-00) 231524 RON
112 1 1 LABEL TOP (487392-00) 1117 RON
120 1 1 BEARING BALL (330003-68) 7940 RON
130 1 1 BEARING BALL 17x40x12-6203T1XDDW1C3E D (330003-69) 4472 RON
800 1 1 GREASE GLK 249 NLGI 00 150G TUBE (578970-06) 28296 RON
801 1 1 GREASE THERMOPLEX 0.05KG TUBE (328771-07) 3466 RON
802 1 1 GREASE TUBE 100ML RENOLIT PARAGON EP (870889-02) 4472 RON
826 1 1 NOISE LABEL 105dB (487395-01) 781 RON
836 1 1 559617-99 - Indisponibil
837 1 1 559618-99 - Indisponibil
838 1 1 559621-99 - Indisponibil
840 1 1 559619-99 - Indisponibil
845 1 1 559620-99 - Indisponibil
847 1 1 230V KIT DEM.HAMMER (SERVICE) (581015-02) 74937 RON
847 1 1 230V FULL SERVICE KIT DEMO HAMMER (581016-00) 91714 RON
847 1 1 115V FULL SERVICE KIT DEMO HAMMER (581016-01) 112630 RON
847 1 1 115V KIT DEM.HAMMER (SERVICE) (581015-03) 9736 RON
861 1 1 SA KITBOX (487353-03) 49771 RON
