Top » Piese de schimb » PIESE DEWALT » D25763K Type 1

D25763K ROTARY HAMMER Type 1
[D25763K Type 1]
D25763K ROTARY HAMMER Type 1
Click pentru a mari
Imagini suplimentare
D25763K ROTARY HAMMER Type 1
Click pentru a mari
D25763K ROTARY HAMMER Type 1
Click pentru a mari

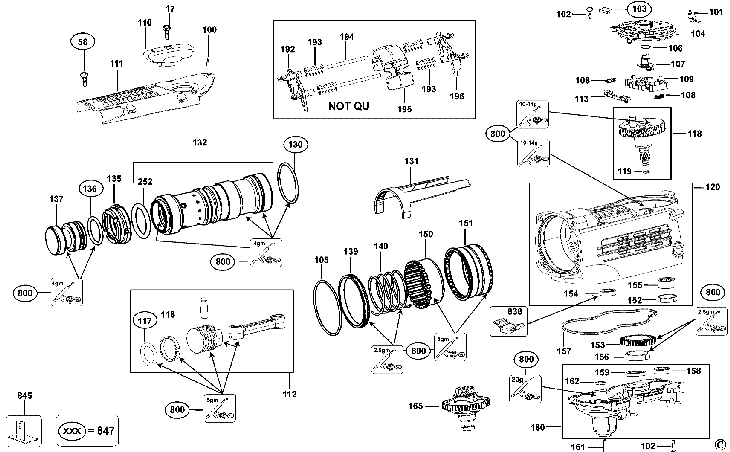

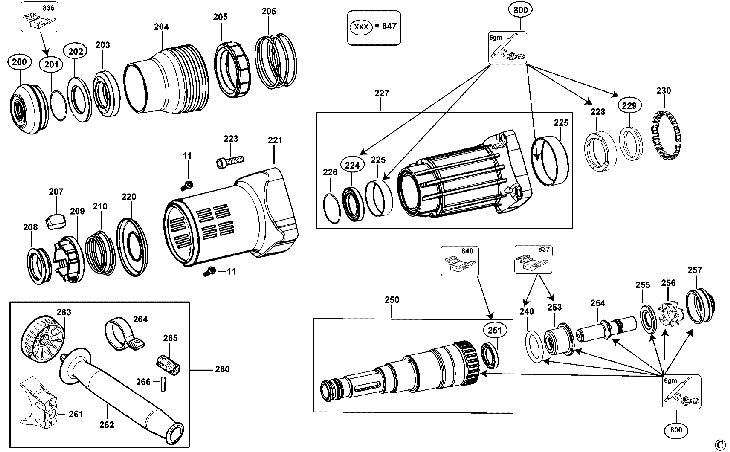

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
3 1 1 SWITCH MSH (587274-00) 7940 RON
5 1 2 SCREW PLASTIC THREAD FORM M4 * 57 T20 (330019-30) 558 RON
6 1 1 RING EXPANSION (577746-00) 893 RON
7 1 1 BEARING BALL cod vechi: 330003-36 BEARING 6000 T1XDDW (577745-00) 3018 RON
8 1 1 RING INSULAT (590191-00) 893 RON
9 1 1 MOTORCASE 9KG (SERVICE - PURCH ITEM) (N053065-02) 12861 RON
10 1 1 SA FAN 10-12 KG (1006393-00) 5591 RON
11 1 2 SCREW (330065-08) 558 RON
15 1 1 "SCREW M5 * 12""" (324119-02) 893 RON
16 1 1 BAFFLE AIR 9KG (N029960) 25164 RON
17 1 19 SCREW (330065-08) 558 RON
19 1 1 COVER MOTOR 7-9KG (MOULD) (N022762-00) 5591 RON
20 1 1 CAP END 9KG (MOULD) (N026164) 5591 RON
25 1 1 SA LEVER CLUTCH 7/9 KG (SERVICE) (N081352) 5031 RON
27 1 1 AP SCREW M5X60 (1005672-00) 105 RON
28 1 1 HANDLE PLATE (N026163-00) 7940 RON
29 1 1 SPRING ANTIVIB 5KG (1007569-00) 781 RON
30 1 1 SLIDING BUSH 5 KG (1007567-00) 1117 RON
35 1 1 LIMIT STOP - 5KG (1007566-00) 4137 RON
36 1 1 FOLD BELOW-UPPER 5KG (1007565-00) 1452 RON
37 1 1 HANDLE HOUSING -FULL-FEATD 5KG (MOULD) (1006579-00) 4137 RON
38 1 1 SWITCH TRIGGER (587114-01) 781 RON
39 1 1 HANDLE COVER - FULL-FEATD-5KG (MOULD) (1006580-00) 5591 RON
40 1 1 SA LOCK ON NEWMSH (N019514) 10512 RON
46 1 1 FOLD BELOW-LOWER 5KG (1008678-00) 190 RON
47 1 2 HANDLE BUSH (PURCH) (N038214) 558 RON
48 1 1 PIN HANDLE (N062047) 558 RON
49 1 1 LIGHT GUIDE (N030728) 1117 RON
50 1 1 CORDSET COVER 5KG (MOULD) (1008391-00) 190 RON
55 1 1 CLAMP CORD (821070) 558 RON
56 1 1 CORD PROTECTOR (323091-01) 105 RON
58 1 4 SCREW PAN HEAD M5*18 (324007-11) 558 RON
100 1 1 DETENT (326467-00) 558 RON
101 1 1 SWITCH MICRO MQ 10580358 (N019533) 6821 RON
102 1 18 SCREW PAN HEAD M5*18 (324007-11) 558 RON
103 1 1 FELT (488067-00) 105 RON
104 1 1 COVER CRANK (N027968) 3466 RON
105 1 1 RING-O 65X2.75 (323711-56) 105 RON
106 1 1 RING O 9x2.5 (323711-48) 1452 RON
107 1 1 ECCENTRIC (586032-00) 893 RON
108 1 2 SPRING PRESSURE (323395-32) 558 RON
109 1 1 SLIDER CRANK COVER 7-9KG (Mould) (N027969) 1229 RON
110 1 1 KNOB MODE CHANGE (586038-00) 190 RON
111 1 1 COVER TOP 9KG COMBI AVC BLACK (MOULD) (585168-05) 2795 RON
112 1 1 SA PISTON 9KG UPGRADE (SERVICE) (N079390) 14315 RON
113 1 1 SLIDER SPRING RETAINER (MOULD) (N027970) 781 RON
116 1 1 PISTON CLIP 7-9KG (N029957) 1117 RON
117 1 1 "O RING 30*5"" D25901K" (487213-00) 2347 RON
118 1 1 SA CRANK SHAFT 9KG UPGRADE (SERVICE) (N091329) 46863 RON
119 1 1 "O RING 5*1.2""" (323711-26) 558 RON
120 1 1 SA MAIN HOUSING 9KG (SERVICE) (N079381) 91714 RON
130 1 1 "O-RING 35x2.5 HNBR 75""" (577744-07) 893 RON
131 1 1 SLIDER GEAR (586034-00) 190 RON
132 1 1 SA CYLINDER 40 STEEL (SERVICE) (N079395) 28296 RON
135 1 1 BUSH CYLINDER 40 (584715-00) 2347 RON
136 1 1 "O RING 33*3.5""" (487296-00) 2124 RON
137 1 1 RAM 9KG (SERVICE) (492501-00) 23598 RON
139 1 1 BUSH CENTER PA (478650-00) 190 RON
140 1 1 SPRING 2.25*48.2 (584726-00) 1452 RON
150 1 1 SA SLEEVE SHIFTING (SERVICE) (489181-01) 26730 RON
151 1 1 SA GEAR BEVEL 7/9KG (SERVICE) (N079396) 20467 RON
152 1 1 SPACER (479974-00) 893 RON
153 1 1 SA GEAR Z39 (SERVICE) (488688-00) 5591 RON
154 1 1 BALL BEARING 6201 (577745-02) 3466 RON
155 1 1 BEARING NEEDLE 22*30*13 (586301-00) 2347 RON
156 1 1 BUSH CENTER (SERVICE) (489239-00) 3018 RON
157 1 1 SEAL HOUSING (586022-00) 1452 RON
158 1 1 BEARING BALL (330003-39) 2347 RON
159 1 1 "RING SEALING 15X26X7""" (327141-08) 1788 RON
160 1 1 SA GEAR HOUSING 2STEP (SERVICE) (N079386) 22144 RON
161 1 1 PIN PRESSURE (586392-00) 1452 RON
162 1 1 SEAL 12X6X4 (586403-00) 1117 RON
165 1 1 SA CLUTCH 2STEP (SERVICE) (N079392) 65989 RON
192 1 1 RETAINER FRONT (488097-00) 1452 RON
193 1 4 SPRING AVC 9KG (488095-00) 893 RON
194 1 2 AXLE ACTIVATION (586436-00) 893 RON
195 1 1 SA MASS AVC 7/9KG (490613-00) 17335 RON
196 1 1 RETAINER REAR (488098-00) 1788 RON
200 1 1 SEAL LIP (487238-01) 4137 RON
201 1 1 "RING SNAP 28*2.5""" (487205-00) 893 RON
202 1 1 WASHER SDS (487241-00) 4137 RON
203 1 1 RING RUBBER (487244-00) 2347 RON
204 1 1 SLEEVE SLIDING (487236-00) 4137 RON
205 1 1 LOCKING BUSH ( SERVICE ) (579784-00) 9282 RON
206 1 1 SPRING SDS (487218-00) 781 RON
207 1 2 PIECE LOCKING (489672-00) 3466 RON
208 1 1 BUSH DAMPER SDS (487249-00) 4472 RON
209 1 1 BUSH GUIDE SDS (590377-00) 1229 RON
210 1 1 SPRING CONICAL (487216-00) 781 RON
220 1 1 GUIDE SDS (584696-00) 2347 RON
221 1 1 COVER FRONT 9KG (587081-00) 3018 RON
223 1 4 SCREW M8*30 (949886-32) 781 RON
224 1 1 RING SEALING 35x47x7 (327141-09) 2347 RON
225 1 1 SA PACK OF BEARINGS (SERVICE) (488679-00) 12861 RON
226 1 1 RING SNAP 47X1.5 (488787-00) 558 RON
227 1 1 SA HOUSING FRONT (SERVICE) (492697-00) 32770 RON
228 1 1 WASHER SPINDLE (584722-00) 190 RON
229 1 1 DAMPER SPINDLE (589223-00) 1117 RON
230 1 1 BUSH SPINDLE LOCK (584727-00) 190 RON
240 1 1 O RING (487287-00) 4472 RON
250 1 1 SPINDLE WITH SEAL (SERVICE) (492698-00) 59725 RON
251 1 1 SEAL BEATPIECE 18X18X7 (N014007) 2347 RON
252 1 1 O-RING 38x3 (491004-00) 2124 RON
253 1 1 BEARING BEATPIECE (SERVICE) (1007543-00) 12861 RON
254 1 1 BEAT PIECE ( SERVICE ) (579832-00) 15993 RON
255 1 1 BUSH DAMPER BEATPIECE (487270-00) 4137 RON
256 1 1 RUBBER DAMPER (496678-00) 4137 RON
257 1 1 BUSH BEATPIECE ( SERVICE ) (579786-00) 17335 RON
260 1 1 SA SIDE HANDLE 9KG UPGRADE (SERVICE) (N083964) 28296 RON
261 1 1 CLAMPING PIECE 9KG B3ZG6 (N022227) 2795 RON
262 1 1 SA STICK SIDE HANDLE SERV.PACK (SERVICE) (N114828) 15993 RON
263 1 1 CLAMPING WHEEL (326553-00) 4472 RON
264 1 1 CLAMP 9KG (479337-00) 5591 RON
265 1 1 THREAD SLEEVE (326552-00) 3018 RON
266 1 1 PIN SIDEHANDLE (N079374) 558 RON
800 1 1 GREASE GLK 249NLGI 00-80G TUBE (SERVICE) (578970-04) 12861 RON
816 1 1 LABEL BRAND 7-9KG (PRINT) (N061824) 781 RON
817 1 1 NOISE LABEL 105dB (487395-01) 781 RON
836 1 1 559652-99 - Indisponibil
836 1 1 559651-99 - Indisponibil
837 1 1 559653-99 - Indisponibil
838 1 1 559657-99 - Indisponibil
840 1 1 559659-99 - Indisponibil
845 1 1 559656-99 - Indisponibil
861 1 1 KITBOX 7KG UPGRADED WITH HANDLE (PURCH) (N072214) 42277 RON
