D25722K ROTARY HAMMER Type 1
[D25722K Type 1]
D25722K ROTARY HAMMER Type 1
Click pentru a mari
Imagini suplimentare
D25722K ROTARY HAMMER Type 1
Click pentru a mari
D25722K ROTARY HAMMER Type 1
Click pentru a mari

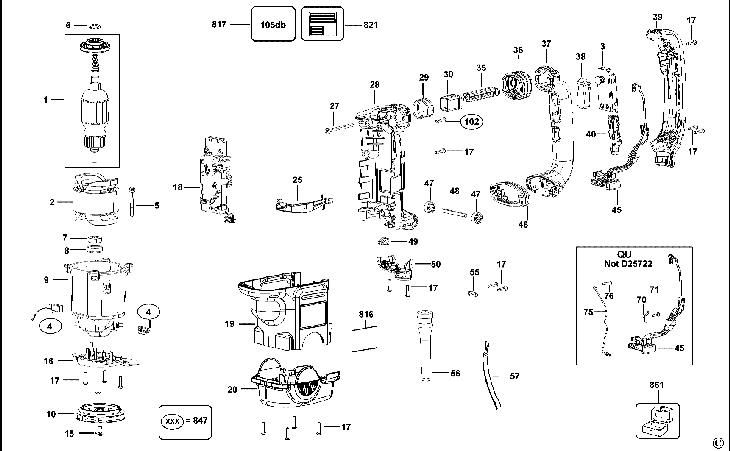

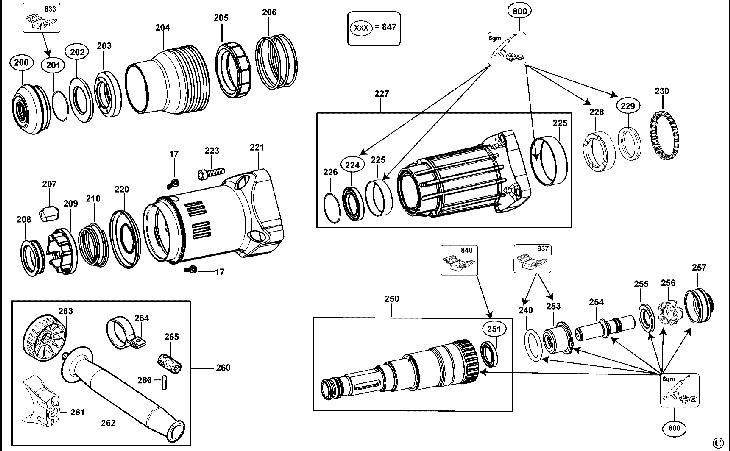

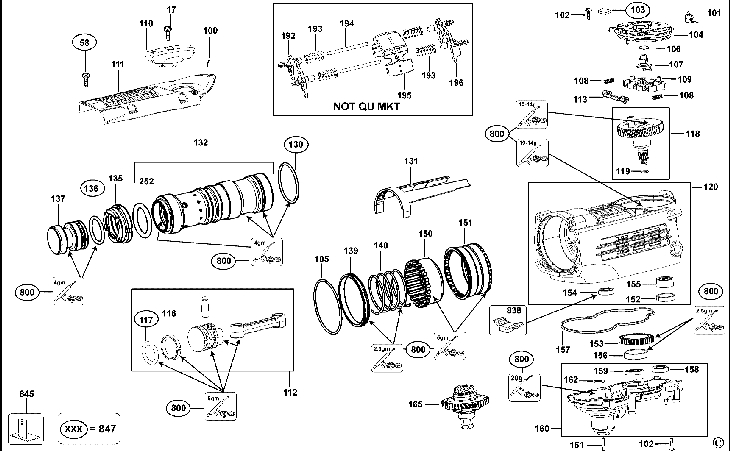

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE 7KG 230V (SERVICE) (489251-00) 59725 RON
1 1 1 ARMATURE 7KG 115V (SERVICE) (489252-00) 74937 RON
2 1 1 FIELD 7KG 230V (SERVICE) (489254-00) 20467 RON
2 1 1 FIELD 7KG 115V (SERVICE) (489255-00) 32770 RON
3 1 1 SWITCH MSH (587274-00) 7940 RON
4 1 1 BRUSH PAIR 230V (SUBA) (489256-00) 5591 RON
4 1 1 BRUSH PAIR 115V CUT OFF SA (489257-00) 10512 RON
5 1 2 SCREW PLASTIC THREAD FORM M4 * 57 T20 (330019-30) 558 RON
6 1 1 RING EXPANSION (577746-00) 893 RON
7 1 1 BEARING BALL cod vechi: 330003-36 BEARING 6000 T1XDDW (577745-00) 3018 RON
8 1 1 RING INSULAT (590191-00) 893 RON
9 1 1 MOTORCASE 7KG (SERVICE-PURCH ITEM) (N053063-02) 12861 RON
9 1 1 MOTORCASE 7KG (SERVICE-PURCH ITEM) (N053063-02) 12861 RON
10 1 1 SA FAN 10-12 KG (1006393-00) 5591 RON
15 1 1 "SCREW M5 * 12""" (324119-02) 893 RON
16 1 1 BAFFLE AIR 7KG (N029959) 25164 RON
17 1 19 SCREW (330065-08) 558 RON
18 1 1 SA MODULE KIT D25712K 230V (SERVICE) (N053977) 51337 RON
18 1 1 SA MODULE KIT D25712K 120V (SERVICE) (N053978) 9736 RON
19 1 1 COVER MOTOR 7-9KG (MOULD) (N022762-00) 5591 RON
20 1 1 CAP END 7KG (MOULD) (N027971) 5031 RON
25 1 1 SA LEVER CLUTCH 7/9 KG (SERVICE) (N081352) 5031 RON
27 1 1 AP SCREW M5X60 (1005672-00) 105 RON
28 1 1 HANDLE PLATE (N026163-00) 7940 RON
29 1 1 SPRING ANTIVIB 5KG (1007569-00) 781 RON
30 1 1 SLIDING BUSH 5 KG (1007567-00) 1117 RON
35 1 1 LIMIT STOP - 5KG (1007566-00) 4137 RON
36 1 1 FOLD BELOW-UPPER 5KG (1007565-00) 1452 RON
37 1 1 HANDLE HOUSING -FULL-FEATD 5KG (MOULD) (1006579-00) 4137 RON
38 1 1 SWITCH TRIGGER (587114-01) 781 RON
39 1 1 HANDLE COVER - FULL-FEATD-5KG (MOULD) (1006580-00) 5591 RON
40 1 1 SA LOCK ON NEWMSH (N019514) 10512 RON
45 1 1 SA OVERMOULD FULL FEAT 230V (SERVICE) (N041833) 9282 RON
45 1 1 SA OVERMOULD FULL FEAT 230V (SERVICE) (N041833) 9282 RON
46 1 1 FOLD BELOW-LOWER 5KG (1008678-00) 190 RON
47 1 2 HANDLE BUSH (PURCH) (N038214) 558 RON
48 1 1 PIN HANDLE (N062047) 558 RON
49 1 1 LIGHT GUIDE (N030728) 1117 RON
50 1 1 CORDSET COVER 5KG (MOULD) (1008391-00) 190 RON
55 1 1 CLAMP CORD (821070) 558 RON
56 1 1 CORD PROTECTOR (323091-01) 105 RON
57 1 1 CORDSET GB 5000 0 (582319-42) 15993 RON
57 1 1 CORDSET 4200 PCP (324438-90) 28296 RON
58 1 4 SCREW PAN HEAD M5*18 (324007-11) 558 RON
100 1 1 DETENT (326467-00) 558 RON
101 1 1 SWITCH MICRO MQ 10580358 (N019533) 6821 RON
102 1 22 SCREW PAN HEAD M5*18 (324007-11) 558 RON
103 1 1 FELT (488067-00) 105 RON
104 1 1 COVER CRANK (N027968) 3466 RON
105 1 1 RING-O 65X2.75 (323711-56) 105 RON
106 1 1 RING O 9x2.5 (323711-48) 1452 RON
107 1 1 ECCENTRIC (586032-00) 893 RON
108 1 2 SPRING PRESSURE (323395-32) 558 RON
109 1 1 SLIDER CRANK COVER 7-9KG (Mould) (N027969) 1229 RON
110 1 1 KNOB MODE CHANGE (586038-00) 190 RON
111 1 1 COVER TOP 7-9KG COMBI AVC (585168-02) 2347 RON
112 1 1 SA PISTON 7KG UPGRADE (SERVICE) (N079389) 17335 RON
113 1 1 SLIDER SPRING RETAINER (MOULD) (N027970) 781 RON
116 1 1 PISTON CLIP 7-9KG (N029957) 1117 RON
117 1 1 "RING O 25*5""" (584703-00) 3018 RON
118 1 1 SA CRANK SHAFT 9KG UPGRADE (SERVICE) (N091329) 46863 RON
119 1 1 "O RING 5*1.2""" (323711-26) 558 RON
120 1 1 SA MAIN HOUSING 7KG (SERVICE) (N079379) 80865 RON
130 1 1 "O-RING 35x2.5 HNBR 75""" (577744-07) 893 RON
131 1 1 SLIDER GEAR (586034-00) 190 RON
132 1 1 SA CYLINDER 35 STEEL (SERVICE) (N079394) 26730 RON
135 1 1 BUSH CYLINDER 40 (584715-00) 2347 RON
136 1 1 RING O 28 17 X 3 53 (584706-00) 2124 RON
137 1 1 SA RAM 35 (SERVICE) (489180-00) 14315 RON
139 1 1 BUSH CENTER PA (478650-00) 190 RON
140 1 1 SPRING 2.25*48.2 (584726-00) 1452 RON
150 1 1 SA SLEEVE SHIFTING (SERVICE) (489181-01) 26730 RON
151 1 1 SA GEAR BEVEL 7/9KG (SERVICE) (N079396) 20467 RON
152 1 1 SPACER (479974-00) 893 RON
153 1 1 SA GEAR Z39 (SERVICE) (488688-00) 5591 RON
154 1 1 BALL BEARING 6201 (577745-02) 3466 RON
155 1 1 BEARING NEEDLE 22*30*13 (586301-00) 2347 RON
156 1 1 BUSH CENTER (SERVICE) (489239-00) 3018 RON
157 1 1 SEAL HOUSING (586022-00) 1452 RON
158 1 1 BEARING BALL (330003-39) 2347 RON
159 1 1 "RING SEALING 15X26X7""" (327141-08) 1788 RON
160 1 1 SA GEAR HOUSING 2STEP (SERVICE) (N079386) 22144 RON
161 1 1 PIN PRESSURE (586392-00) 1452 RON
162 1 1 SEAL 12X6X4 (586403-00) 1117 RON
165 1 1 SA CLUTCH 2STEP (SERVICE) (N079392) 65989 RON
192 1 1 RETAINER FRONT (488097-00) 1452 RON
193 1 2 SPRING AVC 7KG (488096-00) 781 RON
194 1 2 AXLE ACTIVATION (586436-00) 893 RON
195 1 1 SA MASS AVC 7/9KG (490613-00) 17335 RON
196 1 1 RETAINER REAR (488098-00) 1788 RON
200 1 1 SEAL LIP (487238-01) 4137 RON
201 1 1 "RING SNAP 28*2.5""" (487205-00) 893 RON
202 1 1 WASHER SDS (487241-00) 4137 RON
203 1 1 RING RUBBER (487244-00) 2347 RON
204 1 1 SLEEVE SLIDING (487236-00) 4137 RON
205 1 1 LOCKING BUSH ( SERVICE ) (579784-00) 9282 RON
206 1 1 SPRING SDS (487218-00) 781 RON
207 1 2 PIECE LOCKING (489672-00) 3466 RON
208 1 1 BUSH DAMPER SDS (487249-00) 4472 RON
209 1 1 BUSH GUIDE SDS (590377-00) 1229 RON
210 1 1 SPRING CONICAL (487216-00) 781 RON
220 1 1 GUIDE SDS (584696-00) 2347 RON
221 1 1 COVER FRONT 7KG COMBI YELLOW (MOULD) (585167-02) 5031 RON
223 1 4 SCREW M8*30 (949886-32) 781 RON
224 1 1 "RING SEALING 35X47X7""" (327141-07) 2124 RON
225 1 1 SA PACK OF BEARINGS (SERVICE) (488679-00) 12861 RON
226 1 1 RING SNAP 47X1.5 (488787-00) 558 RON
227 1 1 SA HOUSING FRONT 7KG (SERVICE) (488678-00) 29862 RON
228 1 1 BUSH DAMP. SPINDLE (589096-00) 1788 RON
229 1 1 DAMPER SPINDLE (589223-00) 1117 RON
230 1 1 BUSH SPINDLE LOCK (584727-00) 190 RON
240 1 1 RING O 33x5 (488546-00) 2347 RON
250 1 1 SA SPINDLE WITH SEAL (SERVICE) (488676-00) 91714 RON
251 1 1 SEAL BEATPIECE 18X18X7 (N014007) 2347 RON
252 1 1 O-RING 34X3 (1005597-00) 2124 RON
253 1 1 SA BEARING BEATPIECE (SERVICE) (488685-00) 12861 RON
254 1 1 SA BEATPIECE 7KG UPGRADE (SERVICE) (N346959) 1891 RON
255 1 1 SA WASHER DAMPER 7KG (SERVICE) (488680-00) 4472 RON
256 1 1 "O-RING 18X10 HNBR 75""" (577744-06) 4137 RON
257 1 1 SA BUSH DAMPER (SERVICE) (488686-00) 11519 RON
260 1 1 SA SIDE HANDLE 7KG UPGRADE (SERVICE) (N083965) 26730 RON
261 1 1 CLAMPING PIECE 7KG B3ZG6 (N021312) 2347 RON
262 1 1 SA STICK SIDE HANDLE SERV.PACK (SERVICE) (N114828) 15993 RON
263 1 1 CLAMPING WHEEL (326553-00) 4472 RON
264 1 1 CLAMP 7KG COMBI (479333-00) 4472 RON
265 1 1 THREAD SLEEVE (326552-00) 3018 RON
266 1 1 PIN SIDEHANDLE (N079374) 558 RON
800 1 1 GREASE GLK 249NLGI 00-80G TUBE (SERVICE) (578970-04) 12861 RON
816 1 1 LABEL BRAND 7-9KG (PRINT) (N061824) 781 RON
817 1 1 NOISE LABEL 105dB (487395-01) 781 RON
821 1 1 RATING LABEL D25722K-GB01 (N317607) 2124 RON
821 1 1 RATING LABEL D25722K-LX01 (N317608) 2124 RON
836 1 1 559651-99 - Indisponibil
836 1 1 559652-99 - Indisponibil
837 1 1 559653-99 - Indisponibil
838 1 1 559657-99 - Indisponibil
840 1 1 559659-99 - Indisponibil
845 1 1 559656-99 - Indisponibil
847 1 1 SA KIT ALL 230V 7KG UPGRADE (SERVICE) (N082644) 4825 RON
847 1 1 SA KIT ALL 115V 7KG UPGRADE (SERVICE) (N082645) 49771 RON
861 1 1 KITBOX 7KG UPGRADED WITH HANDLE (PURCH) (N072214) 42277 RON
