D25700K ROTARY HAMMER Type 1
[D25700K Type 1]
D25700K ROTARY HAMMER Type 1
Click pentru a mari
Imagini suplimentare
D25700K ROTARY HAMMER Type 1
Click pentru a mari
D25700K ROTARY HAMMER Type 1
Click pentru a mari

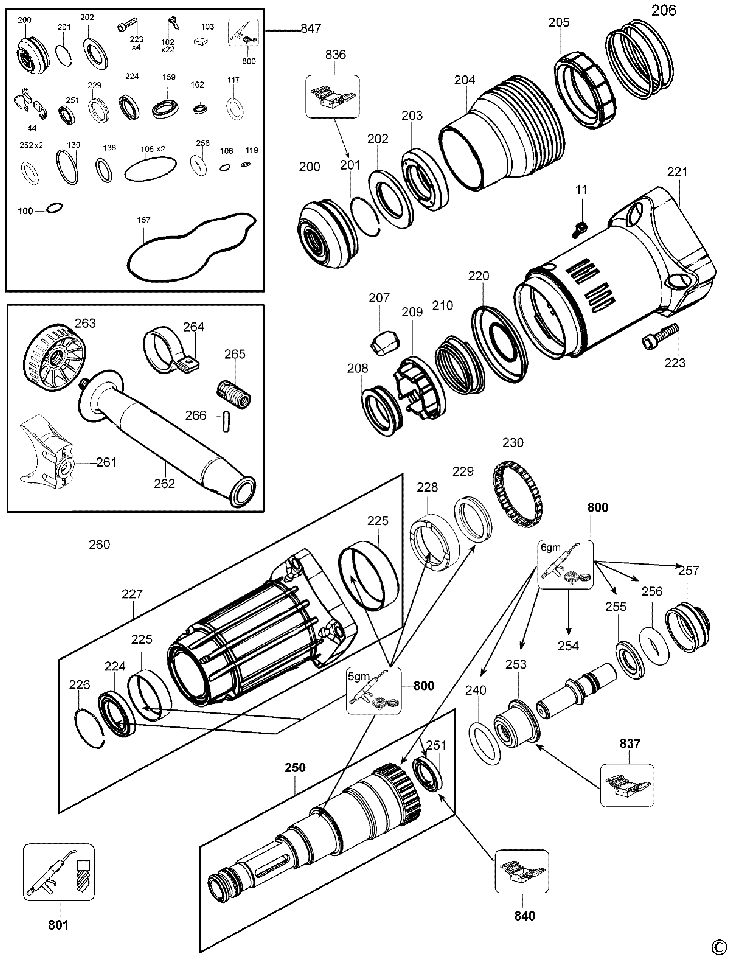

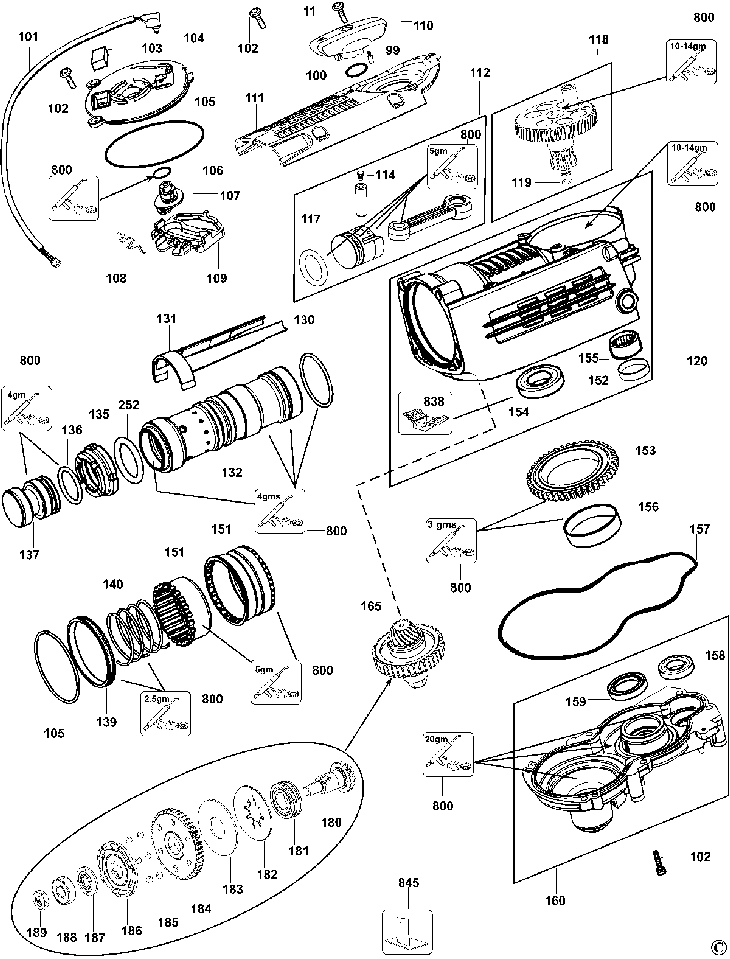

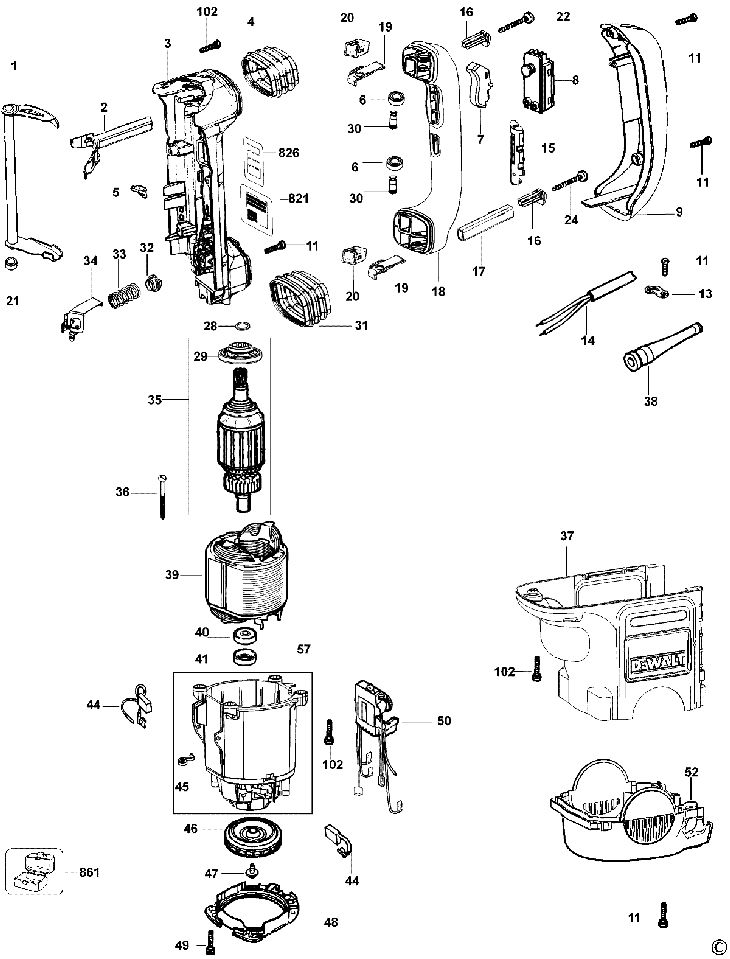

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SA CONNECTION ROD AND BUSH (SERVICE) (N019871) 10512 RON
2 1 1 GUIDING UPPER (586415-00) 7940 RON
3 1 1 COVER HANDLEPLATE 7-9KG D25700/840K (585171-01) 5591 RON
4 1 1 BELLOW UPPER (588639-00) 3466 RON
5 1 1 LIGHT GUIDE (586045-00) 893 RON
6 1 1 ROLLER (586411-00) 190 RON
7 1 1 SWITCH TRIGGER (587114-01) 781 RON
8 1 1 SWITCH MSH (581070-00) 10512 RON
9 1 1 COVER HANDLE (587090-00) 4472 RON
11 1 19 SCREW (330065-08) 558 RON
13 1 1 CLAMP CORD (821070) 558 RON
14 1 1 CORDSET GB 4200 7-9KG (582319-23) 17335 RON
14 1 1 CORDSET LX 4200 7-9KG (582319-24) 23598 RON
15 1 1 SA LOCK ON (477448-00) 14315 RON
16 1 1 LIMIT STOP (494477-00) 190 RON
17 1 1 ROD GUIDING LOWER (586414-00) 3018 RON
18 1 1 HOUSING HANDLE 7KG (587085-00) 3466 RON
19 1 2 DRIVER (586413-00) 2124 RON
20 1 2 BUSH SLIDING (1005496-00) 105 RON
21 1 1 SA CONNECTION ROD AND BUSH (SERVICE) (N019871) 10512 RON
22 1 1 SCREW M5X70 (949886-33) 893 RON
24 1 1 SCREW (330019-33) 558 RON
28 1 1 RING EXPANSION (577746-00) 893 RON
29 1 1 SA GUARD ARMATURE 7-9 KG (586597-00) 3466 RON
30 1 2 AXLE (586412-00) 3018 RON
31 1 1 BELLOW LOWER (588640-00) 4137 RON
32 1 1 CARRIER SPRING (586423-00) 781 RON
33 1 1 SPRING PRESSURE (586421-00) 893 RON
34 1 1 RETAINER. SPRING (586422-00) 2347 RON
35 1 1 ARMATURE 7KG 230V (SERVICE) (489251-00) 59725 RON
35 1 1 ARMATURE 7KG 115V (SERVICE) (489252-00) 74937 RON
36 1 2 SCREW PLASTIC THREAD FORM M4 * 57 T20 (330019-30) 558 RON
37 1 1 MOTOR COVER (585169-00) 4472 RON
38 1 1 CORD PROTECTOR (403395-00) 1788 RON
39 1 1 FIELD 7KG 230V (SERVICE) (489254-00) 20467 RON
39 1 1 FIELD 7KG 115V (SERVICE) (489255-00) 32770 RON
40 1 1 BEARING BALL cod vechi: 330003-36 BEARING 6000 T1XDDW (577745-00) 3018 RON
41 1 1 RING INSULAT (590191-00) 893 RON
44 1 1 BRUSH PAIR 230V (SUBA) (489256-00) 5591 RON
44 1 1 BRUSH PAIR 115V CUT OFF SA (489257-00) 10512 RON
45 1 2 SPRING BRUSH (487377-00) 1452 RON
46 1 1 SA FAN 7-9KG (586611-00) 5591 RON
47 1 1 "SCREW M5 * 12""" (324119-02) 893 RON
48 1 1 BAFFLE AIR 7KG (586614-00) 3018 RON
49 1 2 SCREW PLASTIC THREAD FORM M4 * 57 T20 (330019-30) 558 RON
50 1 1 SA MODULE KIT D25700K-230V (SERVICE) (662695-04) 59725 RON
50 1 1 SA MODULE KIT D25700K-120V (SERVICE) (662695-05) 86681 RON
52 1 1 END CAP (585170-00) 3466 RON
57 1 1 MOTOR HOUSING (586609-05) 12861 RON
99 1 1 DETENT (326467-00) 558 RON
100 1 1 000000-00 - Indisponibil
101 1 1 SWITCH MICRO 7-9KG (477287-01) 7940 RON
102 1 22 SCREW PAN HEAD M5*18 (324007-11) 558 RON
103 1 1 FELT (488067-00) 105 RON
104 1 1 COVER CRANK (586031-00) 2347 RON
105 1 2 RING-O 65X2.75 (323711-56) 105 RON
106 1 1 RING O 9x2.5 (323711-48) 1452 RON
107 1 1 ECCENTRIC (586032-00) 893 RON
108 1 1 SPRING SLIDER (586033-00) 2347 RON
109 1 1 SLIDER (586036-00) 2124 RON
110 1 1 KNOB MODE CHANGE (586038-00) 190 RON
111 1 1 COVER TOP 7KG COMBI (MOULD) (585168-00) 2347 RON
112 1 1 SA PISTON 35 KIT (SERVICE) (488689-00) 15993 RON
114 1 2 KNOB (581656-00) 558 RON
117 1 1 "RING O 25*5""" (584703-00) 3018 RON
118 1 1 SA CRANK SHAFT 7KG (SERVICE) (488687-00) 37579 RON
119 1 1 "O RING 5*1.2""" (323711-26) 558 RON
120 1 1 SA HOUSING (SERVICE) (489243-00) 86681 RON
130 1 1 "O-RING 35x2.5 HNBR 75""" (577744-07) 893 RON
131 1 1 SLIDER GEAR (586034-00) 190 RON
132 1 1 CYLINDER 35 STEEL (SERVICE) (N146117) 3124 RON
135 1 1 BUSH CYLINDER 40 (584715-00) 2347 RON
136 1 1 RING O 28 17 X 3 53 (584706-00) 2124 RON
137 1 1 SA RAM 35 (SERVICE) (489180-00) 14315 RON
139 1 1 BUSH CENTER PA (478650-00) 190 RON
140 1 1 SPRING 2.25*48.2 (584726-00) 1452 RON
151 1 1 SA BEVEL GEAR+SLEEVE SHIFTING (SERVICE) (1007908-00) 53015 RON
152 1 1 SPACER (479974-00) 893 RON
153 1 1 SA GEAR Z39 (SERVICE) (488688-00) 5591 RON
154 1 1 BALL BEARING 6201 (577745-02) 3466 RON
155 1 1 BEARING NEEDLE 22X30X13 (SERVICE) (489245-00) 5031 RON
156 1 1 BUSH CENTER (SERVICE) (489239-00) 3018 RON
157 1 1 SEAL HOUSING (586022-00) 1452 RON
158 1 1 BEARING BALL (330003-39) 2347 RON
159 1 1 "RING SEALING 15X26X7""" (327141-08) 1788 RON
160 1 1 SA GEAR HOUSING BASIC (SERVICE) (490605-00) 1891 RON
165 1 1 SA CLUTCH 1STEP (SERVICE) (N079393) 59725 RON
180 1 1 SA SHAFT CLUTCH (SERVICE) (490607-00) 17335 RON
181 1 1 BEARING BALL 173510 (323872-06) 5591 RON
182 1 1 SPRING CUP (586394-00) 5031 RON
183 1 1 PLATE PRESSURE (586386-00) 1452 RON
184 1 1 SA GEAR CLUTCH (SERVICE) (490609-00) 29862 RON
185 1 6 BALL (368247) 558 RON
186 1 1 CAM DISC (586577-00) 4137 RON
187 1 1 BUSH BEARING ONE STEP (586566-00) 1117 RON
188 1 1 BALL (330003-26) 3018 RON
189 1 1 NUT M10 (586402-00) 1117 RON
200 1 1 SEAL LIP (487238-01) 4137 RON
201 1 1 "RING SNAP 28*2.5""" (487205-00) 893 RON
202 1 1 WASHER SDS (487241-00) 4137 RON
203 1 1 RING RUBBER (487244-00) 2347 RON
204 1 1 SLEEVE SLIDING (487236-00) 4137 RON
205 1 1 LOCKING BUSH ( SERVICE ) (579784-00) 9282 RON
206 1 1 SPRING SDS (487218-00) 781 RON
207 1 2 PIECE LOCKING (489672-00) 3466 RON
208 1 1 BUSH DAMPER SDS (487249-00) 4472 RON
209 1 1 BUSH GUIDE SDS (590377-00) 1229 RON
210 1 1 SPRING CONICAL (487216-00) 781 RON
220 1 1 GUIDE SDS (584696-00) 2347 RON
221 1 1 COVER FRONT 7KG COMBI (MOULD) (585167-01) 3466 RON
223 1 4 SCREW M8*30 (949886-32) 781 RON
224 1 1 "RING SEALING 35X47X7""" (327141-07) 2124 RON
225 1 1 SA PACK OF BEARINGS (SERVICE) (488679-00) 12861 RON
226 1 1 RING SNAP 47X1.5 (488787-00) 558 RON
227 1 1 SA HOUSING FRONT 7KG (SERVICE) (488678-00) 29862 RON
228 1 1 BUSH DAMP. SPINDLE (589096-00) 1788 RON
229 1 1 DAMPER SPINDLE (589223-00) 1117 RON
230 1 1 BUSH SPINDLE LOCK (584727-00) 190 RON
240 1 1 RING O 33x5 (488546-00) 2347 RON
250 1 1 SA SPINDLE WITH SEAL (SERVICE) (488676-00) 91714 RON
251 1 1 SEAL BEATPIECE 18X18X7 (N014007) 2347 RON
252 1 1 RING O 33x5 (488546-00) 2347 RON
252 1 1 O-RING 34X3 (1005597-00) 2124 RON
253 1 1 SA BEARING BEATPIECE (SERVICE) (488685-00) 12861 RON
254 1 1 SA BEATPIECE 7KG (SERVICE) (488681-00) 1891 RON
255 1 1 SA WASHER DAMPER 7KG (SERVICE) (488680-00) 4472 RON
256 1 1 "O-RING 18X10 HNBR 75""" (577744-06) 4137 RON
257 1 1 SA BUSH DAMPER (SERVICE) (488686-00) 11519 RON
260 1 1 SIDE HANDLE (SERVICE) (489250-00) 1891 RON
261 1 1 CLAMPING PIECE 7KG B3ZG6 (N021312) 2347 RON
262 1 1 HANDLE WEINMEYER (MOULD) (N021120) 7940 RON
263 1 1 CLAMPING WHEEL (326553-00) 4472 RON
264 1 1 CLAMP 7KG COMBI (479333-00) 4472 RON
265 1 1 THREAD SLEEVE (326552-00) 3018 RON
266 1 1 PIN SIDEHANDLE (N079374) 558 RON
800 1 1 GREASE GLK 249NLGI 00-80G TUBE (SERVICE) (578970-04) 12861 RON
801 1 1 GREASE THERMOPLEX 0.05KG TUBE (328771-07) 3466 RON
821 1 1 LABEL RATING D25700-GB01 (PRINT) (N041689) 558 RON
821 1 1 LABEL RATING D25700-LX01 (PRINT) (N041690) 558 RON
826 1 1 NOISE LABEL 105dB (487395-01) 781 RON
836 1 1 559651-99 - Indisponibil
836 1 1 559652-99 - Indisponibil
837 1 1 559653-99 - Indisponibil
838 1 1 559657-99 - Indisponibil
840 1 1 559659-99 - Indisponibil
845 1 1 559656-99 - Indisponibil
847 1 1 SA 7KG HAMMER 230V KIT (SERVICE) (491210-00) 70239 RON
847 1 1 SA 7KG HAMMER 115V KIT (SERVICE) (491211-00) 70239 RON
861 1 1 KITBOX 7KG WITH HANDLE (381297-94) 46863 RON
