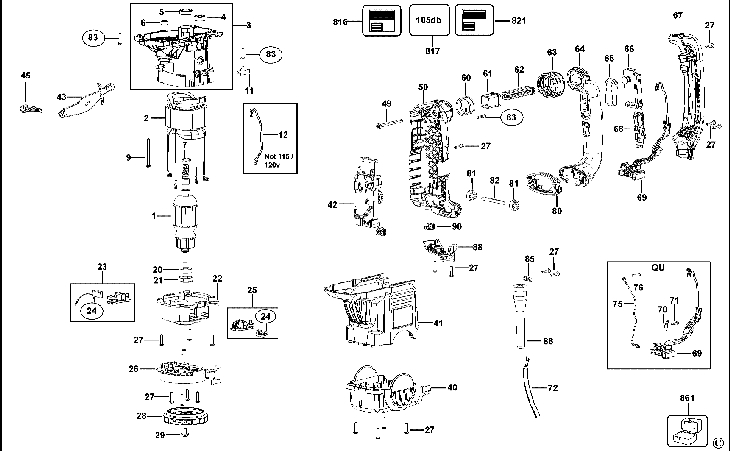

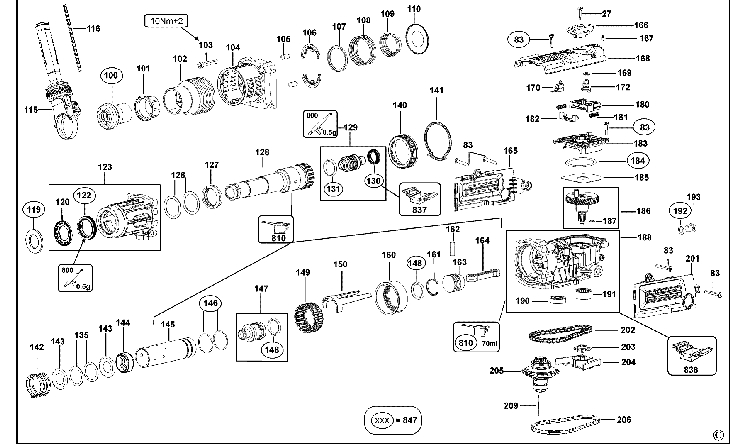

D25603K ROTARY HAMMER Type 1
[D25603K Type 1]
D25603K ROTARY HAMMER Type 1
Click pentru a mari
Imagini suplimentare
D25603K ROTARY HAMMER Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
3 1 1 SA COMBI HOUSING FULLY FEATD (SERVICE) (N041825) 1891 RON
4 1 1 BEARING BALL (330003-39) 2347 RON
5 1 1 RING SEALING 24 7 14 (327141-03) 6821 RON
6 1 1 SEAL 12X6X4 (586403-00) 1117 RON
7 1 1 RING EXPANSION (577746-00) 893 RON
9 1 2 SCREW PLASTIC THREAD FORM M4*50 (330065-21) 558 RON
11 1 2 TAB DOUBLE (1007970-00) 781 RON
20 1 1 BEARING BALL (330003-60) 190 RON
21 1 1 COVER BEARING (1007732-00) 781 RON
22 1 1 BRUSH BRIDGE (MOULD) (1007798-00) 3466 RON
26 1 1 BAFFLE FAN (1007799-00) 2347 RON
27 1 35 SCREW (330065-08) 558 RON
28 1 1 SA FAN (WITH MAGNET) (1006592-01) 6821 RON
29 1 1 "SCREW M5 * 12""" (324119-02) 893 RON
40 1 1 END CAP - FULL-FEATD - 5KG (MOULD) (1006577-00) 4472 RON
41 1 1 MOTOR COVER - COMBI - 5 KG (MOULD) (1006576-00) 5031 RON
43 1 1 LEVER ACTIVATION (1006589-00) 1788 RON
45 1 1 LEVER ACTIVATION (PIN) (1006588-00) 781 RON
49 1 1 AP SCREW M5X60 (1005672-00) 105 RON
50 1 1 HANDLE PLATE -FULL-FEATD - 5KG (1006578-00) 5031 RON
60 1 1 SPRING ANTIVIB 5KG (1007569-00) 781 RON
61 1 1 SLIDING BUSH 5 KG (1007567-00) 1117 RON
62 1 1 LIMIT STOP - 5KG (1007566-00) 4137 RON
63 1 1 FOLD BELOW-UPPER 5KG (1007565-00) 1452 RON
64 1 1 HANDLE HOUSING -FULL-FEATD 5KG (MOULD) (1006579-00) 4137 RON
65 1 1 SWITCH TRIGGER (587114-01) 781 RON
66 1 1 SWITCH MSH (587274-00) 7940 RON
67 1 1 HANDLE COVER - FULL-FEATD-5KG (MOULD) (1006580-00) 5591 RON
68 1 1 SA LOCK ON NEWMSH (N019514) 10512 RON
80 1 1 FOLD BELOW-LOWER 5KG (1008678-00) 190 RON
81 1 2 HANDLE BUSH (PURCH) (N038214) 558 RON
82 1 1 PIN HANDLE (N062047) 558 RON
83 1 19 SCREW PAN HEAD M5*18 (324007-11) 558 RON
85 1 1 CLAMP CORD (821070) 558 RON
86 1 1 CORD PROTECTOR (323091-01) 105 RON
88 1 1 CORDSET COVER 5KG (MOULD) (1008391-00) 190 RON
90 1 1 LIGHT GUIDE 5KG (MOULD) (1007896-00) 781 RON
100 1 1 SEAL LIP (329816-00) 2795 RON
101 1 1 SLEEVE SDS YELLOW (326575-01) 2347 RON
102 1 1 SLIDING TUBE INCL. WASHER (479247-00) 3466 RON
103 1 4 SCREW CYL M6 40 / 12..9 (918825-02) 781 RON
104 1 1 FRONT COVER 5KG (MOULD) (1006572-00) 2795 RON
105 1 2 "ROLLER 8 * 20""" (325878-00) 1229 RON
106 1 2 HOLDER PIN (325929-00) 781 RON
107 1 1 WASHER GUIDE (327208-00) 558 RON
108 1 1 SPRING.CPRSN 2.2/47. (323395-06) 781 RON
109 1 1 SPRING CONICAL (487118-00) 893 RON
110 1 1 N313860 - Indisponibil
119 1 1 FELT 31X52 (N038151) 105 RON
120 1 1 BUSH FELT (N045793) 105 RON
122 1 1 SEAL SPINDLE 32X42X7/9 (1007828-00) 5591 RON
123 1 1 SA FRONT HOUSING 5KG (SERVICE) (N041835) 26730 RON
126 1 2 WASHER DAMPER 5KG (1005982-00) 558 RON
127 1 1 DAMPER SPINDLE 5KG (496191-00) 1229 RON
128 1 1 SPINDLE SDS 5KG (SERVICE) (N041834) 4825 RON
129 1 1 BEAT PIECE 5KG NOT ASSMBLED (SERVICE) (N041847) 1891 RON
130 1 1 SEAL BEATPIECE MSH (577484-00) 14315 RON
131 1 1 323711-10 - Indisponibil
135 1 2 WASHER 18.5 (N064329) 781 RON
140 1 1 RING SPINDLE LOCK (494857-00) 1788 RON
141 1 1 GASKET MAIN HOUSING/FROT HOUSING (1006283-00) 190 RON
142 1 1 SPRING 2X40.2 (1005748-00) 105 RON
143 1 2 O-RING 16X6 HNBR 80 (N210233) 893 RON
144 1 1 BUSH CYLINDER (USE EXISTING MSH) (1006778-00) 105 RON
145 1 1 CYLINDER 31X35 (SERVICE) (N041846) 20467 RON
146 1 2 O RING 26 * 2 HNBR (577744-00) 1452 RON
147 1 1 RAM 5KG (SERVICE) (N041845) 15993 RON
148 1 2 "O RING FPM 23 * 4""" (576232-01) 3018 RON
149 1 1 SLEEVE SHIFTING 5KG (SERVICE) (N041844) 9282 RON
150 1 1 FORK SHIFTING 5KG (1005749-00) 105 RON
160 1 1 GEAR BEVEL 5KG (SERVICE) (N041842) 26730 RON
161 1 1 "RING PISTON D=25.6""" (325905-00) 105 RON
162 1 1 "NEEDLE PIN 8 * 24""" (330041-22) 1117 RON
163 1 1 PISTON (SERVICE) (N041843) 4137 RON
164 1 1 CONNECT. ROD (DIFFERENT BORE DIA) (494724-00) 2795 RON
165 1 1 SIDE COVER AL RIGHT - 5KG (1006721-00) 5031 RON
166 1 1 KNOB MODE CHANGE 5KG (1006786-00) 1229 RON
167 1 1 N403227 - Indisponibil
168 1 1 TOP COVER - COMBI - 5KG (MOULD) (1006575-00) 3018 RON
169 1 1 O-RING 8X2.2 (323711-57) 558 RON
170 1 1 SWITCH MICRO MQ 10580358 (N019533) 6821 RON
172 1 1 ECCENTRIC 5KG (496856-00) 558 RON
180 1 1 SLIDER SPRING 5KG (1006784-00) 105 RON
181 1 2 SPRING PRESSURE (323395-32) 558 RON
182 1 1 CONNECTOR 5KG (1006783-00) 781 RON
183 1 1 COVER CRANK 5KG (496857-00) 2347 RON
184 1 1 RING O 65X3.5 (323711-59) 781 RON
185 1 1 PLATE CRANK (1006785-00) 1117 RON
186 1 1 SA CRANK SHAFT 5KG (SERVICE) (N041841) 34336 RON
187 1 1 "O RING 5*1.2""" (323711-26) 558 RON
188 1 1 SA MAIN HOUSING 5KG (SERVICE) (N041840) 45297 RON
190 1 1 BEARING BALL 6001 (577745-01) 3466 RON
191 1 1 BEARING NEEDLE 22*30*13 (586301-00) 2347 RON
192 1 1 O-RING 8X2.2 (323711-57) 558 RON
193 1 1 PLUG SCREW (1008427-00) 1117 RON
201 1 1 SIDE COVER AL LEFT - 5KG (1006720-00) 5031 RON
202 1 1 CHAIN P8X40 (SERVICE) (N041839) 4472 RON
203 1 1 GEAR CHAIN 11 (SERVICE) (N041837) 2347 RON
204 1 1 GUIDE CHAIN (1006280-00) 1452 RON
205 1 1 SA CLUTCH 2 STEP 5KG (SERVICE) (N041836) 62298 RON
206 1 1 GASKET MAIN HOUSING/GEAR HOUSING (1006282-00) 2347 RON
209 1 1 PIN PRESSURE (586392-00) 1452 RON
800 1 1 GREASE SACHET 20G RENOLIT PARAGON EP 1 (870889-03) 3018 RON
810 1 1 OIL BOTTLE (N040237) 12861 RON
816 1 1 LABEL BRAND NEW MSH (PRINT) (N064908) 558 RON
817 1 1 NOISE LABEL 105dB (487395-01) 781 RON
836 1 1 1003938-99 - Indisponibil
837 1 1 559645-99 - Indisponibil
861 1 1 SA KITBOX MSH W HANDLE (PHANT) (574931-22) 37579 RON
