Top » Piese de schimb » PIESE DEWALT » D25600K Type 2

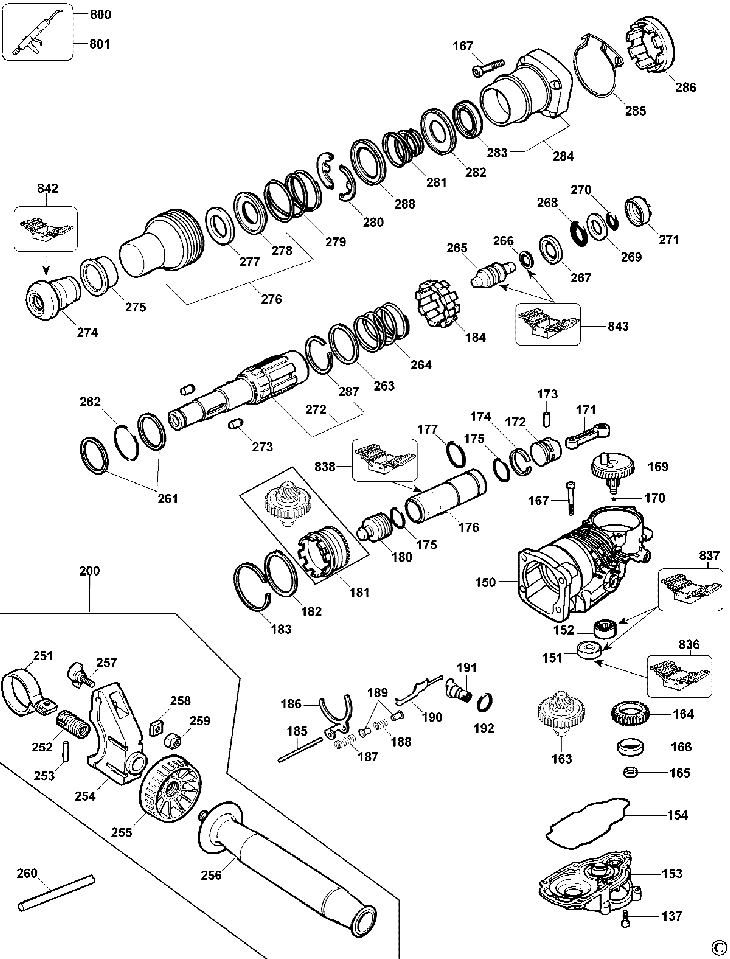

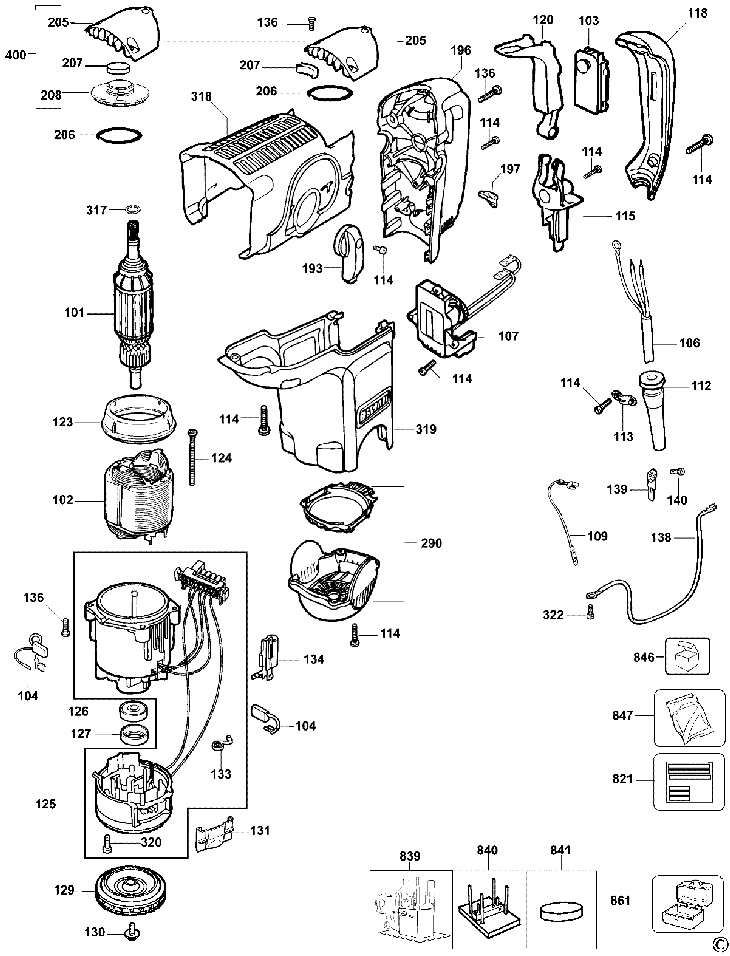

D25600K ROTARY HAMMER Type 2
[D25600K Type 2]
D25600K ROTARY HAMMER Type 2
Click pentru a mari
Imagini suplimentare
D25600K ROTARY HAMMER Type 2
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
101 1 1 SA ARMATURE G73 (SERVICE) (N079385) 70239 RON
101 1 1 SA ARMATURE (SERVICE) (N030721) 62298 RON
102 1 1 SA FIELD 230V (SERVICE) (327430-04) 23598 RON
102 1 1 SA FIELD (SERVICE) (327430-07) 22144 RON
103 1 1 SWITCH MSH (581070-00) 10512 RON
104 1 1 BRUSH PAIR 230V (N542573) 15993 RON
104 1 1 BRUSH PAIR 120V SA (SUBA) (582620-00) 17335 RON
106 1 1 CORDSET GB 4200 (582319-02) 15993 RON
106 1 1 CORDSET LX 4200PCP (324438-72) 22144 RON
107 1 1 ELECTRONIC MODULE 230V 45MM (SERVICE) (582574-00) 39145 RON
107 1 1 ELECTRONC MODULE 120V 45MM ( SERVICE ) (582574-02) 40599 RON
112 1 1 CORD PROTECTOR (323091-01) 105 RON
113 1 1 CLAMP CORD (821070) 558 RON
114 1 18 SCREW (330065-08) 558 RON
115 1 1 TRIGGER SUPPORT (577716-00) 1117 RON
118 1 1 COVER HANDLE (577712-00) 6821 RON
120 1 1 TRIGGER (325919-00) 1117 RON
123 1 1 CAP ISO M73 (492073-00) 893 RON
124 1 2 SCREW PLASTIC THREAD FORM 4.0*65 (330065-11) 781 RON
125 1 1 SA MOTORCASE 45MM ( SERVICE ) (582577-00) 42277 RON
126 1 1 BEARING BALL cod vechi: 330003-36 BEARING 6000 T1XDDW (577745-00) 3018 RON
127 1 1 RING ISOLATION 26MM (325279-00) 781 RON
129 1 1 SA FAN (577736-00) 7940 RON
130 1 1 "SCREW M5 * 12""" (324119-02) 893 RON
131 1 2 COVER BRUSH (326579-00) 893 RON
133 1 2 SPRING SPIRAL (326667-00) 893 RON
134 1 2 SA CHOKE HOLDER (326933-01) 2124 RON
136 1 8 SCREW PAN HEAD M5*18 (324007-11) 558 RON
137 1 4 SCREW PAN HEAD M5*18 (324007-11) 558 RON
150 1 1 SA HOUSING MAIN ( SERVICE ) (578487-02) 5484 RON
151 1 1 BEARING BALL 6001 (577745-01) 3466 RON
152 1 1 BEARING NEEDLE 20261 (330004-33) 3466 RON
153 1 1 SA HOUSING ( SERVICE ) (578486-01) 28296 RON
154 1 1 SEAL HOUSING (325936-00) 893 RON
163 1 1 SA BEVEL GEAR/CLUTCH UPGRADE (SERVICE) (496440-00) 74937 RON
163 1 1 SA BALL CLUTCH PACKED (SERVICE) (496367-00) 45297 RON
164 1 1 GEAR Z31 FLEX HONED (SERVICE) (492618-00) 5031 RON
165 1 1 SEAL RADIAL 12/28/6 (327141-05) 3466 RON
166 1 1 BEARING SLEEVE 28341 (325616-00) 2795 RON
167 1 6 SCREW CYL M6 40 / 12..9 (918825-02) 781 RON
169 1 1 SA CRANKSHAFT MSH ( SERVICE ) (582431-00) 3592 RON
170 1 1 "O RING 5*1.2""" (323711-26) 558 RON
171 1 1 CONNECTING ROD (325002-00) 3018 RON
172 1 1 PISTON (488669-00) 4137 RON
173 1 1 "NEEDLE PIN 8 * 24""" (330041-22) 1117 RON
174 1 1 "RING PISTON D=25.6""" (325905-00) 105 RON
175 1 2 "O RING FPM 23 * 4""" (576232-01) 3018 RON
176 1 1 CYLINDER MSH ( SERVICE ) (582576-00) 26730 RON
177 1 1 O RING 26 * 2 HNBR (577744-00) 1452 RON
180 1 1 RAM MSH ( SERVICE ) (582575-00) 17335 RON
181 1 1 SA BEVEL GEAR/CLUTCH UPGRADE (SERVICE) (496440-00) 74937 RON
182 1 1 WASHER 50.4*56.6 (326085-00) 190 RON
183 1 1 RING SNAP 58 FL (323763-03) 105 RON
184 1 1 SPINDLE LOCK (1005697-00) 3018 RON
185 1 1 PIN CYL 4.75 82.0 (325880-02) 1452 RON
186 1 1 SHIFT FORK 40/45MM (325160-00) 2795 RON
187 1 1 SPRING.CPRSN 1.25/5. (323395-08) 558 RON
188 1 2 SPRING.CPRSN 0.8/5.4 (323395-09) 558 RON
189 1 2 RIVET TUBE (326093-00) 781 RON
190 1 1 SWITCH ROD (577731-00) 1452 RON
191 1 1 ECCENTRIC (577718-00) 1117 RON
192 1 1 "RING O 11.5*2.4""" (323711-07) 558 RON
193 1 1 SA SWITCH LEVER (578494-00) 3018 RON
196 1 1 HANDLE (577711-00) 7940 RON
197 1 1 LENS (577735-00) 1117 RON
200 1 1 SA HANDLE UPGRADE WEINMAYER (PHANT) (N021271) 1891 RON
205 1 1 COVER GEAR BLACK (585379-01) 3466 RON
205 1 1 COVER GEAR BLACK (577710-01) 5031 RON
206 1 1 "O RING 56 * 3""" (323711-22) 558 RON
207 1 1 FELT (487229-00) 781 RON
207 1 1 FILTER FELT (581578-00) 558 RON
208 1 1 COVER GEAR INCL.SEAL (491348-01) 2124 RON
251 1 1 COLLET BAND SDS (326555-00) 3018 RON
252 1 1 SLEEVE THREADED UPGRADE (326552-01) 3018 RON
253 1 1 PIN SIDEHANDLE (N079374) 558 RON
254 1 1 CLAMPING PIECE MSH WEINMAYER (N021108) 3466 RON
255 1 1 CLAMPING WHEEL (326553-00) 4472 RON
256 1 1 SA HANDLE UPGRADE WEINMEYER (PHANT) (N021121) 11519 RON
257 1 1 SCREW WING M6*24 BLACK (326573-00) 781 RON
258 1 1 NUT SQUARE (326556-00) 893 RON
259 1 1 "NUT 6KT M6 ISO7040""" (330021-01) 2347 RON
260 1 1 DEPTH STOP (326205-00) 1229 RON
261 1 2 WASHER.41*48*1.8 STEEL (323753-11) 1229 RON
262 1 1 "O RING 40.6 * 4 HNBR 90""" (577744-05) 4137 RON
263 1 1 WASHER.44.4 STEEL (323753-14) 1117 RON
264 1 1 SPRING.CPRSN 2.2/44. (323395-07) 781 RON
265 1 1 SA BEAT PIECE MSH (SERVICE ) (582432-01) 28296 RON
266 1 1 SEAL BEATPIECE MSH (577484-00) 14315 RON
267 1 1 WASHER BEATPIECE (582381-00) 3018 RON
268 1 1 O RING 23 * 6 HNBR (577744-02) 1229 RON
269 1 1 WASHER.18.5 STEEL (323753-16) 1229 RON
270 1 1 O-RING 16X6 HNBR 80 (N210233) 893 RON
271 1 1 BUSH 18.5 * 35 * 10.5 (326044-01) 1452 RON
272 1 1 SA SDS SPINDLE (SERVICE) (493133-00) 86681 RON
273 1 2 "ROLLER 8 * 20""" (325878-00) 1229 RON
274 1 1 SEAL LIP (329816-00) 2795 RON
275 1 1 SLEEVE SDS YELLOW (326575-01) 2347 RON
276 1 1 SLIDING TUBE INCL. WASHER (479247-00) 3466 RON
277 1 1 000000-03 - Indisponibil
278 1 1 000000-03 - Indisponibil
279 1 1 SPRING.CPRSN 2.2/47. (323395-06) 781 RON
280 1 2 HOLDER PIN (325929-00) 781 RON
281 1 1 SPRING CONICAL (487118-00) 893 RON
282 1 1 N313860 - Indisponibil
283 1 1 RING SEALING 42 7 30 (327141-00) 1788 RON
284 1 1 SA HOUSING SDS (578489-00) 28296 RON
285 1 1 HOUSING FRONT SEAL (577727-01) 1788 RON
286 1 1 BUSH TOOTH (588560-00) 2347 RON
287 1 1 RING SNAP 43FL (323763-04) 893 RON
288 1 1 WASHER GUIDE (327208-00) 558 RON
290 1 1 SA ENDCAP (578493-00) 5591 RON
317 1 1 RING EXPANSION (577746-00) 893 RON
318 1 1 COVER MAIN D25600K (577708-00) 4472 RON
319 1 1 COVER MOTOR HOUSING (577709-00) 6821 RON
320 1 2 "SCREW PLASTIC 5*12""" (323924-08) 558 RON
322 1 1 SCREW M4 * 8 DIN6900 (326619-00) 781 RON
400 1 1 SA COVER BLACK (SERVICE) (493136-01) 4472 RON
800 1 1 GREASE 100 GM TUBE (328771-02) 7940 RON
801 1 1 GREASE THERMOPLEX 0.05KG TUBE (328771-07) 3466 RON
836 1 1 559632-99 - Indisponibil
837 1 1 559633-99 - Indisponibil
838 1 1 559631-99 - Indisponibil
839 1 1 559656-99 - Indisponibil
840 1 1 559597-99 - Indisponibil
841 1 1 559598-99 - Indisponibil
842 1 1 559644-99 - Indisponibil
843 1 1 559645-99 - Indisponibil
846 1 1 SA FIRST SERVICE KIT D25600 (SERVICE) (N027353) 15993 RON
847 1 1 SA SERVICE KIT 230V 45MM (589301-00) 65989 RON
847 1 1 SA SERVICE KIT 120V 45MM (589301-01) 65989 RON
