D25405K ROTARY HAMMER Type 2
[D25405K Type 2]
D25405K ROTARY HAMMER Type 2
Click pentru a mari
Imagini suplimentare
D25405K ROTARY HAMMER Type 2
Click pentru a mari

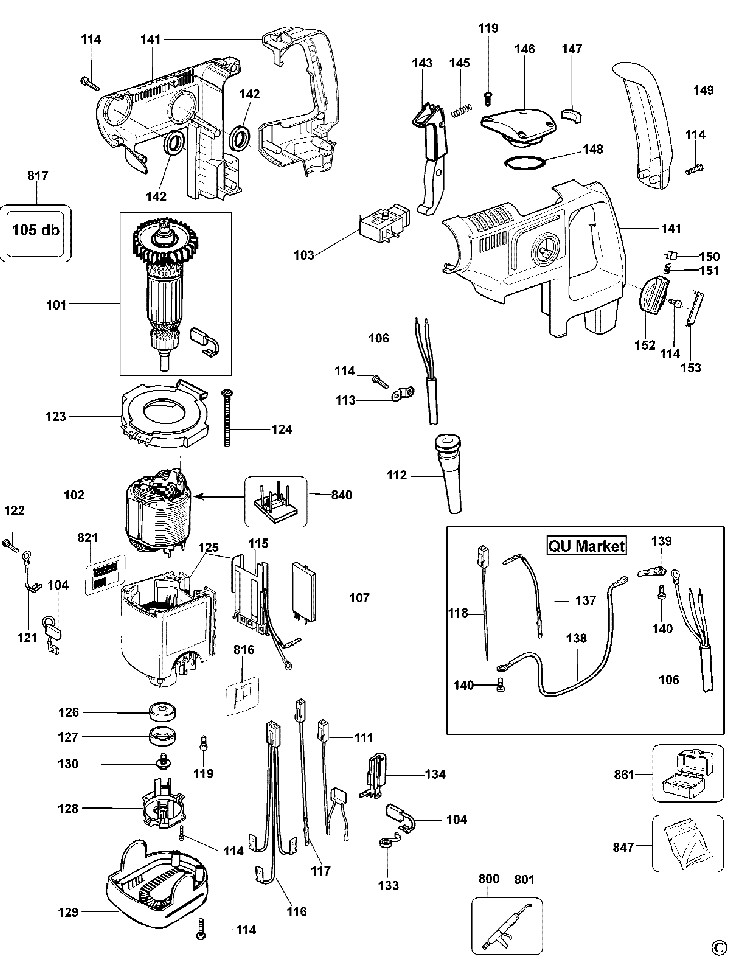

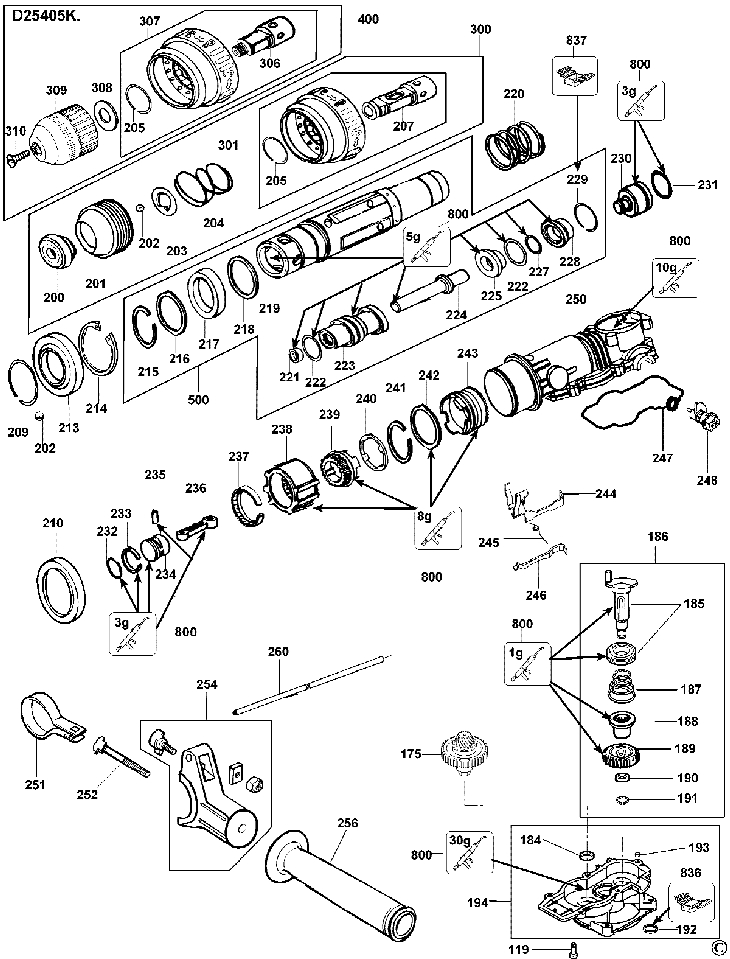

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
101 1 1 SA G73 MOTOR KIT (SERVICE) (N030349) 86681 RON
101 1 1 SA G73 MOTOR KIT (SERVICE) (N030350) 91714 RON
102 1 1 SA FIELD 240V ( SERVICE ) (377653-08) 1891 RON
102 1 1 S.A.FIELD 120V ( SERVICE ) (377653-06) 1891 RON
103 1 1 SA SWITCH ( SERVICE) (487175-49) 11519 RON
104 1 1 BRUSH PAIR 230V *BK32* (487131-00) 11519 RON
104 1 1 BRUSH PAIR 115V SA (487131-02) 14315 RON
106 1 1 CORD SET GB 3200 (582319-09) 12861 RON
106 1 1 CORD SET LX 3200/60-9/60-9 TINNED (582319-10) 17335 RON
107 1 1 ELECTRONIC MODULE 230V (328649-20) 15993 RON
107 1 1 ELECTRONIC MODULE 115V (328649-22) 1891 RON
111 1 1 SA CAPACITOR (487087-00) 3018 RON
112 1 1 CORD PROTECTOR (323091-01) 105 RON
113 1 1 CLAMP CORD (821070) 558 RON
114 1 20 SCREW (330065-08) 558 RON
115 1 1 SA ELECTRONIC DRAWER (329845-00) 7940 RON
116 1 1 SA LEAD PLUG 3 PRONG (329777-00) 2347 RON
117 1 1 SA LEAD PLUG 1 PRONG (329776-00) 190 RON
119 1 13 SCREW PAN HEAD M5*18 (324007-11) 558 RON
121 1 1 LEAD POTENTIAL (328856-01) 781 RON
122 1 2 SCREW PLASTIC THD FORM M4*8 T20 (330065-24) 781 RON
123 1 1 GUIDE AIR (327486-00) 105 RON
124 1 2 SCREW PLASTIC THREAD FORM M4*50 (330065-21) 558 RON
125 1 1 SA MOTORCASE DEWALT 230V ( SERVICE) (487073-01) 25164 RON
126 1 1 BEARING BALL cod vechi: 330003-36 BEARING 6000 T1XDDW (577745-00) 3018 RON
127 1 1 RING ISOLATION 26MM (325279-00) 781 RON
128 1 1 HOLDER BEARING (327487-00) 1788 RON
129 1 1 CAP END (327489-01) 3466 RON
130 1 1 "SCREW M5 * 12""" (324119-02) 893 RON
133 1 1 SPRING SPIRAL (326667-00) 893 RON
134 1 2 SA CHOKE HOLDER (326933-01) 2124 RON
141 1 1 CLAMSHELL (327589-09) 11519 RON
142 1 4 RING RUBBER 16 * 3.5 (327577-00) 558 RON
143 1 1 SA TRIGGER BLACK ( SERVICE) (487094-01) 2347 RON
145 1 1 SPRING COMPRESSION (326438-00) 781 RON
146 1 1 COVER HOUSING (327499-02) 1788 RON
147 1 1 FILTER FELT (327586-00) 558 RON
148 1 1 "O RING 43 * 2.5""" (323711-15) 781 RON
149 1 1 CAP RUBBER (327500-00) 10512 RON
150 1 1 LOCK BUTTON (327503-02) 558 RON
151 1 1 SPRING PRESSURE (323395-31) 558 RON
152 1 1 LEVER CONTROL (327501-00) 893 RON
153 1 1 CAP LEVER (327509-00) 105 RON
175 1 1 SA CLUTCH PACKED (SERVICE) (477168-00) 53015 RON
184 1 1 BEARING BALL (330003-39) 2347 RON
185 1 1 SA CRANK & BEARING PACKED ( SERVICE ) (487074-49) 37579 RON
186 1 1 SA CRANKSHAFT PACKED (SERVICE) (477169-00) 65989 RON
187 1 1 "SPRING BEVEL 12""" (328769-00) 558 RON
188 1 1 ACTIV. SLEEVE (327507-00) 5591 RON
189 1 1 SA CRANKSHAFT PACKED (SERVICE) (477169-00) 65989 RON
190 1 1 BEARING BALL 082207 (323872-05) 4472 RON
191 1 1 RING SAFETY 8 DIN471 (324822-05) 558 RON
192 1 1 RING SEALING 24 7 14 (327141-03) 6821 RON
193 1 1 SLEEVE (327575-00) 781 RON
194 1 1 SA INTERHOUSING (327568-00) 29862 RON
200 1 1 SEAL LIP (323489-00) 893 RON
201 1 1 SLIDING TUBE LCFE (587291-00) 5591 RON
202 1 4 BALL 7.0 (583890-00) 781 RON
203 1 1 WASHER SDS (588557-00) 105 RON
204 1 1 SPRING BEVEL (588556-00) 893 RON
205 1 2 CIRCLIP SW21 (588571-00) 558 RON
207 1 1 SPINDLE SDS QCC PACKED (SERVICE) (477178-00) 34336 RON
209 1 1 RING SNAP 32 (577795-00) 781 RON
210 1 1 COVER GEARBOX (583480-00) 781 RON
213 1 1 SEALING RING (586576-00) 1788 RON
214 1 1 "RING SAFETY 47""" (324821-02) 558 RON
215 1 1 CIRCLIP SW32 (586762-00) 781 RON
216 1 1 WASHER BUTTING (583246-00) 2124 RON
217 1 1 BEARING SLEEVE PACKED (SERVICE) (477180-00) 5591 RON
218 1 1 BUSH IMPACT (586733-00) 5591 RON
219 1 1 SPINDLE MAIN PACKED (SERVICE) (477182-00) 59725 RON
220 1 1 SPRING COMPRESSION (323395-26) 893 RON
221 1 1 SEAL (577139-00) 1117 RON
222 1 2 RING O 18 3 5 (323711-30) 1788 RON
223 1 1 BEARING BEATPIECE PACKED (SERVICE) (477188-00) 9282 RON
224 1 1 BEATPIECE PACKED (SERVICE) (477189-00) 9282 RON
225 1 1 BUSH DAMPER PACKED (SERVICE) (477190-00) 6821 RON
227 1 1 RING RAMCATCHER (580990-00) 1117 RON
228 1 1 CATCHER RAM PACKED (SERVICE) (477191-00) 5591 RON
229 1 1 RING SNAP (577793-00) 781 RON
230 1 1 SA RAM PACKED (SERVICE) (477192-00) 10512 RON
231 1 1 SEAL BEATPIECE (487037-00) 5591 RON
232 1 1 323711-10 - Indisponibil
233 1 1 RING PISTON D=21.6 (325905-01) 893 RON
234 1 1 PISTON (327520-00) 5591 RON
235 1 1 PIN CRANK (329818-00) 2347 RON
236 1 1 CONN. ROD (327519-00) 2124 RON
237 1 1 RING BEARING (327492-00) 781 RON
238 1 1 BUSH TOOTH (327528-00) 1788 RON
239 1 1 ACTIV SLEEVE (327527-00) 5031 RON
240 1 1 WASHER SLEEVE (329590-00) 1788 RON
241 1 1 "RING SNAP 44""" (323763-07) 781 RON
242 1 1 "WASHER 37.7""" (327553-00) 2124 RON
243 1 1 SA BEVEL GEAR PACKED (SERVICE) (492165-00) 25164 RON
244 1 1 SHIFT FORK (327504-00) 3466 RON
245 1 1 SPRING SWITCH (327574-00) 893 RON
246 1 1 GEAR SHIFT ROD (327505-00) 1788 RON
247 1 1 SEAL HOUSING (327518-00) 1229 RON
248 1 1 CAM ROTARY (327502-00) 190 RON
250 1 1 SA MAIN CASE PACKED (477193-00) 40599 RON
251 1 1 COLLAR BAND (327493-00) 2795 RON
252 1 1 SCREW M8 * 55 DIN186 (327544-00) 105 RON
254 1 1 SA CLAMP ( SERVICE) (487103-49) 4137 RON
256 1 1 HANDLE SIDE (327545-00) 4137 RON
260 1 1 DEPTH STOP (326205-00) 1229 RON
300 1 1 SA TOOLHOLDER PACKED (SERVICE) (477194-00) 62298 RON
301 1 1 SA SPINDLE LOCK QCC PACKED (SERVICE) (477195-00) 57488 RON
306 1 1 SPINDLE CHUCK PACKED FOR SERVICE (584676-00) 11519 RON
307 1 1 SA SPINDLE NQCC (SERVICE) (584556-00) 23598 RON
308 1 1 WASHER M12 (590339-00) 558 RON
309 1 1 KEYLESS CHUCK 2 SL1/2 UNF (584924-00) 26730 RON
310 1 1 SCREW CHUCK (1/4-28 UNF-LH) (605256-02) 781 RON
400 1 1 SA CHUCK 13MM W.TERMINAL PACKED (589199-00) 42277 RON
500 1 1 SA SPINDLE (SERVICE) (575737-01) 107597 RON
800 1 1 GREASE TURMOGEAR NOOY 100G TUBE (586778-04) 22144 RON
801 1 1 GREASE THERMOPLEX 0.05KG TUBE (328771-07) 3466 RON
816 1 1 BRAND LABEL (578793-00) 781 RON
817 1 1 NOISE LABEL 105dB (487395-01) 781 RON
817 1 1 NOISE LABEL 105dB (487395-01) 781 RON
821 1 1 NAMEPLATE D25405-GB02 (584253-21) 558 RON
821 1 1 NAMEPLATE D25405-LX02 (584253-22) 558 RON
836 1 1 559613-99 - Indisponibil
837 1 1 559611-99 - Indisponibil
840 1 1 559670-99 - Indisponibil
847 1 1 D25404/25405 KIT 230V (SERVICE) (477198-03) 45297 RON
847 1 1 D25404/25405 KIT 115V (SERVICE) (477198-04) 57488 RON
861 1 1 KITBOX DEWALT WITH HANDLE. (381297-58) 37579 RON
