Top » Piese de schimb » PIESE DEWALT » D25323K Type 2

D25323K ROTARY HAMMER Type 2
[D25323K Type 2]

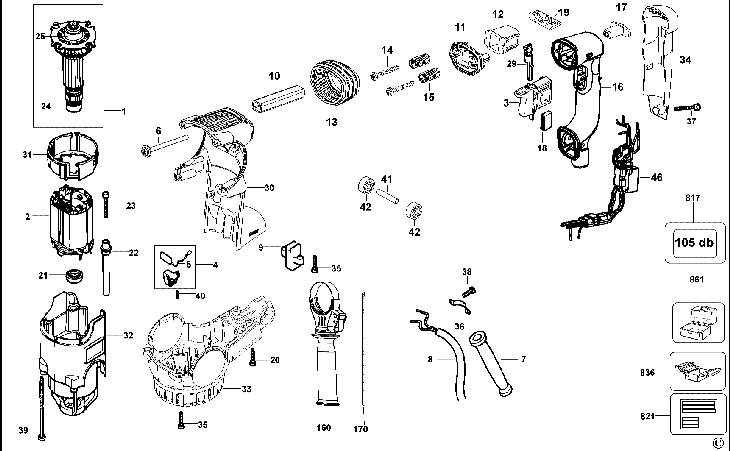

D25323K ROTARY HAMMER Type 2
Click pentru a mari
Imagini suplimentare
D25323K ROTARY HAMMER Type 2
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SA ARMATURE SPIRAL L-SHAPE HV (SERVICE) (N182448) 53015 RON
1 1 1 SA ARMATURE SPIRAL L-SHAPE LV (SERVICE) (N182449) 59725 RON
2 1 1 SA FIELD ( SERVICE ) (576690-05) 10512 RON
2 1 1 SA FIELD LV (SERVICE) (496247-00) 20467 RON
3 1 1 SA SWITCH LOCK-ON DW (SERVICE) (N069775) 14315 RON
3 1 1 SWITCH 2507.5307 125VAC 0 (1006749-01) 15993 RON
4 1 2 SA BRUSH HOLDER L-SHAPE 230V C/O (577805-03) 6821 RON
4 1 2 SA BRUSH HOLDER L-SHAPE 120V C/O (577805-04) 6821 RON
5 1 1 BRUSH PAIR 230V SA (SUBA) (584429-00) 9282 RON
5 1 1 BRUSH PAIR 115V (SUBA) (584429-01) 6821 RON
6 1 1 SCREW M5X70 1 (324119-04) 781 RON
7 1 1 "CORD PROTECTOR EPDM 770010""" (584090-00) 1117 RON
7 1 1 "CORD PROTECTOR EPDM 770010""" (584090-00) 1117 RON
8 1 1 CORDSET GB 5000 0 (582319-39) 1891 RON
8 1 1 CORDSET LX 5000 0 (582319-40) 20467 RON
9 1 1 PLUG INTERFACE (578222-00) 893 RON
10 1 1 GUIDING UPPER 0 (1006430-00) 3018 RON
11 1 1 HOLDER BEARING 2 (MOULD) (1007508-00) 1117 RON
12 1 1 BUSH SLIDING 2 (1007502-00) 2795 RON
13 1 1 BELLOW UPPER 1 (1006418-00) 893 RON
14 1 2 SCREW PLASTIC 4 X 30FORM 4* 30 (330065-13) 558 RON
15 1 2 SPRING PRESSURE 1 (1006421-00) 558 RON
16 1 1 HANDLE MAIN (MOULD) (N378114) 6821 RON
16 1 1 N395636 - Indisponibil
17 1 1 LIMIT STOP 1 (1007503-00) 2795 RON
18 1 1 BUMPER SPONGE (930026-01) 781 RON
19 1 1 SLIDER F/R 1 (MOULD) (1006423-00) 781 RON
20 1 2 SCREW DELTA PT 40X30MM (N066799-00) 558 RON
21 1 1 BEARING COVER (870052) 558 RON
22 1 1 BUSH SCREW DOME (579720-00) 1117 RON
23 1 2 SCREW PLASTIC 3.5 * 30 COMBI TORX (326519-03) 558 RON
24 1 1 BEARING BALL (330003-19) 2124 RON
25 1 1 BEARING BALL (330003-64) 4137 RON
29 1 1 PIN REVERSE MQ (584551-00) 1452 RON
30 1 1 PLATE HANDLE 2 (MOULD) (1006414-00) 4472 RON
31 1 1 BAFFLE FAN L-SHAPE REVERSE (MOULD) (581808-00) 1229 RON
32 1 1 HOUSING MOTOR DW YELLOW (577993-00) 6821 RON
33 1 1 SA ENDCAP PACKED (SERVICE) (N039637) 2795 RON
34 1 1 HANDLE COVER L-SHAPE (MOULD) (N387348) 5591 RON
35 1 4 SCREW (330065-08) 558 RON
36 1 1 CLAMP CORD (821070) 558 RON
37 1 1 SCREW (330065-08) 558 RON
38 1 2 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 558 RON
39 1 4 SCREW PLASTIC THREAD FORM M4 * 62 T20 (330065-26) 781 RON
40 1 2 SCREW PLSTC THD FORM M3X9 T10 (330065-25) 558 RON
41 1 1 AXLE HANDLE (1006419-00) 893 RON
42 1 2 PU RING (1006429-00) 190 RON
45 1 1 O-RING 45 2 (577791-00) 558 RON
46 1 1 SA HARNESS WIRE HAND. L-SHAPE (SERVICE) (N020436) 20467 RON
46 1 1 SA HARNESS WIRE L-SHAPE 115V (SERVICE) (N031248) 1891 RON
50 1 1 SA INTERSHAFT SPIRAL PACKED (SERVICE) (N182446) 40599 RON
52 1 1 SWITCHPLATE (578271-00) 2347 RON
53 1 1 HOLDER SWITCHPLATE (MOULD) (579564-00) 1452 RON
54 1 1 SWITCH PLATE (CONSIGN) (1006437-00) 190 RON
55 1 1 "O-RING 14.0 * 2.0""" (584638-00) 781 RON
56 1 1 SA KNOB TURNING (PURCH) (1006434-00) 1452 RON
57 1 1 SCREW PANHEAD M4X25 (324007-15) 558 RON
58 1 1 TRIGGER (MOULD) (1006435-00) 558 RON
59 1 2 SPRING (1008957-00) 558 RON
60 1 2 FELT (582865-00) 558 RON
62 1 3 SCREW TAPTITE 4 * 16 (583981-00) 558 RON
70 1 1 SA BEARING HOUSING LS PACKED (SERVICE) (N031252) 20467 RON
71 1 1 BEARING BALL (330003-81) 3018 RON
72 1 1 O-RING SEAL (578229-00) 893 RON
73 1 1 BEARING BOLT-1 (577801-00) 3018 RON
74 1 1 WASHER (577802-00) 1229 RON
75 1 1 SA HOLLOW PISTON (SERVICE) (496246-00) 9282 RON
76 1 1 O-RING 16X3 (579699-00) 105 RON
77 1 1 SA RAM (SERVICE) (496245-00) 7940 RON
78 1 1 BEARING SPINDLE (N042808) 2795 RON
79 1 3 SCREW TAPTITE M4X20 ANU LOCK (324006-15) 558 RON
90 1 1 RING SNAP (577793-00) 781 RON
91 1 1 SA RAM CATCHER PACKED FOR SERVICE (584426-00) 4137 RON
92 1 1 RING RAMCATCHER (580990-00) 1117 RON
93 1 1 O-RING 19.5X3.5 (577135-00) 1117 RON
94 1 1 BUSH DAMPER PACKED FOR SERVICE (584425-00) 3466 RON
95 1 1 BEAT PIECE NQCC PACKED FOR SERVICE (584424-00) 5591 RON
96 1 1 SA BEARING BEATPIECE NQCC PACKED (584423-00) 10512 RON
97 1 1 SEAL (577139-00) 1117 RON
100 1 1 SA MODE SELECTOR (SERVICE) (N031251) 2795 RON
110 1 1 RING WASHER (577797-00) 1229 RON
111 1 1 O RING 26 * 2 HNBR (577744-00) 1452 RON
112 1 1 SA CLUTCH PACKED (587482-00) 20467 RON
113 1 1 SPRING SWITCHMODE WHEEL (579178-00) 105 RON
114 1 1 SPINDLE NQCC PACKED FOR SERVICE (584422-00) 26730 RON
115 1 1 WASHER SPINDLE (577814-00) 1788 RON
116 1 2 SCEW PLSTC THD FORM M4X10 T20 (330065-05) 558 RON
117 1 1 LOCK PLATE SPINDLE (580291-00) 1788 RON
118 1 1 SA GEARCASE NQCC SERVICE (584433-00) 1891 RON
121 1 4 SCREW DELTA PT 40X30MM (N066799-00) 558 RON
130 1 1 RING SNAP 21 (579212-00) 781 RON
132 1 1 SPRING BEVEL (871690) 558 RON
133 1 1 SDS BALL PLATE (WASHER SDS 1.4MM) (578387-00) 893 RON
134 1 1 BALL 7.0 (583890-00) 781 RON
135 1 1 SLIDING TUBE (N038727) 4137 RON
136 1 1 SEAL LIP (323489-00) 893 RON
160 1 1 SA SIDE HANDLE FIXED (1008956-00) 10512 RON
170 1 1 DEPTH STOP STEEL (495699-00) 2347 RON
800 1 1 GREASE TUBE 100ML RENOLIT PARAGON EP (870889-02) 4472 RON
801 1 1 GREASE GLK FLUID 10G SACHET - SERVICE (487130-04) 3466 RON
817 1 1 LABEL NOISE 105DB (PRINT) (496620-00) 558 RON
821 1 1 LABEL RATING D25323-GB02 (PRINT) (N179301) 558 RON
836 1 1 559638-99 - Indisponibil
846 1 1 KIT LS PACKED (SERVICE) (N031539) 20467 RON
846 1 1 KIT LS PACKED (SERVICE) (N031540) 23598 RON
861 1 1 KITBOX NO.4 (MOULD) (578005-04) 1891 RON
