Top » Piese de schimb » PIESE DEWALT » D25300D Type 2

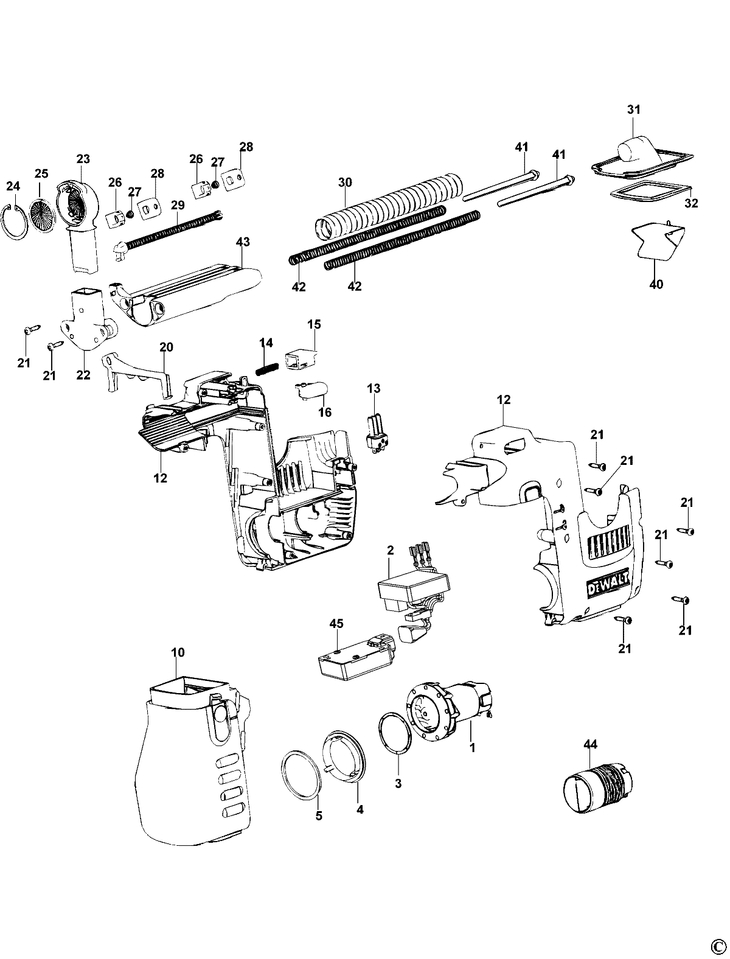

D25300D EXTRACTOR KIT Type 2
[D25300D Type 2]
D25300D EXTRACTOR KIT Type 2
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SA MOTOR AND FAN HV (SERVICE) (586770-01) 29862 RON
1 1 1 SA MOTOR AND FAN LV (SERVICE) (586770-02) 3124 RON
2 1 1 SA EL.MODULE HV (SERVICE) (490874-00) 17335 RON
2 1 1 SA EL.MODULE LV (SERVICE) (490874-01) 15993 RON
3 1 1 FAN PROTECTOR (584439-00) 781 RON
4 1 1 SEAL WASHER (583105-00) 781 RON
5 1 1 SEAL FAN (580258-00) 558 RON
10 1 1 SA FILTER BOX (577898-00) 59725 RON
12 1 1 HOUSING MAIN (490536-00) 17335 RON
13 1 1 SA INSERT PIECE ELECTRONICS (580243-00) 1452 RON
14 1 1 SPRING (329876-00) 558 RON
15 1 1 LATCH (580249-00) 558 RON
16 1 1 KNOB ADJUSTMENT (580248-00) 558 RON
20 1 1 HOLDER TELESCOPE (580252-00) 781 RON
21 1 9 SCREW (330065-08) 558 RON
22 1 1 FRONT CAP TELESCOPE (580452-00) 893 RON
23 1 1 HEAD EXTRACTION (580254-00) 893 RON
24 1 1 RING SNAP DIN 472 (580256-00) 781 RON
25 1 1 BRUSH (580255-00) 3466 RON
26 1 2 KNOB ADJUSTMENT LENGTH (580261-00) 558 RON
27 1 2 SPRING CONICAL (584458-00) 781 RON
28 1 2 HOUSING KNOB (580262-00) 558 RON
29 1 1 ADJUSTMENT LENGTH (580259-00) 893 RON
30 1 1 TUBE PLASTIC (580257-00) 3466 RON
31 1 1 CAP DUSTBAG (580444-00) 1452 RON
32 1 1 SEAL DUSTBAG (580260-00) 558 RON
40 1 1 DUST AIRGUIDE (585208-00) 781 RON
41 1 2 SPRING PIN (583839-00) 781 RON
42 1 2 SPRING (580253-00) 190 RON
43 1 1 HOUSING TELESCOPE (580251-00) 3018 RON
44 1 1 SA CORNER ADAPTER (585976-00) 2347 RON
45 1 1 GACC KIT HV FOR D25300 (SERVICE) (635569-01) 23598 RON
45 1 1 GACC KIT LV for D25300 (SERVICE) (635569-00) 23598 RON
