Top » Piese de schimb » PIESE DEWALT » D25124K Type 1

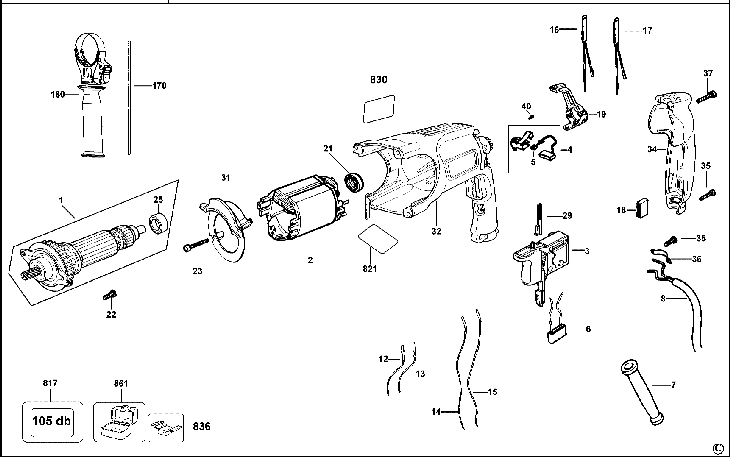

D25124K ROTARY HAMMER Type 1
[D25124K Type 1]
D25124K ROTARY HAMMER Type 1
Click pentru a mari
Imagini suplimentare
D25124K ROTARY HAMMER Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SA ARMATURE INLINE HV GBX (SERVICE) (N076023) 3124 RON
1 1 1 SA ARMATURE INLINE LV GBX (SERVICE) (N076031) 3592 RON
2 1 1 SA FIELD ( SERVICE ) (576690-05) 10512 RON
2 1 1 SA FIELD LV (SERVICE) (496247-00) 20467 RON
3 1 1 SWITCH 230V with LOCK-ON (583748-09) 10512 RON
3 1 1 SWITCH 120V WITH LOCK ON (583748-05) 1891 RON
4 1 2 SA BRUSH HOLDER (N028619) 2124 RON
4 1 1 SA BRUSHOLDER (120V) (N028620) 3466 RON
5 1 1 BRUSH PAIR 230V SA (SUBA) (N058083) 4137 RON
5 1 1 BRUSH PAIR 115V SA (SUBA) (N058084) 6821 RON
6 1 1 CAPACITOR 0.22uF (320842-19) 105 RON
7 1 1 "CORD PROTECTOR EPDM 770010""" (584090-00) 1117 RON
8 1 1 CORDSET GB 3200 (582319-32) 10512 RON
8 1 1 CORD SET LX 3200/60-9/60-9 TINNED (582319-10) 17335 RON
12 1 1 LEAD WIRE MQ WHITE/100/FSH3/FST (584304-00) 105 RON
13 1 1 LEAD WIRE MQ BLUE /125/FSH3/FST (584304-10) 105 RON
14 1 1 LEADWIRE MQ GREEN /55/FSH3/FST (584304-04) 105 RON
15 1 1 LEAD WIRE MQ VIOL/100/FSH3/FST (584304-05) 105 RON
16 1 1 LEADWIRE MQ RED W CHOKE 75-100/FSH3/FSH (584304-02) 2795 RON
16 1 1 CHOKE LEAD RED (584304-08) 3466 RON
17 1 1 LEADWIRE MQ YELL W CHOKE 70-110/FSH3/FSH (584304-03) 2795 RON
17 1 1 CHOKE LEAD SA (584304-09) 3466 RON
18 1 1 BUMPER SPONGE (930026-01) 781 RON
19 1 1 LEVER FRW/REV (479818-00) 105 RON
21 1 1 BEARING COVER (870052) 558 RON
22 1 2 SCREW TAPTITE M4X10 ANU-LOCK (324006-14) 558 RON
23 1 4 SCREW PLASTIC 3.5 * 30 COMBI TORX (326519-03) 558 RON
25 1 1 CE BEARING (1005895-00) 1788 RON
29 1 1 PIN REVERSE MQ (584551-00) 1452 RON
31 1 1 COVER FAN (577826-00) 2124 RON
32 1 1 CASE FIELD (MOULD) (577810-04) 6821 RON
34 1 1 COVER HANDLE REAR (479817-00) 7940 RON
35 1 4 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 558 RON
36 1 1 CLAMP CORD (821070) 558 RON
37 1 1 SCREW PLSTC THD FORM M4X25 T20 (330065-09) 558 RON
40 1 2 SCREW PLSTC THD FORM M3X9 T10 (330065-25) 558 RON
50 1 1 SA INTERSHAFT PACKED (SERVICE) (N076098) 20467 RON
52 1 1 SWITCH PLATE (N029727) 1229 RON
53 1 1 SPRING MODE SWITCH (N042799) 558 RON
55 1 1 GEARSWITCH GREEN O-RING (SERVICE) (N104814) 190 RON
57 1 1 SCEW PLSTC THD FORM M4X10 T20 (330065-05) 558 RON
58 1 1 RELEASE BUTTON (N034136) 781 RON
59 1 1 MODE SELECTOR SPRING (N074923) 558 RON
60 1 1 FLAT SEAL 4.4X8X0.5 (1005811-00) 558 RON
61 1 1 CAP-1 (N034134) 105 RON
62 1 2 SCREW TAPTITE M4X10 ANU-LOCK (324006-14) 558 RON
63 1 1 RING SNAP 29.5 (581836-00) 558 RON
64 1 1 SA CLUTCH RING PACKED GBX (SERVICE) (N076101) 5031 RON
65 1 1 SA GEAR WHEEL PACKED (SERVICE) (N076102) 7940 RON
66 1 1 CLUTCH SPRING (N029717) 190 RON
67 1 1 WASHER SPINDLE (577814-00) 1788 RON
68 1 1 FELT-2 (N081515) 558 RON
70 1 1 SA HOUSING PACKED GBX (SERVICE) (N076103) 11519 RON
72 1 1 O-RING SEAL (578229-00) 893 RON
73 1 1 BEARING BOLT-1 (577801-00) 3018 RON
74 1 1 WASHER (577802-00) 1229 RON
75 1 1 SA HOLLOW PISTON (SERVICE) (496246-00) 9282 RON
76 1 1 O-RING 16X3 (579699-00) 105 RON
77 1 1 SA RAM (SERVICE) (496245-00) 7940 RON
78 1 1 SPINDLE REAR BEARING (N029731) 2124 RON
79 1 3 SCREW TAPTITE M4X20 ANU LOCK (324006-15) 558 RON
80 1 1 FELT-1 (N038257) 558 RON
81 1 1 O-RING (N042496) 105 RON
90 1 1 RING SNAP (577793-00) 781 RON
91 1 1 SA RAM CATCHER PACKED FOR SERVICE (584426-00) 4137 RON
92 1 1 RING RAMCATCHER (580990-00) 1117 RON
93 1 2 O-RING 19.5X3.5 (577135-00) 1117 RON
94 1 1 BUSH DAMPER PACKED FOR SERVICE (584425-00) 3466 RON
95 1 1 BEAT PIECE QCC PACKED FOR SERVICE (584424-01) 5031 RON
96 1 1 SA BEARING BEATPIECE QCC PACKED (584423-01) 10512 RON
97 1 1 SEAL (577139-00) 1117 RON
100 1 1 LEVER KIT GREEN O-RING (SERVICE) (N099541) 3466 RON
101 1 1 WASHER INTERSHAFT FRONT (1005844-00) 558 RON
103 1 1 PINION BUSH 2ND REDUCTION (N029726) 4137 RON
104 1 1 GEAR SHIFT COLLAR (N029725) 190 RON
105 1 1 SCREW COLLER 8MM (329794-00) 558 RON
110 1 1 RING WASHER (N059509) 781 RON
114 1 1 SA SPINDLE QCC GBX PACKED (SERVICE) (N076106) 32770 RON
115 1 1 WASHER SPINDLE (577814-00) 1788 RON
116 1 1 BEARING NEEDLE-1 (577813-00) 3018 RON
117 1 1 RING SEAL (577812-00) 1229 RON
118 1 1 SA GEARCASE 3MODE QCC GBX KIT (SERVICE) (N076108) 15993 RON
119 1 1 RING SNAP 32 (577795-00) 781 RON
121 1 4 SCREW PLSTC THD FORM M4.06X30 (330019-81) 558 RON
130 1 1 SA SPINDLE QCC PACKED (SERVICE) (N031254) 11519 RON
131 1 1 SA SPINDLE LOCK QCC PACKED (584431-00) 23598 RON
132 1 1 SPRING BEVEL (871690) 558 RON
133 1 1 SDS BALL PLATE (WASHER SDS 1.4MM) (578387-00) 893 RON
134 1 5 BALL 7.0 (583890-00) 781 RON
135 1 1 SLIDING TUBE (493965-00) 3466 RON
136 1 1 SEAL LIP (323489-00) 893 RON
137 1 2 RING SNAP 21 (579212-00) 781 RON
138 1 1 RING SNAP 21 (579212-00) 781 RON
140 1 1 TOOL HOLDER (496244-00) 29862 RON
145 1 1 SPINDLE CHUCK PACKED FOR SERVICE (584676-00) 11519 RON
146 1 1 SA SPINDLE NQCC (SERVICE) (584556-00) 23598 RON
147 1 1 "CHUCK KEYLESS 1/2"" UNF 2 SLEEVE" (582512-02) 17335 RON
148 1 1 SCREW CHUCK (1/4-28 UNF-LH) (605256-02) 781 RON
150 1 1 SA CHUCK & SPINDLE SERVICE (584559-00) 3124 RON
160 1 1 SA SIDE HANDLE FIXED (1008956-00) 10512 RON
170 1 1 DEPTH STOP STEEL (495699-00) 2347 RON
800 1 1 GREASE TUBE 100ML RENOLIT PARAGON EP (870889-02) 4472 RON
801 1 1 GREASE GLK FLUID 10G SACHET - SERVICE (487130-04) 3466 RON
817 1 1 LABEL NOISE 105DB (PRINT) (496620-00) 558 RON
821 1 1 LABEL RATING D25124-GB01 (PRINT) (N075003) 558 RON
821 1 1 LABEL RATING D25124-LX01 (PRINT) (N075019) 558 RON
830 1 2 LABEL LOGO (N074584) 558 RON
836 1 1 1003926-99 - Indisponibil
836 1 1 596005-99 - Indisponibil
836 1 1 1003924-99 - Indisponibil
836 1 1 1003925-99 - Indisponibil
846 1 1 230V KIT GBX GREEN O-RING (SERVICE) (N104816) 1891 RON
846 1 1 120V KIT GBX GREEN O-RING (SERVICE) (N104815) 23598 RON
861 1 1 SA KITBOX NO.3A DEWALT TH (MOULD) (N328939) 15993 RON
