Top » Piese de schimb » PIESE DEWALT » D25012K Type 1

D25012K ROTARY HAMMER Type 1
[D25012K Type 1]
D25012K ROTARY HAMMER Type 1
Click pentru a mari
Imagini suplimentare
D25012K ROTARY HAMMER Type 1
Click pentru a mari

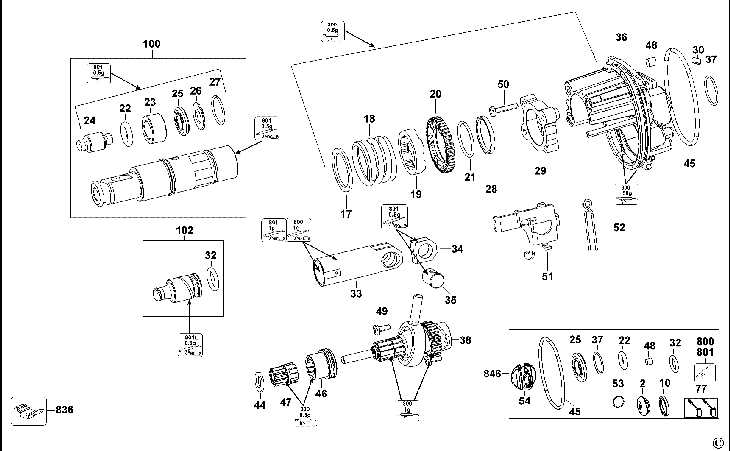

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
2 1 1 SEAL LIP (323489-00) 893 RON
3 1 1 RING SNAP 21 (579212-00) 781 RON
4 1 1 SLIDING COLLER (1005813-00) 190 RON
5 1 1 BALL 7.0 (583890-00) 781 RON
6 1 1 SDS BALL PLATE (WASHER SDS 1.4MM) (578387-00) 893 RON
7 1 1 SPRING BEVEL (871690) 558 RON
8 1 1 HOUSING GEAR SA (N034183) 12861 RON
10 1 1 RING SEALING DIA 28 (327141-06) 1788 RON
11 1 1 NEEDLE BEARING (N020023) 3018 RON
13 1 1 WASHER CLUTCH (589350-00) 105 RON
17 1 1 WASHER CLUTCH (589350-00) 105 RON
18 1 1 SPRING CLUTCH (589346-00) 2795 RON
19 1 1 RING (N031765) 3466 RON
20 1 1 GEAR (N031766) 6821 RON
21 1 1 RING SNAP 28RD (323762-02) 558 RON
22 1 1 O-RING BEAT PIECE (1005809-00) 781 RON
23 1 1 GUIDE BEAT PIECE (1005804-00) 1229 RON
24 1 1 BEAT PIECE (N031767) 2795 RON
25 1 1 CATCH RING (1005808-00) 1452 RON
26 1 1 WASHER CATCH (327087-00) 1788 RON
27 1 1 N294259 - Indisponibil
27 1 1 RING SNAP 22.5 (323762-07) 558 RON
28 1 1 RING WASHER (1005837-00) 781 RON
29 1 1 BEARING (N031768) 2347 RON
30 1 1 N399611 - Indisponibil
32 1 1 RING O DYNAMIC 13X3 (577168-00) 781 RON
33 1 1 PISTON (N031769) 6821 RON
34 1 1 WASHER U SHAPE (1005842-00) 558 RON
35 1 1 BEARING BOLT (1005843-00) 1788 RON
36 1 1 N407630 - Indisponibil
37 1 1 O-RING 22X1.5 (1005810-00) 781 RON
38 1 1 INTERSHAFT SA (N031514) 22144 RON
44 1 1 WASHER INTERSHAFT FRONT (1005844-00) 558 RON
45 1 1 SEAL 65X3.3 (1005807-00) 781 RON
46 1 1 COLLAR (N031771) 3018 RON
47 1 1 GEAR (N031772) 3466 RON
48 1 1 FELT (1005812-00) 558 RON
49 1 2 SCREW TAPTITE M4X10 ANU-LOCK (324006-14) 558 RON
50 1 3 SCREW TAPTITE M4X20 ANU LOCK (324006-15) 558 RON
51 1 1 SWITCH PLATE (1005796-00) 1788 RON
52 1 1 SPRING MODE SWITCH (1005795-00) 558 RON
53 1 1 O-RING 19X1.5 (1005821-00) 558 RON
54 1 1 GEAR SWITCH (1005822-00) 105 RON
55 1 1 RELEASE BUTTON (1005823-00) 781 RON
56 1 1 FLAT SEAL 4.4X8X0.5 (1005811-00) 558 RON
57 1 1 SCEW PLSTC THD FORM M4X10 T20 (330065-05) 558 RON
58 1 1 SPRING RELEASE BUTTON (1005824-00) 558 RON
59 1 1 CAP (1005825-00) 558 RON
61 1 1 HOUSING MOTOR (1005866-00) 4137 RON
64 1 1 FIELD SA 230V (N032579) 10512 RON
64 1 1 FIELD SA 115V (N032580) 10512 RON
65 1 1 N245239 - Indisponibil
66 1 1 CE BEARING (1005895-00) 1788 RON
67 1 1 BEARING BALL (330003-60) 190 RON
68 1 1 BAFFLE FAN (1005869-00) 781 RON
69 1 2 RUBBER BAFFLE (N012971) 558 RON
70 1 1 RING RUBBER (1005856-00) 781 RON
71 1 1 BEARING COVER 1 (1005865-00) 558 RON
72 1 1 CLIP COMM BEARING (1005894-00) 558 RON
73 1 1 BRUSH HOLDER SA (N031773) Indisponibil Indisponibil
73 1 1 BRUSH HOLDER SA (N031774) 12861 RON
77 1 1 BRUSH PAIR 230V (N090737) 4137 RON
77 1 1 BRUSH PAIR 120V (N090738) 4137 RON
83 1 1 FERRITE BEAD (388414-01) 1452 RON
84 1 2 SCREW PLSTC THD FORM M3X12 T10 (330065-35) 558 RON
85 1 1 CLAMSHELL SET (N031775) 9282 RON
88 1 1 N166238 - Indisponibil
88 1 1 SWITCH LOCK-ON (N031776) 11519 RON
88 1 1 SWITCH LOCK-ON (N031777) 15993 RON
88 1 1 N166239 - Indisponibil
89 1 1 CAPACITOR 220V (1005873-00) 190 RON
89 1 1 CAPACITOR 115V (1005863-00) 893 RON
90 1 1 CLAMP CORD (821070) 558 RON
91 1 1 CORDSET GB (1005756-00) 12861 RON
91 1 1 CORDSET LX (1005753-00) 23598 RON
92 1 1 CORD PROTECTOR (403395-00) 1788 RON
93 1 4 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 558 RON
94 1 2 SCREW PLSTC THD FORM M4X25 T20 (330065-09) 558 RON
95 1 1 LEAD WIRE RED PISTOL (1005879-01) 781 RON
96 1 1 LEAD WIRE BLUE PISTOL (1005879-00) 781 RON
97 1 5 SCREW PLSTC THD FORM M4X30 T20 (330065-28) 558 RON
98 1 1 SA SIDE HANDLE (1005896-00) 3466 RON
99 1 1 STOP DEPTH (798846-02) 893 RON
100 1 1 N385791 - Indisponibil
100 1 1 N385791 - Indisponibil
101 1 1 SELECTOR SA (N031515) 2347 RON
102 1 1 RAM SA (N031513) 4472 RON
103 1 1 ARMATURE 230V (N031516) 22144 RON
103 1 1 ARMATURE 115V (N031517) 23598 RON
104 1 1 RATING PLATE (1005782-00) 558 RON
104 1 1 RATING PLATE (1005781-00) 558 RON
105 1 1 BRAND LABEL (1005767-00) 558 RON
800 1 1 GREASE TUBE 100ML RENOLIT PARAGON EP (870889-02) 4472 RON
801 1 1 GREASE GLK FLUID 10G SACHET - SERVICE (487130-04) 3466 RON
836 1 1 596005-99 - Indisponibil
836 1 1 596006-99 - Indisponibil
836 1 1 596008-99 - Indisponibil
846 1 1 SERVICE KIT 230V (N032833) 1891 RON
846 1 1 SERVICE KIT 115V (N032839) 20467 RON
861 1 1 KITBOX (1005857-00) 14315 RON
