D24000 TILE CUTTER Type 1
[D24000 Type 1]
D24000 TILE CUTTER Type 1
Click pentru a mari
Imagini suplimentare
D24000 TILE CUTTER Type 1
Click pentru a mari

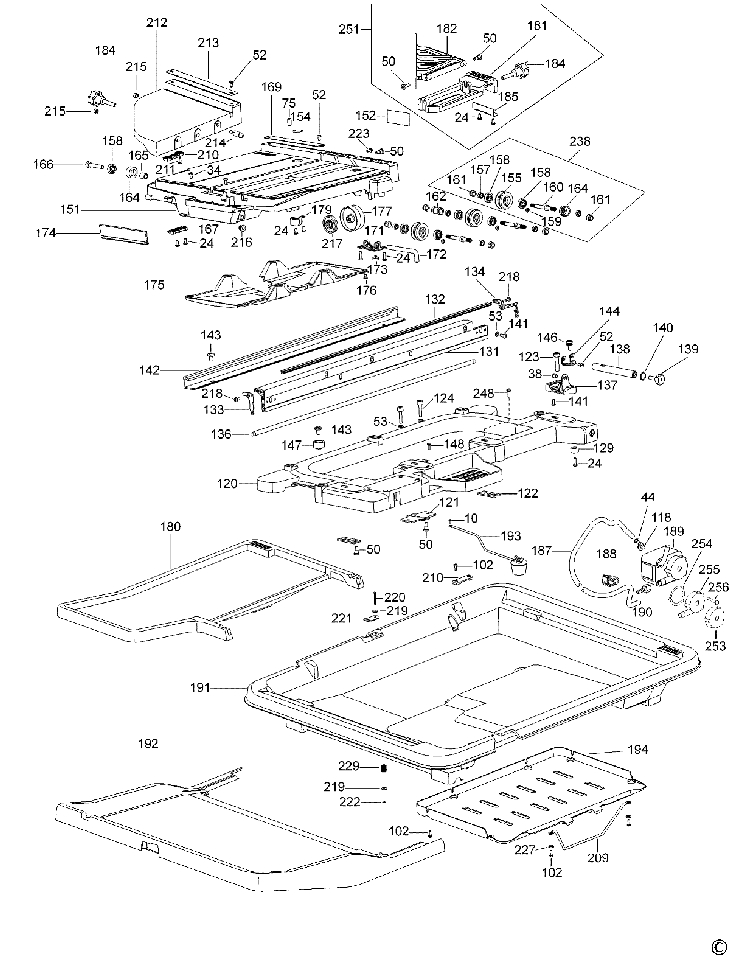

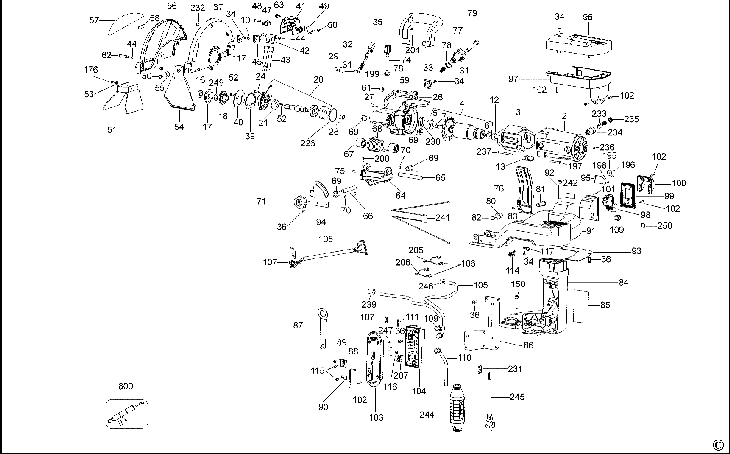

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
2 1 1 FIELDCASE (5140024-35) 12861 RON
3 1 1 FIELD SA 230V (5140028-03) 59725 RON
3 1 1 FIELD 120V (5140024-36) 42277 RON
4 1 1 ARMATURE 230V (5140028-02) 244723 RON
4 1 1 ARMATURE 120V (5140024-37) 5484 RON
5 1 1 BALL BEARING (605040-27) 190 RON
6 1 1 BEARING (N043347) 2124 RON
7 1 1 Ring Retaining (398605-00) 558 RON
10 1 2 SCREW (618303-00) 781 RON
12 1 1 CUP RUBBER (609970-00) 558 RON
13 1 1 BUSHING STR.RLF (682149-00) 2347 RON
16 1 1 NUT (616755-00) 105 RON
17 1 1 WASHER OUTER CLAMP (612689-00) 2124 RON
18 1 1 612690-00 - Indisponibil
20 1 1 GEARCASE COVER SA (612692-00) 40599 RON
21 1 1 BEARING BALL (330003-29) 3466 RON
24 1 15 SCREW (618302-03) 781 RON
26 1 1 ARM (627524-00) 45297 RON
26 1 1 ARM (627524-00) 45297 RON
27 1 1 LABEL (618132-00) 558 RON
28 1 1 BEARING NEEDLE (330004-06) 1452 RON
29 1 1 SPINDLE LOCK (612698-00) 1452 RON
30 1 1 FELT SEAL (618568-00) 781 RON
31 1 2 SPRING (398736-00) 781 RON
32 1 1 LOCK BUTTON (616758-00) 781 RON
33 1 1 LINER (612701-00) 781 RON
34 1 5 SCREW (618302-00) 781 RON
35 1 1 HANDLE (612702-00) 7940 RON
36 1 17 SCREW (618302-06) 1117 RON
37 1 1 COVER (624451-00) 62298 RON
38 1 5 INSERT (148608-01) 1452 RON
39 1 1 SLEEVE (612704-00) 105 RON
40 1 1 RETAINER (612705-00) 2795 RON
41 1 1 NOSE (612768-00) 2347 RON
42 1 1 VALVE (612771-00) 893 RON
43 1 2 NOZZLE (613462-00) 1117 RON
44 1 4 O RING (618353-00) 781 RON
45 1 1 PLATE (612773-00) 893 RON
47 1 1 LEVER (612774-00) 893 RON
48 1 1 SCREW (618303-02) 781 RON
49 1 1 RETAINER (612728-00) 2124 RON
50 1 11 SCREW (618369-00) 1117 RON
51 1 1 FLAP (612776-00) 4472 RON
52 1 13 SCREW (618302-02) 781 RON
53 1 10 WASHER (618540-00) 781 RON
54 1 1 REAR FLAP (612778-00) 4137 RON
55 1 1 WASHER (618540-01) 781 RON
56 1 1 COVER (618314-00) 5484 RON
57 1 1 LABEL (395021-00) 190 RON
58 1 1 WARNING LABEL (618136-00) 558 RON
59 1 1 SCREW (618304-00) 1117 RON
61 1 1 SPACER (612707-00) 558 RON
62 1 1 SCREW (618369-02) 1452 RON
63 1 1 SCREW (618304-02) 105 RON
64 1 1 TRUNNION (612669-00) 28296 RON
65 1 1 PIVOT SHAFT (612708-00) 12861 RON
66 1 1 PIVOT SHAFT (614031-00) 14315 RON
67 1 2 SPACER (612710-00) 2124 RON
68 1 1 SPRING (612711-00) 5591 RON
69 1 4 BUSHING (612709-00) 5591 RON
70 1 4 GRUB SCREW (618305-00) 893 RON
71 1 1 KNOB (612712-00) 2347 RON
74 1 1 KNOB (616763-00) 4137 RON
75 1 2 SCREW (618305-02) 1117 RON
76 1 1 BRACKET (612671-00) 7940 RON
77 1 1 KNOB (618069-00) 5031 RON
78 1 1 WASHER (618540-02) 893 RON
79 1 1 BOLT (623621-00) 3466 RON
80 1 1 BUSHING (612709-01) 9282 RON
81 1 1 PIN (612717-00) 9282 RON
82 1 1 RETAINER (618542-00) 893 RON
83 1 1 SCREW (618305-01) 781 RON
84 1 1 COLUMN (618313-01) 57488 RON
85 1 1 WARNING LABEL (632110-00) 105 RON
86 1 1 PLATE (612718-01) 4137 RON
87 1 1 SPANNER (616769-00) 2347 RON
88 1 1 HEX KEY 4 MM (98000-13) 781 RON
89 1 1 KEY CLAMP (147190-01) 2124 RON
90 1 1 CLIP (618123-00) 1117 RON
91 1 1 SUPPORT (612677-00) 74937 RON
91 1 1 SUPPORT (627525-00) 102451 RON
92 1 3 SCREW (616770-01) 2795 RON
93 1 1 PLATE (616771-00) 3018 RON
94 1 1 PLATE (613811-00) 3018 RON
95 1 1 LABEL (618133-00) 1452 RON
96 1 1 COVER (612722-00) 9282 RON
97 1 1 END CAP (612724-00) 3466 RON
98 1 1 SWITCH (618662-00) 1891 RON
99 1 1 PLATE (612784-01) 190 RON
100 1 1 BEZEL (612726-01) 1452 RON
101 1 1 ENCLOSURE (612727-00) 2347 RON
102 1 28 SCREW (618303-01) 781 RON
103 1 1 COVER (616772-00) 3018 RON
104 1 1 ENCLOSURE (616773-00) 3018 RON
105 1 1 CABLE SA (616774-00) 14315 RON
106 1 4 TERMINAL (450212-00) 781 RON
107 1 6 TERMINAL (450213-00) 781 RON
109 1 5 RELIEF STRAIN HEYCO SR7P-2 (605155-00) 781 RON
110 1 1 CORD (633302-00) 22144 RON
110 1 1 CORD (633730-00) 1891 RON
111 1 2 TERMINAL (53650-03) 558 RON
114 1 1 CLIP (388301-00) 781 RON
115 1 3 SCREX TEMP (98102-10) 558 RON
116 1 2 SCREW (385865-00) 558 RON
117 1 3 CLAMP (619683-00) 781 RON
118 1 1 CONNECTOR (612775-00) 781 RON
120 1 1 FRAME (612673-00) 40599 RON
121 1 1 PLATE (617634-00) 3466 RON
122 1 2 PLATE (617635-00) 1788 RON
123 1 4 SCREW (618369-03) 190 RON
124 1 2 SCREW (618304-03) 1117 RON
129 1 4 FOOT (616767-00) 781 RON
131 1 1 TRACK (612732-00) 28296 RON
132 1 1 LINER (617352-00) 2124 RON
133 1 1 CAP (612777-00) 893 RON
134 1 1 CAP (612854-00) 105 RON
136 1 1 GUIDE ROD (612733-00) 20467 RON
137 1 1 BLOCK (627522-00) 7940 RON
137 1 4 BLOCK (627522-00) 7940 RON
138 1 1 CYLINDER (613465-00) 4137 RON
139 1 1 SCREW (612735-00) 9282 RON
140 1 1 RETAINER (618541-00) 105 RON
141 1 4 SCREW (618304-01) 781 RON
142 1 1 TRACK (612737-00) 15993 RON
143 1 4 SCREW (618302-07) 1452 RON
144 1 2 BRACKET (612738-00) 2795 RON
146 1 2 SCREW (612758-00) 3466 RON
147 1 2 DAMPER (146753-00) 558 RON
148 1 1 SCREW (620468-00) 1452 RON
150 1 4 SCREW (616770-00) 2347 RON
151 1 1 TABLE (618312-01) 112630 RON
152 1 1 LABEL (613090-00) 893 RON
154 1 2 WARNING LABEL (610707-00) 781 RON
155 1 3 GUIDE (612741-00) 12861 RON
157 1 6 SPACER (612743-00) 2795 RON
158 1 9 BEARING (330003-82) 3018 RON
159 1 3 SCREW (618304-07) 781 RON
160 1 3 SHAFT (612745-00) 7940 RON
161 1 6 STOP NUT (618539-00) 893 RON
162 1 1 CYLINDER (612746-00) 7940 RON
164 1 3 ROLLER (612742-00) 5591 RON
165 1 3 SPACER (612748-00) 3018 RON
166 1 3 SCREW (618304-05) 1788 RON
167 1 1 PLATE (612749-00) 781 RON
169 1 1 SCALE (612752-00) 4472 RON
171 1 1 BRACKET (616784-00) 3466 RON
172 1 1 ROD (617230-00) 5591 RON
173 1 1 SCREW (616785-00) 3466 RON
174 1 1 BRUSH (612755-00) 4472 RON
175 1 2 RESERVOIR (612756-00) 2795 RON
176 1 12 SCREW (618369-01) 781 RON
177 1 1 DISC (612757-00) 4472 RON
179 1 1 STOP (612739-00) 2347 RON
180 1 1 COLLECTOR (612759-00) 15993 RON
181 1 1 GUIDE (612687-00) 9282 RON
182 1 1 GUIDE (612761-00) 14315 RON
184 1 2 KNOB (612716-00) 2795 RON
185 1 1 CLAMPING BAR (612763-00) 2795 RON
187 1 1 TUBE PLASTIC (618697-00) 2347 RON
188 1 1 VALVE (631599-00) 2795 RON
189 1 1 PUMP SA (632102-00) 112630 RON
189 1 1 PUMP SA (634742-01) 129966 RON
190 1 1 ADAPTOR (616779-00) 2795 RON
191 1 1 TRAY (622978-00) 102451 RON
192 1 1 EXTENSION (612783-00) 28296 RON
193 1 1 PLUG (612786-00) 5591 RON
194 1 1 TRAY (618076-00) 10512 RON
195 1 1 POINTER (623509-00) 2124 RON
196 1 1 SCREW (153460-06) 781 RON
197 1 4 SCREW (618302-05) 893 RON
198 1 2 SCREW (13486-00) 558 RON
199 1 1 NUT FIN (613365-00) 781 RON
200 1 1 SCREW (618305-06) 781 RON
204 1 2 SCREW (618302-08) 1229 RON
205 1 1 LEAD BLACK (624147-00) 2795 RON
206 1 1 LEAD SA WHITE (624147-01) 2795 RON
207 1 1 BLOCK TERMINAL (393520-00) 2795 RON
209 1 1 CORD (623773-00) 2795 RON
210 1 3 COVER (622977-00) 781 RON
211 1 2 SCREW (618302-01) 781 RON
212 1 1 EXTENSION (618320-00) 43731 RON
213 1 1 SCALE (612753-00) 7940 RON
214 1 2 PIN (623075-00) 3466 RON
215 1 2 NUT (618539-01) 893 RON
216 1 1 INSERT (623086-00) 2795 RON
217 1 1 DISC (623383-00) 893 RON
218 1 4 SCREW (618302-09) 781 RON
219 1 2 WASHER (618540-03) 781 RON
220 1 1 PIN (624727-00) 558 RON
221 1 1 LATCH (622976-00) 190 RON
222 1 1 RETAINER (605365-00) 105 RON
223 1 1 SCREW (618302-10) 558 RON
226 1 1 O RING (56122-00) 1229 RON
227 1 3 WASHER (618540-04) 781 RON
229 1 1 SPRING (625913-00) 558 RON
230 1 1 SLEEVE (609971-00) 781 RON
231 1 1 CLIP (625745-00) 781 RON
232 1 3 INSERT (148608-02) 105 RON
233 1 2 BRUSH (5140028-04) 3466 RON
233 1 2 BRUSH 115V (5140024-30) 3018 RON
234 1 2 BRUSH HOLDER (5140024-31) 4472 RON
235 1 2 BRUSH CAP (5140024-32) 781 RON
236 1 2 SCREW (5140024-33) 558 RON
237 1 2 SCREW (5140024-34) 893 RON
238 1 3 ROLLER SA (627857-00) 32770 RON
239 1 1 SLEEVE (628348-00) 558 RON
241 1 1 CAPACITOR (632106-00) 4137 RON
242 1 1 LABEL (632109-00) 781 RON
244 1 1 SWITCH SAFETY (632097-00) 45297 RON
244 1 1 SWITCH SAFETY (633729-00) 202891 RON
245 1 1 CORDSET (M/PLUG) GB (637959-00) 14315 RON
245 1 1 CORDSET (637960-00) 46863 RON
246 1 1 SLEEVE INSULATING (388414-00) 2124 RON
247 1 1 LABEL (632108-00) 558 RON
248 1 1 PLUG (627036-00) 105 RON
249 1 1 BLADE HOLDER 2.3 (152636-00) 1788 RON
250 1 1 PLUG (634968-00) 781 RON
251 1 1 GUIDE SA (612688-00) 3124 RON
253 1 1 FILTER (496555-00) 4472 RON
254 1 1 GASKET (5140058-96) 2347 RON
255 1 1 COVER (5140058-97) 12861 RON
256 1 1 SCREW (330019-14) 558 RON
800 1 1 GREASE (790206-00) 34336 RON
