D23700 CIRCULAR SAW Type 1
[D23700 Type 1]
D23700 CIRCULAR SAW Type 1
Click pentru a mari

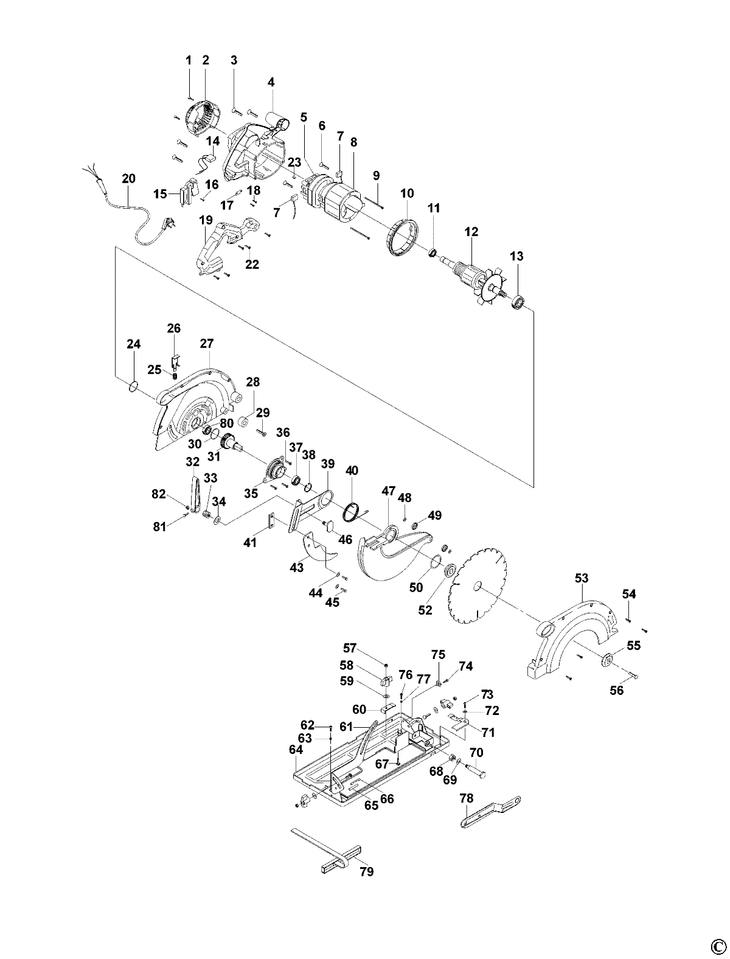

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 2 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
2 1 1 END CAP [BASF_TERLURAN_GP-22] (391933-00) 2124 RON
3 1 4 SCREW (98094-56) 781 RON
4 1 1 N393404 - Indisponibil
5 1 1 BRUSH HOLDER NYLON 6-ULTRAMID A3X2G5 (389512-01) 10512 RON
6 1 2 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
7 1 2 BRUSH-LEAD (381028-08) 4137 RON
7 1 2 BRUSH-LEAD (381028-08) 4137 RON
8 1 1 STATORE 230/240V G95 MM. (869045-00) 37579 RON
8 1 1 STATORE 115 V G95 MM. (869045-01) 39145 RON
9 1 2 SCREW PLASTITE (330019-19) 781 RON
10 1 1 BAFFLE (391375-00) 1788 RON
11 1 1 BEARING DW818 (390821-01 cod inlocuit cu N110359) BALL BEARING (N110359) 5591 RON
11 1 1 BEARING DW818 (390821-01 cod inlocuit cu N110359) BALL BEARING (N110359) 5591 RON
12 1 1 SA ARMATURE V.230 (869046-00) 59725 RON
12 1 1 SA ARMATURE V.115 (869046-01) 62298 RON
13 1 1 BEARING BALL (330003-13) 4137 RON
14 1 1 CAPACITOR (628217-00) 3018 RON
15 1 1 SWITCH (625425-00) 7940 RON
16 1 1 SCREW M4 55X16 (330013-22) 558 RON
17 1 1 CLAMP CORD (821070) 558 RON
18 1 2 SCREW M4 55X16 (330013-22) 558 RON
19 1 1 N393405 - Indisponibil
20 1 1 S/A CORDSET (630421-01) 15993 RON
20 1 1 S/A CORDSET (630421-02) 22144 RON
22 1 5 SCREW M4 55X19 (330013-13) 558 RON
23 1 1 RUBBER PLUG (145312-00) 558 RON
24 1 1 O-RING FOR FA AND BEARING (696519-00) 558 RON
25 1 1 SPRING (941586-00) 558 RON
26 1 1 LOCK SPINDLE D23700 (625854-00) 1452 RON
27 1 1 N384927 - Indisponibil
28 1 1 DAMPER (146753-00) 558 RON
29 1 1 SCREW (949894-10) 781 RON
30 1 1 O RING 47 35X1 78 (616979-00) 558 RON
31 1 1 SHAFT & GEAR D23700 (869219-05) 28296 RON
32 1 1 LEVER (931460-00) 105 RON
33 1 1 NUT (931463-00) 190 RON
34 1 2 WASHER (933168-00) 781 RON
35 1 1 COVER GEARCASE D23700 (625421-00) 17335 RON
36 1 3 SCREW M5X16 (395382-01) 558 RON
37 1 1 BEARING (330003-74) 4472 RON
38 1 1 GUIDE (629746-00) 781 RON
39 1 1 BRACKET KNIFE D23700 (625427-00) 2795 RON
40 1 1 N388721 - Indisponibil
41 1 1 SUPPORT (931445-00) 781 RON
43 1 1 KNIFE D23700 (625428-00) 4137 RON
44 1 2 WASHER SPRING CON.D6.2X14X0.9 (860074-02) 558 RON
45 1 2 HEXAGONAL HEAD SCREW (860085-15) 558 RON
46 1 1 SCREW SPECIAL (N008397) 2347 RON
47 1 1 N390572 - Indisponibil
48 1 2 QUICKLOCK (861366-00) 558 RON
49 1 1 N390572 - Indisponibil
50 1 1 RETAINING RING (629745-00) 893 RON
52 1 1 WASHER INNER CLAMP (145442-03) 2795 RON
53 1 1 COVER ARM D23700 (625430-00) 17335 RON
54 1 4 Screw Metal (330045-15) 781 RON
55 1 1 WASHER OUTER CLAMP (145446-00) 105 RON
56 1 1 SCREW SPECIAL (145344-00) 781 RON
57 1 3 NUT HEX THICK M.6 UNI 5587 (860083-03) 558 RON
58 1 3 NUT WING (931406-00) 781 RON
59 1 3 WASHER (931407-00) 558 RON
60 1 1 LOCK (931484-00) 2795 RON
61 1 1 GUIDE (933415-00) 14315 RON
62 1 1 SCREW FIL.HD M.5X16 UNI6107 Z (860089-18) 558 RON
63 1 1 SCREW (930224-00) 558 RON
64 1 1 SHOE SA D23700 (626663-00) 37579 RON
65 1 1 PIN (931420-00) 781 RON
66 1 1 PIN (931419-00) 558 RON
67 1 3 SCREW (931405-00) 558 RON
68 1 1 NUT (931449-00) 558 RON
69 1 1 WASHER (933168-00) 781 RON
70 1 1 PIN (931447-00) 2124 RON
71 1 1 POINTER (931408-00) 4137 RON
72 1 1 WASHER D4 (933652-00) 558 RON
73 1 1 FILLISTER HEAD SCREW (949894-06) 558 RON
74 1 1 SCREW FIL.HD M.5X16 UNI6107 Z (860089-18) 558 RON
75 1 1 INDICATOR (933410-00) 2347 RON
76 1 1 SCREW FIL.HD M.5X16 UNI6107 Z (860089-18) 558 RON
77 1 1 NUT (930244-00) 558 RON
78 1 1 WRENCH (145378-01) 1452 RON
79 1 1 FENCE (931464-00) 3466 RON
80 1 1 BEARING (135937-00) 190 RON
81 1 1 SCREW (930224-00) 558 RON
82 1 1 NUT HEX MEAN M.4 UNI5588 ZINC (860083-10) 558 RON
