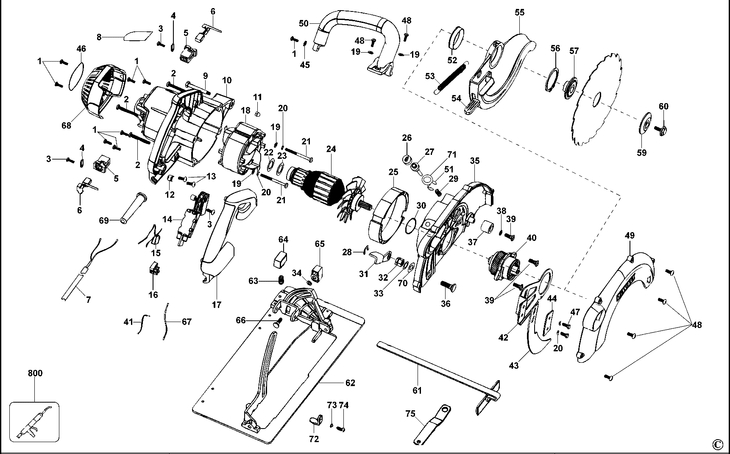

D23650 CIRCULAR SAW Type 1
[D23650 Type 1]
D23650 CIRCULAR SAW Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 8 SCREW (596861-00) 558 RON
2 1 4 SCREW (596862-00) 558 RON
3 1 3 SCREW (596863-00) 558 RON
4 1 2 CLAMP (596864-00) 558 RON
5 1 2 BRUSH HOLDER (596865-00) 781 RON
6 1 2 BRUSH 230V (596866-00) 4137 RON
6 1 2 BRUSH 115V (597551-00) 4472 RON
7 1 1 CORDSET (597549-00) 17335 RON
7 1 1 CORDSET (597550-00) 3124 RON
8 1 1 RATING PLATE (N036774) 781 RON
8 1 1 RATING PLATE (N036775) 781 RON
9 1 1 PIN (596869-00) 1452 RON
10 1 1 HOUSING MOTOR (596870-00) 17335 RON
11 1 1 NUT (596871-00) 1452 RON
12 1 1 CORD CLAMP (596872-00) 558 RON
12 1 1 CORD CLAMP (597556-00) 558 RON
13 1 2 SCREW (596873-00) 558 RON
14 1 1 SWITCH (596874-00) 14315 RON
15 1 1 CAPACITOR SA (596875-00) 1117 RON
15 1 1 CAPACITOR SA (597560-00) 105 RON
16 1 1 TERMINAL BLOCK (596876-00) 893 RON
17 1 1 HANDLE COVER (596877-00) 4472 RON
18 1 1 FIELD 230V (596878-00) 22144 RON
18 1 1 FIELD 115V (597552-00) 23598 RON
19 1 4 WASHER (596879-00) 558 RON
20 1 4 WASHER SPRING (596880-00) 558 RON
21 1 2 SCREW (596881-00) 893 RON
22 1 1 WASHER INSULATING (596882-00) 1229 RON
23 1 1 WASHER (596883-00) 558 RON
24 1 1 ARMATURE 230V (596884-00) 25164 RON
24 1 1 ARMATURE 115V (597553-00) 26730 RON
25 1 1 BAFFLE FAN (596885-00) 2347 RON
26 1 1 BUTTON (596886-00) 781 RON
27 1 1 SPINDLE LOCK (596887-00) 2795 RON
28 1 1 RETAINER (596888-00) 558 RON
29 1 1 SPRING (596889-00) 558 RON
30 1 1 000000-00 - Indisponibil
31 1 1 LEVER (596891-00) 105 RON
32 1 1 NUT (596892-00) 105 RON
33 1 1 WASHER SPRING (596893-00) 781 RON
34 1 1 WASHER (596894-00) 558 RON
35 1 1 GEARCASE (596895-00) 17335 RON
36 1 1 BOLT (596896-00) 1229 RON
37 1 1 STOP (596897-00) 781 RON
38 1 1 WASHER (596898-00) 558 RON
39 1 3 SCREW (596899-00) 558 RON
40 1 1 GEAR SA (596900-00) 3466 RON
41 1 1 LEADWIRE (596901-00) 893 RON
41 1 1 LEADWIRE (597557-00) 893 RON
42 1 1 SUPPORT (596902-00) 4472 RON
43 1 1 RIVING KNIFE (596903-00) 4137 RON
44 1 1 CLAMP (596904-00) 781 RON
45 1 1 WASHER (596905-00) 558 RON
46 1 1 BRAND LABEL (596917-00) 781 RON
47 1 2 SCREW (596906-00) 558 RON
48 1 6 SCREW (596907-00) 558 RON
49 1 1 GUARD (596908-00) 6821 RON
50 1 1 LOOP HANDLE (596909-00) 10512 RON
51 1 1 RETAINER (596910-00) 558 RON
52 1 1 SLEEVE (596911-00) 558 RON
53 1 1 SPRING (596912-00) 781 RON
54 1 1 LEVER (596913-00) 781 RON
55 1 1 000000-00 - Indisponibil
56 1 1 CIRCLIP (596915-00) 893 RON
57 1 1 INNER FLANGE (596916-00) 4472 RON
59 1 1 OUTER FLANGE (596918-00) 4137 RON
60 1 1 BLADE BOLT (596919-00) 105 RON
61 1 1 RIP FENCE (596920-00) 4472 RON
62 1 1 SHOE SA (596921-00) 29862 RON
63 1 1 SPRING (596922-00) 558 RON
64 1 1 SCREW WING (596923-00) 1117 RON
65 1 1 WING NUT (596924-00) 1229 RON
66 1 1 SCREW (596925-00) 558 RON
67 1 1 LEADWIRE (596926-00) 781 RON
67 1 1 LEADWIRE (597558-00) 781 RON
68 1 1 END CAP (596927-00) 4472 RON
69 1 1 CORD PROTECTOR (596928-00) 781 RON
69 1 1 CORD PROTECTOR (597559-00) 893 RON
70 1 1 WASHER (596929-00) 558 RON
71 1 1 000000-00 - Indisponibil
72 1 1 000000-00 - Indisponibil
73 1 1 WASHER (597546-00) 558 RON
74 1 1 SCREW (597547-00) 558 RON
75 1 1 SPANNER (597548-00) 2795 RON
800 1 1 GREASE SACHET 20G RENOLIT PARAGON EP 1 (870889-03) 3018 RON
