Top » Piese de schimb » PIESE DEWALT » D23620 Type 1

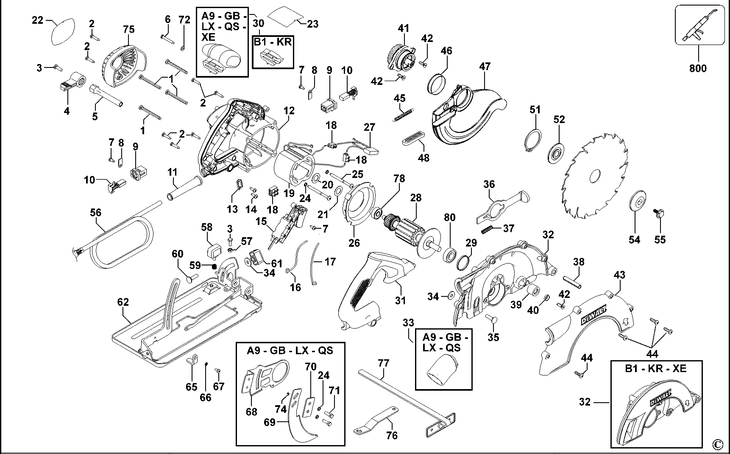

D23620 CIRCULAR SAW Type 1
[D23620 Type 1]
D23620 CIRCULAR SAW Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 4 SCREW (596862-00) 558 RON
2 1 7 SCREW (1002003-00) 893 RON
3 1 2 SCREW (1002005-00) 558 RON
4 1 1 LEVER (1002007-00) 1788 RON
5 1 1 LOCK PIN (1002008-00) 3466 RON
6 1 1 SCREW (1002018-00) 558 RON
7 1 3 SCREW (596863-00) 558 RON
8 1 2 000000-00 - Indisponibil
9 1 2 BRUSH HOLDER (1002010-00) 1452 RON
10 1 2 BRUSH 230V SA (1002011-00) 4472 RON
10 1 2 BRUSH 115V (1002068-00) 5031 RON
11 1 1 CORD PROTECTOR (1002024-00) 781 RON
11 1 1 CORD PROTECTOR (1002075-00) 781 RON
12 1 1 HOUSING MOTOR (1002014-00) 10512 RON
13 1 1 CORD CLAMP (1002020-00) 558 RON
13 1 1 CORD CLAMP (1002071-00) 558 RON
14 1 2 SCREW (596873-00) 558 RON
15 1 1 SWITCH (1002017-00) 12861 RON
16 1 1 LEADWIRE (1002015-00) 558 RON
17 1 1 LEADWIRE (1002016-00) 558 RON
18 1 4 TERMINAL BLOCK (1002019-00) 893 RON
19 1 1 FIELD 230V (1002482-00) 15993 RON
19 1 1 FIELD 115V (1002500-00) 29862 RON
20 1 1 SEAL (1002028-00) 558 RON
21 1 1 WASHER (1002029-00) 781 RON
22 1 1 BRAND LABEL (1002483-00) 781 RON
23 1 1 RATING PLATE (1002502-00) 558 RON
23 1 1 RATING PLATE (1002503-00) 558 RON
24 1 4 WASHER SPRING (1002026-00) 558 RON
25 1 2 SCREW (1002027-00) 893 RON
26 1 1 BAFFLE FAN (1002038-00) 2124 RON
27 1 1 CAPACITOR (1002013-00) 1117 RON
28 1 1 000000-00 - Indisponibil
28 1 1 ARMATURE 115V (1002501-00) 39145 RON
29 1 1 O RING (1002048-00) 1452 RON
30 1 1 HANDLE SA (1002030-00) 3018 RON
30 1 1 HANDLE SA (1002030-00) 3018 RON
31 1 1 HANDLE COVER (1002025-00) 5591 RON
32 1 1 GEARCASE SA (1002486-00) 3124 RON
32 1 1 GEARCASE SA (1002486-00) 3124 RON
33 1 1 ADAPTOR (1002043-00) 1117 RON
33 1 1 ADAPTOR (1002043-00) 1117 RON
34 1 2 WASHER (1002036-00) 558 RON
35 1 1 BOLT (1002053-00) 1229 RON
36 1 1 SPANNER (1002047-00) 2795 RON
37 1 1 SPRING (1002045-00) 558 RON
38 1 1 PIN (1002044-00) 558 RON
39 1 1 STOP (596897-00) 781 RON
39 1 1 STOP (596897-00) 781 RON
40 1 1 WASHER (596898-00) 558 RON
40 1 1 WASHER (596898-00) 558 RON
41 1 1 GEAR SA (1002487-00) 20467 RON
41 1 1 GEAR SA (1002487-00) 20467 RON
42 1 3 SCREW (596899-00) 558 RON
43 1 1 GUARD COVER (1002488-00) 7940 RON
43 1 1 GUARD COVER (1002488-00) 7940 RON
44 1 4 SCREW (596907-00) 558 RON
45 1 1 SPRING (596912-00) 781 RON
45 1 1 SPRING (596912-00) 781 RON
46 1 1 SLEEVE (596911-00) 558 RON
46 1 1 SLEEVE (596911-00) 558 RON
47 1 1 000000-00 - Indisponibil
47 1 1 000000-00 - Indisponibil
48 1 1 SLEEVE (1002050-00) 781 RON
51 1 1 CIRCLIP (596915-00) 893 RON
51 1 1 CIRCLIP (596915-00) 893 RON
52 1 1 INNER FLANGE (1002490-00) 5031 RON
52 1 1 INNER FLANGE (1002490-00) 5031 RON
54 1 1 OUTER FLANGE (1002491-00) 4472 RON
54 1 1 OUTER FLANGE (1002491-00) 4472 RON
55 1 1 BLADE BOLT (596919-00) 105 RON
55 1 1 BLADE BOLT (596919-00) 105 RON
56 1 1 CORDSET (597549-00) 17335 RON
56 1 1 CORDSET (597550-00) 3124 RON
57 1 1 NUT (1002492-00) 558 RON
58 1 1 SCREW WING (596923-00) 1117 RON
59 1 1 SPRING (596922-00) 558 RON
60 1 1 SCREW (596925-00) 558 RON
61 1 1 WING NUT (596924-00) 1229 RON
62 1 1 SHOE SA (1002493-00) 22144 RON
62 1 1 SHOE SA (1002493-00) 22144 RON
65 1 1 000000-00 - Indisponibil
66 1 1 WASHER (597546-00) 558 RON
67 1 1 SCREW (597547-00) 558 RON
68 1 1 SUPPORT (1002494-00) 3018 RON
68 1 1 SUPPORT (1002494-00) 3018 RON
69 1 1 RIVING KNIFE (1002495-00) 4137 RON
69 1 1 RIVING KNIFE (1002495-00) 4137 RON
70 1 1 CLAMP (1002496-00) 558 RON
70 1 1 CLAMP (1002496-00) 558 RON
71 1 2 SCREW (596906-00) 558 RON
71 1 2 SCREW (596906-00) 558 RON
72 1 1 WASHER (1002022-00) 558 RON
74 1 1 CIRCLIP (1002497-00) 558 RON
74 1 1 CIRCLIP (1002497-00) 558 RON
75 1 1 END CAP (1002006-00) 3466 RON
76 1 1 WRENCH SPECIAL (1002066-00) 2347 RON
77 1 1 RIP FENCE (1002067-00) 4137 RON
78 1 1 BEARING (1002498-00) 3466 RON
80 1 1 BEARING (1002499-00) 4472 RON
800 1 1 GREASE SACHET 20G RENOLIT PARAGON EP 1 (870889-03) 3018 RON
