D23551 CIRCULAR SAW Type 1
[D23551 Type 1]

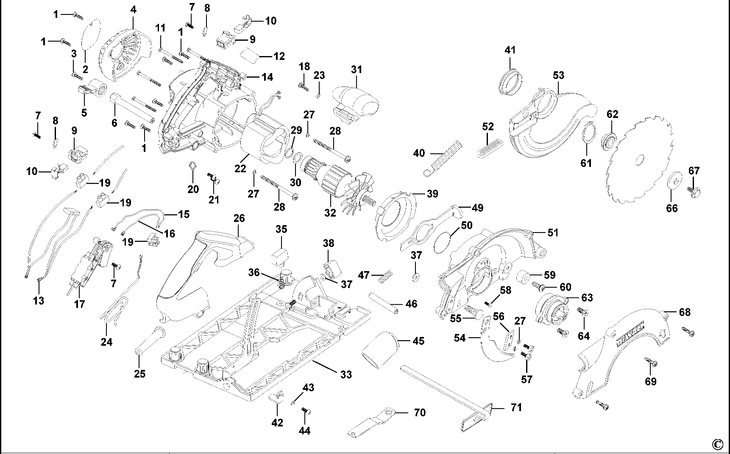

D23551 CIRCULAR SAW Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 7 SCREW (1002003-00) 893 RON
2 1 1 BRAND LABEL (1002004-00) 781 RON
3 1 1 SCREW (1002005-00) 558 RON
4 1 1 END CAP (1002006-00) 3466 RON
5 1 1 LEVER (1002007-00) 1788 RON
6 1 1 LOCK PIN (1002008-00) 3466 RON
7 1 3 SCREW (596863-00) 558 RON
8 1 2 000000-00 - Indisponibil
9 1 2 BRUSH HOLDER (1002010-00) 1452 RON
10 1 2 BRUSH 230V SA (1002011-00) 4472 RON
10 1 2 BRUSH 115V (1002068-00) 5031 RON
11 1 4 SCREW (596862-00) 558 RON
12 1 1 1005719-01 - Indisponibil
12 1 1 1005719-02 - Indisponibil
13 1 1 CAPACITOR (1002013-00) 1117 RON
14 1 1 HOUSING MOTOR (1005717-00) 22144 RON
15 1 1 LEADWIRE (1002015-00) 558 RON
16 1 1 LEADWIRE (1002016-00) 558 RON
17 1 1 SWITCH (1002017-00) 12861 RON
18 1 1 SCREW (1002018-00) 558 RON
19 1 2 TERMINAL BLOCK (1002019-00) 893 RON
20 1 1 CORD CLAMP (1002020-00) 558 RON
20 1 1 CORD CLAMP (1002071-00) 558 RON
21 1 2 SCREW (596873-00) 558 RON
22 1 1 FIELD 230V (1002021-00) 25164 RON
22 1 1 FIELD 115V (1002072-00) 25164 RON
23 1 1 WASHER (1002022-00) 558 RON
24 1 1 CORDSET GB (1002073-00) 14315 RON
24 1 1 CORDSET (1002074-00) 3124 RON
25 1 1 CORD PROTECTOR (1002024-00) 781 RON
25 1 1 CORD PROTECTOR (1002075-00) 781 RON
26 1 1 1005718-00 - Indisponibil
27 1 4 WASHER SPRING (1002026-00) 558 RON
28 1 2 SCREW (1002027-00) 893 RON
29 1 1 SEAL (1002028-00) 558 RON
30 1 1 WASHER (1002029-00) 781 RON
31 1 1 HANDLE SA (1002030-00) 3018 RON
32 1 1 ARMATURE 230V (1002031-00) 3124 RON
32 1 1 ARMATURE 115V (1002076-00) 3124 RON
33 1 1 SHOE SA (1005723-00) 62298 RON
34 1 1 SCREW (1002033-00) 558 RON
35 1 1 SCREW WING (1002034-00) 893 RON
36 1 1 SPRING (1002035-00) 558 RON
37 1 2 WASHER (1002036-00) 558 RON
38 1 1 WING NUT (1002037-00) 1229 RON
39 1 1 BAFFLE FAN (1002038-00) 2124 RON
40 1 1 SPRING (1002039-00) 893 RON
41 1 1 INSERT (1002040-00) 781 RON
42 1 1 SUPPORT (1002041-00) 893 RON
43 1 1 WASHER (1002042-00) 558 RON
44 1 1 SCREW (597547-00) 558 RON
45 1 1 ADAPTOR (1002043-00) 1117 RON
46 1 1 PIN (1002044-00) 558 RON
47 1 1 SPRING (1002045-00) 558 RON
49 1 1 SPANNER (1002047-00) 2795 RON
50 1 1 O RING (1002048-00) 1452 RON
51 1 1 GEARCASE (1002049-00) 29862 RON
52 1 1 SLEEVE (1002050-00) 781 RON
53 1 1 GUARD LOWER (1002051-00) 12861 RON
54 1 1 RIVING KNIFE (1002052-00) 2347 RON
55 1 1 BOLT (1002053-00) 1229 RON
56 1 1 PLATE (1002054-00) 558 RON
57 1 2 SCREW (1002055-00) 558 RON
58 1 1 SCREW (1002056-00) 558 RON
59 1 1 STOP RUBBER (1002057-00) 781 RON
60 1 1 SCREW (1002058-00) 558 RON
61 1 1 CIRCLIP (1002059-00) 781 RON
62 1 1 INNER FLANGE (1002060-00) 3018 RON
63 1 1 GEAR & SPINDLE SA (1002061-00) 11519 RON
64 1 2 SCREW (596899-00) 558 RON
66 1 1 OUTER FLANGE (1002062-00) 3018 RON
67 1 1 BLADE BOLT (1002063-00) 105 RON
68 1 1 GUARD COVER (1002064-00) 6821 RON
69 1 3 SCREW (1002065-00) 781 RON
70 1 1 WRENCH SPECIAL (1002066-00) 2347 RON
71 1 1 RIP FENCE (1002067-00) 4137 RON
800 1 1 GREASE SACHET 20G RENOLIT PARAGON EP 1 (870889-03) 3018 RON
