Top » Piese de schimb » PIESE DEWALT » D21721 Type 1

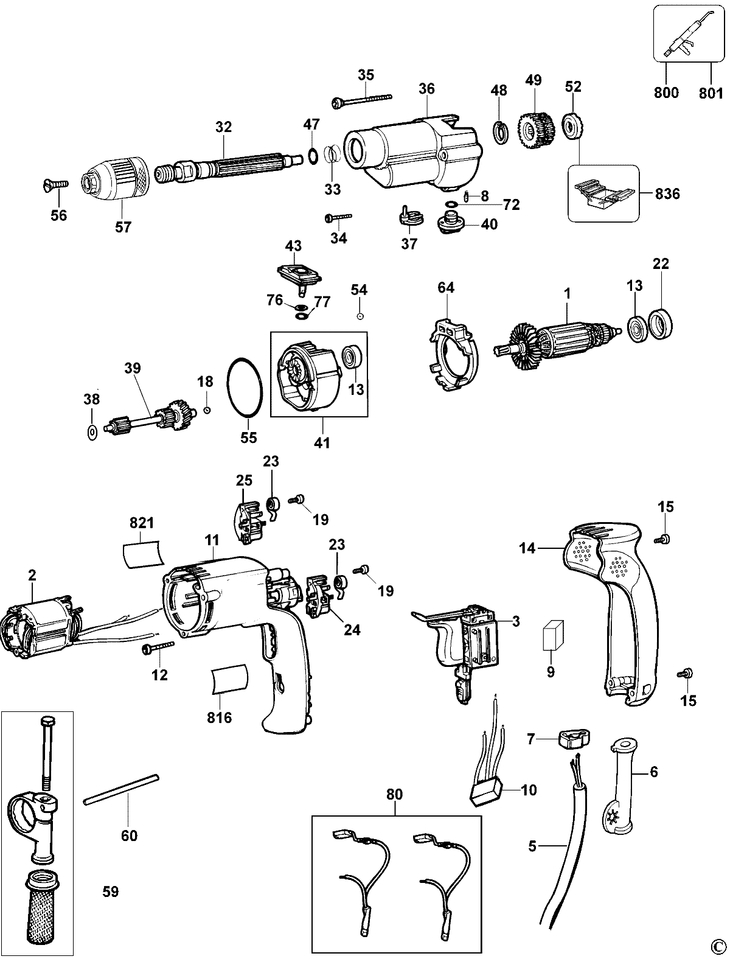

D21721 DRILL Type 1
[D21721 Type 1]
D21721 DRILL Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE SA (590104-02) 22144 RON
1 1 1 ARMATURE SA (590104-03) 22144 RON
2 1 1 000000-00 - Indisponibil
2 1 1 000000-00 - Indisponibil
3 1 1 SWITCH (616576-01) 20467 RON
3 1 1 SWITCH (586469-01) 22144 RON
5 1 1 CORD PWR SUPPLY GB (330060-28) 12861 RON
5 1 1 330061-07 - Indisponibil
6 1 1 CORD PROTECTOR (401751-00) 1788 RON
7 1 1 CORD CLAMP (603255-00) 558 RON
8 1 2 DETENT (326467-00) 558 RON
9 1 1 BUMPER SPONGE (930026-01) 781 RON
10 1 1 "CAPACITOR XY 0.22 uF""" (585292-03) 4137 RON
11 1 1 FIELD CASE (MOULD) (N014399) 5591 RON
12 1 2 SCREW (390198-00) 558 RON
13 1 2 BEARING BALL CW MFG (605040-08) 1452 RON
14 1 1 HANDLE COVER (610140-00) 3018 RON
15 1 3 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
18 1 1 BALL STEEL (917725) 558 RON
19 1 2 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 558 RON
22 1 1 RUBBER BOOT (389824-00) 558 RON
23 1 2 SPRING BRUSH (402759-00) 781 RON
24 1 1 SA BRUSH HOLDER (401877-01) 2347 RON
25 1 1 SA BRUSH HOLDER (401878-01) 2347 RON
32 1 1 SA PACKAGED SPINDLE (SERVICE) (581235-00) 17335 RON
33 1 1 SPRING (931890) 558 RON
34 1 1 SCREW (330019-14) 558 RON
35 1 2 SCREW (396614-00) 558 RON
36 1 1 000000-00 - Indisponibil
37 1 1 SA SELECTOR FORK (401735-00) 2347 RON
38 1 1 WASHER DW505 TYPE 2 (176659-00) 558 RON
39 1 1 SA INTERSHAFT PACKED ( SERVICE ) (581234-00) 22144 RON
40 1 1 SELECTOR FORK (628891-00) 4472 RON
41 1 1 000000-00 - Indisponibil
43 1 1 SA LEVER (401750-00) 3466 RON
47 1 1 O-RING (930028-00) 558 RON
48 1 1 SEAL RING (144803-00) 781 RON
49 1 1 GEAR DOUBLE (397239-01) 4137 RON
52 1 1 MOVING CLUTCH (945706-00) 105 RON
54 1 1 BALL (903-00) 558 RON
55 1 1 RING OR (401847-00) 558 RON
56 1 1 CHUCK SCREW (448847-02) 781 RON
57 1 1 CHUCK KEYLESS 13MM ROHM (330075-51) 14315 RON
59 1 1 HANDLE SIDE (939794-02) 5591 RON
60 1 1 DEPTH STOP (940357-00) 893 RON
64 1 1 FAN BAFFLE (176811-00) 781 RON
72 1 1 RING O (061145-00) 558 RON
76 1 1 050050-00 - Indisponibil
77 1 1 WASHER DW505 TYPE 2 (176659-00) 558 RON
80 1 1 BRUSH PAIR 230V SA (SUBA) (578393-02) 5031 RON
80 1 1 BRUSH PAIR 115V (SUBA) (N081423) 4472 RON
800 1 1 GREASE DW006K (429911-00) 80865 RON
801 1 1 GREASE (761995-01) 23598 RON
816 1 1 LABEL IDENTITY DEWALT 34*48 (395047-00) 558 RON
821 1 1 RATING PLATE DeWALT BLANK (569037-00) 105 RON
836 1 1 559596-99 - Indisponibil
