Top » Piese de schimb » PIESE DEWALT » D21716K Type 10

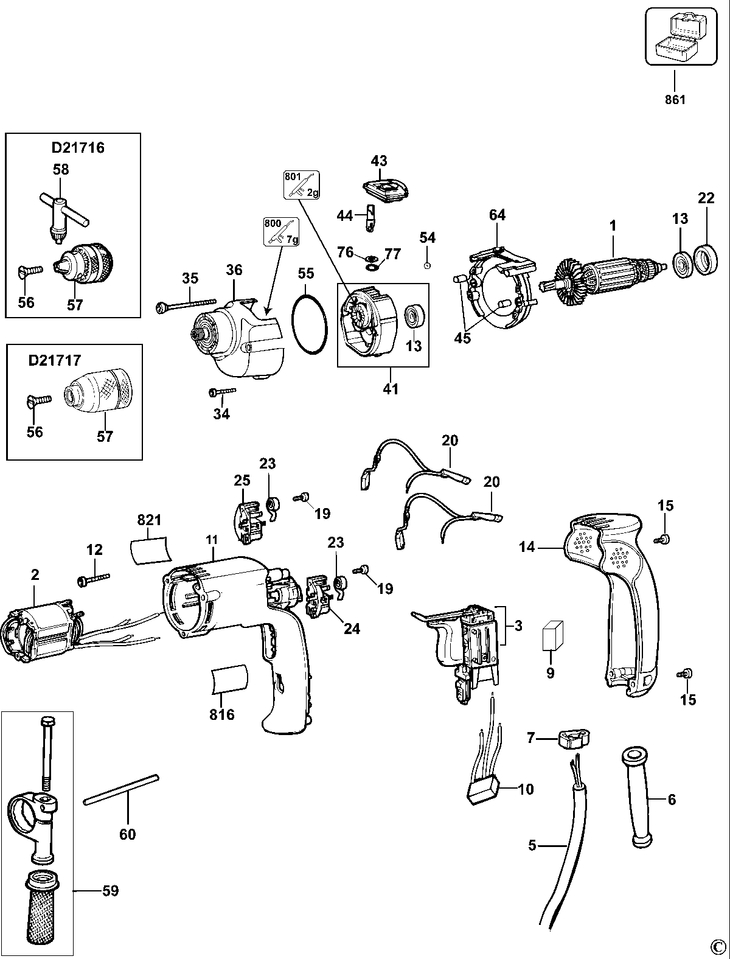

D21716K DRILL Type 10
[D21716K Type 10]
D21716K DRILL Type 10
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SA ARMATURE 230V (SERVICE) (1007787-00) 28296 RON
2 1 1 SA FIELD DIPPED (SERVICE) (N023112) 28296 RON
3 1 1 SWITCH VSR MARQUARDT 2507 250V (1006250-00) 14315 RON
5 1 1 CORD PWR SUPPLY GB (330060-28) 12861 RON
6 1 1 CORD PROTECTOR (401751-00) 1788 RON
7 1 1 CORD CLAMP (402648-00) 781 RON
9 1 1 BUMPER SPONGE (930026-01) 781 RON
10 1 1 "CAPACITOR XY 0.22 uF""" (585292-03) 4137 RON
11 1 1 CASE FIELD (MOULD) (N014400) 7940 RON
12 1 2 SCREW (390198-00) 558 RON
13 1 2 BEARING BALL CW MFG (605040-08) 1452 RON
14 1 1 COVER HANDLE HOLE 35 (176816-03) 1891 RON
15 1 3 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
19 1 2 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 558 RON
20 1 2 BRUSH WITH CONNECTOR (403108-14) 4137 RON
22 1 1 RUBBER BOOT (389824-00) 558 RON
23 1 2 SPRING BRUSH (402759-00) 781 RON
24 1 1 SA BRUSH HOLDER (401877-01) 2347 RON
25 1 1 SA BRUSH HOLDER (401878-01) 2347 RON
34 1 1 SCREW (330019-14) 558 RON
35 1 2 SCREW (330019-17) 558 RON
36 1 1 HOUSING SA (590106-00) 14315 RON
41 1 1 GEARCASE SA (590108-00) 7940 RON
43 1 1 SELECTOR SA (590107-00) 1452 RON
44 1 1 PIN (946106-00) 893 RON
45 1 2 SMALL RUBBER (949638-02) 558 RON
54 1 1 BALL (903-00) 558 RON
55 1 1 RING OR (401847-00) 558 RON
56 1 1 CHUCK SCREW (448847-02) 781 RON
57 1 1 CHUCK KEYED (584925-00) 10512 RON
58 1 1 CHUCK KEY (N022653) 105 RON
59 1 1 HANDLE SIDE (939794-02) 5591 RON
60 1 1 DEPTH STOP (940357-00) 893 RON
64 1 1 BAFFLE FAN (MOULD) (585994-00) 893 RON
76 1 1 050050-00 - Indisponibil
77 1 1 WASHER DW505 TYPE 2 (176659-00) 558 RON
800 1 1 GREASE DW006K (429911-00) 80865 RON
801 1 1 GREASE SACHET 20G RENOLIT PARAGON EP 1 (870889-03) 3018 RON
816 1 1 LABEL IDENTITY DEWALT 34*48 (395047-00) 558 RON
821 1 1 NAMEPLATE D21716-QS TYPE 10 (N066794) 1229 RON
861 1 1 N383875 - Indisponibil
