D21620K MAG DRILL STAND Type 1
[D21620K Type 1]
D21620K MAG DRILL STAND Type 1
Click pentru a mari
Imagini suplimentare
D21620K MAG DRILL STAND Type 1
Click pentru a mari
D21620K MAG DRILL STAND Type 1
Click pentru a mari

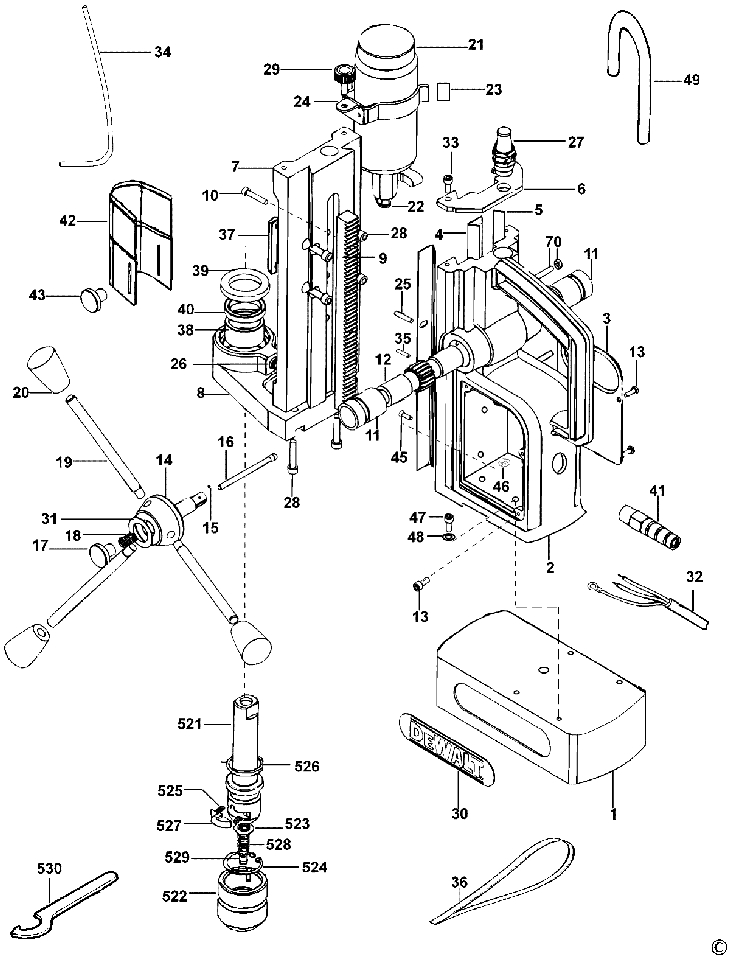

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ELECTRO MAGNET (596930-00) 286554 RON
1 1 1 ELECTRO MAGNET (596930-00) 286554 RON
2 1 1 HOUSING (596931-00) 216872 RON
3 1 1 COVERPLATE (596933-00) 3592 RON
3 1 1 COVERPLATE (596932-00) 39145 RON
4 1 2 GUIDE (596935-00) 10512 RON
5 1 1 GLIDE STRIP (596936-00) 5591 RON
6 1 1 PLATE (596937-00) 15993 RON
7 1 1 SLIDER (596938-00) 216872 RON
8 1 1 SUPPORT BRACKET (596939-00) 165534 RON
9 1 1 RACK (596940-00) 59725 RON
10 1 2 SCREW (596941-00) 781 RON
11 1 2 BUSH (596942-00) 9282 RON
12 1 1 PINION (596943-00) 74937 RON
13 1 8 SCREW (596944-00) 1452 RON
14 1 1 BOSS (596945-00) 91714 RON
15 1 1 BALLCATCH (596946-00) 1229 RON
16 1 1 PUSHROD (596947-00) 15993 RON
17 1 1 LOCKING KNOB (596948-00) 7940 RON
18 1 1 SPRING. COMPRESSION (596949-00) 3018 RON
19 1 3 HANDLE (596950-00) 6821 RON
20 1 3 END CAP (596951-00) 3466 RON
21 1 1 TANK (596952-00) 9736 RON
22 1 1 INSERT (596953-00) 14315 RON
23 1 1 BRACKET SA (1004016-00) 1891 RON
24 1 1 BRACKET SA (1004016-00) 1891 RON
25 1 7 GRUB SCREW (596956-00) 1788 RON
26 1 1 INSERT (596957-00) 5591 RON
27 1 1 GLAND (596958-00) 11519 RON
28 1 6 SCREW (596959-00) 781 RON
29 1 1 THUMBSCREW (596960-00) 5591 RON
30 1 2 BRAND LABEL (596961-00) 5591 RON
31 1 1 LABEL (596962-00) 4472 RON
32 1 1 CABLE & PLUG (596964-00) 39145 RON
32 1 1 CABLE & PLUG (596963-00) 39145 RON
33 1 2 SCREW (596966-00) 781 RON
34 1 1 PIPE (596967-00) 4137 RON
35 1 2 SPIROL PIN (596968-00) 781 RON
36 1 1 STRAP (597020-00) 11519 RON
37 1 1 000000-00 - Indisponibil
38 1 1 BEARING BUSH (596972-00) 7940 RON
39 1 1 SEAL (596973-00) 11519 RON
40 1 1 SEAL (596974-00) 11519 RON
41 1 1 GLAND (596975-00) 32770 RON
42 1 1 GUARD (596976-00) 86681 RON
43 1 3 THUMBSCREW (596977-00) 5031 RON
45 1 2 SCREW (597006-00) 781 RON
46 1 2 NUT (597007-00) 781 RON
47 1 4 SCREW (597008-00) 781 RON
48 1 4 WASHER SPRING (597009-00) 781 RON
49 1 1 SLEEVE (596934-00) 39145 RON
50 1 1 SUPPORT PLATE (596987-00) 17335 RON
51 1 1 PCB SA (596988-01) 318654 RON
51 1 1 PCB SA (596989-01) 318654 RON
52 1 3 HEATSINK (596990-00) 190 RON
53 1 3 SCREW (596991-00) 893 RON
54 1 3 BUSH (596992-00) 190 RON
55 1 3 WASHER (596993-00) 781 RON
56 1 3 NUT (596994-00) 781 RON
57 1 3 SUPPORT (596995-00) 3466 RON
58 1 3 NUT M4 (596996-00) 781 RON
59 1 3 SCREW (596997-00) 893 RON
60 1 1 SWITCH (596998-00) 5591 RON
61 1 1 SWITCH (596999-00) 5591 RON
62 1 3 GROMMET (597000-00) 893 RON
63 1 1 NEON SA (597001-00) 37579 RON
65 1 1 SUPPRESSOR (597003-00) 3124 RON
66 1 1 SWITCH (597004-00) 5591 RON
67 1 1 COVERPLATE (597005-00) 3124 RON
70 1 1 KIT (1002874-00) 9282 RON
101 1 1 BRUSH COVER (596818-00) 22144 RON
102 1 4 SCREW (596819-00) 2124 RON
103 1 1 ARMATURE 230V (596821-00) 439451 RON
103 1 1 ARMATURE 115V (596820-00) 439451 RON
104 1 2 BEARING (596822-00) 17335 RON
105 1 1 CLIP (596823-00) 2124 RON
106 1 2 BRUSH HOLDER (596824-00) 25164 RON
107 1 1 BRUSH PAIR (596825-00) 23598 RON
108 1 4 WASHER (596826-00) 2124 RON
109 1 4 SCREW (596827-00) 2124 RON
110 1 2 CONTACT PLATE (596828-00) 3466 RON
111 1 1 CIRCLIP (596829-00) 2124 RON
112 1 1 O RING (596830-00) 2124 RON
113 1 4 SCREW (596831-00) 3466 RON
114 1 1 BEARING (596832-00) 22144 RON
115 1 1 GEARCASE COVER (596833-00) 102451 RON
116 1 1 GEARCASE (596834-00) 165534 RON
117 1 1 GEAR (596835-00) 5484 RON
118 1 1 INTERSHAFT (596836-00) 102451 RON
119 1 1 CHANGE LEVER SA (596837-00) 7940 RON
120 1 1 LEVER (596838-00) 39145 RON
121 1 1 PIN (596839-00) 190 RON
122 1 2 BEARING (596840-00) 39145 RON
123 1 1 SPINDLE (596841-00) 102451 RON
124 1 1 KEY (596842-00) 2124 RON
125 1 1 PROTECTOR (596843-00) 14315 RON
126 1 1 CABLE (596844-00) 5591 RON
128 1 1 COVERPLATE (596845-00) 5591 RON
129 1 1 COVERPLATE (596846-00) 7940 RON
132 1 1 GEAR (596847-00) 117887 RON
134 1 1 SHIM (596848-00) 2124 RON
135 1 1 CIRCLIP (596849-00) 2124 RON
136 1 1 SHAFT (596850-00) 86681 RON
138 1 1 GEAR SA (596851-00) 165534 RON
139 1 1 KEY (596852-00) 4472 RON
140 1 3 BEARING NEEDLE (596853-00) 22144 RON
142 1 1 BAFFLE FAN (596854-00) 10512 RON
143 1 2 SCREW (596855-00) 3466 RON
144 1 1 FIELD 230V (596857-00) 190812 RON
144 1 1 FIELD 115V (596856-00) 190812 RON
145 1 1 HOUSING MOTOR (596858-00) 86681 RON
146 1 1 SUPPRESSOR (596859-00) 15993 RON
147 1 1 SLEEVE (596860-00) 2347 RON
521 1 1 ARBOR SA (596978-00) 318654 RON
522 1 1 COLLAR (596979-00) 5484 RON
523 1 1 O RING (596980-00) 3466 RON
524 1 1 CIRCLIP (596981-00) 4472 RON
525 1 2 SPRING. TORSION (596982-00) 3466 RON
526 1 1 SPRING. COMPRESSION (596983-00) 11519 RON
527 1 1 LOCKING DEVICE (596984-00) 34336 RON
528 1 1 SPRING. COMPRESSION (596985-00) 3466 RON
529 1 1 PLUG (596986-00) 6821 RON
530 1 1 SPANNER SPECIAL (1004117-00) 22144 RON
800 1 1 GREASE TUBE 100ML RENOLIT PARAGON EP (870889-02) 4472 RON
