D21585 DIAMOND DRILL Type 1
[D21585 Type 1]

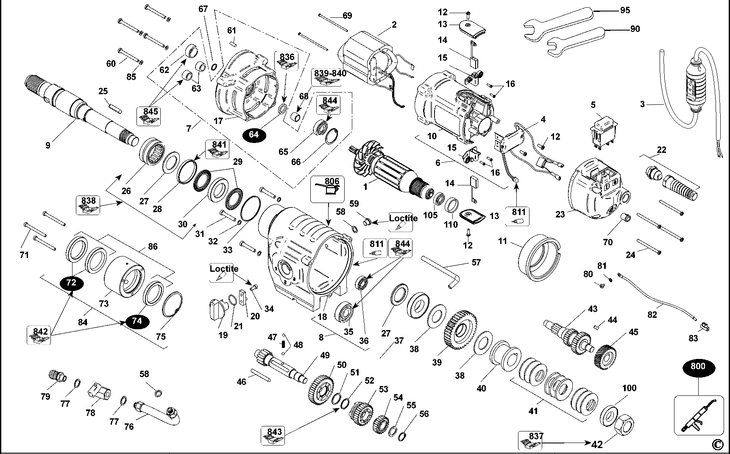

D21585 DIAMOND DRILL Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ROTOR (1002677-00) 231524 RON
1 1 1 ROTOR (1002678-00) 439451 RON
2 1 1 STATOR 230V (1002679-00) 117887 RON
2 1 1 STATOR 115V (1002680-00) 231524 RON
3 1 1 CORDSET GB (493659-00) 271790 RON
3 1 1 CORDSET LX (493660-00) 271790 RON
4 1 1 PCB (1002681-00) 129966 RON
4 1 1 PCB (1002682-00) 231524 RON
5 1 1 SWITCH (1002683-00) 34336 RON
6 1 1 MOTOR HOUSING SA (1002577-00) 5484 RON
7 1 1 GEARCASE COVER (1002684-00) 14265 RON
8 1 1 HOUSING GEARBOX (1002685-00) 165534 RON
9 1 1 SPINDLE (1002686-00) 117887 RON
9 1 1 CLUTCH KIT (1004442-00) 129966 RON
10 1 1 HOUSING MOTOR (492277-00) 37579 RON
11 1 1 BAFFLE (1002687-00) 17335 RON
12 1 4 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 558 RON
13 1 1 BRUSH COVER (492282-00) 1229 RON
14 1 2 BRUSH & LEAD (1002581-00) 7940 RON
14 1 2 BRUSH & LEAD (1002864-00) 14315 RON
15 1 2 BRUSH HOLDER (1002582-00) 7940 RON
16 1 4 SCREW PLSTC THD FORM M3X9 T10 (330065-25) 558 RON
17 1 1 GEARCASE COVER (492556-00) 9736 RON
18 1 1 HOUSING GEARBOX (492555-00) 129966 RON
19 1 1 ACTUATOR (1002688-00) 1891 RON
20 1 1 LEVER (1002689-00) 12861 RON
21 1 1 O RING (1002585-00) 1117 RON
22 1 1 CORD PROTECTOR (1002690-00) 5031 RON
23 1 1 END CAP (492554-00) 7940 RON
24 1 4 SCREW PLASTITE (330019-19) 781 RON
25 1 1 KEY (1002691-00) 2124 RON
26 1 1 BEARING NEEDLE (1002692-00) 39145 RON
27 1 2 WASHER (1002693-00) 7940 RON
28 1 1 RING (1002694-00) 5031 RON
29 1 2 BEARING NEEDLE (1002695-00) 7940 RON
30 1 1 DISC (1002696-00) 20467 RON
31 1 3 SCREW (493897-00) 1117 RON
32 1 3 Washer Lock (1002697-00) 1229 RON
33 1 1 RING (1002698-00) 2124 RON
34 1 1 SCREW (1002654-00) 1229 RON
35 1 1 BEARING (1002699-00) 12861 RON
36 1 1 BEARING (1002700-00) 7940 RON
37 1 1 DISC (1002701-00) 20467 RON
38 1 2 BRAKE (1002702-00) 3018 RON
39 1 1 WHEEL (1002703-00) 70239 RON
40 1 1 SLEEVE (1002704-00) 34336 RON
41 1 9 WASHER BOW (1002705-00) 5031 RON
42 1 1 NUT (1002706-00) 3018 RON
42 1 1 NUT (1004443-00) 5031 RON
43 1 1 SPINDLE & GEAR (1002707-00) 80865 RON
44 1 1 KEY (1002708-00) 1229 RON
45 1 1 GEAR (1002709-00) 5484 RON
46 1 1 KEY (1002710-00) 2347 RON
47 1 1 SPRING (1002711-00) 2347 RON
48 1 2 BALL (1002712-00) 1117 RON
49 1 1 GEAR & PINION (1002713-00) 80865 RON
50 1 1 GEAR (1002714-00) 80865 RON
51 1 1 DISC (1002715-00) 2347 RON
52 1 1 CIRCLIP (1002716-00) 2347 RON
53 1 1 GEAR (1002717-00) 70239 RON
54 1 1 GEAR (1002718-00) 80865 RON
55 1 1 RING (1002719-00) 1117 RON
56 1 1 CIRCLIP (1002720-00) 1117 RON
57 1 1 TUBE OIL (1002721-00) 14315 RON
58 1 1 SEAL (1002630-00) 1117 RON
59 1 1 SCREW (1002655-00) 2124 RON
60 1 4 SCREW (1002722-00) 2347 RON
61 1 1 PIN (1002723-00) 1117 RON
62 1 1 BEARING (1002724-01) 15993 RON
63 1 2 BEARING (1002725-01) 14315 RON
64 1 1 SEAL (1002623-10) 4472 RON
65 1 1 BEARING (1002726-00) 10512 RON
66 1 1 CIRCLIP (1002727-00) 1117 RON
67 1 1 CIRCLIP (1002728-00) 1117 RON
68 1 1 BUSH (1002729-00) 9282 RON
69 1 2 SCREW (1002730-00) 3018 RON
70 1 1 HOLDER (1002624-00) 2124 RON
71 1 3 SCREW (493898-00) 1229 RON
72 1 1 SEAL (1002731-00) 22144 RON
73 1 1 RING (1002732-00) 14315 RON
74 1 1 SEAL (1002733-00) 22144 RON
75 1 1 CIRCLIP (1002640-00) 2124 RON
76 1 1 HOSE SA (1002629-00) 12861 RON
77 1 2 SEAL (1002626-00) 1117 RON
78 1 1 VALVE (1002734-00) 12861 RON
79 1 1 CONNECTOR (1002628-00) 5591 RON
80 1 1 SCREW (1002735-00) 558 RON
81 1 1 Washer Lock (1002594-00) 558 RON
82 1 1 LEAD EARTH (1002736-00) 3018 RON
83 1 1 TERMINAL BLOCK (1002737-00) 1117 RON
84 1 1 COLLAR SA (1002738-00) 80865 RON
85 1 4 SEAL (1002750-00) 1117 RON
86 1 1 SEAL SA (1003197-00) 62298 RON
90 1 1 SPANNER 32mm (1004303-00) 5591 RON
95 1 1 SPANNER 41mm (1004304-00) 10512 RON
100 1 1 SPACER (1004444-00) 3466 RON
105 1 1 BEARING BALL (1003777-00) 7940 RON
110 1 1 SLEEVE INSULATING (1003776-00) 3018 RON
800 1 1 GREASE (1003362-00) 15993 RON
806 1 1 OIL (1003363-00) 49771 RON
811 1 1 TUBE SILICONE (1003464-00) 25164 RON
836 1 1 559673-99 - Indisponibil
837 1 1 559676-99 - Indisponibil
838 1 1 559679-99 - Indisponibil
839 1 1 559682-99 - Indisponibil
840 1 1 559683-99 - Indisponibil
841 1 1 559684-99 - Indisponibil
842 1 1 559685-99 - Indisponibil
843 1 1 559688-99 - Indisponibil
844 1 1 559689-99 - Indisponibil
845 1 1 559690-99 - Indisponibil
