D21582K DIAMOND DRILL Type 1
[D21582K Type 1]
D21582K DIAMOND DRILL Type 1

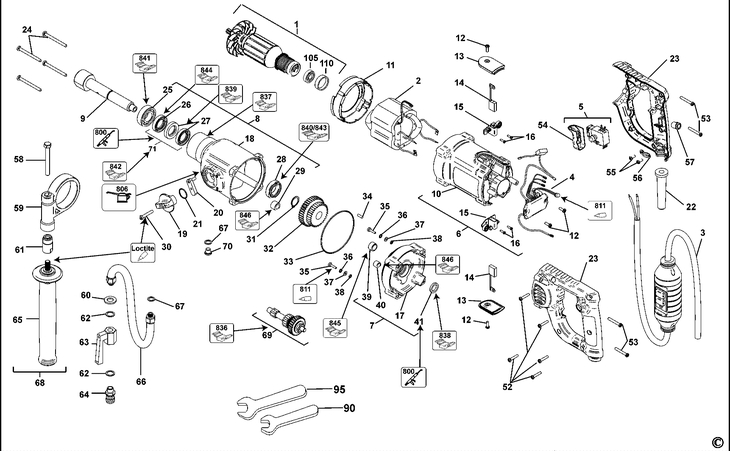

Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ROTOR (1002571-00) 153454 RON
1 1 1 ROTOR - LX (1002572-00) 301765 RON
2 1 1 STATOR 230V (1002575-00) 74937 RON
2 1 1 STATOR 115V (1002576-00) 14265 RON
3 1 1 CORDSET GB (1002742-00) 271790 RON
3 1 1 CORDSET LX (1002743-00) 271790 RON
4 1 1 PCB - GB/QS (1002617-00) 102451 RON
4 1 1 PCB - LX (1002618-00) 190812 RON
5 1 1 SWITCH (492301-00) 1891 RON
6 1 1 MOTOR HOUSING SA (1002577-00) 5484 RON
7 1 1 GEARCASE COVER (1002578-00) 80865 RON
8 1 1 HOUSING GEARBOX (1002620-00) 178732 RON
9 1 1 SPINDLE (1002621-00) 70239 RON
10 1 1 HOUSING MOTOR (492277-00) 37579 RON
11 1 1 GUIDE (492283-00) 6821 RON
12 1 4 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 558 RON
13 1 1 BRUSH COVER (492282-00) 1229 RON
14 1 2 BRUSH & LEAD (1002581-00) 7940 RON
14 1 2 BRUSH & LEAD (1002864-00) 14315 RON
15 1 2 BRUSH HOLDER (1002582-00) 7940 RON
16 1 4 SCREW PLSTC THD FORM M3X9 T10 (330065-25) 558 RON
17 1 1 GEARCASE COVER (492281-00) 57488 RON
18 1 1 HOUSING GEARBOX (1002739-00) 74937 RON
19 1 1 SELECTOR (1002583-00) 17335 RON
20 1 1 LEVER (1002584-00) 12861 RON
21 1 1 O RING (1002585-00) 1117 RON
22 1 1 CORD PROTECTOR (1002586-00) 893 RON
23 1 1 HOUSING HANDLE (492273-00) 11519 RON
24 1 4 SCREW PLASTITE (330019-19) 781 RON
25 1 1 BEARING (1002587-00) 12861 RON
26 1 1 SEAL (1002588-00) 1891 RON
27 1 2 SEAL (1002622-00) 11519 RON
28 1 1 BEARING (1002590-00) 15993 RON
29 1 1 BEARING NEEDLE (1002589-00) 11519 RON
30 1 1 SCREW (493899-00) 1117 RON
31 1 1 CIRCLIP (1002591-00) 1117 RON
32 1 1 GEAR (1002592-00) 3592 RON
33 1 1 RING (1002597-00) 3466 RON
34 1 1 PIN (1002598-00) 1229 RON
35 1 2 SCREW (1002593-00) 1117 RON
36 1 2 Washer Lock (1002594-00) 558 RON
37 1 2 DISC (1002595-00) 558 RON
38 1 2 RING (1002596-00) 1117 RON
39 1 1 BEARING NEEDLE (1002599-00) 5591 RON
40 1 1 BEARING NEEDLE (1002600-00) 7940 RON
41 1 1 SEAL (1002623-10) 4472 RON
52 1 4 SCREW PLSTC THD FORM M4X25 T20 (330065-09) 558 RON
53 1 4 SCREW PLASTIC THREAD FORM M4 * 32 T20 (330019-15) 558 RON
54 1 1 TRIGGER (492302-00) 2347 RON
55 1 2 SCEW PLSTC THD FORM M4X10 T20 (330065-05) 558 RON
56 1 1 CORD CLAMP (1002613-00) 558 RON
57 1 1 HOLDER (1002624-00) 2124 RON
58 1 1 SCREW (1002614-00) 2347 RON
59 1 1 COLLAR (492326-00) 15993 RON
60 1 1 DISC (1002625-00) 1117 RON
61 1 1 ADAPTOR (492548-00) 14315 RON
62 1 2 SEAL (1002626-00) 1117 RON
63 1 1 VALVE (1002627-00) 1891 RON
64 1 1 CONNECTOR (1002628-00) 5591 RON
65 1 1 HANDLE WEINMEYER (MOULD) (N021120) 7940 RON
66 1 1 HOSE SA (1002629-00) 12861 RON
67 1 2 SEAL (1002630-00) 1117 RON
68 1 1 HANDLE SIDE SA (1002615-00) 5484 RON
69 1 1 CLUTCH SA (1002616-00) 14265 RON
70 1 1 SCREW (1002655-00) 2124 RON
71 1 1 SEAL SA (1003199-00) 42277 RON
90 1 1 SPANNER 32mm (1004303-00) 5591 RON
95 1 1 KEY SE 22 DIN 894 (868111-00) 2795 RON
105 1 1 BEARING BALL (1003777-00) 7940 RON
110 1 1 SLEEVE INSULATING (1003776-00) 3018 RON
800 1 1 GREASE (1003362-00) 15993 RON
806 1 1 OIL (1003363-00) 49771 RON
811 1 1 TUBE SILICONE (1003464-00) 25164 RON
836 1 1 559671-99 - Indisponibil
837 1 1 559672-99 - Indisponibil
838 1 1 559673-99 - Indisponibil
839 1 1 559674-99 - Indisponibil
840 1 1 559675-99 - Indisponibil
841 1 1 559676-99 - Indisponibil
842 1 1 559677-99 - Indisponibil
843 1 1 559678-99 - Indisponibil
844 1 1 559680-99 - Indisponibil
845 1 1 559690-99 - Indisponibil
846 1 1 559692-99 - Indisponibil
