D21520 MIXER Type 1
[D21520 Type 1]
D21520 MIXER Type 1
Click pentru a mari

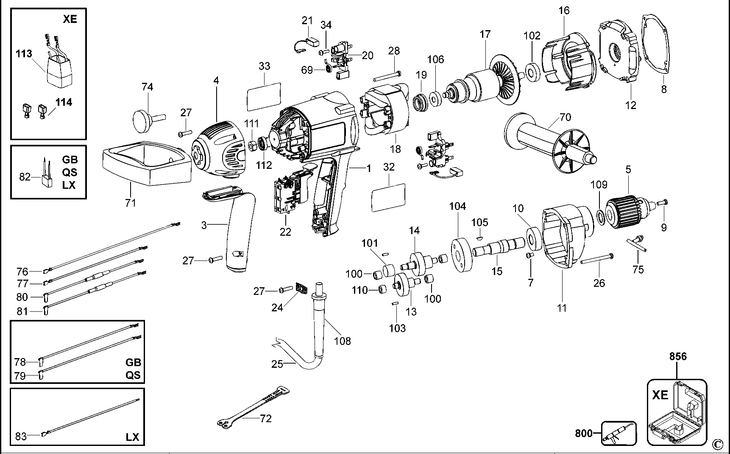

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 FIELDCASE (616828-06) 6821 RON
1 1 1 FIELDCASE (616828-06) 6821 RON
3 1 1 HANDLE COVER (624114-00) 2795 RON
3 1 1 HANDLE COVER (624114-00) 2795 RON
4 1 1 END CAP (622397-01) 2795 RON
5 1 1 5140076-71 - Indisponibil
7 1 2 SCREW TEMP (52819-00) 558 RON
8 1 1 GASKET DW130 TYPE 2 (450485-00) 781 RON
9 1 1 SCREW DW130 TYPE 2 (447735-02) 781 RON
10 1 1 BEARING BALL 153209 (330003-12) 2795 RON
11 1 1 N209034 - Indisponibil
12 1 1 GEARCASE COVER SA (623442-00) 25164 RON
13 1 1 GEAR & PINION DW130 TYPE 2 (449486-00) 23598 RON
14 1 1 PINION & GEAR DW130 TYPE 2 (449489-00) 12861 RON
15 1 1 SPINDLE DW130 TYPE 2 (147195-00) 14315 RON
16 1 1 BAFFLE FAN (655537-00) 1452 RON
17 1 1 ARMATURE 230V (658752-01SV) 29862 RON
17 1 1 ARMATURE 120V (658752-00SV) 23598 RON
18 1 1 FIELD 230V (624841-01SV) 12861 RON
18 1 1 FIELD 115V (624841-00) 14315 RON
19 1 1 SLEEVE (445217-02) 781 RON
20 1 2 BRUSH HOLDER (616857-00) 3018 RON
21 1 2 BRUSH 230V SA (617848-03) 2347 RON
21 1 2 BRUSH 115V (655213-02) 190 RON
22 1 1 SWITCH SA (625228-00) 15993 RON
22 1 1 000000-00 - Indisponibil
24 1 1 CORD CLAMP (450877-00) 558 RON
25 1 1 CORD POWER SUPPLY GB 4200 (330060-44) 14315 RON
25 1 1 CORDSET (M/PLUG) (330061-10) 12861 RON
26 1 4 SCREW PLASTIC THREAD FORM M4 * 57 T20 (330019-30) 558 RON
27 1 8 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
28 1 2 SCREW (330019-17) 558 RON
32 1 1 RATING PLATE (N031221) 781 RON
32 1 1 RATING PLATE (N031222) 781 RON
33 1 1 IDENTITY LABEL (605523-00) 781 RON
34 1 2 SCREW (176951-00) 558 RON
69 1 2 BRUSH SPRING DW309K (383387-00) 1229 RON
70 1 1 SIDE HANDLE (625712-00) 3018 RON
71 1 1 HANDLE (628037-00) 4137 RON
72 1 1 KEY HOLDER (65288-01) 558 RON
74 1 1 KNOB (382531-00) 7940 RON
75 1 1 CHUCK KEY (330034-03) 3466 RON
76 1 1 LEAD BLUE (616852-00) 105 RON
76 1 1 LEAD 200MM BLUE (626004-00) 1117 RON
77 1 1 LEAD WHITE (616852-01) 105 RON
77 1 1 LEAD SA WHITE (626004-01) 1117 RON
78 1 1 LEAD RED (616852-07) 105 RON
79 1 1 LEAD SA (616852-06) 893 RON
80 1 1 CHOKE LEAD BLACK (616853-00) 3018 RON
81 1 1 CHOKE LEAD RED (616853-01) 3018 RON
82 1 1 CAPACITOR (628531-00) 893 RON
83 1 1 LEAD BLUE (616851-00) 893 RON
100 1 3 BEARING NEEDLE (330004-02) 1229 RON
101 1 1 BEARING (135937-00) 190 RON
102 1 1 BEARING BALL (330003-09) 2795 RON
103 1 2 PIN (91286-00) 558 RON
104 1 1 GEAR DW130 TYPE 2 (400147-00) 3018 RON
105 1 1 KEY DW130 TYPE 2 (7027-00) 781 RON
106 1 1 BEARING BALL cod vechi 330003-04 BEARING BALL (605040-06) 1452 RON
108 1 1 PROTECTOR CORD (330005-01) 105 RON
108 1 1 PROTECTOR CORD (330005-01) 105 RON
109 1 1 WASHER DW130 TYPE 2 (147196-00) 1229 RON
110 1 1 BEARING DW130 TYPE 2 (449493-00) 1117 RON
111 1 1 NUT DW130 (99371-06) 558 RON
112 1 1 CAP (623785-00) 893 RON
800 1 1 GREASE (429698-00) 62298 RON
