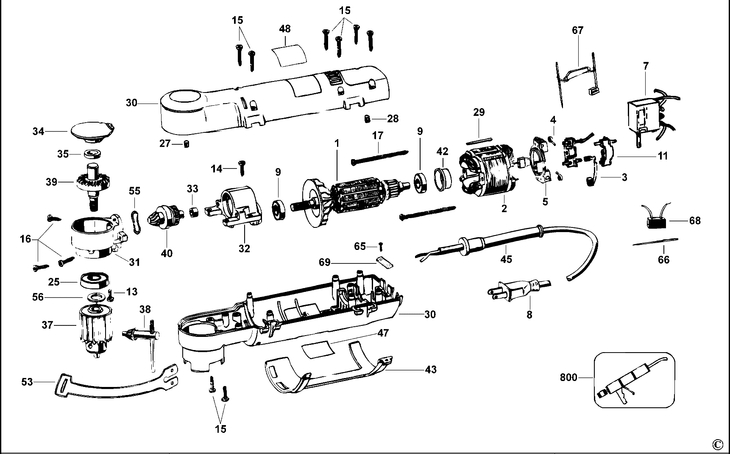

D21160 RIGHT ANGLE DRILL Type 1
[D21160 Type 1]

Click pentru a mari

LISTA DE COMPONENTE:

Numar	Versiune	Buc. in schema	Denumire	Pret/buc (Tva inclus)
1	1	1	ARMATURE & FAN (619347-01SV)	235⁹⁸ RON
2	1	1	FIELD 230V (619233-01)	55⁹¹ RON
3	1	2	BRUSH 230V SA (445861-13)	27⁹⁵ RON
4	1	2	SPRING BRUSH (445860-00)	5⁵⁸ RON
5	1	1	RING (449899-05)	19⁰ RON
7	1	1	SWITCH VARIABLE (629457-01)	105¹² RON
8	1	1	CORDSET (330060-67)	189¹ RON
9	1	2	BEARING BALL cod vechi 330003-04 BEARING BALL (605040-06)	14⁵² RON
11	1	2	NUT FIELD (449829-00)	7⁸¹ RON
13	1	1	SCREW (55206-00)	5⁵⁸ RON
14	1	2	SCREW (133042-00)	5⁵⁸ RON
15	1	8	SCREW (330019-05)	5⁵⁸ RON
16	1	3	SCREW (62812-00)	5⁵⁸ RON
17	1	2	SCREW DW160 TYPE 2 (389820-00)	12²⁹ RON
25	1	1	BEARING BALL (330003-09)	27⁹⁵ RON
27	1	2	COVER (30611-00)	7⁸¹ RON
28	1	1	PIN (95114-00)	5⁵⁸ RON
29	1	1	RUBBER PAD (445402-00)	5⁵⁸ RON
30	1	1	CLAMSHELL SET (629045-01)	105¹² RON
31	1	1	FRONT GEARCASE (449857-00)	79⁴⁰ RON
32	1	1	REAR GEAR CASE (449033-01)	143¹⁵ RON
33	1	1	SLEEVE BEARING (131557-00)	5⁵⁸ RON
34	1	1	GEAR CASE COVER (448591-00)	55⁹¹ RON
35	1	1	SLEEVE BEARING (445175-00)	7⁸¹ RON
37	1	1	CHUCK & KEY DW160 (429663-00)	267³⁰ RON
38	1	1	CHUCK KEY DW160 TYPE 2 (330034-02)	19⁰ RON
39	1	1	SPINDLE & GEAR (445414-01SV)	221⁴⁴ RON
40	1	1	GEAR & PINION (445397-03SV)	159⁹³ RON
42	1	1	SLEEVE (445217-02)	7⁸¹ RON
43	1	1	PADDLE DW160 TYPE 2 (448595-04)	34⁶⁶ RON
45	1	1	PROTECTOR CORD (330005-01)	10⁵ RON
47	1	1	RATING PLATE (N044940)	7⁸¹ RON
48	1	1	LABEL IDENTITY DEWALT 34*48 (395047-00)	5⁵⁸ RON
53	1	1	HOLDER (65288-02)	5⁵⁸ RON
55	1	1	SPRING WASHER (448373-00)	5⁵⁸ RON
56	1	1	WASHER (447765-00)	5⁵⁸ RON
65	1	2	PLASTITE SCREW (330013-03)	5⁵⁸ RON
66	1	1	LEADWIRE (636324-00)	11¹⁷ RON
67	1	1	BRUSH SA (636325-00)	68²¹ RON
68	1	1	CAPACITOR (396320-00)	50³¹ RON
69	1	1	CABLE CLAMP (142519-00)	68²¹ RON
800	1	1	GREASE (761995-01)	235⁹⁸ RON
800	1	1	GREASE (761995-01)	235⁹⁸ RON
