Top » Piese de schimb » PIESE DEWALT » DCW604N Type 1

CORDLESS ROUTER W/PLUNGE DEWALT DCW604N Type 1
[DCW604N Type 1]
CORDLESS ROUTER W/PLUNGE DEWALT DCW604N Type 1
Click pentru a mari
Imagini suplimentare
CORDLESS ROUTER W/PLUNGE DEWALT DCW604N Type 1
Click pentru a mari
CORDLESS ROUTER W/PLUNGE DEWALT DCW604N Type 1
Click pentru a mari
CORDLESS ROUTER W/PLUNGE DEWALT DCW604N Type 1
Click pentru a mari

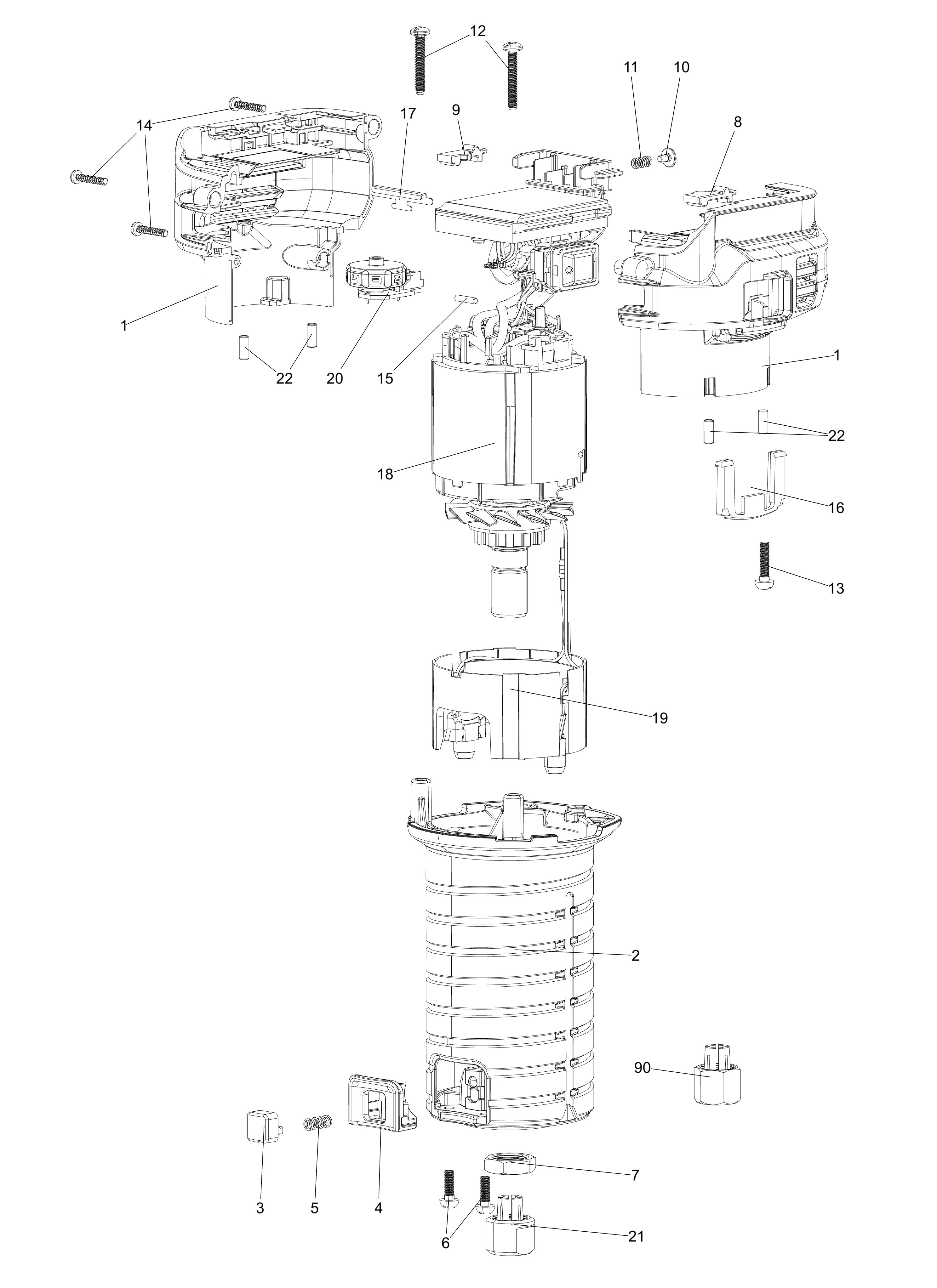

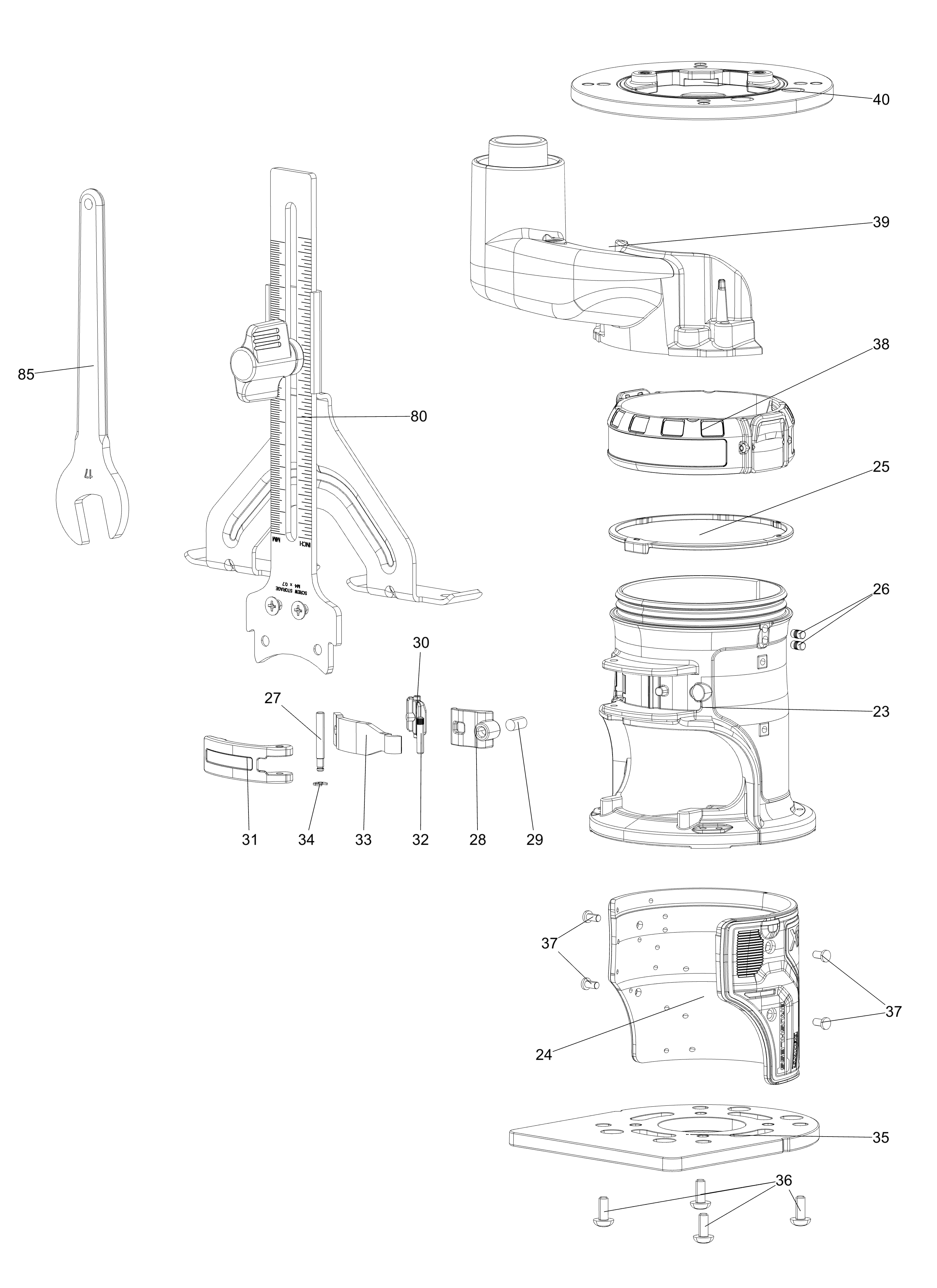

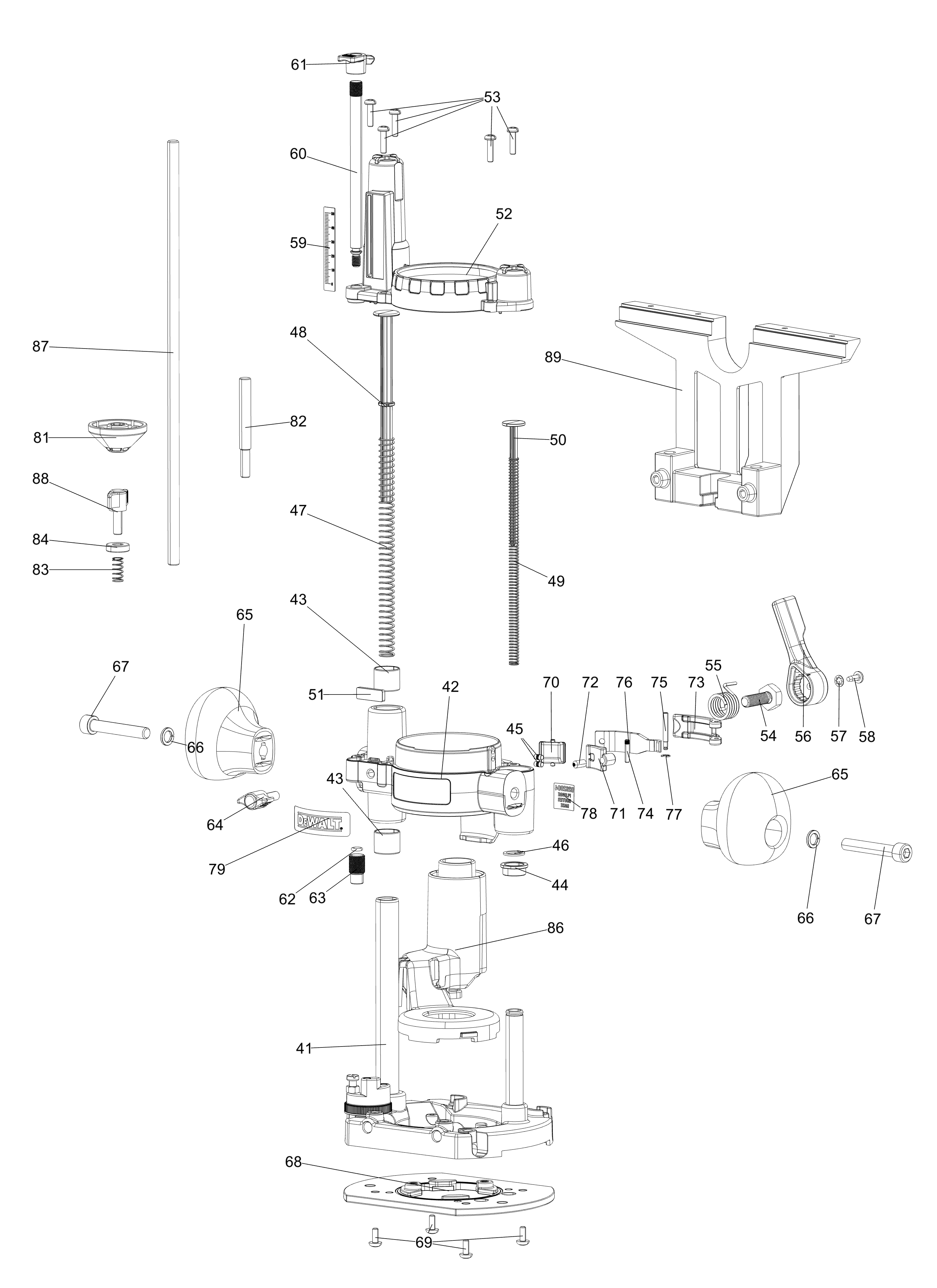

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING SA (N567094) 3954 RON
2 1 1 HOUSING MOTOR (N661051) 20216 RON
3 1 1 LOCK BUTTON (N038183) 781 RON
4 1 1 INSERT (A26131) 781 RON
5 1 1 SPRING (A23489) 558 RON
6 1 2 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 558 RON
7 1 1 NUT (A25248) 190 RON
8 1 1 BUMPER (N239160) 558 RON
8 1 1 BUMPER (N728008) 588 RON
9 1 1 BUMPER (N239159) 558 RON
9 1 1 BUMPER (N728006) 588 RON
10 1 1 SPRING GUIDE (N091479) 558 RON
11 1 1 TERMINAL BLOCK SPRING (N461735) 588 RON
11 1 1 N661029 - Indisponibil
12 1 2 SCREW METAL THD FRM M4X25 T20 (330045-08) 558 RON
13 1 1 SCREW (330065-07) 558 RON
14 1 3 SCREW PLASTITE (682211-00) 781 RON
15 1 1 ROLL PIN 2.5 X 10.9 (N071836) 558 RON
16 1 1 CLIP (N569455) 588 RON
17 1 1 STRIKE PLATE (N467560) 588 RON
18 1 1 N740030 - Indisponibil
18 1 1 MOTOR SA (NA186171) 148269 RON
19 1 1 LED LIGHT (N580684) 10241 RON
20 1 1 WHEEL SPEED (N550971) 5370 RON
21 1 1 COLLET (A28462SV) 23244 RON
21 1 1 COLLET ASSEMBLY (N693118) 21676 RON
22 1 4 PIN (N703257) 588 RON
23 1 1 N566363 - Indisponibil
23 1 1 HOUSING SA (N742993) 67932 RON
24 1 1 COVER (N591239) 2796 RON
25 1 1 SCALE (A23587) 114 RON
26 1 2 PIN (N042079) 558 RON
27 1 1 PIN (A24452) 781 RON
28 1 1 ADJUSTER (A24764) 2347 RON
29 1 1 SCREW (330022-18) 668 RON
30 1 1 PAD (A24767) 1229 RON
31 1 1 CLAMPING BAR (A24771) 2347 RON
32 1 1 PIN (A24770) 781 RON
33 1 1 SPRING (A27362) 190 RON
34 1 1 RETAINER (N028373) 558 RON
35 1 1 BASEPLATE (A27941) 2795 RON
36 1 4 SCREW (N029178) 558 RON
37 1 4 PIN (N587924) 588 RON
38 1 1 ADJUSTER HEIGHT (N693104) 12361 RON
39 1 1 ADAPTOR (A28678SV) 20467 RON
40 1 1 BASE SA (N092764) 3466 RON
42 1 1 CARRIER SA (N095608) 17335 RON
42 1 1 N029813 - Indisponibil
43 1 2 CARRIER SA (N095608) 17335 RON
43 1 2 A28658 - Indisponibil
44 1 1 CARRIER SA (N095608) 17335 RON
44 1 1 A27996 - Indisponibil
45 1 2 PIN (N042079) 558 RON
46 1 1 SNAP RING (684179) 558 RON
47 1 1 SPRING (N037001) 893 RON
48 1 1 GUIDE (N034346) 781 RON
49 1 1 SPRING (A29112) 781 RON
50 1 1 GUIDE (A29651) 558 RON
51 1 1 PLATE (N027873) 781 RON
52 1 1 COVER (N029880) 2124 RON
53 1 6 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
54 1 1 BOLT (N029497) 2347 RON
55 1 1 SPRING (N029508) 781 RON
56 1 1 LEVER (N027646) 893 RON
57 1 1 WASHER SPECIAL (608298-00) 558 RON
58 1 1 "SCREW PAN HEAD M4 * 10""" (324007-10) 558 RON
59 1 1 SCALE (N032095) 558 RON
60 1 1 ROD (A28031) 1452 RON
61 1 1 ADJUSTER (N031168) 558 RON
62 1 1 O RING (N027984) 558 RON
63 1 1 ADJUSTER (N027987) 190 RON
64 1 1 SCREW (608930-00) 781 RON
65 1 4 KNOB (397560-00) 190 RON
66 1 2 Washer Lock (098197-09) 558 RON
67 1 2 SCREW (607395-00) 781 RON
68 1 1 BASEPLATE (N029742) 3466 RON
69 1 4 SCREW (N029178) 558 RON
70 1 1 PAD (A24767) 1229 RON
71 1 1 ADJUSTER (A24764) 2347 RON
72 1 1 SCREW (330022-18) 668 RON
73 1 1 CLAMPING BAR (A24771) 2347 RON
74 1 1 PIN (A24770) 781 RON
75 1 1 PIN (A24452) 781 RON
76 1 1 SPRING (A27362) 190 RON
77 1 1 RETAINER (N028373) 558 RON
78 1 1 NAMEPLATE (N029503) 2347 RON
79 1 1 BRAND LABEL (N029502) 105 RON
80 1 1 GUIDE SA (N026733) 6821 RON
81 1 1 CONE (A27315) 781 RON
82 1 1 PIN (A27316) 190 RON
83 1 4 SPRING (609118-00) 558 RON
84 1 1 WASHER (N028927) 558 RON
85 1 1 WRENCH SPECIAL (A27895) 2795 RON
86 1 1 ADAPTOR (A29660) 4137 RON
87 1 1 GUIDE (868080-00) 190 RON
88 1 2 SCREW (608930-00) 781 RON
89 1 1 GUIDE DW615 (948651-00) 25164 RON
90 1 1 N186344 - Indisponibil
700 1 1 RATING PLATE (N589072) 588 RON
701 1 1 WARNING LABEL (N589075) 588 RON
702 1 1 BRAND LABEL (N589077) 588 RON
703 1 1 LABEL (N589078) 588 RON
