Top » Piese de schimb » PIESE DEWALT » DCD792 Type 1

CORDLESS DRILL 18V LI-ION DEWALT DCD792 Type 1
[DCD792 Type 1]
CORDLESS DRILL 18V LI-ION DEWALT DCD792 Type 1
Click pentru a mari
Imagini suplimentare
CORDLESS DRILL 18V LI-ION DEWALT DCD792 Type 1
Click pentru a mari
CORDLESS DRILL 18V LI-ION DEWALT DCD792 Type 1
Click pentru a mari
CORDLESS DRILL 18V LI-ION DEWALT DCD792 Type 1
Click pentru a mari

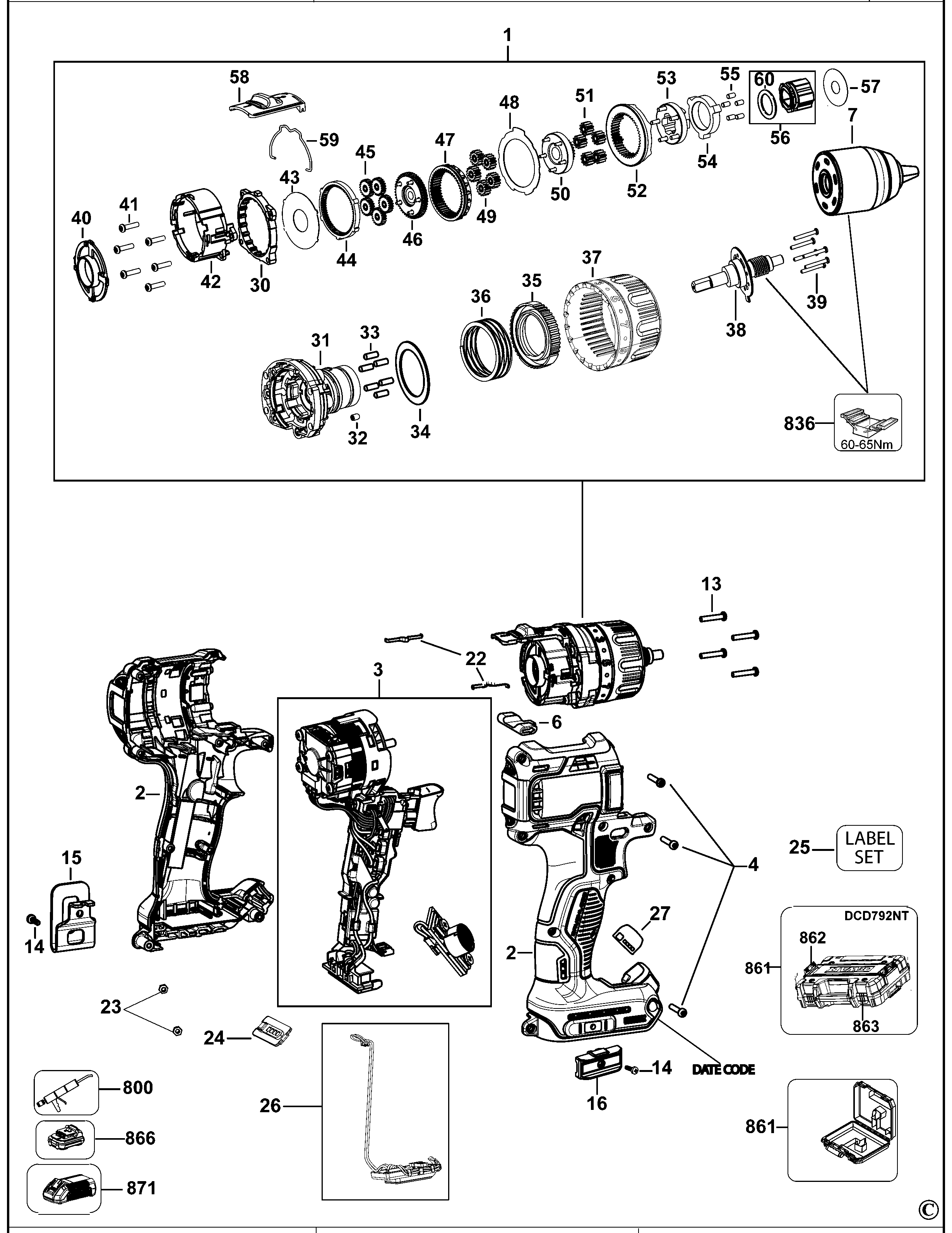

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 TRANSMISSION SA (N438742) 39318 RON
2 1 1 N465331 - Indisponibil
2 1 1 SERV.KIT SA HOUSING BL DR.DRIVER G2,BLU (N650463) 16689 RON
3 1 1 SERV KIT 18V BL SA MOTOR AND MOD DCD792 (N559228) 85494 RON
4 1 9 SCREW PLASTITE (682211-00) 781 RON
6 1 1 ACTUATOR FWD/REV (N399342) 588 RON
7 1 1 CHUCK KEYLESS Jacobs 4000 COD VECHI N442696 (N485661) 23598 RON
7 1 1 N442696 - Indisponibil
7 1 1 CHUCK KEYLESS Jacobs 4000 Series - Non-C (N196034) 1891 RON
13 1 4 SCREW M3.12X16 T10 (N377990) 558 RON
14 1 2 BELT HOOK SCREW M3 (N042665) 558 RON
15 1 1 BELT HOOK (N086039) 1788 RON
16 1 1 HOLDER BIT (N475326) 2796 RON
16 1 1 MAGNET HOLDER (N095778) 3466 RON
22 1 2 SPEED SELECTOR DETENT SPRING (N014681) 558 RON
23 1 2 NUT STOP ELASTIC M3 X 0.5 (330021-11) 558 RON
24 1 1 BLE INTERFACE PANEL 4 LED (N470512) 588 RON
25 1 1 SA LABEL SHEET DCD792 EU (N529511) 5370 RON
26 1 1 SERV KIT 18V BL SA BLUETH MODUL DCD792 E (N559234) 40734 RON
27 1 1 LABEL, G2 DRILL, BLUETOOTH (N485905) 1318 RON
30 1 1 PM SPLINE RING (N400715) 114 RON
31 1 1 GEARCASE SA (N438901) 4355 RON
32 1 1 DETENT (326467-00) 558 RON
33 1 6 CLUTCH PIN (N411204) 588 RON
34 1 1 CLUTCH WASHER (N411205) 668 RON
35 1 1 CLUTCH NUT (N411207) 82 RON
36 1 1 CLUTCH SPRING (N422472) 2182 RON
37 1 1 CLUTCH COLLAR BL DRILL DRIVER (N422232) 1772 RON
38 1 1 SPINDLE SA (N438918) 6688 RON
39 1 6 SCREW (N039795) 558 RON
40 1 1 TRANSMISSION PLATE (N396641) 588 RON
41 1 6 SCREW M3 12X13 (N075506) 558 RON
42 1 1 GEAR CASE G2 (N400716) 668 RON
43 1 1 FLAT BACKING PLATE (N063567) 781 RON
44 1 1 1ST REDUCTION RING GEAR (N030988) 1117 RON
45 1 5 1ST REDUCTION PLANET (N030999) 781 RON
46 1 1 CARRIER SA (N124371) 190 RON
47 1 1 2ND REDUCTION RING GEAR (N031079) 2124 RON
48 1 1 CLUTCH WASHER (N032409) 781 RON
49 1 5 2ND REDUCTION PLANET (N031080) 558 RON
50 1 1 CARRIER SA (N122400) 1452 RON
51 1 5 3RD REDUCTION PLANET (N031083) 558 RON
52 1 1 3RD REDUCTION GEAR FLANGED (N078410) 2124 RON
53 1 1 CARRIER SA (N122401) 1788 RON
54 1 1 LOCKING RING (N022985) 2795 RON
55 1 5 ROLLER (N093416) 558 RON
56 1 1 ANVIL ASSEMBLY (N442738) 4355 RON
57 1 1 SPINDLE LOCK WASHER (N090435) 558 RON
58 1 1 SHIFTER BUTTON (N397466) 668 RON
59 1 1 SHIFTER WIREFORM (N035441) 558 RON
60 1 1 O RING (N439123) 588 RON

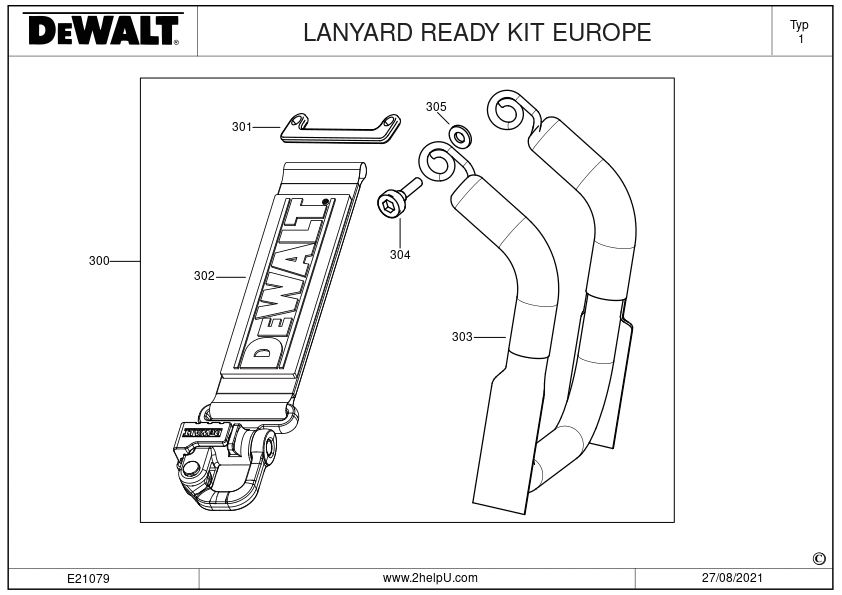

300 1 1 SERVICE KIT (NA012362) 20216 RON
300 1 1 SERVICE KIT (NA325022) 67932 RON
301 1 1 STRAP. HOOKED (N537349) 588 RON
302 1 2 BRACKET (NA012391) 5370 RON
303 1 1 CLIP SA (NA012370) 5370 RON
304 1 2 SCREW (N542271) 1630 RON
305 1 2 WASHER (N462739) 588 RON
800 1 1 GREASE MOLYCOTE G68 100 GRAM TUBE (808386-00) 46863 RON
800 1 1 GREASE (286436-00) 70239 RON
800 1 1 GREASE (NA360289) 10241 RON
836 1 1 SERVICE TOOL (559697-99) 32283 RON
836 1 1 S.T.CHUCK REMOVAL JIG (559661-99) 40716 RON
861 1 1 N466901 - Indisponibil
861 1 1 N467801 - Indisponibil
862 1 2 H1500082008 - Indisponibil
862 1 1 LATCH (N409477) 114 RON
863 1 2 LATCH (P910190) 3466 RON
866 1 1 BATTERY 18V - 2.0AH - 36WH (N436206) 78485 RON
866 1 1 N436213 - Indisponibil
871 1 1 N450536 - Indisponibil
871 1 1 CHARGER-DCB1104-QW - (4A) (NA132878) 44688 RON
871 1 1 CHARGER 10.8V - 18V (NA010209) 51127 RON
