Top » Piese de schimb » PIESE DEWALT » DPC17PS Type 1

COMPRESOR DEWALT DPC17PS Type 1
[DPC17PS Type 1]
COMPRESOR DEWALT DPC17PS Type 1
Click pentru a mari
Imagini suplimentare
COMPRESOR DEWALT DPC17PS Type 1
Click pentru a mari
COMPRESOR DEWALT DPC17PS Type 1
Click pentru a mari
COMPRESOR DEWALT DPC17PS Type 1
Click pentru a mari
COMPRESOR DEWALT DPC17PS Type 1
Click pentru a mari

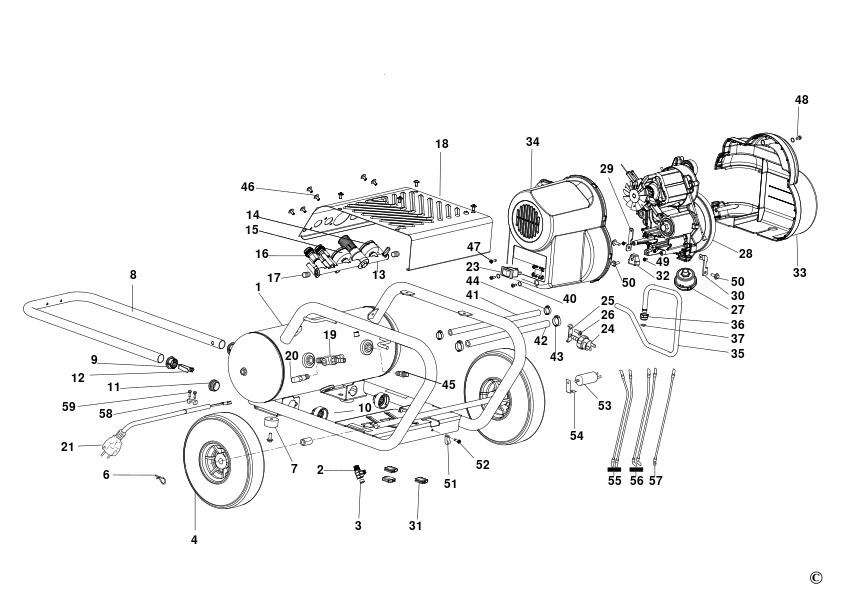

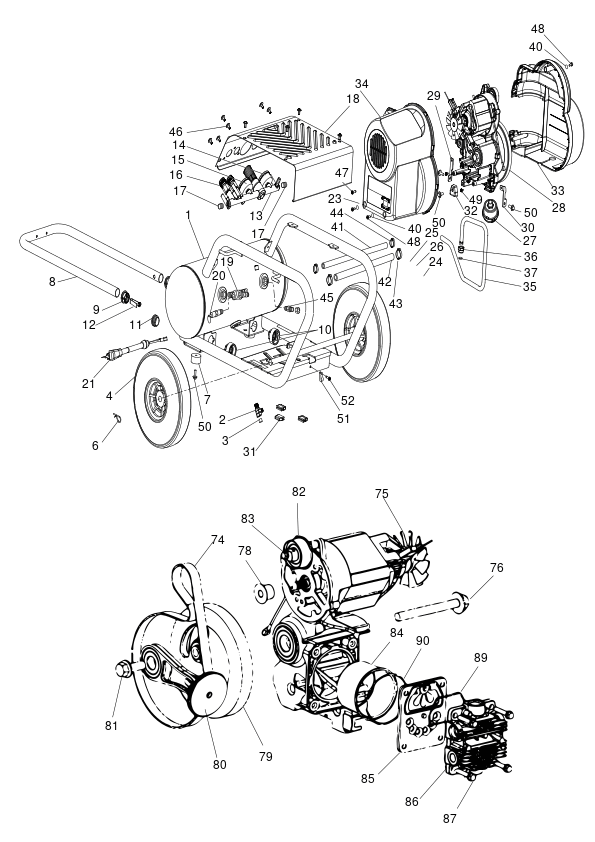

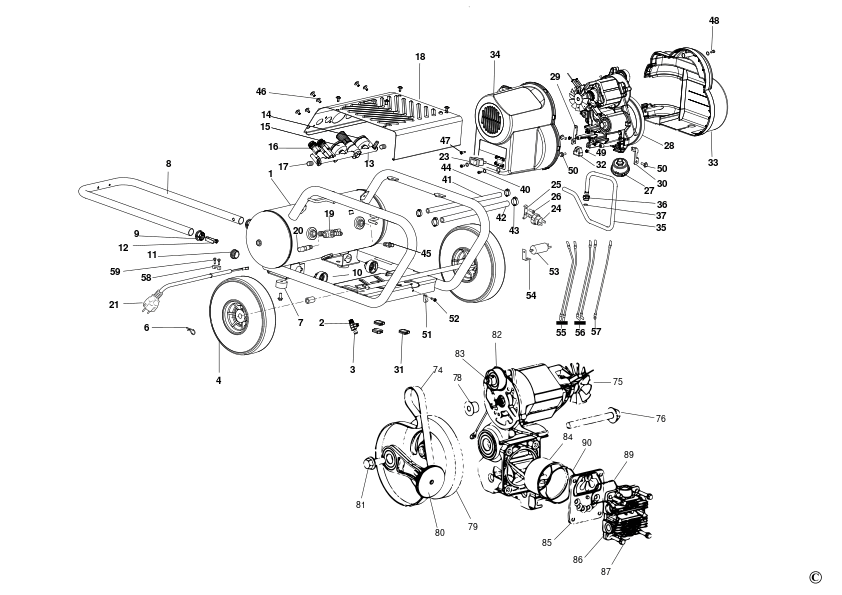

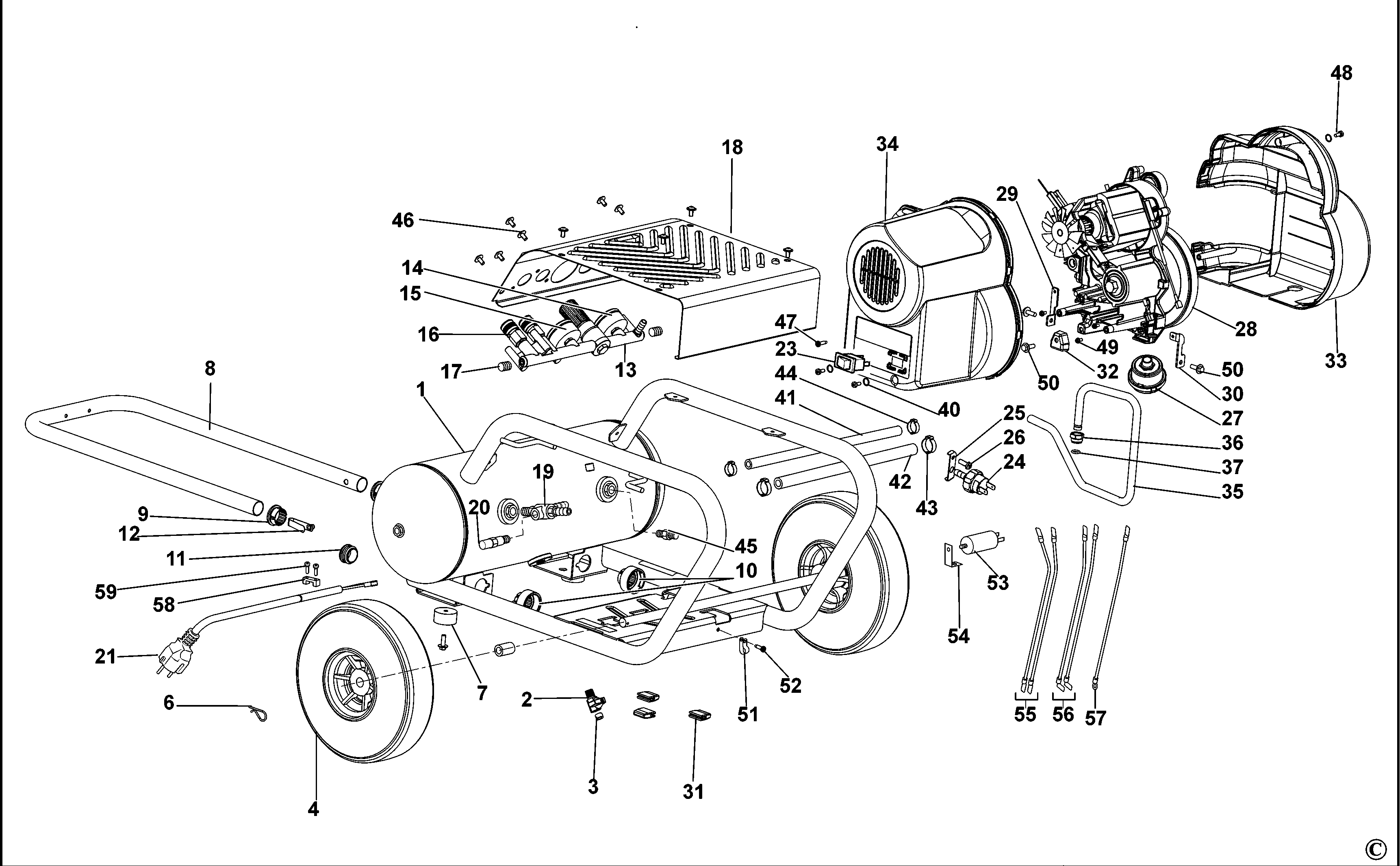

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 TANK (9413579112) 327869 RON
2 1 1 9047091 - Indisponibil
2 1 1 BALL VALVE (AB-9047091) 5370 RON
3 1 1 9038905 - Indisponibil
3 1 1 DRAIN VALVE (AB-9038905) 944 RON
4 1 2 9042104 - Indisponibil
4 1 2 WHEEL (AB-9042104) 30769 RON
6 1 2 4105855 - Indisponibil
6 1 2 AB-4105855 - Indisponibil
7 1 2 BUMPER (B-SST108) 3268 RON
8 1 1 9083425132 - Indisponibil
8 1 1 AB-9083425132 - Indisponibil
9 1 2 INSERT (B-A16379) 944 RON
10 1 2 DETENT (B-A16392) 1630 RON
11 1 2 9069249 - Indisponibil
11 1 2 AB-9069249 - Indisponibil
12 1 2 BUTTON (B-D26863) 944 RON
13 1 1 9051300 - Indisponibil
13 1 1 REGULATOR (AB-9051300) 91363 RON
14 1 1 GAUGE (9052272) 11337 RON
15 1 1 GAUGE (9052273) 11337 RON
16 1 2 COUPLING (9047068) 9282 RON
17 1 2 PLUG (9054020) 1630 RON
18 1 1 9083426132 - Indisponibil
18 1 1 AB-9083426132 - Indisponibil
19 1 1 COUPLING (B-N098563) 6688 RON
20 1 1 9049519 - Indisponibil
20 1 1 VALVE (9049337) 10241 RON
21 1 1 CORDSET (9065472) 28836 RON
23 1 1 SWITCH LUM.V220 C/PROT.PULS (9064185) 2556 RON
24 1 1 9063306 - Indisponibil
25 1 1 BRACKET (B-N105826) 3954 RON
26 1 1 #014006081 - Indisponibil
27 1 1 FILTER (B-N013711) 16689 RON
28 1 1 9417856 - Indisponibil
28 1 1 PUMP SA (HP0000A) 356963 RON
29 1 1 BRACKET (B-N056703) 2556 RON
30 1 1 9083732 - Indisponibil
30 1 1 AB-9083732 - Indisponibil
31 1 3 INSULATOR (B-AC0716) 668 RON
32 1 1 MOUNT (B-ACG18) 2182 RON
33 1 1 SHROUD (B-A15533) 20216 RON
34 1 1 AB-9069232 - Indisponibil
34 1 1 9069232 - Indisponibil
35 1 1 AB-9043818 - Indisponibil
35 1 1 9043818 - Indisponibil
36 1 1 NUT (B-AC0780) 2556 RON
37 1 1 O RING (B-AC0781) 668 RON
40 1 3 O RING (B-SSG3102) 944 RON
41 1 1 HOSE (9270052) 12361 RON
42 1 1 HOSE (9270051) 20216 RON
43 1 2 CLAMP (B-A20009) 1630 RON
44 1 2 CLAMP (B-CAC12061) 1630 RON
45 1 1 VALVE (9048134) 23244 RON
46 1 10 SCREW (B-D28104) 944 RON
47 1 1 SCREW (B-D29132) 944 RON
48 1 3 SCREW (B-SSF5531) 944 RON
49 1 5 SCREW (B-SUDL91) 944 RON
50 1 5 SCREW (B-91895680) 944 RON
51 1 1 CABLE CLAMP (9064917) 944 RON
52 1 1 AB-9114289 - Indisponibil
52 1 1 9114289 - Indisponibil
74 1 1 BELT (B-N011005) 16689 RON
75 1 1 BLADE (B-A11031) 3954 RON
76 1 1 SCREW (B-A08547) 3268 RON
78 1 1 PULLEY (B-N001137) 3268 RON
79 1 1 FLYWHEEL (B-A10811) 46247 RON
80 1 1 CON ROD (B-N088700) 49114 RON
81 1 1 SCREW (B-A08454) 1318 RON
82 1 1 IDLER ASSEMBLY (B-N088695) 16689 RON
83 1 1 SCREW (B-A10638) 1318 RON
84 1 1 SLEEVE (B-N021725) 13697 RON
85 1 2 PLATE (B-A09819) 13697 RON
86 1 1 HEAD (B-A12477) 15469 RON
87 1 4 SCREW (B-AC0798) 82 RON
89 1 1 O RING (B-ACG45) 1318 RON
90 1 1 O RING (B-A03856) 1318 RON
