COMPRESOR DEWALT DPC10QTC Type 1
[DPC10QTC Type 1]
COMPRESOR DEWALT DPC10QTC Type 1
Click pentru a mari
Imagini suplimentare
COMPRESOR DEWALT DPC10QTC Type 1
Click pentru a mari
COMPRESOR DEWALT DPC10QTC Type 1
Click pentru a mari

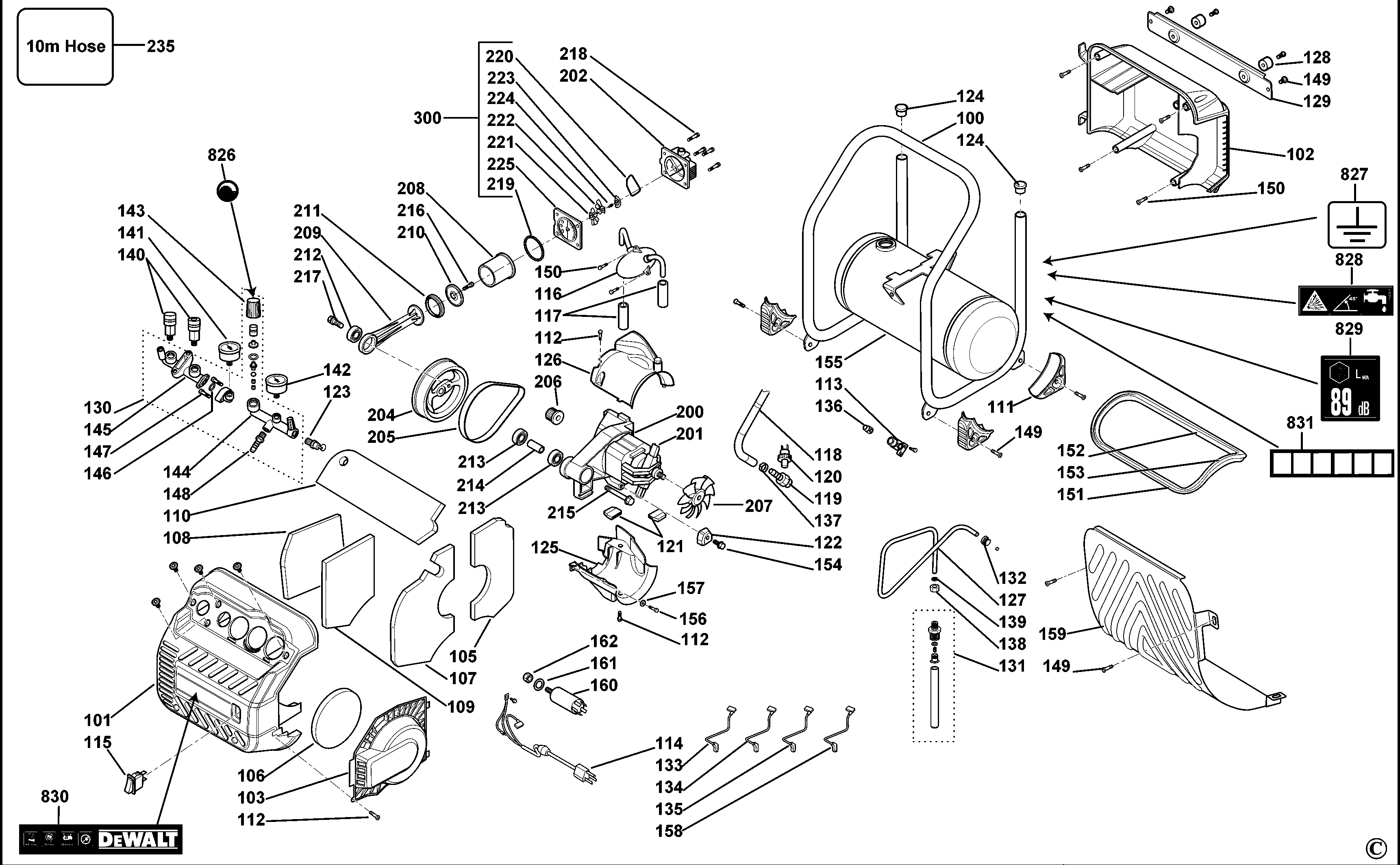

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
100 1 1 TANK (N396003) 188451 RON
101 1 1 SHROUD (N372379) 18568 RON
102 1 1 SHROUD (N121990) 12361 RON
103 1 1 COVER (N216652) 4355 RON
105 1 1 FOAM (N125105) 3954 RON
106 1 1 FOAM (N125109) 3268 RON
107 1 1 FOAM (N125229) 4827 RON
108 1 1 FOAM (N125230) 3268 RON
109 1 1 FOAM (N125428) 3954 RON
110 1 1 FOAM (N313999) 3954 RON
111 1 4 FOOT (N144436) 2556 RON
112 1 3 SCREW (SSF3156) 944 RON
113 1 1 9047091 - Indisponibil
113 1 1 BALL VALVE (AB-9047091) 5370 RON
114 1 1 N375360 - Indisponibil
114 1 1 CORDSET (9065873) 12361 RON
115 1 1 SWITCH LUM.V220 C/PROT.PULS (9064185) 2556 RON
116 1 1 MUFFLER (N299059) 3268 RON
117 1 2 HOSE (N117449) 1318 RON
118 1 1 N116199 - Indisponibil
118 1 1 HOSE (9270051) 20216 RON
119 1 1 CONNECTOR (N115939) 4355 RON
120 1 1 MICRO SWITCH (N402543) 741 RON
121 1 1 ISOLATOR (N436181) 114 RON
122 1 1 MOUNT (ACG18) 2182 RON
123 1 1 VALVE (N022549) 6688 RON
124 1 2 PLUG (N048415) 944 RON
125 1 1 COVER (N093234) 2796 RON
126 1 1 COVER-TOP (N093235) 2796 RON
127 1 1 TUBE OUTLET (N148800) 3268 RON
127 1 1 TUBE OUTLET (N436063) 18568 RON
128 1 2 BUMPER (N178742) 944 RON
129 1 1 MOUNT (N266360) 13697 RON
130 1 1 MANIFOLD ASSEMBLY (N272979) 24962 RON
131 1 1 VALVE KIT (N378375) 15469 RON
132 1 1 NUT (N148738) 2796 RON
133 1 1 LEAD BROWN (N406816) 1630 RON
134 1 2 LEAD BLACK (N406815) 2182 RON
135 1 2 LEAD BLUE (N406818) 1630 RON
136 1 1 9038905 - Indisponibil
136 1 1 DRAIN VALVE (AB-9038905) 944 RON
137 1 2 CLAMP (A20009) 1630 RON
138 1 1 NUT (SSP7813) 2182 RON
139 1 1 O RING (SSG3105) 944 RON
140 1 2 COUPLING (9047068) 9282 RON
141 1 1 GAUGE (N401440) 6688 RON
142 1 1 GAUGE (N401439) 6688 RON
143 1 1 KNOB (N261306) 1933 RON
144 1 1 VALVE BODY (N272981) 9012 RON
145 1 1 N272982 - Indisponibil
146 1 1 O RING (N272983) 944 RON
147 1 2 SCREW (9411073) 944 RON
148 1 1 CONNECTOR (A03008) 2556 RON
149 1 10 SCREW (D28104) 944 RON
150 1 8 SCREW (D29132) 944 RON
151 1 1 SEAL (N479090) 4355 RON
151 1 1 N115122 - Indisponibil
152 1 1 SEAL (N479119) 4355 RON
152 1 1 N115127 - Indisponibil
153 1 1 SEAL (N479120) 114 RON
153 1 1 N115128 - Indisponibil
154 1 1 SCREW (91895680) 944 RON
155 1 2 SCREW (SUDL91) 944 RON
156 1 2 SCREW (SSF5531) 944 RON
157 1 2 WASHER (N317839) 944 RON
158 1 1 LEAD EARTH (N406819) 2182 RON
159 1 1 PANEL (N376470) 21676 RON
160 1 1 NOISE FILTER PCB (9064867) 11337 RON
161 1 1 WASHER (9411088) 944 RON
162 1 1 NUT M8 (9122333) 944 RON
200 1 1 CASTING (N399486) 21676 RON
201 1 1 MOTOR SA 230V (N494871) 125542 RON
201 1 1 N375363 - Indisponibil
202 1 1 CYLINDER HEAD (N260996) 5370 RON
204 1 1 FLYWHEEL (N398105) 38463 RON
204 1 1 FLYWHEEL (BN489796) 30769 RON
205 1 1 N406246 - Indisponibil
205 1 1 BELT (N489800) 32327 RON
206 1 1 N049820 - Indisponibil
206 1 1 SPROCKET (N489799) 5370 RON
207 1 1 FAN (N051334) 1630 RON
208 1 1 CYLINDER (N072495) 9012 RON
209 1 1 N072645 - Indisponibil
209 1 1 CON ROD (N490044) 6688 RON
210 1 1 CAP (N073046) 1772 RON
211 1 1 PISTON RING (N073052) 6688 RON
212 1 1 BEARING (N074819) 3954 RON
213 1 2 BEARING 6202 (N400652) 3954 RON
214 1 1 SPACER (N398089) 3268 RON
215 1 1 SCREW (N398090) 2182 RON
216 1 1 SCREW (N054934) 944 RON
217 1 1 SCREW (N073286) 114 RON
218 1 4 SCREW (SSF995) 944 RON
219 1 1 O RING (N261339) 944 RON
220 1 1 O RING (N261340) 944 RON
221 1 1 INTAKE VALVE (N261341) 3268 RON
222 1 1 VALVE (N261342) 2796 RON
223 1 1 VALVE (N261343) 944 RON
224 1 1 RIVET (N261346) 944 RON
225 1 1 CASTING (N261344M) 6688 RON
235 1 1 HOSE SA (9045834) 33797 RON
300 1 1 N261345 - Indisponibil
300 1 1 N494869 - Indisponibil
300 1 1 VALVE BODY (9434A77) 12361 RON
826 1 1 LABEL (N401073) 944 RON
828 1 1 LABEL (N421211) 944 RON
829 1 1 LABEL (N413619) 944 RON
830 1 1 IDENTITY LABEL (N413629) 1318 RON
