COMPRESOR DEWALT B-DPC10QTC Type 1
[B-DPC10QTC Type 1]
COMPRESOR DEWALT B-DPC10QTC Type 1
Click pentru a mari
Imagini suplimentare
COMPRESOR DEWALT B-DPC10QTC Type 1
Click pentru a mari
COMPRESOR DEWALT B-DPC10QTC Type 1
Click pentru a mari

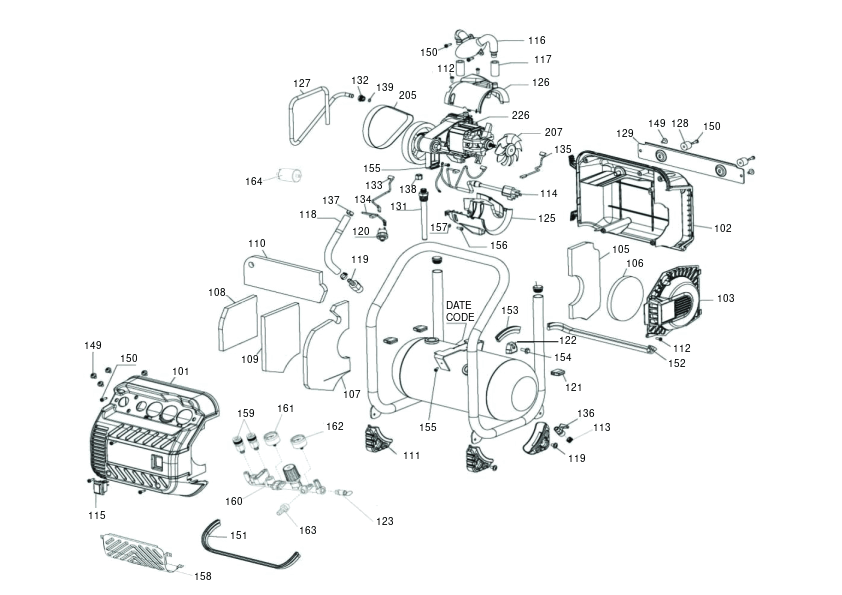

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
101 1 1 SHROUD (N372379) 18568 RON
102 1 1 SHROUD (N121990) 12361 RON
103 1 1 COVER (N216652) 4355 RON
105 1 1 FOAM (N125105) 3954 RON
106 1 1 FOAM (N125109) 3268 RON
107 1 1 FOAM (N125229) 4827 RON
108 1 1 FOAM (N125230) 3268 RON
109 1 1 FOAM (N125428) 3954 RON
110 1 1 FOAM (N313999) 3954 RON
111 1 4 FOOT (N144436) 2556 RON
112 1 3 SCREW (SSF3156) 944 RON
113 1 1 BALL VALVE (AB-9047091) 5370 RON
114 1 1 CORDSET (9065873) 12361 RON
115 1 1 SWITCH LUM.V220 C/PROT.PULS (9064185) 2556 RON
116 1 1 MUFFLER (N299059) 3268 RON
117 1 2 HOSE (N117449) 1318 RON
118 1 1 HOSE (9270051) 20216 RON
119 1 1 CONNECTOR (N115939) 4355 RON
120 1 1 MICRO SWITCH (N402543) 741 RON
121 1 3 ISOLATOR (N436181) 114 RON
122 1 1 SADDLE CUP MOUNT (AB-ACG18) 2796 RON
123 1 1 VALVE (9049337) 10241 RON
124 1 2 PLUG (N048415) 944 RON
125 1 1 COVER (N093234) 2796 RON
126 1 1 COVER-TOP (N093235) 2796 RON
127 1 1 TUBE OUTLET (N436063) 18568 RON
128 1 2 BUMPER (N178742) 944 RON
129 1 1 MOUNT (BN084518112) 13697 RON
130 1 1 MANIFOLD ASSEMBLY (N272979) 24962 RON
131 1 1 VALVE KIT (N378375) 15469 RON
132 1 1 NUT (N148738) 2796 RON
137 1 2 CLAMP (A20009) 1630 RON
138 1 1 NUT (SSP7813) 2182 RON
139 1 1 O RING (SSG3105) 944 RON
149 1 13 SCREW (D28104) 944 RON
150 1 8 SCREW (BD29132) 944 RON
151 1 1 SEAL (N479090) 4355 RON
152 1 1 SEAL (N479119) 4355 RON
153 1 1 SEAL (N479120) 114 RON
154 1 1 SCREW (91895680) 944 RON
155 1 2 SCREW (SUDL91) 944 RON
156 1 2 SCREW (SSF5531) 944 RON
157 1 2 WASHER (N317839) 944 RON
226 1 1 PUMP SA (BN490048SV) 308517 RON
