Top » Piese de schimb » PIESE DEWALT » DCPS330N Type 1

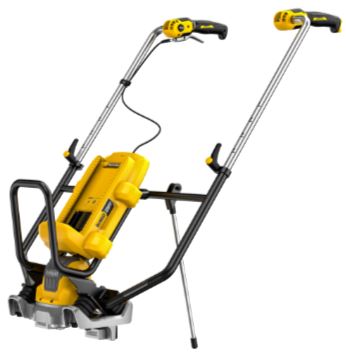

COMPACTOR D ENIVELARE DEWALT DCPS330N Type 1
[DCPS330N Type 1]
COMPACTOR D ENIVELARE DEWALT DCPS330N Type 1
Click pentru a mari
Imagini suplimentare
COMPACTOR D ENIVELARE DEWALT DCPS330N Type 1
Click pentru a mari
COMPACTOR D ENIVELARE DEWALT DCPS330N Type 1
Click pentru a mari
COMPACTOR D ENIVELARE DEWALT DCPS330N Type 1
Click pentru a mari
COMPACTOR D ENIVELARE DEWALT DCPS330N Type 1
Click pentru a mari
COMPACTOR D ENIVELARE DEWALT DCPS330N Type 1
Click pentru a mari
COMPACTOR D ENIVELARE DEWALT DCPS330N Type 1
Click pentru a mari

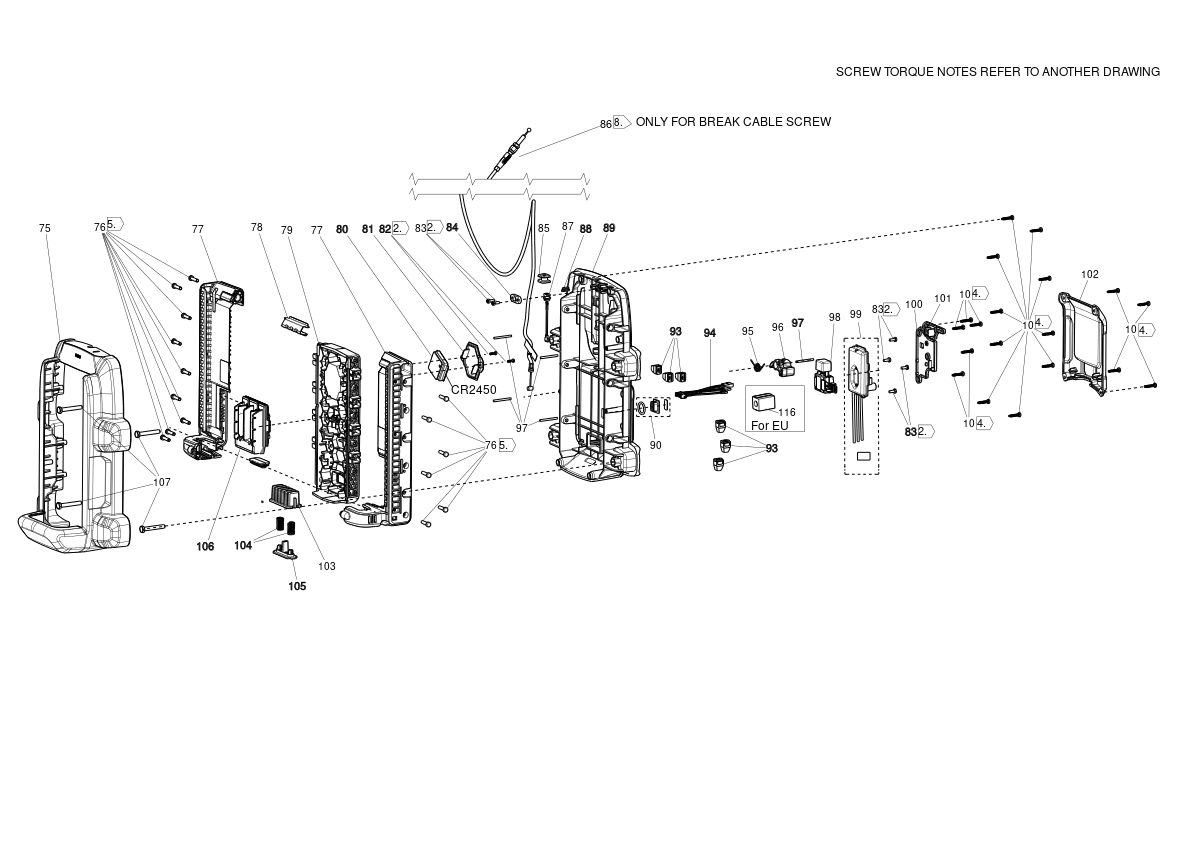

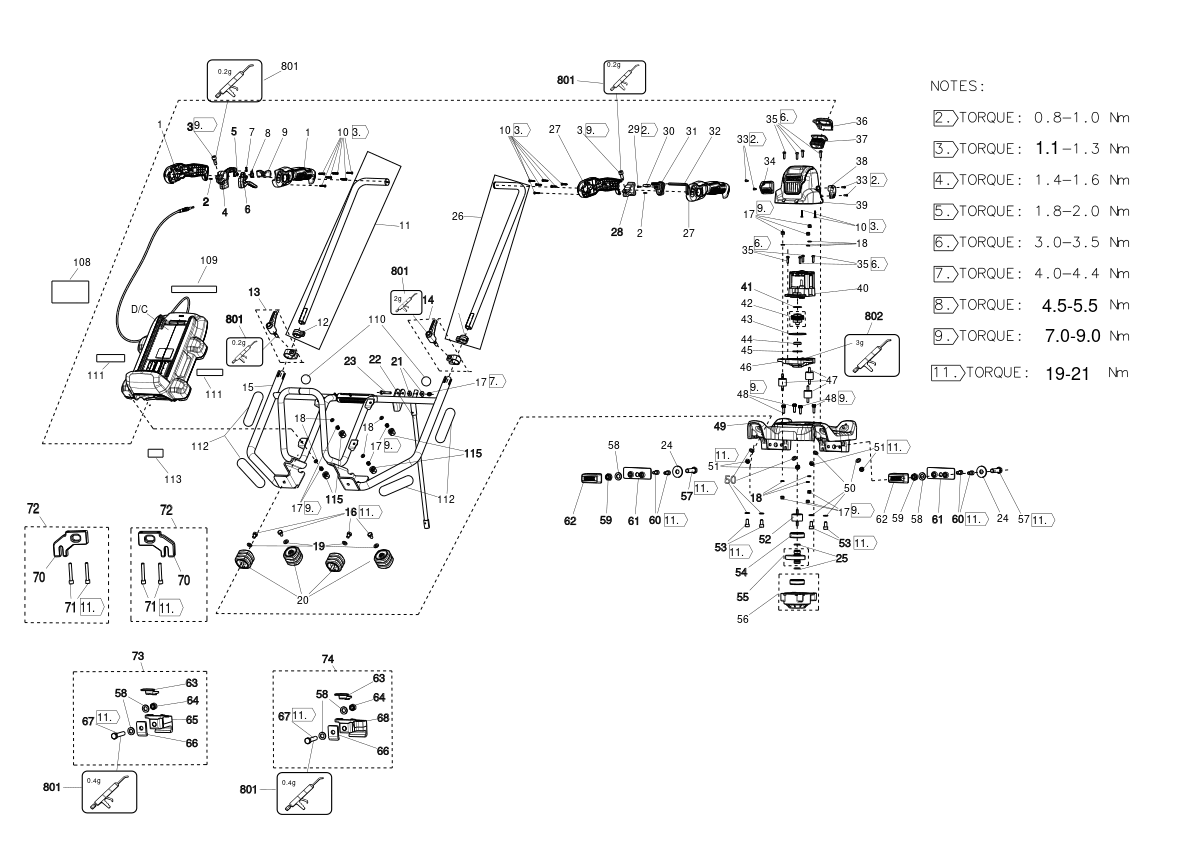

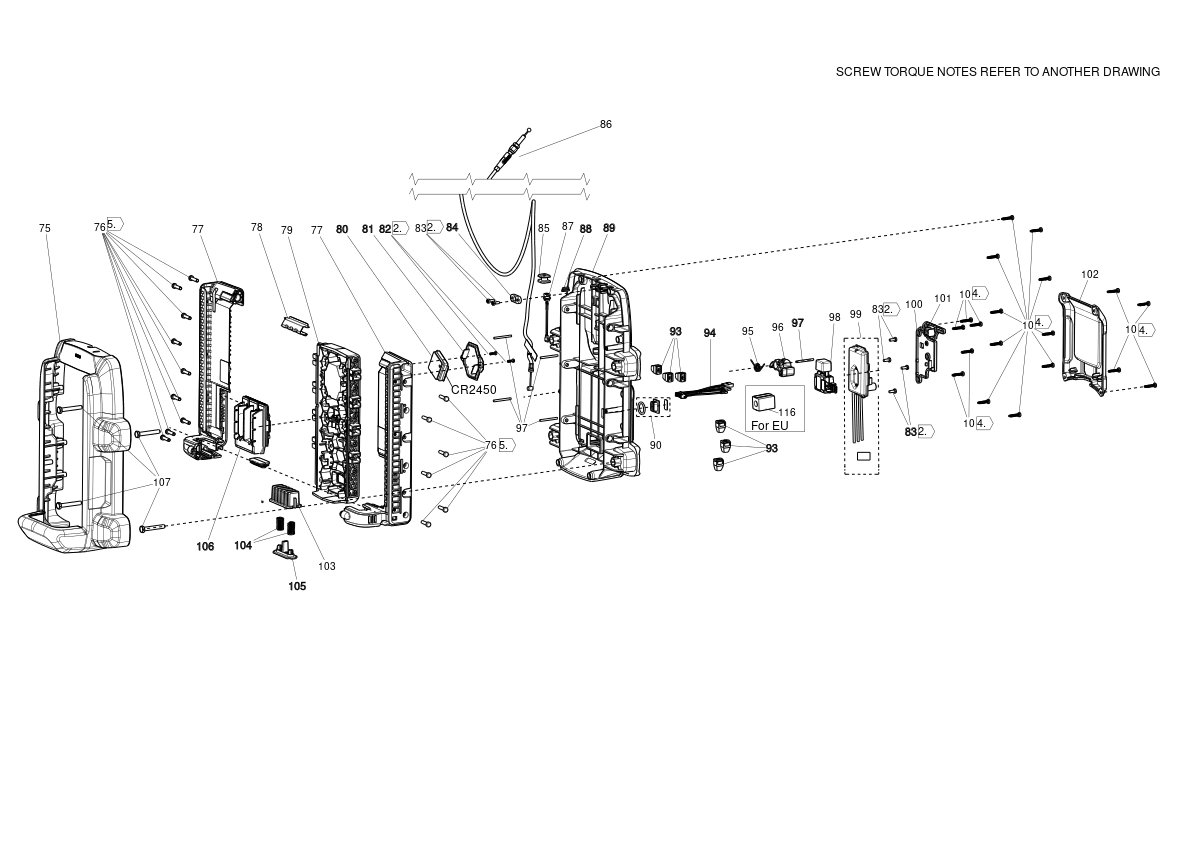

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HANDLE SA RH (NA392953) 5370 RON
2 1 2 ROLL PIN 2.5 X 10.9 (N071836) 558 RON
3 1 2 BOLT (NA358816) 588 RON
4 1 1 BRAKE ADAPTER (NA240255) 13697 RON
5 1 1 TUBE (NA373533) 82 RON
6 1 1 LEVER (NA231917) 12361 RON
7 1 1 SPRING (NA398607) 588 RON
8 1 1 VALVE SPRING (NA351396) 588 RON
9 1 1 BUTTON LOCK-ON (NA319526) 668 RON
10 1 33 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
11 1 1 BAR SA (NA402125) 16689 RON
12 1 2 CLAMP (NA278704) 1630 RON
13 1 1 CLAMP SA RH (NA610119) 10241 RON
14 1 1 CLAMP SA LH (NA660224) 10241 RON
15 1 1 FRAME (NA315148) 73079 RON
16 1 4 BOLT (NA152211) 588 RON
17 1 11 "NUT 6KT M6 ISO7040""" (330021-01) 2347 RON
18 1 10 WASHER (NA099091) 588 RON
19 1 4 WASHER (NA575216) 588 RON
20 1 4 SHOCK ABSORBER (NA182015) 11337 RON
21 1 2 PLATE (NA525236) 588 RON
22 1 1 BRACKET SA (NA375921) 741 RON
23 1 1 BOLT (NA152191) 588 RON
24 1 2 WASHER (NA680218) 668 RON
25 1 2 O RING (NA358151) 944 RON
26 1 1 BAR SA (NA402123) 16689 RON
27 1 1 HANDLE SA LH (NA392952) 5370 RON
28 1 1 SHOE (NA327142) 6688 RON
29 1 1 SCREW PLASTIC (330019-41) 588 RON
30 1 1 RUBBER (NA379776) 944 RON
31 1 1 COVER (NA375540) 588 RON
32 1 1 HEX KEY (NA323526) 944 RON
33 1 4 SCREW (NA407346) 588 RON
34 1 1 COVER RH (NA380936) 668 RON
35 1 8 SCREW (N548557) 588 RON
36 1 1 PLATE (NA351602) 82 RON
37 1 1 TUBE (NA233195) 4355 RON
38 1 1 COVER LH (NA380943) 668 RON
39 1 1 MOTOR COVER (NA233181) 6688 RON
40 1 1 MOTOR SA (NA693590) 55455 RON
41 1 1 O RING (NA240129) 944 RON
42 1 1 GEAR SA (NA613055) 15469 RON
43 1 1 O RING (NA309611) 114 RON
44 1 1 SEAL (NA277965) 2556 RON
45 1 1 O-RING (N380571) 588 RON
46 1 1 COVER (NA229431) 15469 RON
47 1 3 DAMPER (NA239395) 5370 RON
48 1 4 BOLT (NA151341) 588 RON
49 1 1 BASE (NA231365) 99395 RON
50 1 8 BOLT (NA099086) 588 RON
51 1 4 NUT (NA153355) 588 RON
52 1 1 DAMPER (NA328421) 9012 RON
53 1 4 BOLT (NA327484) 588 RON
54 1 1 BEARING (N083126) 3268 RON
55 1 1 ECCENTRIC SA (NA610126) 21676 RON
56 1 1 COVER SA (NA610131) 23244 RON
57 1 2 BOLT (NA151342) 1772 RON
58 1 6 WASHER (NA151345) 588 RON
59 1 2 NUT (NA151339) 668 RON
60 1 4 BOLT (NA537480) 944 RON
61 1 2 PLATE (NA476616) 588 RON
62 1 2 COVER (NA325200) 741 RON
63 1 2 COVER (NA324043) 3268 RON
64 1 2 NUT (NA358831) 588 RON
65 1 1 ADAPTOR (NA175067) 20216 RON
66 1 2 CLAMPING INSERT (NA180293) 2182 RON
67 1 2 BOLT (NA323480) 114 RON
68 1 1 ADAPTOR (NA186363) 20216 RON
70 1 2 ADAPTOR (NA599262) 12361 RON
71 1 4 BOLT (NA599453) 944 RON
72 1 2 ADAPTOR SA (NA610136) 15469 RON
73 1 1 ADAPTOR SA (NA610157) 27287 RON
74 1 1 ADAPTOR SA (NA610158) 27287 RON
75 1 1 SUPPORT RH (NA233193) 9012 RON
76 1 15 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
77 1 1 HOUSING SA (NA392453) 28836 RON
78 1 1 PLATE (NA266283) 1933 RON
79 1 1 BOX (NA473462) 4827 RON
80 1 1 MODULE (NA703838) 30769 RON
81 1 1 COVER (NA477372) 588 RON
82 1 2 SCREW (N034545) 588 RON
83 1 6 Screw M3.5 X9.5 (330019-01) 558 RON
84 1 1 PLATE (NA426391) 588 RON
85 1 1 CORD PROTECTOR (NA356840) 1772 RON
86 1 1 BRAKE CABLE TEC LV 195 (NA278309) 741 RON
87 1 1 LED (NA363954) 2182 RON
88 1 1 GUIDE LIGHT ALC DRILL (656183-00) 893 RON
89 1 1 COVER-TOP (NA233196) 15469 RON
90 1 1 HEATSINK SA (NA660249) 2796 RON
93 1 6 CONNECTOR (650974-00) 668 RON
94 1 1 WIRE HARNESS (NA364963) 5370 RON
95 1 1 SPRING (N659016) 588 RON
96 1 1 TRIGGER (NA231911) 2182 RON
97 1 5 PIN ROLLER (330041-44) 781 RON
98 1 1 SWITCH SA (NA369350) 741 RON
99 1 1 MOTOR SWITCH SA (NA703837) 55455 RON
100 1 1 COVER REAR (NA256008) 1772 RON
101 1 1 COVER (NA373417) 1630 RON
102 1 1 BATTERY COVER (NA233182) 2796 RON
103 1 1 COVER (NA242554) 668 RON
104 1 2 SPRING (NA242556) 588 RON
105 1 1 PLATE (NA242557) 588 RON
106 1 1 TERMINAL BLOCK (NA350969) 44688 RON
107 1 4 BOLT (NA407758) 588 RON
108 1 1 RATING LABEL (NA534079) 2182 RON
109 1 1 LABEL (NA454971) 2182 RON
110 1 2 LABEL (NA629024) 588 RON
111 1 2 BRAND LABEL (NA454973) 588 RON
112 1 4 LABEL (NA521475) 588 RON
113 1 1 LABEL (NA521476) 588 RON
115 1 4 COVER (NA485712) 588 RON
116 1 1 CORE (NA390861) 3268 RON
801 1 1 GREASE TUBE 100ML RENOLIT PARAGON EP (870889-02) 4472 RON
802 1 1 GREASE (N017298) 4825 RON
