Top » Piese de schimb » PIESE DEWALT » EAPF 15/40 Type 1

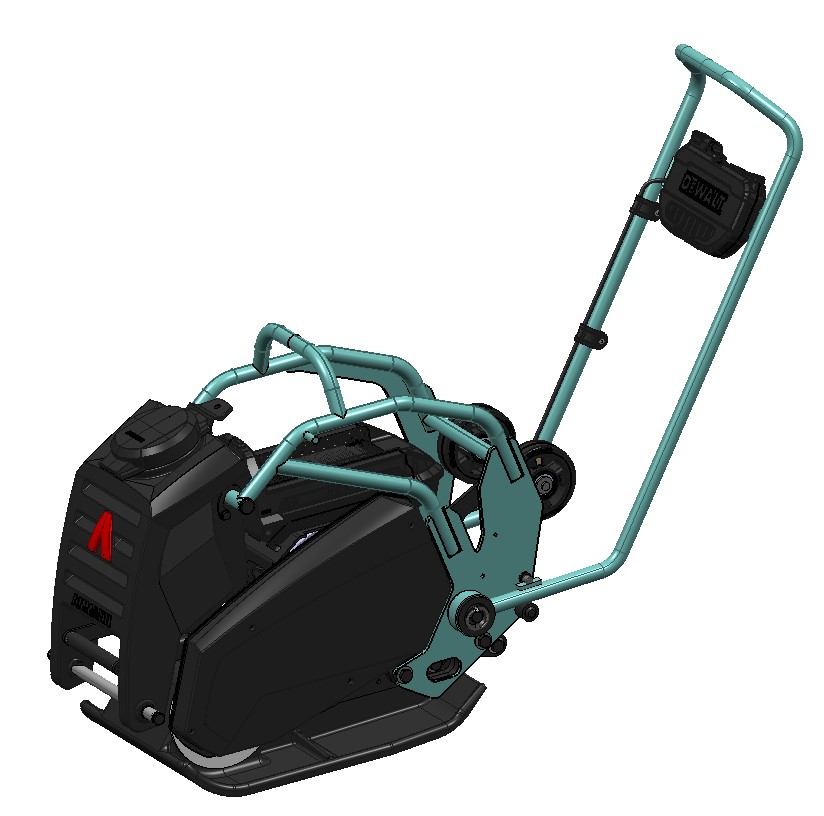

COMPACTOR DEWALT EAPF 15/40 Type 1
[EAPF 15/40 Type 1]
COMPACTOR DEWALT EAPF 15/40 Type 1
Click pentru a mari
Imagini suplimentare
COMPACTOR DEWALT EAPF 15/40 Type 1
Click pentru a mari
COMPACTOR DEWALT EAPF 15/40 Type 1
Click pentru a mari
COMPACTOR DEWALT EAPF 15/40 Type 1
Click pentru a mari

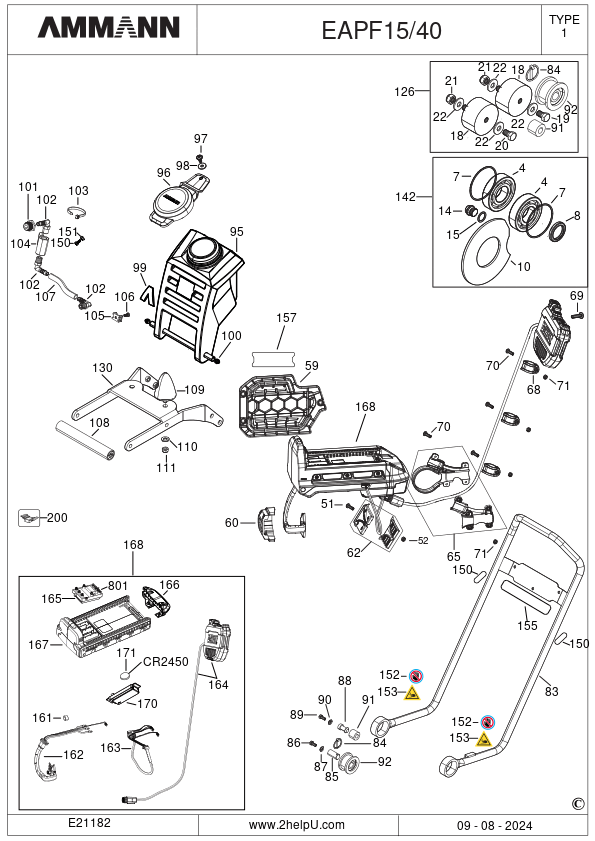

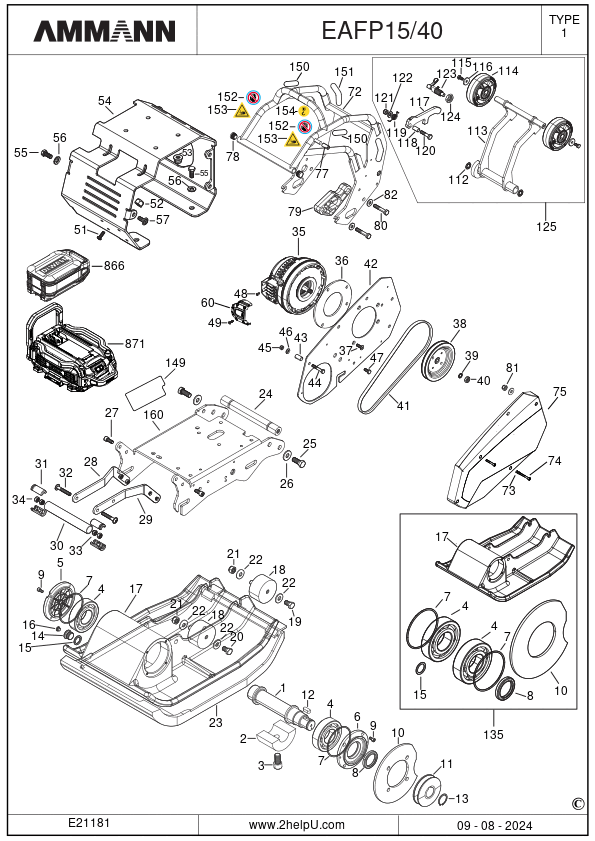

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CRANKSHAFT-EXCITER SHAFT (2-01420015) 214180 RON
2 1 1 COUNTERWEIGHT-EXCITER WEIGHT (2-01420003) 55455 RON
3 1 1 SCREW-M16 X 30 (2-81307098) 741 RON
4 1 2 BEARING BALL (2-80103150) 200340 RON
5 1 1 COVERPLATE (2-01420010) 18568 RON
6 1 1 COVERPLATE (2-01420006) 188451 RON
7 1 2 O RING-OR92X 3 (2-80135501) 3268 RON
8 1 1 SEAL-SEALING RING (2-80132240) 73079 RON
9 1 8 SCREW-M6 X 12 (2-82802012) 3268 RON
10 1 1 DISC-SEALING DISC (2-01420009) 33797 RON
11 1 1 PULLEY-V BELT (2-01420008) 36994 RON
12 1 1 KEY-A10 X 8 X 12 (2-80150519) 3268 RON
13 1 1 CIRCLIP-A32 X 1.5 (2-80159184) 3268 RON
14 1 1 PLUG-M22 X 1.5 (2-81101104) 10241 RON
15 1 1 WASHER-A22 X 29 (2-80137210) 3268 RON
16 1 1 CAP-PLUG (2-80252222) 3268 RON
17 1 1 BASEPLATE (2-01410020) 481793 RON
18 1 4 BUFFER (2-0P606001) 67932 RON
19 1 3 SCREW-M12 X 20 (2-81705069) 3268 RON
20 1 1 SCREW-M12 X25 (2-81705085) 5370 RON
21 1 4 NUT-M12 (2-82201056) 3268 RON
22 1 8 WASHER SPRING-DIN6796 (4-3679600130) 3268 RON
23 1 1 AF-O-VPF-0022D-012 - Indisponibil
23 1 1 MAT (2-01401090) 356963 RON
24 1 1 BAR (2-01430017) 28836 RON
25 1 2 SCREW-M12 X 30 (2-81705093) 3268 RON
26 1 2 WASHER SPRING-DIN6796 (4-3679600130) 3268 RON
27 1 2 SCREW-M8 X 20 (2-82803020) 3268 RON
28 1 1 BRACKET RH-RH (2-01430026) 57833 RON
29 1 1 BRACKET LH-LH (2-01430025) 57833 RON
30 1 1 GRIP (2-01430090) 27287 RON
31 1 4 CLAMP (2-80175336) 3268 RON
32 1 2 SCREW-M8 X 50 (2-83201162) 3268 RON
33 1 2 NUT-M8 (2-82201030) 3268 RON
34 1 2 NUT-M8 (2-81803036) 3268 RON
35 1 1 MOTOR SA-OR140HD (NA648206) 462423 RON
36 1 1 DISC-CLAMPING (2-01431031) 73079 RON
37 1 4 SCREW-M8 X 30 COUNTERSUNK (2-82704080) 3268 RON
38 1 1 PULLEY-V BELT (2-01431032) 356963 RON
39 1 1 WASHER (2-80166040) 741 RON
40 1 1 NUT-M12 X 1.5 (2-81903065) 3268 RON
41 1 1 V-BELT (2-80140660) 39318 RON
42 1 1 GUARD (2-01431033) 327869 RON
43 1 1 BUSH (2-01131011) 25728 RON
44 1 1 SCREW-M8 X 50 (2-81603070) 3268 RON
45 1 1 NUT-M8 (2-82201030) 3268 RON
46 1 1 WASHER SPRING-CONICAL (2-80167080) 3268 RON
47 1 1 SCREW-M8 X 20 HEXHEAD (2-81703066) 3268 RON
48 1 3 SCREW-M5 X 8 (2-82301000) 3268 RON
49 1 6 SCREW (2-06807110) 3268 RON
51 1 4 SCREW-M5 X 16 (4-3738005016) 3268 RON
52 1 4 NUT-M5 (2-82201013) 3268 RON
53 1 4 NUT-M8 (2-82202008) 3268 RON
54 1 1 HOLDER (2-01431030) 356963 RON
55 1 5 SCREW-M8 X 20 HEXHEAD (2-81703066) 3268 RON
56 1 5 WASHER SPRING-CONICAL (2-80167080) 3268 RON
57 1 3 SCREW-M8 X 20 (2-83201154) 3268 RON
59 1 1 COVER-MOTOR (NA394090) 4827 RON
60 1 1 COVER-TERMINAL (NA302136) 15469 RON
62 1 1 CABLE CLAMP (NA395912) 5370 RON
65 1 1 CABLE CLAMP (NA397143) 10241 RON
68 1 3 CLIP CABLE (NA376319) 1933 RON
69 1 3 SCREW-M6 X 30 (2-83201192) 3268 RON
70 1 8 SCREW-M5 X 16 (4-3738005016) 3268 RON
71 1 8 NUT-M5 (2-82201013) 3268 RON
72 1 1 CAGE (2-01431041) 518270 RON
73 1 3 WASHER LOCK (2-80166016) 3268 RON
74 1 4 SCREW (2-82802040) 3268 RON
75 1 1 BELT COVER (2-01430003) 113822 RON
76 1 4 O RING-OR5 X 1.5 (1-906042) 3268 RON
77 1 1 HOSE (2-0M101306) 741 RON
77 1 1 HOSE (2-0M101327) 3268 RON
78 1 2 PLUG (2-80252470) 3268 RON
79 1 2 ADAPTOR (2-01430023) 42426 RON
80 1 4 SCREW-M12 X X65 (2-81605102) 3268 RON
81 1 2 NUT-M12 (2-82201056) 3268 RON
82 1 6 WASHER SPRING-DIN6796 (4-3679600130) 3268 RON
83 1 1 HANDLE (2-01441011) 385497 RON
84 1 2 COTTER PIN-LOCK PIN 4.5 X 32 (2-80174161) 741 RON
85 1 2 BOLT (2-01440006) 10241 RON
86 1 2 SCREW-M8 X 20 HEXHEAD (2-81703066) 3268 RON
87 1 2 WASHER SPRING-CONICAL (2-80167080) 3268 RON
88 1 2 STOP (2-01440007) 9012 RON
89 1 2 SCREW-M8 X 20 HEXHEAD (2-81703066) 3268 RON
89 1 2 WASHER SPRING-CONICAL (2-80167080) 3268 RON
91 1 2 BUFFER (2-01440008) 12361 RON
92 1 2 BUFFER (2-01440005) 16689 RON
95 1 1 TANK (2-01460014) 425786 RON
96 1 1 CAP (2-01460004) 46247 RON
97 1 1 SCREW (2-83201179) 4355 RON
98 1 1 WASHER (2-80161070) 3268 RON
99 1 1 BRAND LABEL (1202775) 49827 RON
100 1 2 PLUG (2-01460013) 5370 RON
101 1 1 GROMMET (2-80148354) 12361 RON
102 1 3 COUPLING (2-80181300) 10889 RON
103 1 1 CABLE TIE (2-80177301) 3268 RON
104 1 1 VALVE (2-80250201) 36994 RON
105 1 1 CABLE CLAMP (2-80307660) 15469 RON
106 1 1 SCREW (2-83201181) 741 RON
107 1 1 HOSE (2-80251180) 91363 RON
108 1 1 GRIP (2-01430027) 228616 RON
109 1 2 BUFFER (2-80147213) 30769 RON
110 1 2 WASHER SPRING-DIN6796 (2-80167071) 3268 RON
111 1 2 NUT-M10 (2-82201048) 3268 RON
112 1 2 O RING-OR16 X 4.5 (2-80135048) 3268 RON
113 1 1 CHASSIS (2-01431026) 425786 RON
114 1 2 WHEEL (2-80230020) 96047 RON
115 1 2 SCREW-M8 X 16 (2-81703040) 3268 RON
116 1 2 WASHER (2-06804135) 6688 RON
117 1 1 STOP (2-01431024) 49114 RON
118 1 1 BUSH (2-01431028) 18568 RON
119 1 1 SPRING (2-01431027) 11337 RON
120 1 1 SCREW-M10 X 45 (2-81604068) 3268 RON
121 1 1 NUT-M10 (2-82201048) 3268 RON
122 1 1 WASHER SPRING-DIN6796 (2-80167071) 3268 RON
123 1 1 BAR LOCKING (2-80236250) 49827 RON
124 1 1 NUT-M20 X1.5 (2-81903146) 3268 RON
125 1 1 WHEEL KIT-CART SA (2-01401067) 518270 RON
126 1 1 SERVICE KIT-BUFFERS (2-AV-1540-001) 356963 RON
135 1 1 SERVICE KIT-BASEPLATE (2-AV-1540-005) 68306 RON
136 1 3 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
142 1 1 SERVICE KIT-BEARINGS (2-AR-1540-003) 554044 RON
149 1 1 RATING PLATE (2-00210270) 15469 RON
150 1 4 LABEL-REFLECTIVE 1 (2-00202710) 741 RON
151 1 2 LABEL-REFLECTIVE 2 (2-00202711) 15469 RON
152 1 4 LABEL-DO NOT TOUCH (2-00202263) 3268 RON
153 1 4 LABEL-CRUSHING HAND (2-00202262) 3268 RON
154 1 2 LABEL-LIFTING HOOK (2-00202261) 3268 RON
155 1 1 LABEL-SYMBOLS (2-00202714) 6688 RON
156 1 1 BRAND LABEL-POWERSHIFT (NA455826) 944 RON
160 1 1 PLATE (2-01431019) 385497 RON
161 1 1 RESISTOR (NA722462) 4355 RON
162 1 1 WIRE HARNESS-NA355461 PACKED (NA722463) 40734 RON
163 1 1 WIRE HARNESS-TO SWITCH NA376491 PACKED (NA722464) 46247 RON
164 1 1 SWITCHBOX CABLE (NA722466) 148269 RON
165 1 1 CONTROL MODULE SA (NA722470) 249223 RON
166 1 1 END CAP SA (NA722492) 741 RON
167 1 1 CONTROL MODULE SA (NA698546) 99395 RON
168 1 1 CONTROLLER SA (NA736140) 481793 RON
170 1 1 CONTROL MODULE SA-BLEM PLATE (NA729510) 30769 RON
171 1 1 CR2450 - Indisponibil
200 1 1 GAUGE-RPM (2-90000030) 24597 RON
801 1 1 NYOGEL 760G (NA218891) 176482 RON
