Top » Piese de schimb » PIESE DEWALT » DWE46229 Type 2

COLECTOR DE PRAF DEWALT DWE46229 Type 2
[DWE46229 Type 2]
COLECTOR DE PRAF DEWALT DWE46229 Type 2
Click pentru a mari
Imagini suplimentare
COLECTOR DE PRAF DEWALT DWE46229 Type 2
Click pentru a mari
COLECTOR DE PRAF DEWALT DWE46229 Type 2
Click pentru a mari

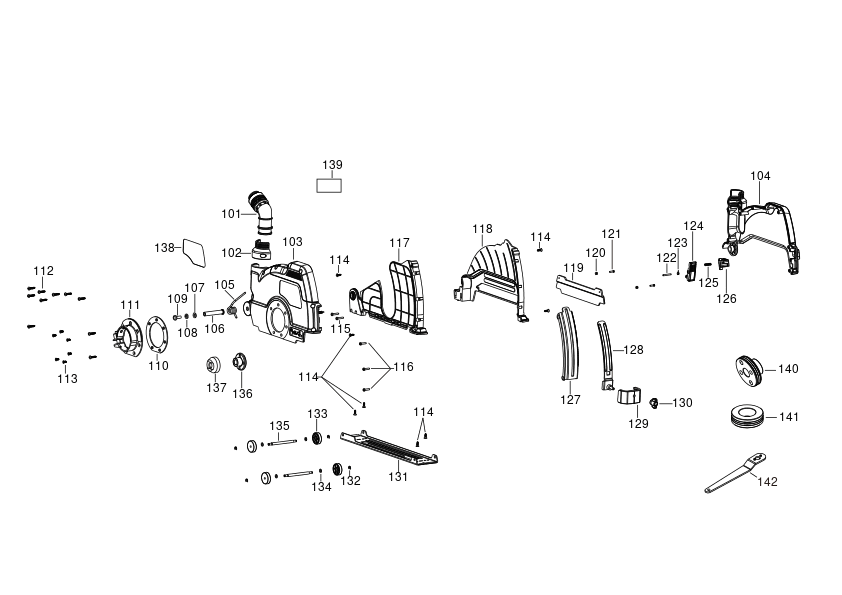

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
101 1 1 DUST PORT (N645894) 3268 RON
102 1 1 COVER (N657928) 1772 RON
103 1 1 CLAMSHELL HALF (N657926) 12361 RON
104 1 1 CLAMSHELL HALF (N657927) 10241 RON
105 1 1 SPRING (N662825) 944 RON
106 1 1 PIN (N661802) 1933 RON
107 1 1 WASHER (N743974) 588 RON
108 1 1 Washer Lock (098197-10) 558 RON
109 1 1 Mach screw (153778-01) 2347 RON
110 1 1 BACKPLATE (N657950) 2796 RON
111 1 1 CLAMPING INSERT (N657991) 741 RON
112 1 10 SCREW (330065-08) 558 RON
113 1 5 SCREW (N530541) 588 RON
114 1 8 PLASTIC SCREW (N760652) 588 RON
115 1 2 SCREW (90611830) 588 RON
116 1 3 SCREW PLASTIC THREAD FORM M3.5*16 T15 (330019-66) 558 RON
117 1 1 GUARD LOWER (N661758) 5370 RON
118 1 1 GUARD LOWER (N657930) 741 RON
119 1 1 WINDOW (N657935) 1772 RON
120 1 2 NUT (N116219) 588 RON
121 1 2 SCREW (478455-00) 588 RON
122 1 1 PIN (N646432) 588 RON
123 1 1 SPRING (N770509) 588 RON
124 1 1 LOCK HOOK (N645897) 4355 RON
125 1 1 SPRING (N646434) 588 RON
126 1 1 BUTTON (N657920) 668 RON
127 1 1 STRAP (N657945) 4355 RON
128 1 1 SLIDER SA (N661738) 6688 RON
129 1 1 BRACKET (N657932) 114 RON
130 1 1 KNOB (N646428) 668 RON
131 1 1 SHOE (N657943) 6688 RON
132 1 1 CLIP (386957-00) 558 RON
133 1 4 WHEEL (N703830) 668 RON
134 1 4 WASHER (N774538) 588 RON
135 1 2 AXLE (N703811) 944 RON
136 1 1 OUTER FLANGE (N670342) 3268 RON
137 1 1 INNER FLANGE (N670340) 3954 RON
138 1 1 RATING LABEL (NA408251) 588 RON
139 1 1 LABEL (N776045) 588 RON
140 1 1 OUTER FLANGE (NA361964) 18568 RON
141 1 1 SA SPANNER WRENCH (NA252487) 2796 RON
141 1 1 SPACER (N899763) 3268 RON
