Top » Piese de schimb » PIESE DEWALT » DWE46225 Type 1

COLECTOR DE PRAF DEWALT DWE46225 Type 1
[DWE46225 Type 1]
COLECTOR DE PRAF DEWALT DWE46225 Type 1
Click pentru a mari
Imagini suplimentare
COLECTOR DE PRAF DEWALT DWE46225 Type 1
Click pentru a mari
COLECTOR DE PRAF DEWALT DWE46225 Type 1
Click pentru a mari
COLECTOR DE PRAF DEWALT DWE46225 Type 1
Click pentru a mari

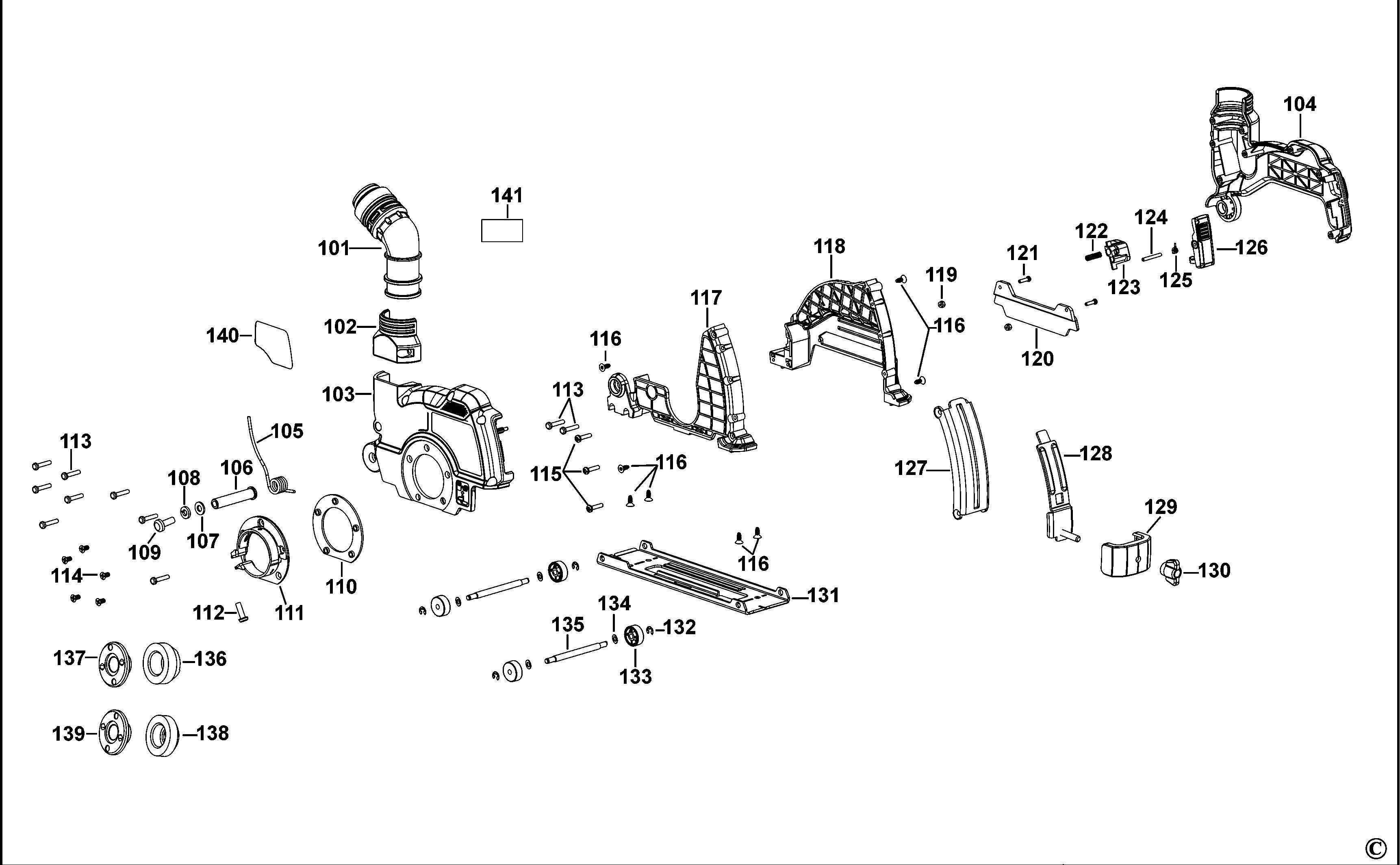

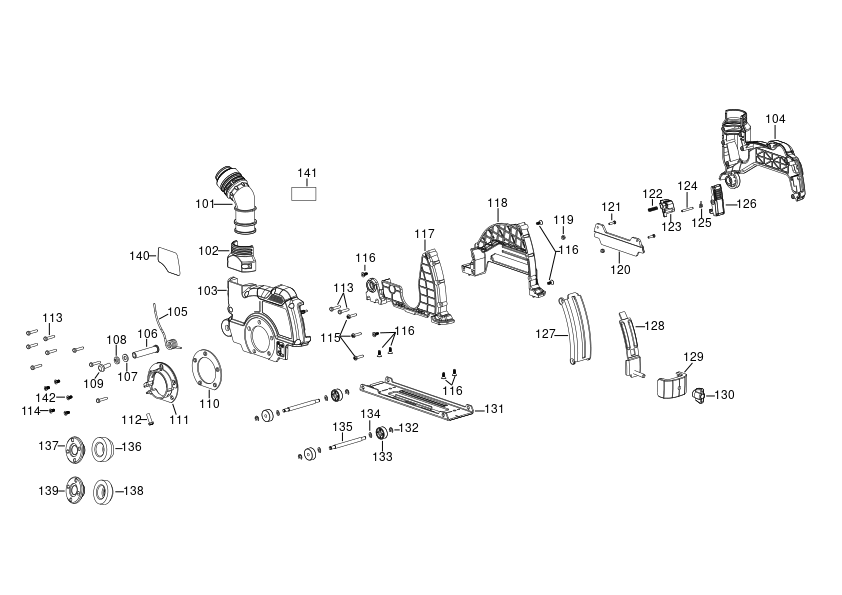

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
101 1 1 DUST PORT (N645894) 3268 RON
102 1 1 COVER (N651615) 1318 RON
103 1 1 CLAMSHELL HALF (N645891) 6688 RON
104 1 1 CLAMSHELL HALF (N645890) 5370 RON
105 1 1 SPRING (N646433) 668 RON
106 1 1 PIN (N645896) 1933 RON
107 1 1 WASHER (N743974) 588 RON
108 1 1 Washer Lock (098197-10) 558 RON
109 1 1 Mach screw (153778-01) 2347 RON
110 1 1 BACKPLATE (N646437) 2556 RON
111 1 1 STRAP (N646443) 4355 RON
112 1 1 SCREW (631609-03) 558 RON
113 1 10 SCREW (90611830) 588 RON
113 1 10 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
114 1 2 SCREW (N530541) 588 RON
114 1 10 N813648 - Indisponibil
115 1 3 SCREW PLASTIC THREAD FORM M3.5*16 T15 (330019-66) 558 RON
116 1 8 PLASTIC SCREW (N760650) 588 RON
117 1 1 CLAMSHELL HALF (N659081) 3268 RON
118 1 1 CLAMSHELL HALF (N645892) 3954 RON
119 1 2 NUT (N116219) 588 RON
120 1 1 WINDOW (N647700) 944 RON
121 1 2 SCREW (478455-00) 588 RON
122 1 1 SPRING (N646434) 588 RON
123 1 1 LATCH BUTTON (N645899) 668 RON
124 1 1 PIN (N646432) 588 RON
125 1 1 SPRING (N770509) 588 RON
126 1 1 LOCK HOOK (N645897) 4355 RON
127 1 1 STRAP (N646427) 3954 RON
128 1 1 LATCH (N646444) 5370 RON
129 1 1 BRACKET (N646430) 944 RON
130 1 1 KNOB (N646428) 668 RON
131 1 1 SHOE (N645902) 4355 RON
132 1 4 CLIP (386957-00) 558 RON
133 1 4 WHEEL (N703486) 668 RON
134 1 4 WASHER (N774538) 588 RON
135 1 2 AXLE (N703485) 944 RON
136 1 1 INNER FLANGE (N654478) 3268 RON
137 1 1 OUTER FLANGE (N666474) 3954 RON
138 1 1 INNER FLANGE (N665586) 3268 RON
139 1 1 OUTER FLANGE (N665610) 3268 RON
140 1 1 N716878 - Indisponibil
140 1 1 RATING LABEL (NA177560) 668 RON
141 1 1 LABEL (N456231) 588 RON
142 1 3 SCREW (388405-00) 558 RON
