Top » Piese de schimb » PIESE DEWALT » DCF513EN Type 1

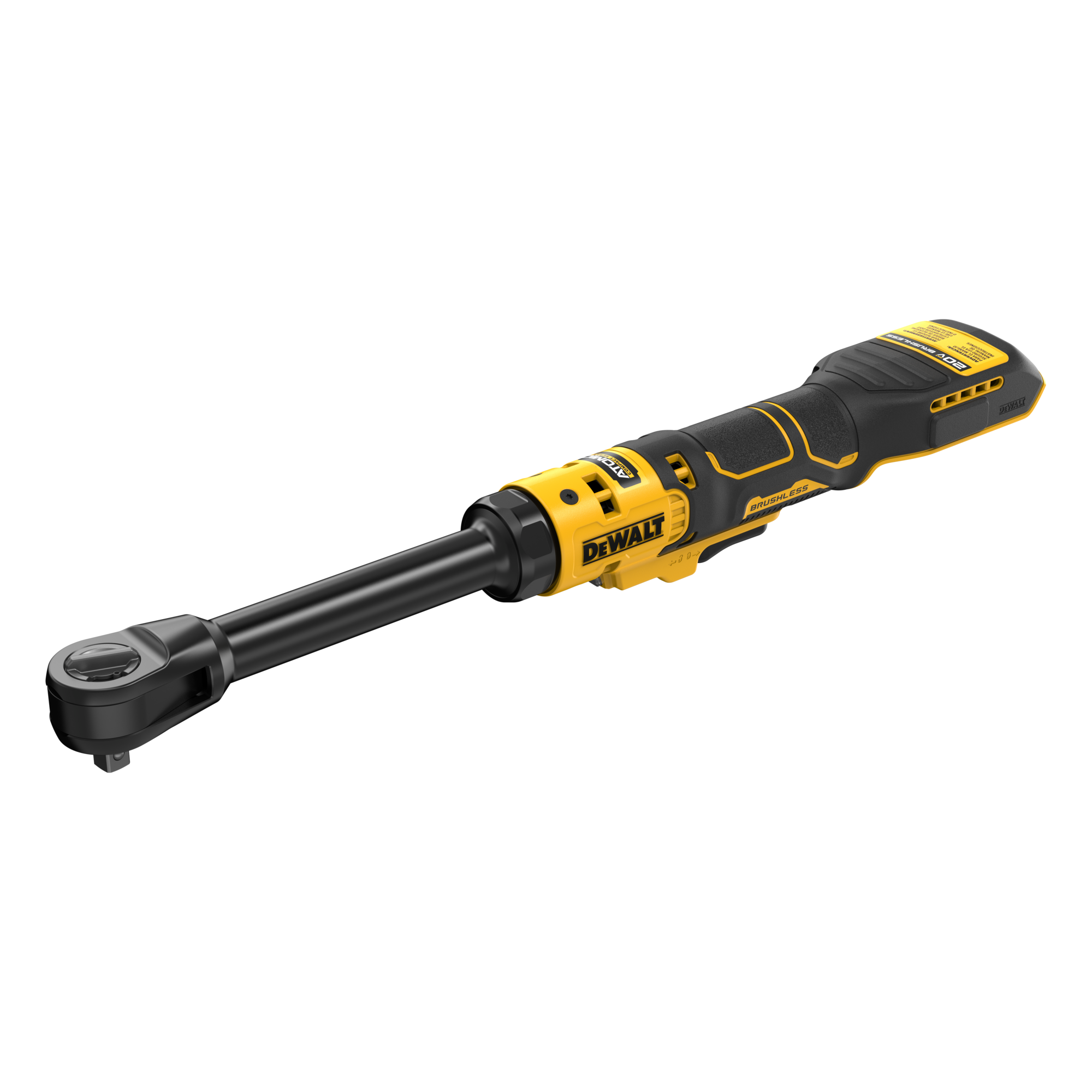

CLICHET DEWALT DCF513EN Type 1
[DCF513EN Type 1]
CLICHET DEWALT DCF513EN Type 1
Click pentru a mari
Imagini suplimentare
CLICHET DEWALT DCF513EN Type 1
Click pentru a mari
CLICHET DEWALT DCF513EN Type 1
Click pentru a mari

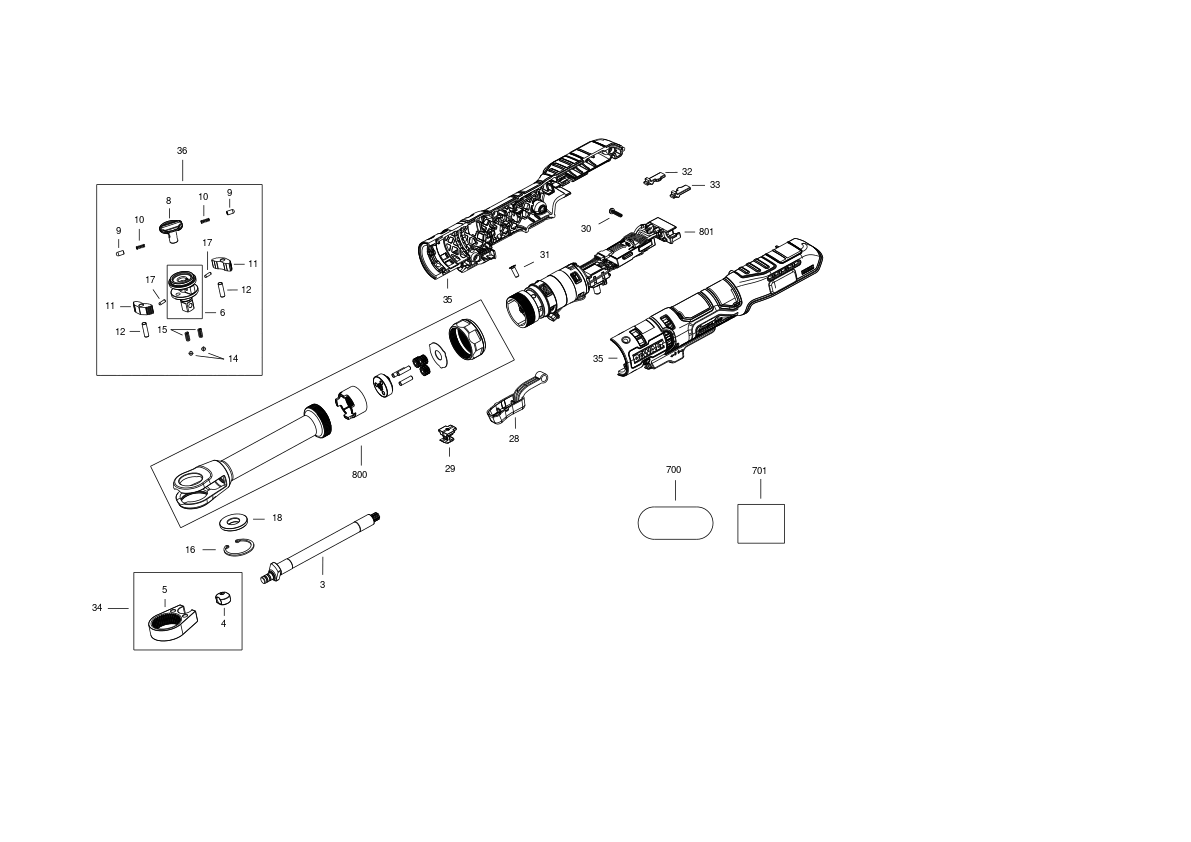

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
3 1 1 CRANKSHAFT (N827958) 25728 RON
4 1 1 BUSHING (N768288) 3268 RON
5 1 1 YOKE (N827953) 5370 RON
6 1 1 ANVIL (NA185954) 38463 RON
6 1 1 ANVIL-3/8 INCH (NA387954) 63720 RON
8 1 1 KNOB (N767504) 4355 RON
9 1 2 SPRING (N767503) 944 RON
10 1 2 SPRING (N767502) 588 RON
11 1 2 PAWL (N768286) 2796 RON
12 1 2 PIN (N768287) 588 RON
14 1 2 STEEL BALL (604107-00) 558 RON
15 1 2 SPRING (N781172) 588 RON
16 1 1 CIRCLIP (N767442) 588 RON
17 1 2 PIN (NA069013) 588 RON
18 1 1 PLATE (N767490) 2556 RON
28 1 1 TRIGGER (N720556) 668 RON
29 1 1 LOCK (N878614) 588 RON
30 1 5 SCREW (N463678) 588 RON
31 1 4 SCREW (N891761) 588 RON
32 1 1 BUMPER (N728006) 588 RON
33 1 1 BUMPER (N728008) 588 RON
34 1 1 YOKE (NA189036) 42426 RON
34 1 1 YOKE (F8-3) (NA387962) 60451 RON
35 1 1 HOUSING SA (NA120320) 6688 RON
36 1 1 ANVIL ASSEMBLY-3/8" (NA189042) 24962 RON
36 1 1 ANVIL ASSEMBLY-3/8 INCH (NA387963) 91363 RON
700 1 1 RATING LABEL (NA773874) 588 RON
701 1 1 LABEL (NA773875) 588 RON
800 1 1 HEAD SA (NB094883) 67932 RON
801 1 1 MOTOR SA (NA230494) 125542 RON
