Top » Piese de schimb » PIESE DEWALT » DCF510E2G Type 1

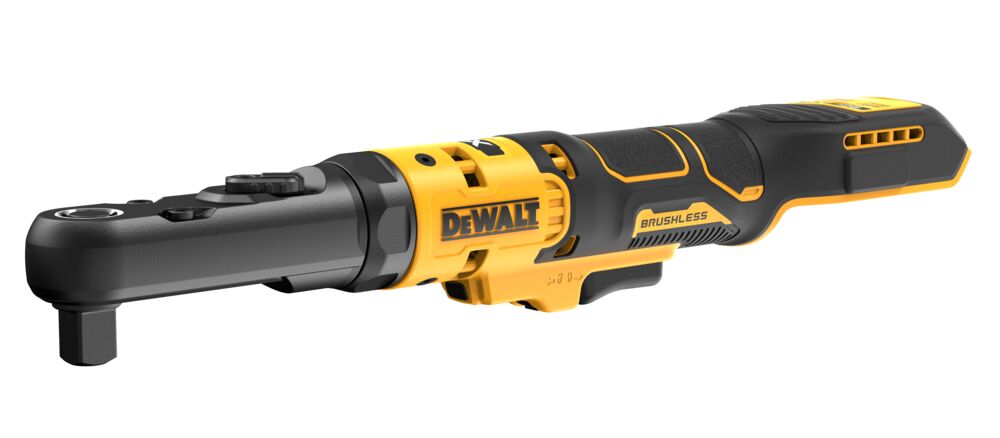

CLICHET DEWALT DCF510E2G Type 1
[DCF510E2G Type 1]
CLICHET DEWALT DCF510E2G Type 1
Click pentru a mari
Imagini suplimentare
CLICHET DEWALT DCF510E2G Type 1
Click pentru a mari
CLICHET DEWALT DCF510E2G Type 1
Click pentru a mari
CLICHET DEWALT DCF510E2G Type 1
Click pentru a mari

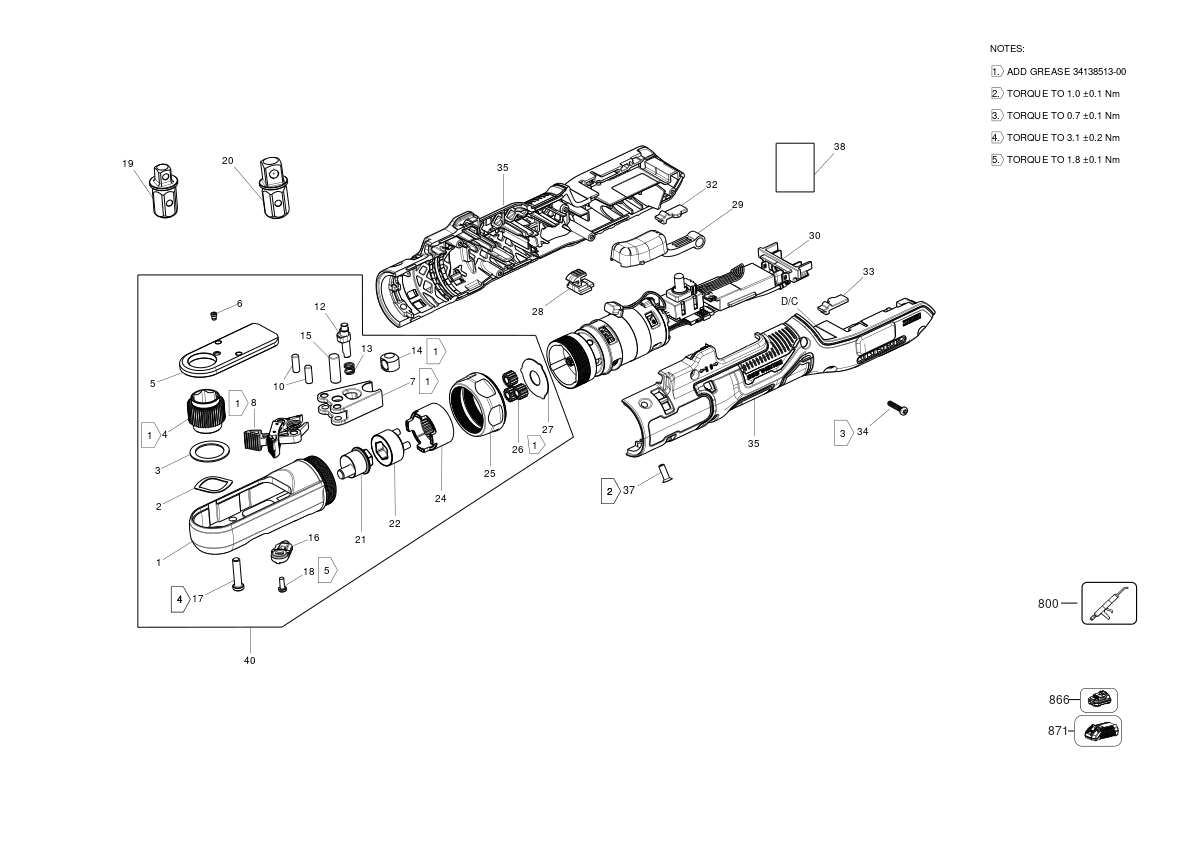

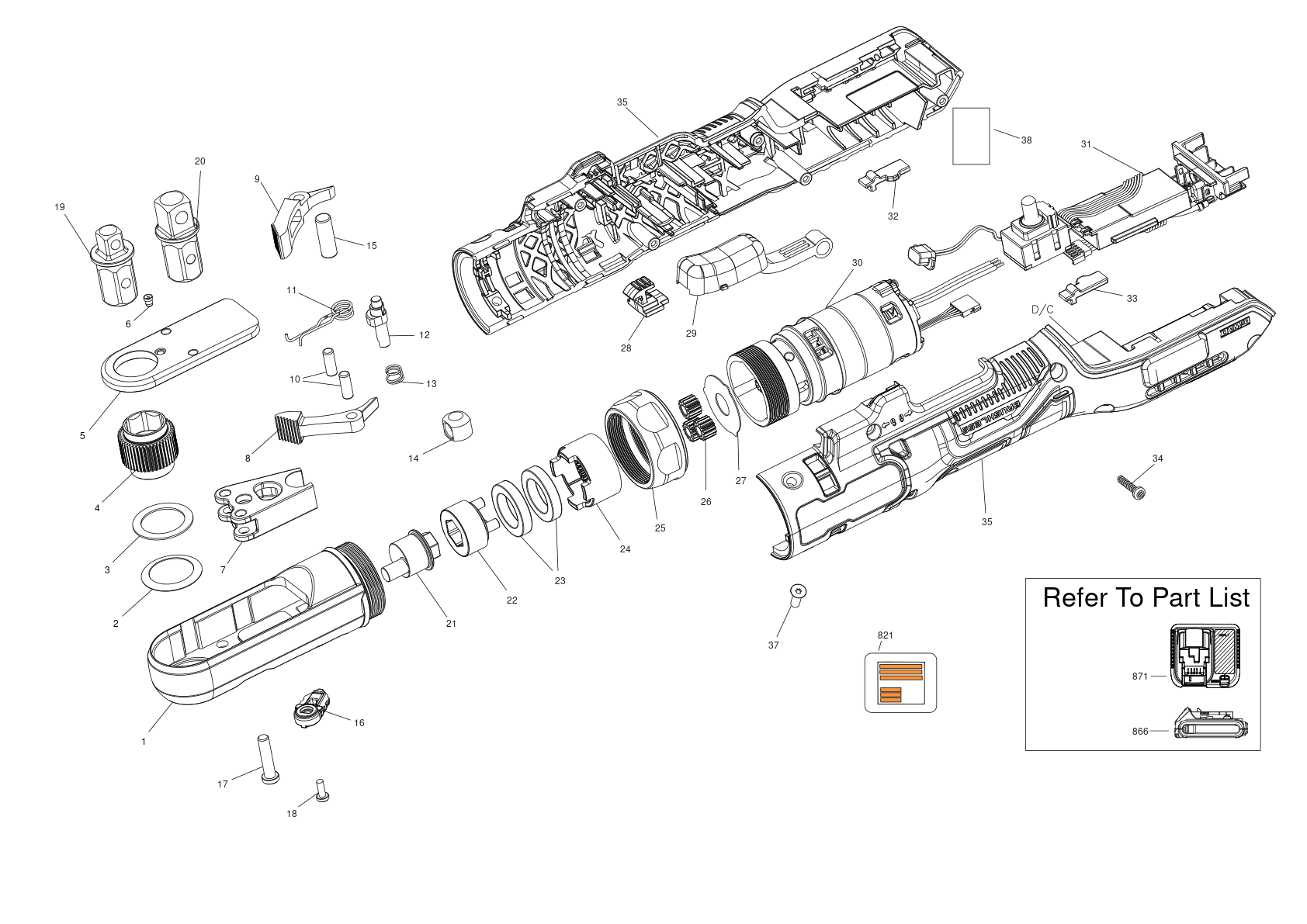

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HEAD SA (NA552026) 42426 RON
2 1 1 WASHER (NA129425) 944 RON
3 1 1 WASHER (NA129422) 588 RON
4 1 1 SPINDLE (NA034924) 6688 RON
5 1 1 PLATE (NA095416) 10241 RON
6 1 1 HEAD (NA121531) 1772 RON
7 1 1 LINK (NA156319) 13697 RON
7 1 1 LINK (NA643086) 6688 RON
8 1 1 PAWL (NA533995) 9012 RON
10 1 2 PIN (NA025818) 588 RON
12 1 1 CAM (NA129416) 2796 RON
13 1 1 SPRING (NA129426) 588 RON
14 1 1 BUSHING (NA025820) 2556 RON
15 1 1 PIN (NA095419) 668 RON
16 1 1 BUTTON (NA114401) 3268 RON
17 1 2 SCREW (NA129420) 588 RON
18 1 1 SCREW (NA129421) 588 RON
19 1 1 DRIVER-3/8" (N926332) 11337 RON
20 1 1 DRIVER-1/2" (N927256) 12361 RON
21 1 1 CRANKSHAFT (NA210202) 5370 RON
22 1 1 CARRIER SA (NA328719) 741 RON
23 1 2 BEARING,BALL (605040-76) 3954 RON
23 1 2 BEARING BALL (NA382893) 3268 RON
24 1 1 INTERGEAR (N769502) 2556 RON
25 1 1 NUT (N767501) 4355 RON
26 1 3 RATCHET (NA153966) 2182 RON
27 1 1 PLATE (N820701) 588 RON
28 1 1 LOCK (N878614) 588 RON
29 1 1 TRIGGER (N720556) 668 RON
30 1 1 NA328703 - Indisponibil
30 1 1 MOTOR & SWITCH SA (NA531942) 104961 RON
31 1 1 CONTROL MODULE SA (NA328704) 46247 RON
32 1 1 BUMPER (N728006) 588 RON
33 1 1 BUMPER (N728008) 588 RON
34 1 5 SCREW (N463678) 588 RON
35 1 1 HOUSING SA (NA120320) 6688 RON
37 1 4 SCREW (N891761) 588 RON
38 1 1 LABEL (NA093940) 588 RON
40 1 1 HEAD SA (NA533996) 125542 RON
800 1 1 GREASE (NA360289) 10241 RON
821 1 1 RATING LABEL (NA093939) 588 RON
866 1 2 BATTERY 18V 1.6AH 28.8WH-DCBP034G (NA319168) 139195 RON
871 1 1 CHARGER-DCB1104-QW - (4A) (NA132878) 44688 RON
