Top » Piese de schimb » PIESE DEWALT » DCF500N Type 1

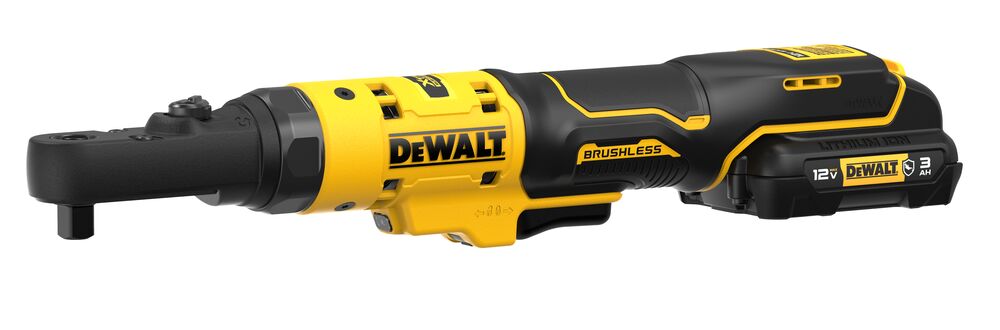

CLICHET DEWALT DCF500N Type 1
[DCF500N Type 1]
CLICHET DEWALT DCF500N Type 1
Click pentru a mari
Imagini suplimentare
CLICHET DEWALT DCF500N Type 1
Click pentru a mari
CLICHET DEWALT DCF500N Type 1
Click pentru a mari
CLICHET DEWALT DCF500N Type 1
Click pentru a mari

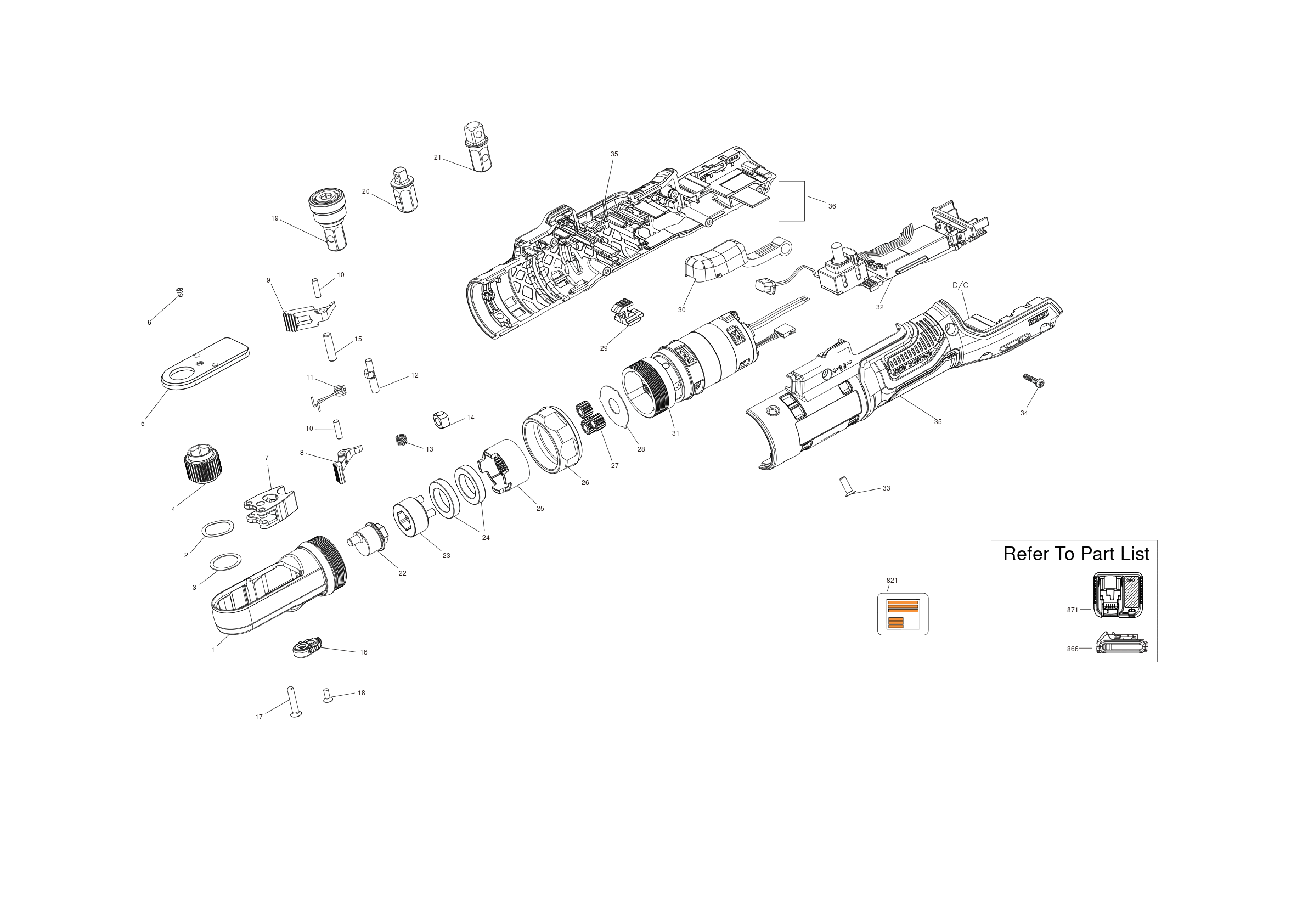

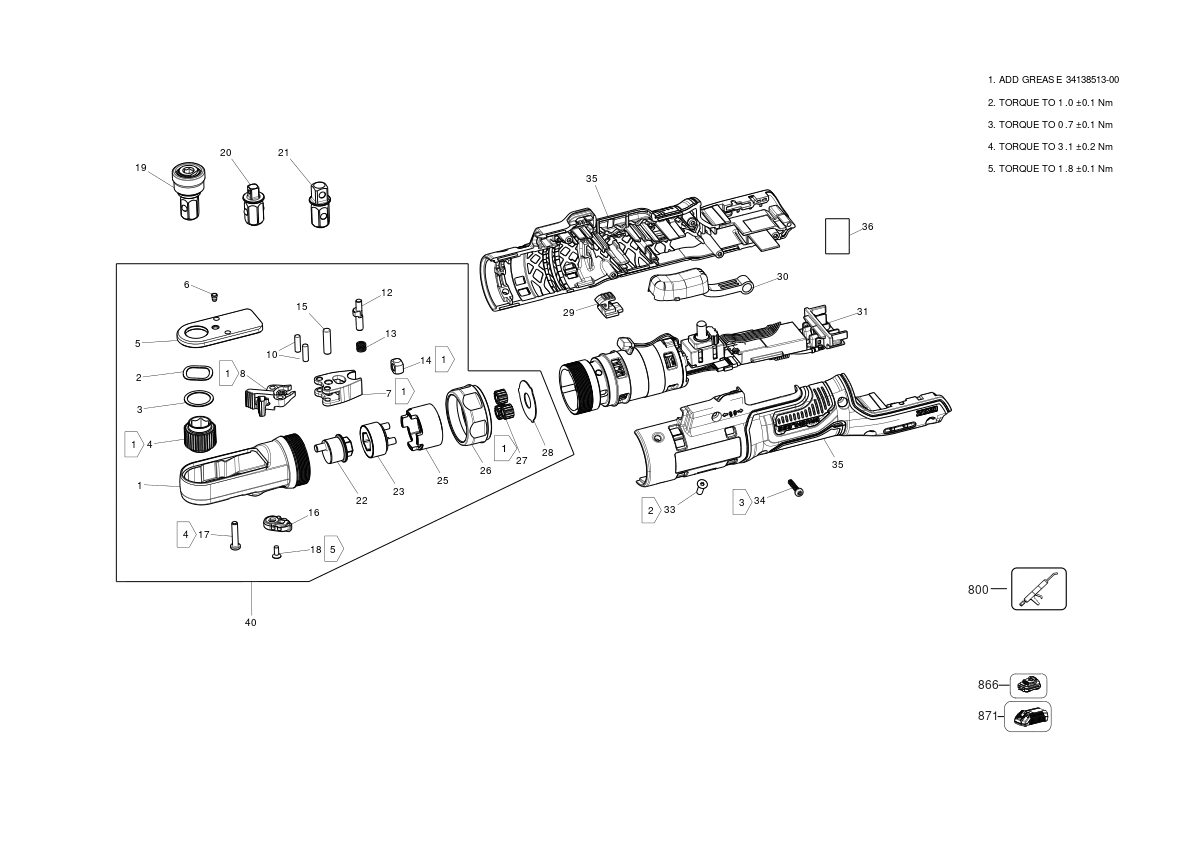

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HEAD SA (NA552068) 36994 RON
2 1 1 SPRING (NA121529) 82 RON
3 1 1 WASHER (NA121530) 588 RON
4 1 1 Gear (N770235) 6688 RON
5 1 1 PLATE (N934984) 6688 RON
6 1 1 HEAD (NA121531) 1772 RON
7 1 1 LINK (N770428) 10241 RON
8 1 1 PAWL (NA533807) 24962 RON
10 1 2 PIN (NA007449) 588 RON
12 1 1 CAM (NA103435) 2796 RON
13 1 1 SPRING (NA121532) 588 RON
14 1 1 BUSHING (N770429) 2556 RON
15 1 1 PIN (NA084956) 588 RON
16 1 1 SWITCH (NA000528) 3268 RON
17 1 2 SCREW (NA121546) 588 RON
18 1 1 SCREW (NA121526) 588 RON
19 1 1 CHANGE LEVER SA (NA142594) 20216 RON
20 1 1 DRIVER-1/4" (N920411) 16689 RON
21 1 1 DRIVER-3/8" (N925288) 12361 RON
22 1 1 CRANKSHAFT (N769501) 16689 RON
23 1 1 CARRIER SA (NA328719) 741 RON
24 1 2 BEARING,BALL (605040-76) 3954 RON
25 1 1 INTERGEAR (N769502) 2556 RON
26 1 1 NUT (N774939) 3954 RON
27 1 3 RATCHET (NA153966) 2182 RON
28 1 1 PLATE (N820701) 588 RON
29 1 1 LOCK (N878614) 588 RON
30 1 1 TRIGGER (N720556) 668 RON
31 1 1 MOTOR & SWITCH SA (NA531991) 104961 RON
33 1 4 SCREW (N891761) 588 RON
34 1 5 SCREW (N463678) 588 RON
35 1 1 HOUSING SA (NA120321) 5370 RON
36 1 1 LABEL (NA091972) 4827 RON
40 1 1 HEAD SA (NA533804) 125542 RON
821 1 1 RATING LABEL (NA086900) 588 RON
