Top » Piese de schimb » PIESE DEWALT » DCH832N Type 1

CIOCANUL DE CIOPLIT DEWALT DCH832N Type 1
[DCH832N Type 1]
CIOCANUL DE CIOPLIT DEWALT DCH832N Type 1
Click pentru a mari
Imagini suplimentare
CIOCANUL DE CIOPLIT DEWALT DCH832N Type 1
Click pentru a mari
CIOCANUL DE CIOPLIT DEWALT DCH832N Type 1
Click pentru a mari
CIOCANUL DE CIOPLIT DEWALT DCH832N Type 1
Click pentru a mari

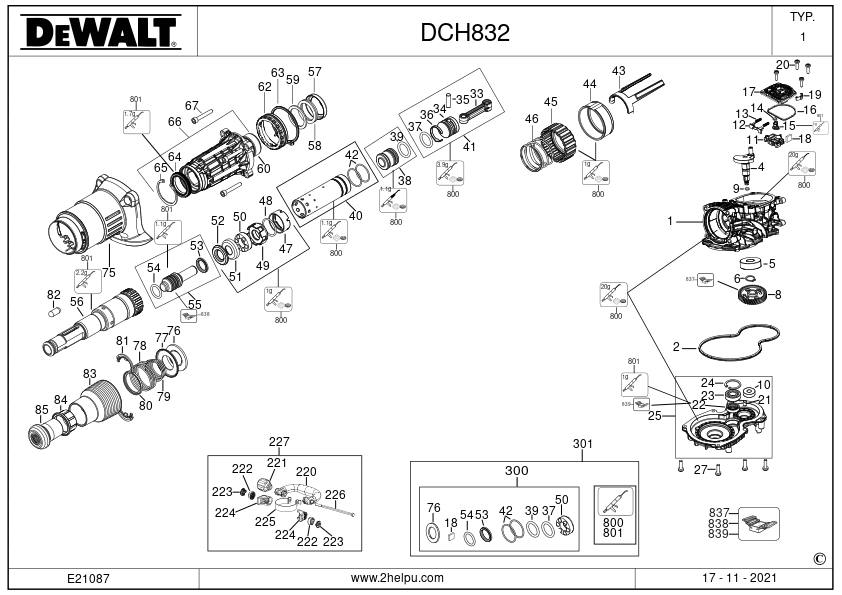

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING SA (N770433) 36994 RON
2 1 1 SEAL (N447147) 82 RON
4 1 1 CRANKSHAFT (N773364) 18568 RON
5 1 1 BEARING (605040-32) 3268 RON
6 1 1 CIRCLIP (N526266) 588 RON
8 1 1 Gear (N773365) 15469 RON
9 1 1 "O RING 5*1.2""" (323711-26) 558 RON
10 1 1 BEARING (N110358) 2347 RON
11 1 1 SLIDER (N537938) 82 RON
11 1 1 NB433243 - Indisponibil
12 1 1 CONNECTOR (N540705) 588 RON
13 1 2 SPRING (N520791) 588 RON
14 1 1 O RING (N515556) 944 RON
15 1 1 ECCENTRIC (N539769) 588 RON
16 1 1 SEAL (N538422) 944 RON
17 1 1 COVER (N537843) 1630 RON
17 1 1 NB433174 - Indisponibil
18 1 1 FELT (N583061) 588 RON
19 1 1 DETENT (N520790) 588 RON
20 1 4 SCREW PAN HEAD M5*18 (324007-11) 558 RON
21 1 1 SLEEVE (327575-00) 781 RON
22 1 1 SEAL (N495599) 2182 RON
23 1 1 BEARING BALL 6001 (577745-01) 3466 RON
24 1 1 CIRCLIP, INTERNAL 28MM (488147-01) 588 RON
25 1 1 HOUSING SA (N773366) 18568 RON
26 1 1 ROTOR SA (N773657) 28836 RON
27 1 6 SCREW PAN HEAD M5*18 (324007-11) 558 RON
28 1 1 BAFFLE FAN (N535851) 1772 RON
29 1 1 MOTOR & SWITCH SA (NA144539) 188451 RON
30 1 4 SCREW (90611830) 588 RON
33 1 1 CON ROD (N528347) 1772 RON
34 1 1 PISTON (N526045) 5370 RON
35 1 1 PIN (N550706) 588 RON
36 1 1 PISTON RING (N550147) 588 RON
37 1 1 O RING (N550196) 1630 RON
38 1 1 RAM SA (N773624) 10241 RON
39 1 1 O RING (N550196) 1630 RON
40 1 1 CYLINDER SA (N773631) 20216 RON
41 1 1 PISTON SA (N773632) 9012 RON
42 1 2 O RING 26 * 2 HNBR (577744-00) 1452 RON
43 1 1 FORK (N528300) 668 RON
44 1 1 SLEEVE (N773641) 1318 RON
45 1 1 SLEEVE (N773642) 9012 RON
46 1 1 SPRING (N533753) 82 RON
47 1 1 BUSH (N549690) 944 RON
48 1 1 O RING (N549912) 944 RON
49 1 1 BUSH (N529936) 1772 RON
50 1 1 DAMPER (N529844) 3954 RON
51 1 1 SLEEVE (N715616) 3268 RON
52 1 1 WASHER (N529841) 2556 RON
53 1 1 SEAL (N537701) 3954 RON
54 1 1 O RING (N446544) 2556 RON
55 1 1 BEAT PIECE (N773643) 15469 RON
56 1 1 SPINDLE (N773644) 78485 RON
57 1 1 SLEEVE (N536519) 114 RON
58 1 1 DAMPER (N535959) 2182 RON
59 1 1 WASHER (N440708) 82 RON
60 1 1 BEARING (N538127) 3268 RON
62 1 1 SPINDLE LOCK (N534851) 944 RON
63 1 1 GASKET (N526258) 944 RON
64 1 1 SEAL (N538669) 3268 RON
65 1 1 CIRCLIP (N538725) 944 RON
66 1 1 HOUSING SA (N773646) 27287 RON
67 1 4 SCREW CYL M6 40 / 12..9 (918825-02) 781 RON
68 1 1 HOUSING MOTOR (N550171) 4827 RON
69 1 2 SCREW PAN HEAD M5*18 (324007-11) 558 RON
70 1 2 SCREW (N605427) 588 RON
73 1 1 END CAP (N550184) 3268 RON
74 1 4 SCREW (330065-08) 558 RON
75 1 1 COVER (N550186) 3268 RON
76 1 1 FELT 6KG HAMMER (N810029) 1933 RON
77 1 1 WASHER (N465749) 944 RON
78 1 1 SPRING.CPRSN 2.2/47. (323395-06) 781 RON
79 1 1 SPRING CONICAL (487118-00) 893 RON
80 1 1 GUIDE (N464690) 588 RON
81 1 2 HOLDER PIN (N468172) 82 RON
82 1 2 "ROLLER 8 * 20""" (325878-00) 1229 RON
83 1 1 SLEEVE (N464913) 5370 RON
84 1 1 SLEEVE SDS YELLOW (326575-01) 2347 RON
85 1 1 SEAL LIP (N465586) 6688 RON
86 1 1 PANEL LH (N550219) 1318 RON
87 1 1 PANEL RH (N550222) 1318 RON
88 1 1 CLAMSHELL SET (NA010449) 12361 RON
89 1 2 RUBBER PIN (N487311) 588 RON
90 1 1 INSERT (N728013) 588 RON
90 1 1 ANTIVIBE RAIL INSERT ASSEMBLY SIDE (N438439) 588 RON
91 1 1 STRIKE PLATE (N467560) 588 RON
92 1 1 SCREW (330065-08) 558 RON
93 1 1 SPRING AV 4KG HANDLE (N106188) 893 RON
94 1 1 LIMIT STOP (N152623) 3018 RON
96 1 1 INSERT (N728012) 588 RON
96 1 1 ANTIVIBE RAIL INSERT COVER SIDE (N438438) 588 RON
97 1 1 Pad DW831 (620051-00) 558 RON
98 1 1 UPPER FOLD BELLOW 8KG DC (N497943) 114 RON
99 1 1 BELLOWS (N588809) 1933 RON
100 1 7 SCREW (330065-08) 558 RON
101 1 1 CLAMSHELL SET (NA092106) 5370 RON
102 1 1 LENS (N633441) 588 RON
104 1 2 SCREW (330065-08) 558 RON
105 1 2 CABLE TIE (361886-00) 588 RON
106 1 1 Pad DW831 (620051-00) 558 RON
107 1 4 SCREW (330065-08) 558 RON
108 1 4 SCREW PAN HEAD M5*18 (324007-11) 558 RON
109 1 2 SCREW (330065-08) 558 RON
110 1 1 COVER-TOP (N693236) 2556 RON
111 1 2 SCREW PAN HEAD M5*18 (324007-11) 558 RON
112 1 1 SELECTOR SA (NA108690) 1772 RON
113 1 1 SCREW (330065-08) 558 RON
140 1 1 LABEL (NA123166) 588 RON
141 1 1 LABEL (NA123168) 588 RON
142 1 2 LABEL (N929414) 588 RON
143 1 1 LABEL (N507221) 588 RON
144 1 1 LABEL PERFORM PROTECT 61MMX20MM (N208653) 588 RON
146 1 1 RATING PLATE (NA114353) 82 RON
195 1 2 SCREW (90611830) 588 RON
220 1 1 SIDE HANDLE (N536691) 12361 RON
221 1 1 SA KNOB (487291-00) 3466 RON
222 1 2 WASHER LOCKING (479317-00) 893 RON
223 1 2 RUBBER INSERT (479319-00) 781 RON
224 1 2 WASHER CLAMP (479320-00) 190 RON
225 1 1 CLAMP (N470725) 2796 RON
226 1 1 SCREW M8X185 (487343-00) 2124 RON
227 1 1 LOOP HANDLE (N470872) 16689 RON
227 1 1 HANDLE SIDE SA (N638220) 21676 RON
300 1 1 SERVICE KIT (N773659) 15469 RON
800 1 1 GREASE GLK 249 NLGI 00 150G TUBE (578970-06) 28296 RON
801 1 1 GREASE TUBE 100ML RENOLIT PARAGON EP (870889-02) 4472 RON
837 1 1 S.T.PULLER (1003981-99) 37421 RON
838 1 1 S.T.SEAL FITTING TOOL (1003972-99) 17891 RON
838 1 1 S.T.SEAL FITTING TOOL (1003982-99) 17891 RON
839 1 1 S.T.SEAL FITTING TOOL (1003984-99) 7864 RON
850 1 1 SERVICE TOOL (N544162) 3188 RON
861 1 1 KITBOX (NA087802) 51127 RON
866 1 2 XR FLEXVOLT 9.0Ah Battery (N491552) 176482 RON
867 1 1 SAFETY CAP (N462141) 5370 RON
871 1 1 CHARGER QW (N473860) 73079 RON
