CIOCAN ROTOPERCUTOR DEWALT DWH24 Type 1
[DWH24 Type 1]
CIOCAN ROTOPERCUTOR DEWALT DWH24 Type 1
Click pentru a mari
Imagini suplimentare
CIOCAN ROTOPERCUTOR DEWALT DWH24 Type 1
Click pentru a mari
CIOCAN ROTOPERCUTOR DEWALT DWH24 Type 1
Click pentru a mari
CIOCAN ROTOPERCUTOR DEWALT DWH24 Type 1
Click pentru a mari

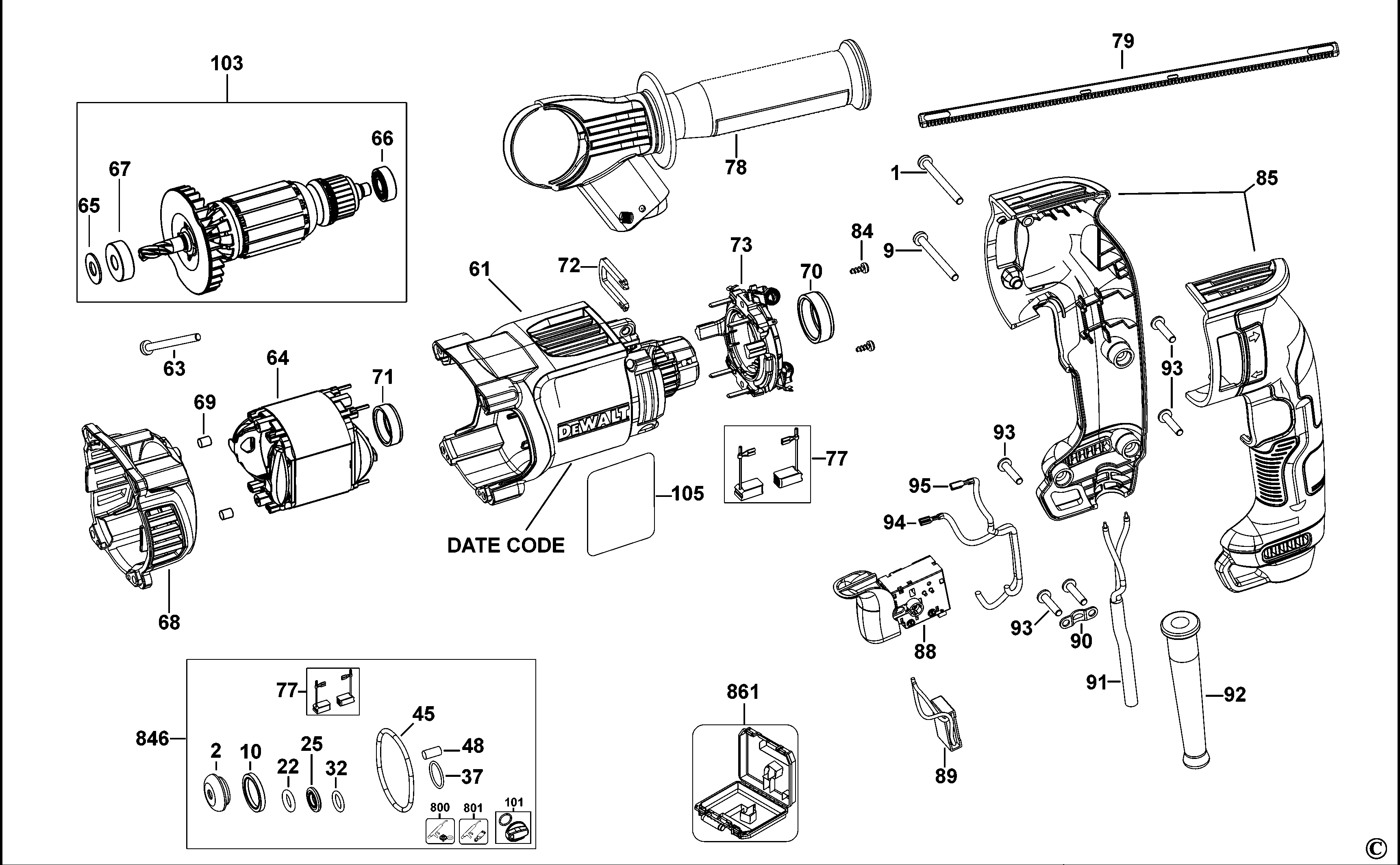

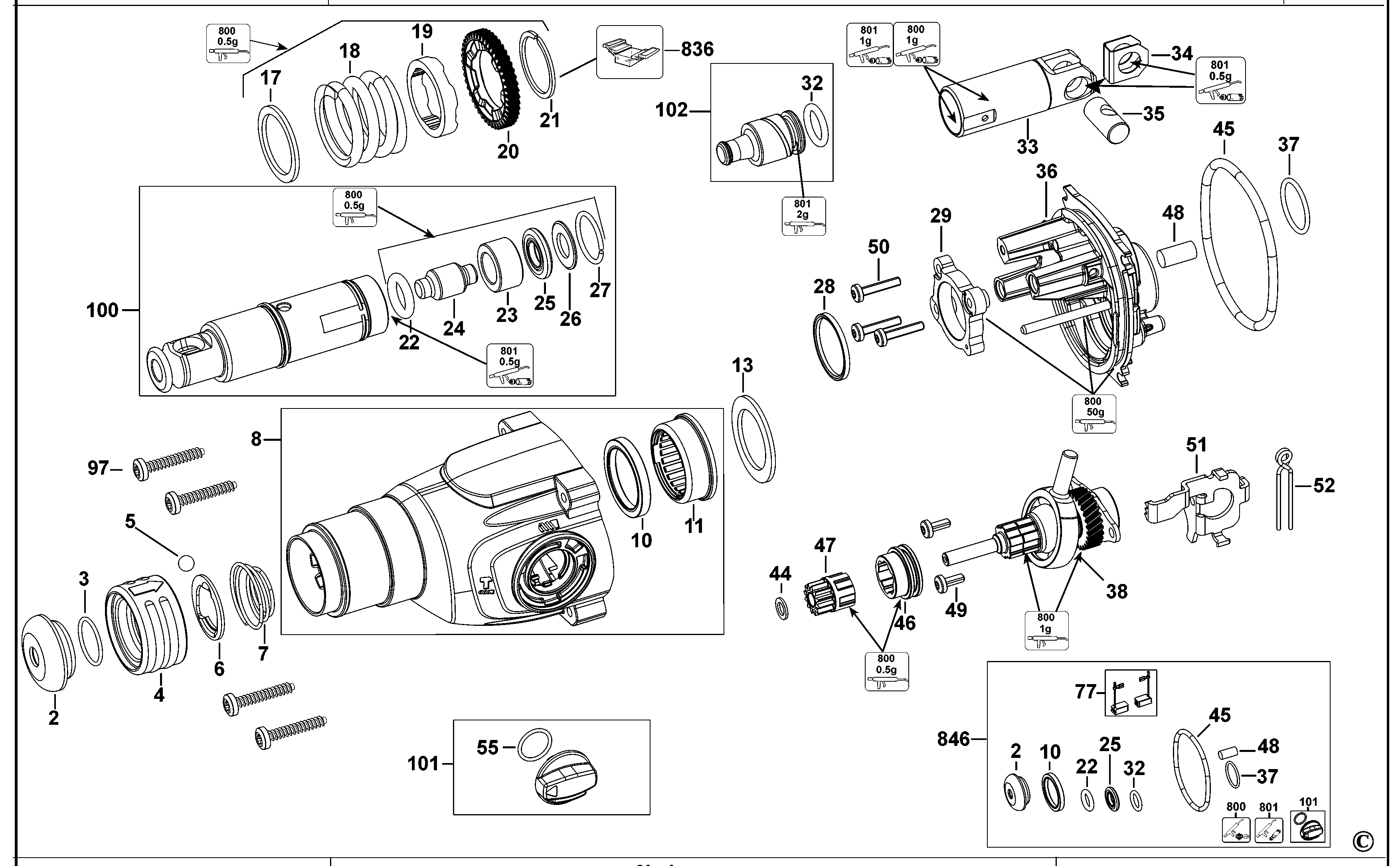

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SCREW PLASTC THD FORM M4.06X42 (N325879) 588 RON
2 1 1 SEAL LIP (323489-00) 893 RON
3 1 1 RING SNAP 21 (579212-00) 781 RON
4 1 1 SLIDING TUBE (SUBC) (N163578) 2795 RON
4 1 1 SA SLIDING TUBE (N720573) 1933 RON
5 1 1 BALL 7.0 (583890-00) 781 RON
6 1 1 SDS BALL PLATE (WASHER SDS 1.4MM) (578387-00) 893 RON
7 1 1 SPRING BEVEL (871690) 558 RON
8 1 1 HOUSING SA (N417731) 6688 RON
9 1 1 SCREW (330065-16) 558 RON
10 1 1 RING SEALING DIA28 (N496180) 1933 RON
11 1 1 NEEDLE BEARING (N020023) 3018 RON
13 1 1 WASHER,NEEDLE BEARING (1005788-00) 82 RON
17 1 1 WASHER CLUTCH (589350-00) 105 RON
18 1 1 SPRING (N264677) 1318 RON
19 1 1 LOCKING RING (N417735) 5370 RON
20 1 1 Wheel Gear with Packaging DTV Hammer (N417737) 3954 RON
22 1 1 O-RING 13X4 (N394276) 82 RON
23 1 1 GUIDE BEAT PIECE (N470388) 1772 RON
24 1 1 N417744 - Indisponibil
24 1 1 BEAT PIECE (NA534440) 2796 RON
25 1 1 RING RAMCATCHER (580990-00) 1117 RON
26 1 1 RAM CATCHER OPP/MPP (N531681) 1933 RON
27 1 1 RING SNAP 22.5 (N294259) 588 RON
28 1 1 RING (N267565) 82 RON
29 1 1 BEARING (N417745) 2556 RON
32 1 1 O RING 14X3 (N264642) 114 RON
33 1 1 PISTON (N425231) 5370 RON
34 1 1 WASHER U SHAPE (1005842-00) 558 RON
35 1 1 CROSS BOLT (N325041) 1630 RON
36 1 1 HOUSING BR OPP/MPP WITH PACK FOR SERVICE (N495931) 9012 RON
37 1 1 O RING 22X2 (N264673) 588 RON
38 1 1 INTERSHAFT SA (N418018) 15469 RON
44 1 1 WASHER INTERSHAFT FRONT (1005844-00) 558 RON
45 1 1 O RING 68X4 (N264672) 668 RON
46 1 1 COLLAR (N417853) 1772 RON
47 1 1 Gear (N417859) 4355 RON
48 1 1 FELT (1005812-00) 558 RON
49 1 2 SCREW TAPTITE M4X10 ANU LOCK (N445171) 588 RON
50 1 3 SCREW TAPTITE M4X20 ANU LOCK (324006-15) 558 RON
51 1 1 PLATE SWITCH OPP/MPP (N493869) 1772 RON
52 1 1 SPRING MODE SWITCH (1005795-00) 558 RON
55 1 1 SERING (N091381-00) 588 RON
61 1 1 HOUSING MOTOR (N481043) 4355 RON
63 1 2 SCREW DW941K (330019-39) 558 RON
65 1 1 N245239 - Indisponibil
66 1 1 CE BEARING (1005895-00) 1788 RON
67 1 1 BEARING BALL (330003-60) 190 RON
68 1 1 CONNECTION FLANGE DTV 40MM 2KG HAMMER (N344965) 1630 RON
69 1 2 RUBBER PAD (N476768) 588 RON
70 1 1 RING RUBBER (1005856-00) 781 RON
70 1 1 N442577 - Indisponibil
71 1 1 BEARING COVER (N442578) 588 RON
72 1 1 CLIP COMM BEARING (1005894-00) 558 RON
79 1 1 STOP DEPTH (798846-02) 893 RON
84 1 2 SCREW PLSTC THD FORM M3.12 X 16 (N475466) 588 RON
90 1 1 CLAMP CORD CORNER (329301-00) 558 RON
93 1 5 SCREW (330065-08) 558 RON
94 1 1 LEAD WIRE, BLUE PISTOL (N425379) 668 RON
95 1 1 LEAD WIRE RED PISTOL (1005879-01) 781 RON
97 1 4 N395744 - Indisponibil
97 1 4 SCREW PLSTC THD FORM M4X35 (N476832) 588 RON
100 1 1 N424934 - Indisponibil
100 1 1 NA015421 - Indisponibil
100 1 1 SASPINDLE+SLIDINGTUBE HAMMER FOR SERVICE (NA419837) 18568 RON
101 1 1 SELECTOR SA (N417861) 3954 RON
102 1 1 RAM SA (N418035) 5370 RON
800 1 1 GREASE TUBE 100ML RENOLIT PARAGON EP (870889-02) 4472 RON
801 1 1 GREASE GLK FLUID 10G SACHET - SERVICE (487130-04) 3466 RON
836 1 1 SERVICE TOOLING KIT (596005-99) 84238 RON
836 1 1 S.T.CIRCLIP REMOVER (1003960-99) 74397 RON
836 1 1 S.T.CIRCLIP REMOVER (1003959-99) 42123 RON
