CIOCAN ROTOPERCUTOR DEWALT DW561 Type 3
[DW561 Type 3]
CIOCAN ROTOPERCUTOR DEWALT DW561 Type 3
Click pentru a mari
Imagini suplimentare
CIOCAN ROTOPERCUTOR DEWALT DW561 Type 3
Click pentru a mari

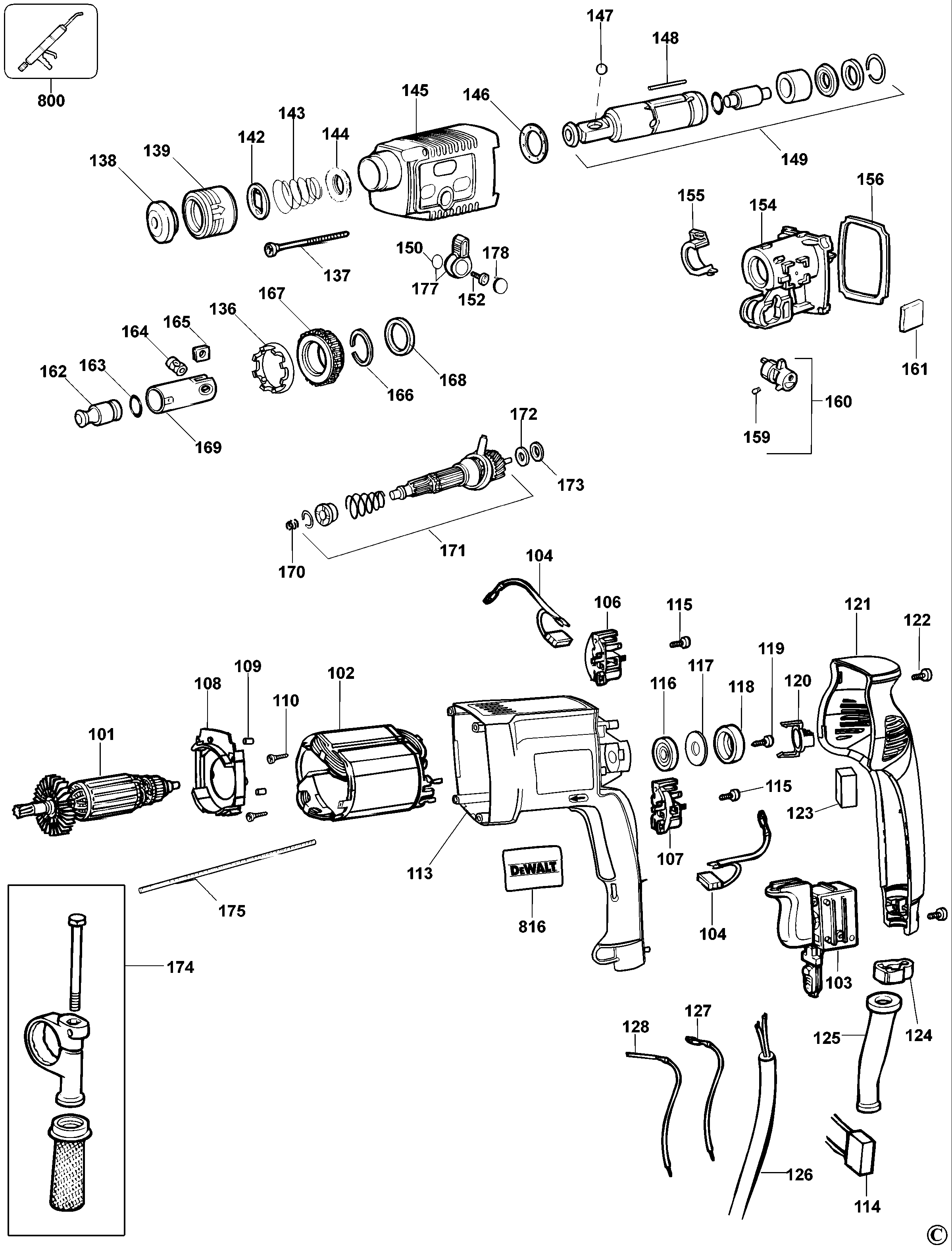

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
108 1 1 COVER FAN (327293-00) 105 RON
109 1 2 PLUG (949638-01) 558 RON
110 1 2 SCREW (747329) 558 RON
113 1 1 HOUSING MOTOR (327290-05) 5031 RON
115 1 2 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 558 RON
116 1 1 BEARING BALL (330003-19) 2124 RON
117 1 1 WASHER (949876-25) 558 RON
118 1 1 BEARING COVER (870052) 558 RON
119 1 1 SCREW COLLER 8MM (329794-00) 558 RON
120 1 1 CAP BEARING (327296-00) 558 RON
121 1 1 COVER HANDLE SOFT YELLOW (327298-01) 5591 RON
122 1 3 SCREW (330065-07) 558 RON
123 1 1 BUMPER SPONGE (930026-01) 781 RON
124 1 1 CORD CLAMP (402649-00) 558 RON
125 1 1 CORD PROTECTOR (403395-00) 1788 RON
127 1 1 SA LEADWIRE BLUE (949801-70) 558 RON
128 1 1 SA LEADWIRE (573310-00) 781 RON
136 1 1 SLEEVE (327110-00) 558 RON
137 1 4 SCREW. PLASTIC 4 X 65 (324044-02) 558 RON
138 1 1 SEAL LIP (323489-00) 893 RON
139 1 1 SLIDING COLLAR (576756-00) 2795 RON
142 1 1 WASHER SDS (871354) 781 RON
142 1 1 SDS BALL PLATE (WASHER SDS 1.4MM) (578387-00) 893 RON
143 1 1 SPRING BEVEL (871690) 558 RON
144 1 1 SEAL. DUST (324432-00) 1788 RON
145 1 1 SA GEARCASE (329968-00) 12861 RON
146 1 1 WASHER SUPPORT (329907-00) 3018 RON
147 1 1 BALL 7MM (870953) 558 RON
147 1 1 BALL 7.0 (583890-00) 781 RON
148 1 1 PIN CYL 3 * 23.8 (325880-05) 781 RON
149 1 1 SPINDLE SA (577080-00) 20467 RON
149 1 1 SA SPINDLE PLUS PIN ( SERVICE ) (577080-01) 20467 RON
150 1 1 GASKET (916323) 558 RON
152 1 1 "SCREW PLASTIC 5*12""" (323924-08) 558 RON
154 1 1 SA HOUSING BEARING (327100-00) 14315 RON
155 1 1 SPLASHGUIDE (328507-00) 558 RON
156 1 1 SEAL PROFILE (323572-00) 1117 RON
159 1 1 INDEXING BOLT (N403227) 588 RON
159 1 1 DETENT (326467-00) 558 RON
160 1 1 TRIP CAM (327094-01) 2795 RON
161 1 1 FELT (327093-00) 558 RON
162 1 1 RAM SA (N032136) 7940 RON
162 1 1 RAM SERVICE KIT (578951-00) 11519 RON
163 1 1 RING O DYNAMIC 13X3 (577168-00) 781 RON
164 1 1 BOLT BEARING (487143-00) 3466 RON
165 1 1 SPRING CONNECTING (327072-00) 781 RON
166 1 1 RING SNAP 28RD (323762-02) 558 RON
167 1 1 CLUTCH SA (487401-02) 14315 RON
167 1 1 SA SLIDER SET 2 MODE (487401-00) 9282 RON
168 1 1 RING (327074-00) 1229 RON
169 1 1 PISTON HOLLOW 19MM (487067-00) 14315 RON
170 1 1 SPRING PRESSURE (323395-33) 781 RON
171 1 1 INTERSHAFT SA (327101-01) 22144 RON
172 1 1 BEARING. AXIAL (324430-03) 5031 RON
173 1 1 BEARING. AXIAL (324431-03) 1788 RON
174 1 1 HANDLE SIDE (939794-02) 5591 RON
175 1 1 875715 - Indisponibil
175 1 1 DEPTH STOP (580787-00) 893 RON
177 1 1 S.A. SWITCH. LEVER (327119-00) 781 RON
178 1 1 COVER (328809-00) 558 RON
800 1 1 GREASE 5KGS (870889-49) 129966 RON
800 1 1 GREASE TUBE 100ML RENOLIT PARAGON EP (870889-02) 4472 RON
816 1 1 BRAND LABEL (149474-00) 781 RON
816 1 1 LABEL IDENTITY DEWALT 34*48 (395047-00) 558 RON
