CIOCAN ROTOPERCUTOR DEWALT DCH273 Type 2
[DCH273 Type 2]
CIOCAN ROTOPERCUTOR DEWALT DCH273 Type 2
Click pentru a mari
Imagini suplimentare
CIOCAN ROTOPERCUTOR DEWALT DCH273 Type 2
Click pentru a mari
CIOCAN ROTOPERCUTOR DEWALT DCH273 Type 2
Click pentru a mari

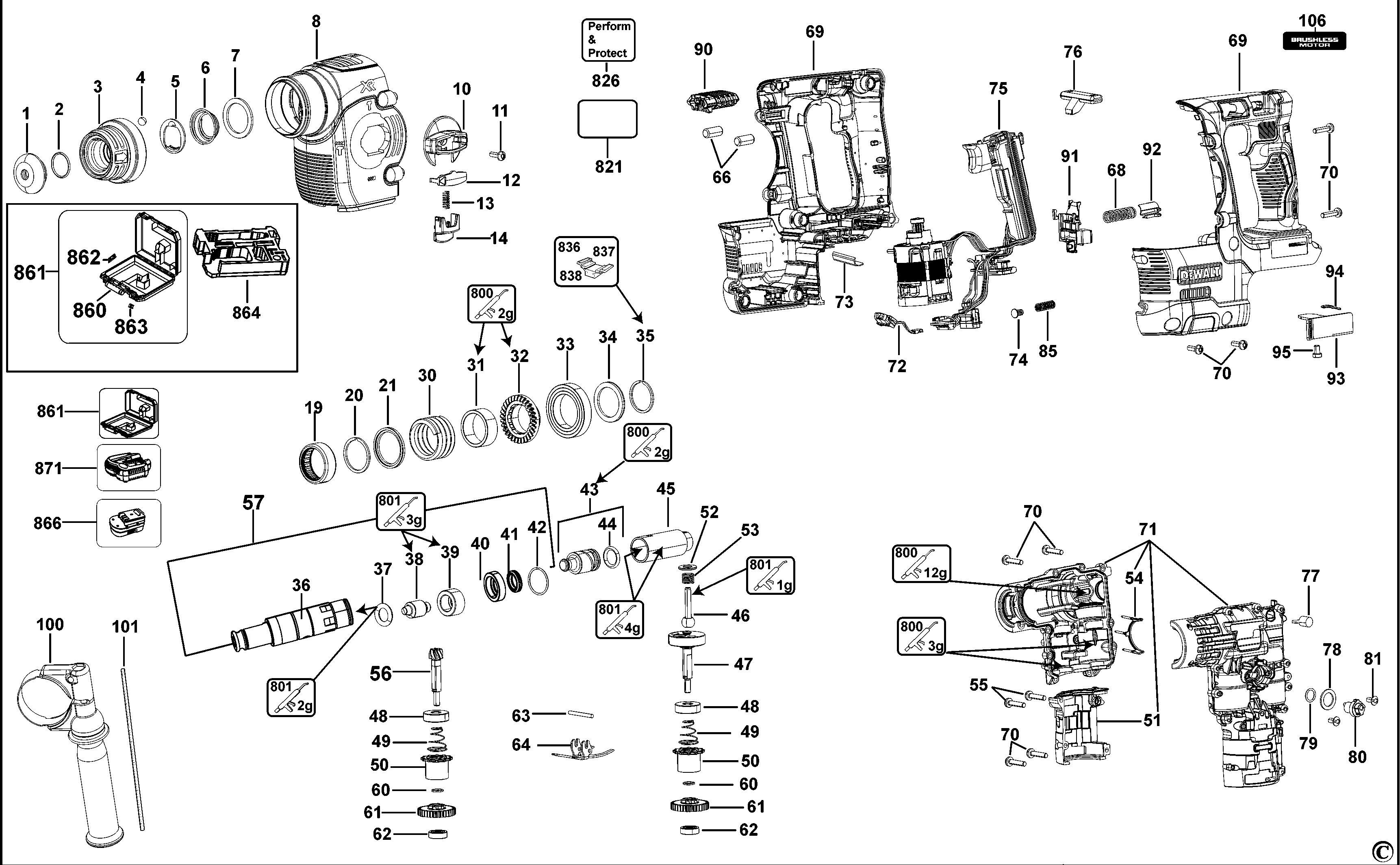

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SEAL LIP (323489-00) 893 RON
2 1 1 RING SNAP 21 (579212-00) 781 RON
3 1 1 N542554 - Indisponibil
3 1 1 TUBE SA (N774198) 5370 RON
4 1 1 BALL 7.0 (583890-00) 781 RON
5 1 1 SDS BALL PLATE (WASHER SDS 1.4MM) (578387-00) 893 RON
6 1 1 SPRING BEVEL (871690) 558 RON
7 1 1 FELT SPINDLE (590306-00) 558 RON
8 1 1 GEARBOX COVER BRUSHLESS (subc) (N339199) 9012 RON
10 1 1 GEAR SWITCH (MOULD) (N190510) 1452 RON
11 1 1 SCREW TAPTITE M4 (324006-16) 2124 RON
12 1 1 CAP-1 (N034134) 105 RON
13 1 1 MODE SELECTOR SPRING (N074923) 558 RON
14 1 1 RELEASE BUTTON (MOULD) (N190511) 781 RON
19 1 1 NEEDLE BEARING HK2812RS (N149956) 3466 RON
20 1 1 CIRCLIP SW28 (488105-00) 781 RON
21 1 1 WASHER CLUTCH (N043423) 190 RON
21 1 1 RETAINER CLUTCH (NA278327) 1772 RON
30 1 1 SPRING CLUTCH (589346-00) 2795 RON
31 1 1 TUBE, DISTANCE (N410822) 2556 RON
32 1 1 SA BEVEL GEAR/SHAFT PINION - GROOVE MARK (N383250) 28836 RON
32 1 1 N528827 - Indisponibil
33 1 1 BEARING BALL 6906 (479478-00) 4472 RON
34 1 1 WASHER SPINDLE (N043424) 190 RON
34 1 1 WASHER (NA558253) 1630 RON
35 1 1 CIRCLIP SW26 1.5MM (488390-00) 558 RON
36 1 1 SPINDLE SDS NQCC (N477771) 24962 RON
36 1 1 SERVICE KIT SA SPINDLE,SDS BL NQCC (N719465) 33797 RON
37 1 1 O-RING 13X4 (N394276) 82 RON
38 1 1 487124-01 - Indisponibil
38 1 1 NQCC PIECE BEAT DCH (SERVICE) (492808-00) 3466 RON
39 1 1 GUIDE BEAT PIECE (N470388) 1772 RON
40 1 1 RAM CATCHER OPP/MPP (N531681) 1933 RON
41 1 1 RING RAMCATCHER (580990-00) 1117 RON
42 1 1 RING SNAP 22.5 (N294259) 588 RON
43 1 1 SERVICE KIT RAM (SERVICE) (N178363) 4472 RON
44 1 1 RING O DYNAMIC 13X3 (N114827) 781 RON
45 1 1 N468461 - Indisponibil
45 1 1 N469245 - Indisponibil
45 1 1 HOLLOW PISTON DCH (SERVICE) (492822-00) 11519 RON
46 1 1 PIN-BALL DCH (SERVICE) (492823-00) 4472 RON
47 1 1 SA CRANK SHAFT (SERVICE) (N288223) 17335 RON
48 1 2 BEARING BALL cod vechi 477133-00 (N168103) 1788 RON
48 1 2 477133-00 - Indisponibil
49 1 1 SPRING TRANSMISSION cod vechi 575021-00 (N466046 ) 558 RON
50 1 2 COLLAR TRANSMISSION D-SHAPE (N150085) 1788 RON
50 1 2 COLLAR (NA395846) 2556 RON
51 1 1 MOTORCOVER BL (N382169) 3954 RON
52 1 1 WASHER (N108992) 558 RON
53 1 1 SPRING RIVET (490286-00) 558 RON
54 1 1 SEAL GB COVER PM50FL 36V (N323159) 944 RON
55 1 2 SCREW PLSTC THD FORM M4.06X30 (330019-81) 558 RON
56 1 1 SA BEVEL GEAR/SHAFT PINION - GROOVE MARK (N383250) 28836 RON
56 1 1 N528795 - Indisponibil
57 1 1 SERVICE KIT SA SPINDLE,SDS BL NQCC (N719465) 33797 RON
60 1 2 RING. SNAP 8 (323763-10) 781 RON
61 1 2 SA GEAR 3M WIDTH BEARING (SERVICE) (N450704) 12361 RON
62 1 2 BEARING, BALL 625 (N621023) 1772 RON
62 1 2 BEARING, BALL (330003-18) 2182 RON
62 1 2 BEARING (330003-40) 3018 RON
63 1 1 PIN (590312-00) 781 RON
64 1 1 PLATE, TRANSMISSION (575022-00) 1772 RON
64 1 1 PLATE TRANSMISSION COD VECHI 575022-00 (NA210726) 190 RON
66 1 2 PIN CYLINDER 8*18 AVS (575032-00) 893 RON
68 1 1 SPRING, BOTTOM DCH BRUSHLESS (N416466) 82 RON
69 1 1 N421939 - Indisponibil
69 1 1 HANDLE SA (NA221150) 16689 RON
70 1 24 SCREW PLSTIC THD FORM M4.06X18 (330019-80) 558 RON
71 1 1 SA GEARBOX DCH-B-LESS (SERVICE) (N421951) 30769 RON
72 1 1 SA LED DCH ZODIAC (N051450) 3466 RON
73 1 1 STEEL-LATCH DCH ZODIAC (N094649) 105 RON
74 1 1 MOUNT TERM BLOCK SPRING (MOULD) (N122099) 558 RON
75 1 1 SBS DCH SA CONTROL MOD AND MOTOR DCH EU (N463936) 78485 RON
76 1 1 F-R BAR DCH ZODIAC (N072124) 781 RON
77 1 1 FELT (582865-00) 558 RON
78 1 1 WASHER 12X18X1.2 (1006725-00) 781 RON
79 1 1 323711-34 - Indisponibil
80 1 1 MODE SELECTOR LEVER (575025-00) 3466 RON
81 1 2 SCREW PLASTIC 4 * 8 (330065-04) 558 RON
85 1 1 SPRING (N119679) 558 RON
90 1 1 SA AVS DCH BL (N376306) 3268 RON
91 1 1 MOTOR CLIP BL (N389213) 114 RON
92 1 1 SPRING CAP (N400088) 82 RON
93 1 1 BELT HOOK SDS PL HP (N461541) 5370 RON
93 1 1 HOOK SA (N914798) 9012 RON
94 1 1 SPRING DETENT (N400082) 2182 RON
95 1 1 BAYONET LOCK BELT HOOK (N400130) 588 RON
100 1 1 SIDEHANDLE (N112156) 12861 RON
101 1 1 DEPTH STOP (N290613) 893 RON
106 1 1 LABEL - BRUSHLESS MOTOR (N415919) 588 RON
106 1 1 SA STICKERS SHEET DCH273 EU (NA767253) 588 RON
800 1 1 GREASE SACHET 20G RENOLIT PARAGON EP 1 (870889-03) 3018 RON
801 1 1 GREASE GLK FLUID 10G SACHET - SERVICE (487130-04) 3466 RON
821 1 1 N642462 - Indisponibil
821 1 1 NA149319 - Indisponibil
821 1 1 RATING LABEL (NA269505) 588 RON
826 1 1 LABEL PERFORM PROTECT 42MMX14MM (N196274) 781 RON
826 1 1 SA STICKERS SHEET DCH273 EU (NA767253) 588 RON
836 1 1 SERVICE TOOLING KIT (596005-99) 84238 RON
837 1 1 SERVICE TOOLING KIT (596006-99) 36736 RON
838 1 1 SERVICE TOOLING KIT (596007-99) 40271 RON
860 1 1 HANDLE (H1400198008) 2347 RON
860 1 1 H1400196008 - Indisponibil
861 1 1 KITBOX DCH ZODIAC (MOULD) (576657-05) 15993 RON
862 1 1 LATCH (N409477) 114 RON
862 1 2 LATCH (H1500082520) 1117 RON
863 1 2 LATCH (P910190) 3466 RON
864 1 1 INSERT (N565020) 741 RON
866 1 1 N436213 - Indisponibil
871 1 1 DCB101-NA - Indisponibil
871 1 1 DCB105-KR - Indisponibil
871 1 1 N450536 - Indisponibil
871 1 1 CHARGER-DCB1104-QW - (4A) (NA132878) 44688 RON
871 1 1 CHARGER 10.8V - 18V (NA010209) 51127 RON
900 1 1 NA221145 - Indisponibil
