Top » Piese de schimb » PIESE DEWALT » D25773 Type 2

CIOCAN ROTOPERCUTOR DEWALT D25773 Type 2
[D25773 Type 2]
CIOCAN ROTOPERCUTOR DEWALT D25773 Type 2
Click pentru a mari
Imagini suplimentare
CIOCAN ROTOPERCUTOR DEWALT D25773 Type 2
Click pentru a mari
CIOCAN ROTOPERCUTOR DEWALT D25773 Type 2
Click pentru a mari
CIOCAN ROTOPERCUTOR DEWALT D25773 Type 2
Click pentru a mari
CIOCAN ROTOPERCUTOR DEWALT D25773 Type 2
Click pentru a mari

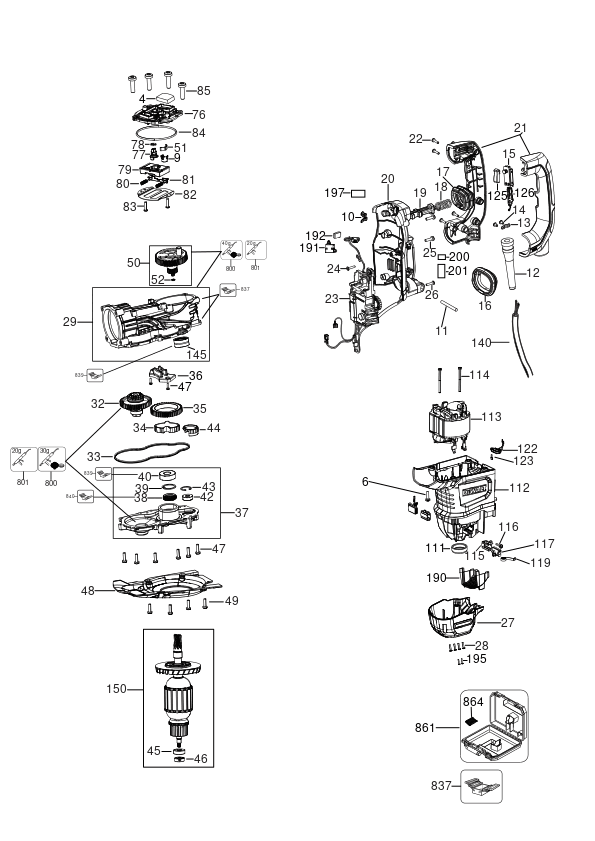

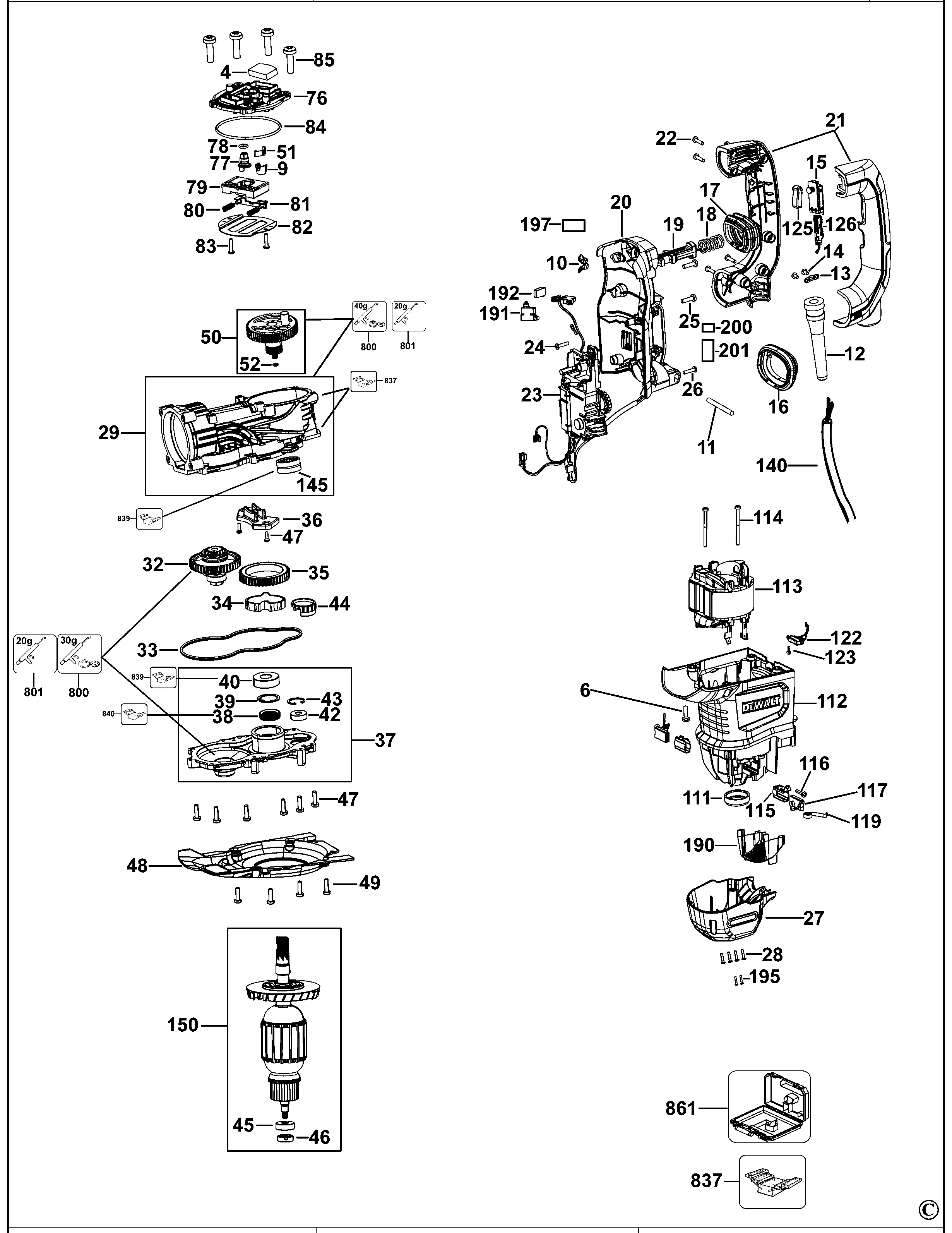

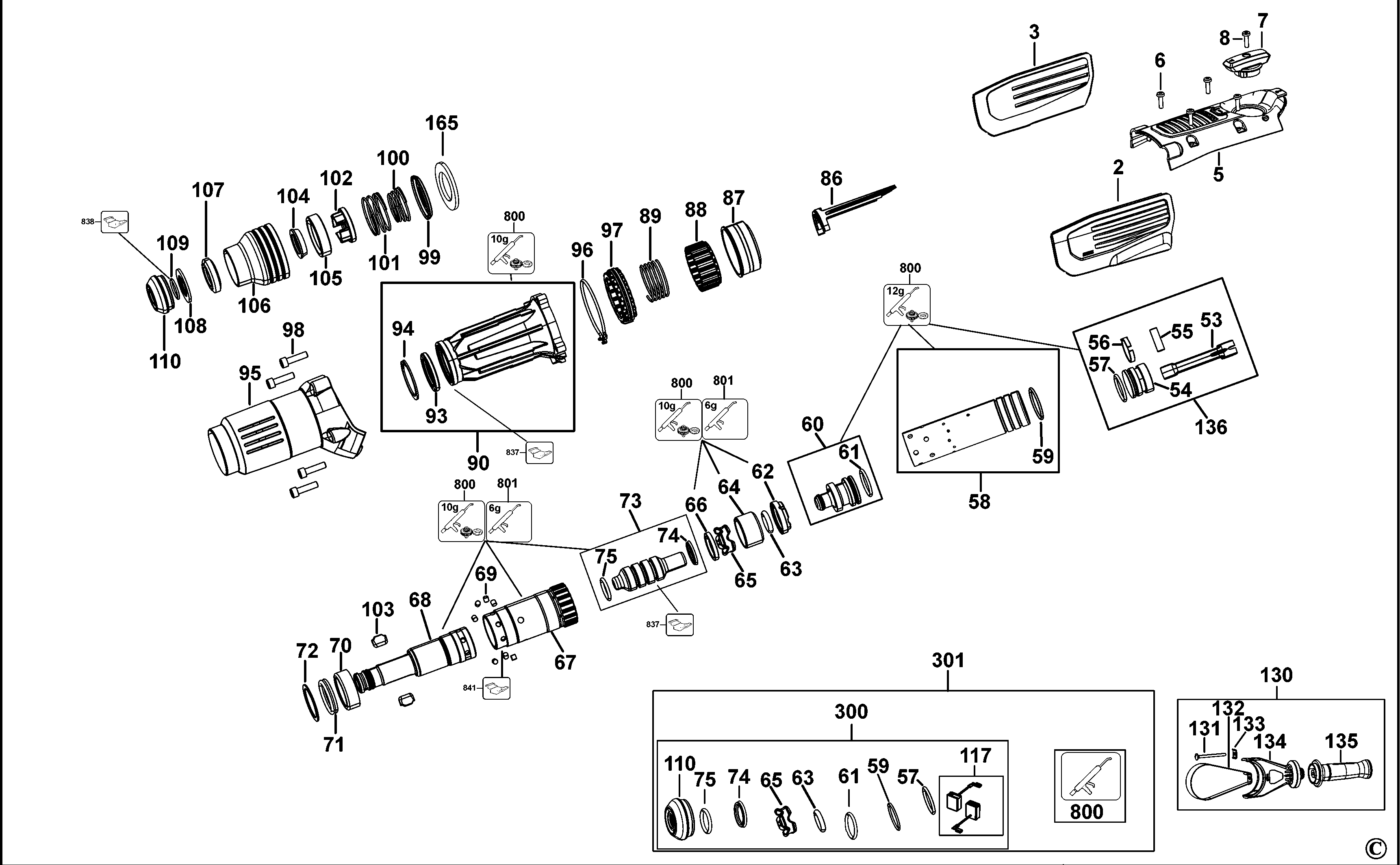

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
2 1 1 SIDE LH (N513078) 2556 RON
3 1 1 SIDE RH (N513079) 2796 RON
4 1 1 FELT (N481045) 668 RON
5 1 1 TOP COVER BLACK (N410169) 2796 RON
6 1 8 SCREW (N548557) 588 RON
7 1 1 SELECTOR (N463694) 944 RON
8 1 1 SCREW (330065-08) 558 RON
9 1 1 CAP (N607940) 588 RON
10 1 1 LENS (N519469) 588 RON
11 1 1 PIN (N453525) 114 RON
12 1 1 CORD PROTECTOR (323091-01) 105 RON
13 1 1 CLAMP CORD CORNER (329301-00) 558 RON
14 1 2 SCREW PLASTIC 4 * 8 (330065-04) 558 RON
15 1 1 DEFOND SWITCH (N467530) 10241 RON
16 1 1 BELLOWS (N453629) 1630 RON
17 1 1 BELLOWS (N453630) 1318 RON
18 1 1 SPRING (N501559) 588 RON
19 1 1 LIMIT STOP (N152623) 3018 RON
20 1 1 PANEL.REAR (N410165) 5370 RON
21 1 1 CLAMSHELL SET (N580489) 10241 RON
22 1 6 SCREW (330065-08) 558 RON
23 1 1 CONTROL MODULE SA (N592362) 73079 RON
24 1 1 SCREW (330065-08) 558 RON
25 1 4 SCREW (N548557) 588 RON
26 1 2 SCREW (330065-08) 558 RON
27 1 1 END CAP (N389340) 4355 RON
28 1 4 SCREW (330065-08) 558 RON
29 1 1 HOUSING SA (N850598) 85494 RON
32 1 1 CLUTCH SA (N580503) 35435 RON
33 1 1 SEAL (N447147) 82 RON
34 1 1 BEARING SINTER (N781072) 3268 RON
35 1 1 Gear (N580506) 5370 RON
36 1 1 CLAMP (N783357) 588 RON
37 1 1 GEARCASE COVER SA (N851025) 28836 RON
38 1 1 SEAL (N422626) 3954 RON
39 1 1 CIRCLIP, INTERNAL 28MM (488147-01) 588 RON
40 1 1 BEARING BALL (330003-13) 4137 RON
42 1 1 BEARING BALL (330003-60) 190 RON
43 1 1 CIRCLIP (N362699) 588 RON
44 1 1 SPACER (N537281) 82 RON
45 1 1 BEARING BALL (330003-60) 190 RON
46 1 1 MAGNET (N466979) 2796 RON
47 1 8 SCREW (N548557) 588 RON
48 1 1 BAFFLE (N405298) 1772 RON
49 1 4 SCREW (N548557) 588 RON
50 1 1 CRANKSHAFT (N580511) 30769 RON
51 1 1 DETENT (N520790) 588 RON
52 1 1 O RING (N537973) 588 RON
53 1 1 CON ROD (N662675) 6688 RON
54 1 1 PISTON (N431764) 6688 RON
55 1 1 PIN (N026610) 944 RON
56 1 1 PISTON RING (N439990) 668 RON
57 1 1 "O RING 33*3.5""" (487296-00) 2124 RON
58 1 1 CYLINDER SA (N851029) 30769 RON
59 1 1 O RING (N587667) 588 RON
60 1 1 RAM SA (N580521) 25728 RON
61 1 1 "O RING 33*3.5""" (487296-00) 2124 RON
62 1 1 BUSH CYLINDER 10KG (N400498) 944 RON
63 1 1 O RING (N389365) 2182 RON
64 1 1 DAMPER (N476023) 10241 RON
65 1 1 DAMPER (N515559) 4355 RON
66 1 1 WASHER (N389693) 2556 RON
67 1 1 SPINDLE (N580522) 44688 RON
68 1 1 SPINDLE (N580524) 48037 RON
69 1 5 PIN (N548304) 668 RON
70 1 1 RING (N475966) 1933 RON
71 1 1 DAMPER (N514255) 3268 RON
72 1 2 WASHER (N392234) 944 RON
73 1 1 BEAT PIECE (N580525) 32327 RON
74 1 1 SEAL BEATPIECE, 25x33x4.3 (N594490) 1933 RON
75 1 1 O RING (N432561) 114 RON
76 1 1 COVER (N409943) 1933 RON
77 1 1 ECCENTRIC (N504016) 588 RON
78 1 1 O RING (N515556) 944 RON
79 1 1 SLIDER (N410143) 668 RON
80 1 2 SPRING (N520791) 588 RON
81 1 1 CONNECTOR (N410898) 588 RON
82 1 1 PLATE (N427022) 944 RON
83 1 2 SCREW (330065-08) 558 RON
84 1 1 O RING (N455140) 114 RON
85 1 4 SCREW (N548557) 588 RON
86 1 1 SLIDER (N481044) 1630 RON
87 1 1 BEVEL GEAR (N580526) 48037 RON
88 1 1 SLEEVE (N580533) 11337 RON
89 1 1 SPRING (N497938) 944 RON
90 1 1 HOUSING FRONT (N580535) 42426 RON
93 1 1 SEAL (N392582) 3954 RON
94 1 1 SAFETY RING 55 (N181847) 893 RON
95 1 1 COVER (N416527) 5370 RON
96 1 1 GASKET (N431324) 114 RON
97 1 1 BUSH (N420195) 2796 RON
98 1 4 SCREW M8*30 (949886-32) 781 RON
99 1 1 GUIDE (N516486) 2182 RON
100 1 1 SPRING (N520784) 588 RON
101 1 1 SPRING (N520782) 944 RON
102 1 1 GUIDING BUSH SDS ST (N408040) 2796 RON
103 1 2 PIECE, LOCKING (N511836) 4827 RON
104 1 1 DAMPER BUSH SDS (N511805) 5370 RON
105 1 1 LOCKING BUSH SDS (N511834) 3268 RON
106 1 1 SLEEVE (N468816) 2796 RON
107 1 1 RING RUBBER (487244-00) 2347 RON
107 1 1 RUBBER (NA176490) 2796 RON
108 1 1 WASHER (N516487) 944 RON
109 1 1 RETAINER (N522784) 588 RON
110 1 1 SEAL LIP (487238-01) 4137 RON
110 1 1 SEAL (NA176495) 5370 RON
111 1 1 COVER BEARING (N449094) 588 RON
112 1 1 HOUSING MOTOR (N580536) 13697 RON
113 1 1 FIELD 230V (N580537) 35435 RON
114 1 2 SCREW PLASTIC THREAD FORM M4 * 57 T20 (330019-30) 558 RON
115 1 2 BRUSH HOLDER SA (N425665) 114 RON
116 1 2 SCREW (330065-08) 558 RON
117 1 1 BRUSH PAIR 230V (N580542) 10241 RON
119 1 2 BRUSH SPRING (N523745) 588 RON
122 1 1 SA TACHO COIL (N448156) 6688 RON
123 1 1 SCREW (N086775) 558 RON
125 1 1 SWITCH TRIGGER CAP 8&10KG HAMMER (N640362) 668 RON
126 1 1 N518647 - Indisponibil
126 1 1 SWITCH LOCK-ON (NA772991) 4827 RON
130 1 1 HANDLE SIDE SA (N412213) 13697 RON
131 1 1 BOLT (N552104) 944 RON
132 1 1 CLAMP (N412984) 4827 RON
133 1 1 WASHER (N413396) 588 RON
134 1 1 CLAMP (N411953) 5370 RON
135 1 1 HANDLE SA (N499183) 741 RON
136 1 1 PISTON SA (N580512) 20216 RON
140 1 1 CORDSET (EURO) (1005752-00) 6821 RON
145 1 1 BEARING,NEEDLE (N408073) 10241 RON
150 1 1 ARMATURE 230V (N580509) 52855 RON
165 1 1 FELT (N578605) 2796 RON
190 1 1 COVER (N602345) 944 RON
191 1 1 MODE CHANGE MICROSWITCH (N516505) 741 RON
191 1 1 MICRO SWITCH (NA772990) 3954 RON
192 1 1 Pad DW831 (620051-00) 558 RON
195 1 2 SCREW (90611830) 588 RON
197 1 1 LABEL (N551537) 588 RON
200 1 1 LABEL (N551374) 588 RON
201 1 1 N840423 - Indisponibil
201 1 1 RATING PLATE (NA199140) 114 RON
300 1 1 SERVICE KIT 230V (N593930) 27287 RON
800 1 1 GREASE GLK 249 NLGI 00 150G TUBE (578970-06) 28296 RON
801 1 1 GREASE TUBE 100ML RENOLIT PARAGON EP (870889-02) 4472 RON
837 1 1 S.T.SUPPORT JIG (1003974-99) 29745 RON
837 1 1 S.T.SEAL FITTING TOOL (1003971-99) 1807 RON
837 1 1 S.T.SEAL FITTING TOOL (1003973-99) 2767 RON
837 1 1 S.T.INSERTION TOOL (1003975-99) 11159 RON
838 1 1 SERVICE TOOL (559651-99) 252696 RON
838 1 1 S.T.CIRCLIP REMOVER (1003976-99) 33298 RON
839 1 1 S.T.BEARING INSERTOR (1003979-99) 11346 RON
840 1 1 S.T.INSERTION TOOL (1003978-99) 7383 RON
841 1 1 S.T.PULLER (1003977-99) 14676 RON
861 1 1 KITBOX (N508182) 44688 RON
864 1 2 LATCH (N565827) 114 RON
