CIOCAN ROTOPERCUTOR DEWALT D25733 Type 2
[D25733 Type 2]
CIOCAN ROTOPERCUTOR DEWALT D25733 Type 2
Click pentru a mari
Imagini suplimentare
CIOCAN ROTOPERCUTOR DEWALT D25733 Type 2
Click pentru a mari
CIOCAN ROTOPERCUTOR DEWALT D25733 Type 2
Click pentru a mari
CIOCAN ROTOPERCUTOR DEWALT D25733 Type 2
Click pentru a mari
CIOCAN ROTOPERCUTOR DEWALT D25733 Type 2
Click pentru a mari

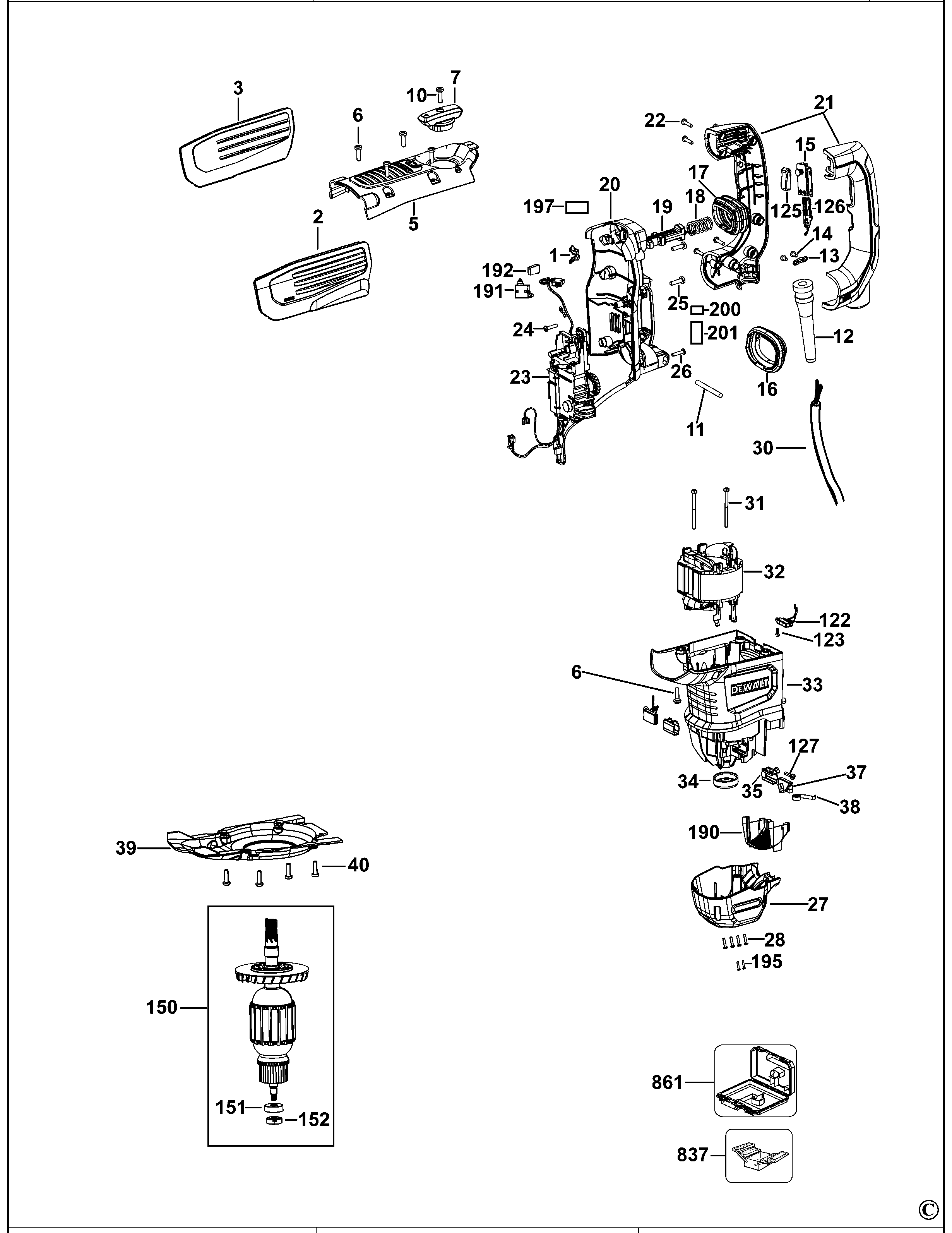

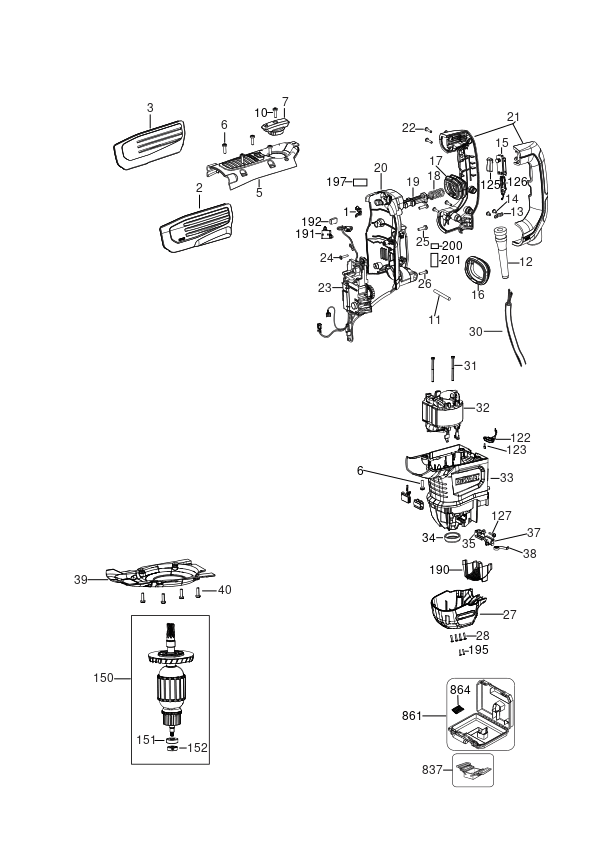

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 LENS (N519469) 588 RON
2 1 1 SIDE LH (N513078) 2556 RON
3 1 1 SIDE RH (N513079) 2796 RON
4 1 1 FELT (N481045) 668 RON
5 1 1 COVER-TOP (N410170) 3268 RON
6 1 8 SCREW (N548557) 588 RON
7 1 1 SELECTOR (N463694) 944 RON
9 1 1 CAP (N607940) 588 RON
10 1 1 SCREW (330065-08) 558 RON
11 1 1 PIN (N453525) 114 RON
12 1 1 CORD PROTECTOR (323091-01) 105 RON
13 1 1 CLAMP CORD CORNER (329301-00) 558 RON
14 1 1 SCEW PLSTC THD FORM M4X10 T20 (330065-05) 558 RON
15 1 1 DEFOND SWITCH (N467530) 10241 RON
16 1 1 BELLOWS (N453629) 1630 RON
17 1 1 BELLOWS (N453630) 1318 RON
18 1 1 SPRING (N501559) 588 RON
19 1 1 LIMIT STOP (N152623) 3018 RON
20 1 1 PANEL.REAR (N410165) 5370 RON
21 1 1 CLAMSHELL SET (N580489) 10241 RON
22 1 6 SCREW (330065-08) 558 RON
23 1 1 CONTROL MODULE SA (N580499) 73079 RON
24 1 1 SCREW (330065-08) 558 RON
25 1 4 SCREW (N548557) 588 RON
26 1 2 SCREW (330065-08) 558 RON
27 1 1 END CAP (N389340) 4355 RON
28 1 4 SCREW (330065-08) 558 RON
30 1 1 CORDSET (EURO) (1005752-00) 6821 RON
31 1 2 SCREW PLASTIC THREAD FORM M4 * 50 T20 (330019-50) 558 RON
31 1 2 SCREW PLASTITE (330019-18) 558 RON
32 1 1 FIELD 230V (N585927) 24962 RON
33 1 1 HOUSING MOTOR (N580536) 13697 RON
34 1 1 COVER BEARING (N449094) 588 RON
35 1 1 BRUSH HOLDER SA (N425665) 114 RON
37 1 1 BRUSH PAIR 230V (N580542) 10241 RON
38 1 2 BRUSH SPRING (N523745) 588 RON
39 1 1 BAFFLE (N405298) 1772 RON
40 1 4 SCREW (N548557) 588 RON
41 1 1 HOUSING SA (N850601) 125542 RON
44 1 1 O RING (N537973) 588 RON
45 1 1 CLUTCH SA (N580503) 35435 RON
46 1 1 SEAL (N447147) 82 RON
47 1 1 BEARING SINTER (N781072) 3268 RON
48 1 1 Gear (N580506) 5370 RON
49 1 1 SPACER (N537281) 82 RON
50 1 1 CRANKSHAFT (N580547) 30769 RON
51 1 1 GEARCASE COVER SA (N851025) 28836 RON
52 1 1 SEAL (N422626) 3954 RON
53 1 1 CIRCLIP, INTERNAL 28MM (488147-01) 588 RON
54 1 1 BEARING BALL (330003-13) 4137 RON
55 1 1 BEARING BALL (330003-60) 190 RON
56 1 1 CIRCLIP (N362699) 588 RON
57 1 6 SCREW (N548557) 588 RON
63 1 1 PISTON SA (N580550) 16689 RON
66 1 1 CON ROD (N662674) 5370 RON
67 1 1 PISTON (N430664) 6688 RON
68 1 1 PIN PISTON 7KG (N026609) 82 RON
69 1 1 PISTON RING (N439990) 668 RON
70 1 1 O RING (N612854) 1630 RON
71 1 1 CYLINDER (N580553) 30769 RON
72 1 2 O-RING 29X2 (N481377) 588 RON
73 1 1 RAM SA (N580554) 15469 RON
74 1 1 O RING (N612854) 1630 RON
75 1 1 O-RING (N493644) 114 RON
76 1 1 BUSH (N413144) 668 RON
77 1 1 DAMPER (N400500) 4355 RON
78 1 2 WASHER (N389366) 82 RON
79 1 1 SPINDLE (N580555) 99395 RON
80 1 2 WASHER (N392234) 944 RON
81 1 1 DAMPER SPINDLE (589223-00) 1117 RON
82 1 1 BEAT PIECE (N580556) 24962 RON
83 1 1 SEAL BEATPIECE, 25x33x4.3 (N594490) 1933 RON
84 1 1 O RING (N432561) 114 RON
85 1 1 COVER (N409943) 1933 RON
86 1 1 ECCENTRIC (N504016) 588 RON
87 1 1 O RING (N515556) 944 RON
88 1 1 SLIDER (N410143) 668 RON
89 1 2 SPRING (N520791) 588 RON
90 1 1 CONNECTOR (N410898) 588 RON
91 1 1 PLATE (N427022) 944 RON
92 1 2 SCREW (330065-08) 558 RON
93 1 1 O RING (N455140) 114 RON
94 1 4 SCREW (N548557) 588 RON
96 1 1 SLIDER (N409698) 944 RON
97 1 1 BEVEL GEAR (N580526) 48037 RON
98 1 1 SLEEVE (N580533) 11337 RON
99 1 1 SPRING (N497938) 944 RON
100 1 1 HOUSING FRONT (N580559) 39318 RON
103 1 1 SEAL (N392582) 3954 RON
104 1 1 SAFETY RING 55 (N181847) 893 RON
105 1 1 COVER FRONT 8KG BLACK (N416525) 4827 RON
106 1 1 GASKET (N431324) 114 RON
107 1 1 BUSH (N420195) 2796 RON
108 1 4 SCREW M8*30 (949886-32) 781 RON
109 1 1 GUIDE (N516486) 2182 RON
110 1 1 SPRING (N520784) 588 RON
111 1 1 SPRING (N520782) 944 RON
112 1 1 GUIDING BUSH SDS ST (N408040) 2796 RON
113 1 2 PIECE, LOCKING (N511836) 4827 RON
114 1 1 LOCKING BUSH SDS (N511834) 3268 RON
115 1 1 DAMPER BUSH SDS (N511805) 5370 RON
116 1 1 SLEEVE (N468816) 2796 RON
117 1 1 RING RUBBER (487244-00) 2347 RON
117 1 1 RUBBER (NA176490) 2796 RON
118 1 1 WASHER (N516487) 944 RON
119 1 1 RETAINER (N522784) 588 RON
120 1 1 SEAL LIP (487238-01) 4137 RON
120 1 1 SEAL (NA176495) 5370 RON
122 1 1 SA TACHO COIL (N448156) 6688 RON
123 1 1 SCREW (N086775) 558 RON
125 1 1 SWITCH TRIGGER CAP 8&10KG HAMMER (N640362) 668 RON
126 1 1 N518647 - Indisponibil
126 1 1 SWITCH LOCK-ON (NA772991) 4827 RON
127 1 2 SCREW (330065-08) 558 RON
130 1 1 HANDLE SIDE SA (N412213) 13697 RON
131 1 1 BOLT (N552104) 944 RON
132 1 1 CLAMP (N412984) 4827 RON
133 1 1 WASHER (N413396) 588 RON
134 1 1 CLAMP (N411953) 5370 RON
135 1 1 HANDLE SA (N499183) 741 RON
138 1 1 DETENT (N520790) 588 RON
140 1 1 BEARING,NEEDLE (N408073) 10241 RON
150 1 1 ARMATURE 230V (N585925) 51127 RON
151 1 1 BEARING BALL (330003-60) 190 RON
152 1 1 MAGNET (N466979) 2796 RON
165 1 1 FELT (N578605) 2796 RON
190 1 1 COVER (N602345) 944 RON
191 1 1 MODE CHANGE MICROSWITCH (N516505) 741 RON
191 1 1 MICRO SWITCH (NA772990) 3954 RON
192 1 1 Pad DW831 (620051-00) 558 RON
195 1 2 SCREW (90611830) 588 RON
197 1 1 LABEL (N551537) 588 RON
200 1 1 LABEL (N551374) 588 RON
201 1 1 N840425 - Indisponibil
201 1 1 RATING PLATE (NA199121) 114 RON
300 1 1 SERVICE KIT 230V (N593923) 23244 RON
800 1 1 GREASE GLK 249 NLGI 00 150G TUBE (578970-06) 28296 RON
801 1 1 GREASE TUBE 100ML RENOLIT PARAGON EP (870889-02) 4472 RON
837 1 1 S.T.SEAL FITTING TOOL (1003972-99) 17891 RON
837 1 1 S.T.SUPPORT JIG (1003974-99) 29745 RON
837 1 1 S.T.SEAL FITTING TOOL (1003973-99) 2767 RON
837 1 1 S.T.INSERTION TOOL (1003975-99) 11159 RON
838 1 1 SERVICE TOOL (559651-99) 252696 RON
838 1 1 S.T.CIRCLIP REMOVER (1003976-99) 33298 RON
839 1 1 S.T.BEARING INSERTOR (1003979-99) 11346 RON
840 1 1 S.T.INSERTION TOOL (1003978-99) 7383 RON
861 1 1 KITBOX (N508182) 44688 RON
864 1 2 LATCH (N565827) 114 RON
